K85DF - Dual Lever Feathering Disengage Spring Return PTO/Pump Air Control Valve

Buyers Products K80 Series Multi-Function PTO/Pump Valve has a dual lever design for feathering, disengaging, and spring return options. The dual-color sleeves designate feathering and automatic disengage; white sleeve designates feathering; and orange sleeve designates automatic disengage. Certain models (K80F, K80DF, K85F, K85DF) provide full range feathering qualities. Valve regulates pressure from 10 to 125 PSI and is designed for dump trucks, dump trailers, transfer trailers, live floor trailers, asphalt/live bottom trailers, bottom dumps, side dumps, platform dumps, and others.

Specifications

The Buyers Products K80 Series Multi-Function PTO/Pump Air Control Valve represents a critical advancement in the precise and safe management of hydraulic systems in heavy-duty commercial vehicles. Engineered with a dual lever design, this valve offers unparalleled control over Power Take-Off (PTO) and hydraulic pump operations, integrating feathering capabilities, automatic disengagement, and a robust spring return mechanism. This comprehensive functionality, coupled with its durable construction and broad application suitability, positions the K80 Series as an indispensable component for enhancing operational efficiency, safety, and longevity across a wide array of demanding mobile hydraulic applications.

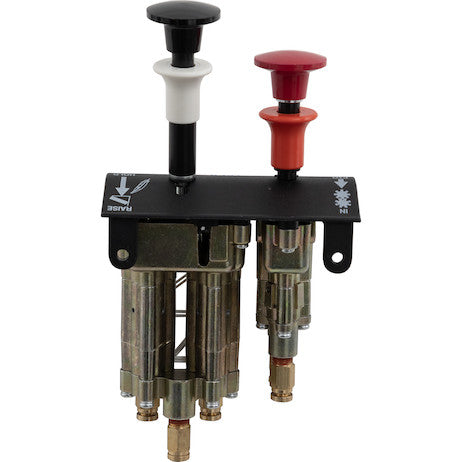

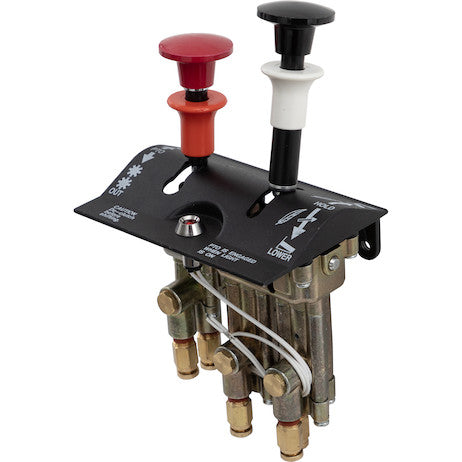

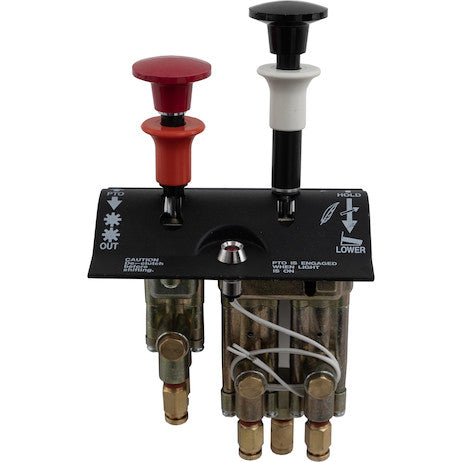

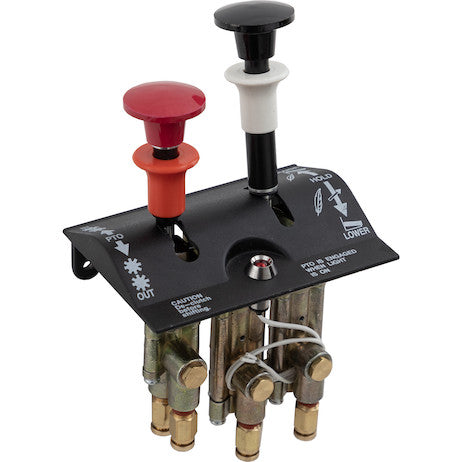

Advanced Dual Lever Design for Intuitive Control

At the core of the K80 Series valve's superior performance is its innovative dual lever design. This configuration provides operators with distinct and intuitive control interfaces for different operational modes, significantly reducing the potential for error and streamlining complex tasks. Each lever is ergonomically positioned for ease of access and manipulation, even within demanding cab environments. The deliberate separation of controls for feathering and automatic disengage functions ensures that precise actions can be executed without ambiguity.

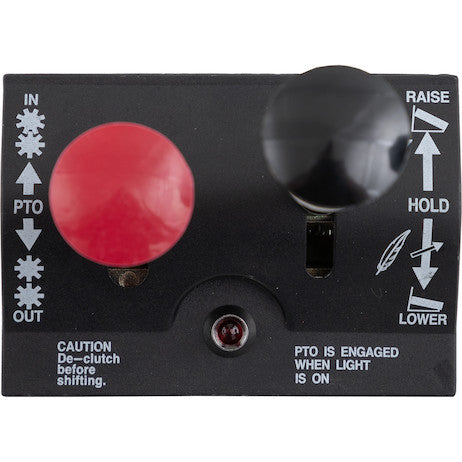

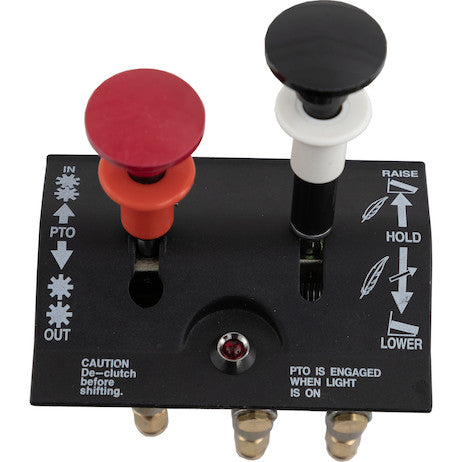

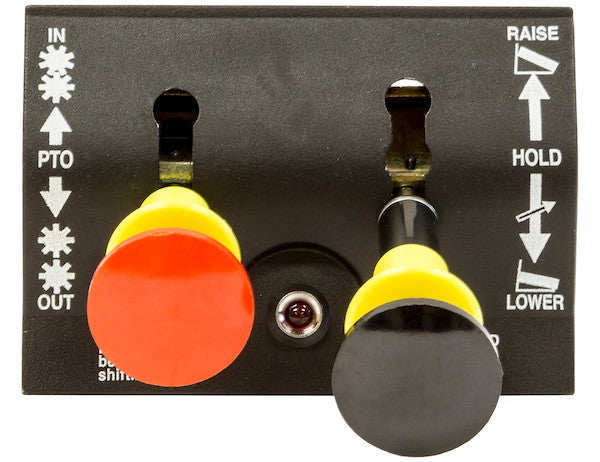

To further enhance usability and safety, the levers are equipped with dual-color sleeves, serving as immediate visual indicators of their respective functions. The white sleeve is dedicated to the feathering mechanism, signaling its role in modulated, fine-tuned control of hydraulic flow. Conversely, the orange sleeve designates the automatic disengage function, clearly indicating the lever responsible for rapid and complete system shutdown. This color-coding system is not merely aesthetic; it is a critical safety feature that allows operators to quickly identify and activate the correct function, even under stressful conditions, thereby minimizing operational delays and mitigating safety risks. The tactile feedback and distinct lever throws further differentiate the functions, ensuring that operators can rely on both visual and physical cues for precise command.

Precision Feathering Capabilities

Feathering is a paramount feature in modern hydraulic systems, enabling granular control over the engagement and disengagement of hydraulic power. In the context of the K80 Series, feathering translates to the ability to precisely regulate the air pressure supplied to the PTO engagement cylinder and subsequently, the hydraulic pump. This modulation allows for a gradual build-up or reduction of hydraulic flow and pressure, preventing sudden jolts, minimizing shock loads on mechanical components, and providing superior control over the actuated equipment.

The K80 Series excels in this aspect, with specific models (K80F, K80DF, K85F, K85DF) engineered to provide "full range feathering qualities." This denotes an enhanced capacity for fine adjustments across the entire pressure spectrum, from initial engagement at 10 PSI up to the maximum regulated pressure of 125 PSI. Full range feathering is critical for applications requiring delicate manipulation, such as spreading granular materials from a live floor trailer, precisely positioning a dump body, or controlling the speed of specialized attachments. By allowing operators to smoothly initiate and vary hydraulic output, these models significantly reduce wear and tear on the PTO, pump, and associated hydraulic components, extending their operational lifespan and reducing maintenance costs. Moreover, the enhanced control offered by full range feathering contributes directly to improved job quality and reduced material waste, particularly in tasks requiring consistent and uniform application. The ability to "ease into" operation safeguards both the equipment and the cargo, preventing damage from abrupt power surges.

Reliable Disengage and Spring Return Mechanisms

Beyond precision control, the K80 Series incorporates robust safety and operational efficiency features through its disengage and spring return mechanisms.

The **automatic disengage** function, controlled by the orange-sleeved lever, provides a rapid and definitive means to cease PTO and pump operation. When activated, this mechanism ensures a complete cessation of air supply to the PTO engagement cylinder, facilitating immediate and reliable disengagement. This feature is vital for emergency shutdowns, for preventing accidental activation, and for ensuring that the hydraulic system is fully deactivated when not in use or during vehicle transit. The certainty of disengagement provided by this mechanism is a critical safety aspect, preventing unintended movements of hydraulic equipment and protecting personnel and property.

Complementing the automatic disengage is the **spring return** mechanism, explicitly referred to as "Spring to Neutral / Deadman Control (y/n): Yes" in the specifications. This is a fundamental safety feature in many industrial and mobile applications. The spring return ensures that upon release of the control lever, the valve automatically reverts to a neutral or disengaged position. In practical terms, this means that hydraulic power ceases to be supplied unless the operator actively holds the lever in the engaged position. This "deadman" functionality is paramount in preventing runaway equipment or accidental operation should the operator become incapacitated or distracted. It provides an inherent layer of safety, demanding continuous operator interaction for sustained operation, thereby greatly reducing the risk of accidents associated with unattended or unintended activation of hydraulic functions. This mechanism aligns with stringent safety regulations and best practices in heavy equipment operation, making the K80 Series a responsible choice for fleet managers and operators alike.

Advanced Pneumatic Control and Pressure Regulation

As an "Air Control Valve," the Buyers Products K80 Series is designed to interface seamlessly with the vehicle's onboard pneumatic system. It translates manual lever inputs into precise pneumatic signals, which in turn control the engagement and modulation of the PTO and hydraulic pump. The valve's capability to regulate air pressure across a wide range, specifically from 10 PSI to 125 PSI, is a testament to its versatility and adaptability.

This adjustable pressure regulation is crucial because different PTO units and hydraulic pumps may require varying air pressures for optimal engagement and operation. For instance, a lightweight hydraulic system might only need 30 PSI for full engagement, whereas a heavy-duty, high-flow system could demand 100 PSI or more. The K80 Series' broad range allows it to be precisely configured for a multitude of applications without requiring external pressure reducers or additional control components. The "Rated Pressure: 125 PSI" indicates the maximum safe operating pressure for the valve itself, ensuring durability and reliability within its specified operational envelope.

Precise pressure regulation directly impacts several key performance indicators:

• **Pump Performance**: Accurate air pressure ensures the hydraulic pump engages fully and operates at its designed efficiency, preventing cavitation or premature wear due to insufficient or excessive engagement force.
• **Actuator Speed and Responsiveness**: By controlling the air pressure, operators can indirectly control the speed at which hydraulic cylinders extend or retract, or hydraulic motors rotate. This is particularly important for tasks requiring delicate movements or variable speeds.
• **System Stability**: Consistent and well-regulated air pressure contributes to the overall stability and predictability of the hydraulic system, reducing oscillations and improving control.
• **Energy Efficiency**: Optimizing engagement pressure helps in reducing unnecessary air consumption from the vehicle's compressed air system, contributing to better fuel efficiency and reduced wear on the air compressor.

The K80 Series acts as the crucial interface between the human operator and the pneumatic system, ensuring that commands are translated into controlled, safe, and efficient mechanical action.

Robust Port Configuration and Connectivity

The K80 Series valve features a "Number of Ports: 5," a standard configuration for multi-functional pneumatic control valves of this caliber. While the exact internal routing varies, a typical 5-port valve in this application might include:

1. **Pressure Inlet (P)**: Connects to the primary air supply from the vehicle's pneumatic system.
2. **Exhaust Ports (R1, R2)**: For venting air from the control lines when the valve shifts, allowing the PTO or other actuators to disengage or return to a neutral position.
3. **Output Ports (A, B)**: These are the working ports that supply regulated air pressure to the PTO engagement cylinder or other pneumatic actuators. The dual lever design likely utilizes these ports for differentiated control signals.

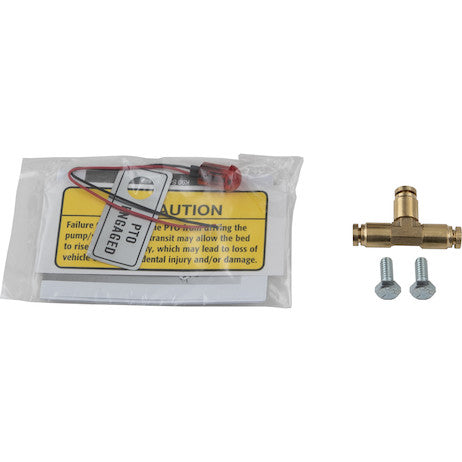

The choice of "Port Type: Brass Push Lock Fittings" further underscores the valve's design for reliability and ease of installation in demanding mobile environments. Brass is highly valued for its excellent resistance to corrosion, which is a critical consideration in environments exposed to moisture, road salts, and various contaminants. This material ensures the integrity of the air connections over the long term, preventing leaks and maintaining consistent pneumatic performance.

Push-lock fittings offer several advantages over traditional threaded or barbed connections:

• **Ease of Installation**: They allow for quick and tool-free connection of pneumatic tubing, significantly reducing installation time and labor costs. Technicians can simply push the tubing into the fitting for a secure seal.
• **Secure Connection**: Once tubing is inserted, an internal collet grips it firmly, preventing accidental disengagement even under vibration or pressure fluctuations. A positive seal is achieved, minimizing air leakage.
• **Serviceability**: Disconnecting tubing is straightforward, typically requiring only a slight push on the collar of the fitting to release the tube. This simplifies maintenance, troubleshooting, and replacement of components.
• **Reliability**: When properly installed, brass push-lock fittings provide a highly reliable and leak-free connection, crucial for maintaining optimal pneumatic system pressure and responsiveness.

The combination of a 5-port configuration with high-quality brass push-lock fittings ensures that the K80 Series valve is not only functionally versatile but also robust, easy to integrate, and simple to maintain within complex vehicle pneumatic circuits.

Robust Construction for Demanding Environments

While specific material details beyond the brass fittings are not explicitly listed in the brief description, the Buyers Products K80 Series is engineered to withstand the rigorous demands of heavy-duty truck and trailer applications. Products in this category are typically constructed from materials chosen for their strength, durability, and resistance to environmental factors inherent in mobile equipment operations. This often includes:

• **Housing**: Durable, corrosion-resistant metals such as cast aluminum or heavy-gauge steel, often coated for additional protection against rust, abrasion, and chemical exposure. These materials provide a robust enclosure for the internal components, shielding them from physical impact and environmental ingress.
• **Internal Components**: Precision-machined components, possibly from brass, stainless steel, or hardened plastics, are utilized for critical moving parts to ensure smooth operation, minimal friction, and extended service life.
• **Sealing Elements**: High-quality elastomeric seals (e.g., Nitrile Butadiene Rubber - NBR) are essential for maintaining pneumatic integrity across the valve's operating pressure and temperature range, preventing leaks and ensuring consistent performance. These seals must resist degradation from common contaminants found in compressed air systems, such as oil mist and moisture.
• **Leverage and Actuation**: Levers are typically constructed from robust metals or high-strength polymers, designed to withstand repeated manual actuation without fatigue or breakage. The attachment points and pivot mechanisms are reinforced to handle the mechanical stresses of continuous operation.

The overall design of the K80 Series emphasizes resistance to common operational hazards faced by heavy vehicles, including:

• **Vibration**: Built to resist the constant vibrations experienced during vehicle operation, ensuring that connections remain secure and internal components do not loosen or fail prematurely.
• **Temperature Extremes**: Capable of functioning reliably across a wide range of ambient temperatures, from extreme cold to intense heat, without compromising material integrity or operational fluidity.
• **Contaminants**: Designed to tolerate the presence of dust, dirt, moisture, and mild corrosive agents typical of road and job site environments, safeguarding internal mechanisms.

This focus on robust construction ensures the K80 Series valve delivers consistent, reliable performance over an extended operational lifespan, minimizing downtime and contributing to a lower total cost of ownership.

Operational Principles and System Integration

The K80 Series valve serves as a crucial pneumatic control interface within a broader hydraulic system. Its operational principle revolves around controlling the flow of compressed air from the vehicle's air brake system (or a dedicated auxiliary air tank) to an air-actuated PTO engagement cylinder.

When an operator engages a lever on the K80 valve, it modulates or directs air pressure. For feathering, the valve progressively opens, allowing increasing amounts of air pressure to reach the PTO's engagement mechanism. This gradual pressure build-up enables the PTO to smoothly engage the transmission and consequently brings the hydraulic pump up to speed in a controlled manner. This progressive engagement prevents abrupt mechanical shock, which can damage transmission gears, PTO clutches, and hydraulic pump components.

For full engagement, the valve provides the maximum regulated pressure (up to 125 PSI) to fully actuate the PTO. When disengaging, the valve either vents the air pressure quickly (automatic disengage) or gradually (feathered disengage) from the PTO cylinder, allowing the PTO to retract from engagement. The spring return ensures that upon release, the valve quickly defaults to a state where air is vented, and the PTO is disengaged, unless actively held.

This pneumatic control integrates with the hydraulic system by directly influencing the hydraulic pump's activation. The pump, once engaged by the PTO, then converts mechanical power into hydraulic power, which is directed to various hydraulic actuators (e.g., lift cylinders for dump bodies, motors for live floors, or cylinders for side dump mechanisms). The precision of the K80 valve's air control directly translates to the precision and smoothness of these hydraulic operations.

Versatile Applications in Heavy-Duty Transport

The K80 Series Multi-Function PTO/Pump Air Control Valve is specifically engineered for a diverse range of heavy-duty applications where precise and reliable hydraulic power management is essential. Its robust design and versatile control features make it ideal for:

• **Dump Trucks**: Crucial for controlled lifting and lowering of dump bodies. Feathering allows for a gradual and precise tilt, preventing sudden jolts that could destabilize the vehicle or cause damage. The automatic disengage and spring return features are vital for safety during operation and when the truck is in transit.
• **Dump Trailers**: Similar to dump trucks, this valve provides the necessary control for articulated dump trailers, ensuring smooth and safe material discharge.
• **Transfer Trailers**: These trailers often utilize hydraulic systems for transferring loads between sections or into another vehicle. Precise feathering ensures smooth and controlled material transfer, minimizing spillage and optimizing load distribution.
• **Live Floor Trailers**: Essential for controlled and even unloading of bulk materials like agricultural products, waste, or wood chips. Feathering allows operators to adjust the speed of the moving floor, ensuring a consistent discharge rate and preventing material bridging or sudden surges.
• **Asphalt/Live Bottom Trailers**: Critical for paving applications, where the controlled discharge of asphalt or aggregates is paramount for laying an even road surface. The K80's feathering capability allows operators to precisely match the material flow rate to the paver's speed, leading to high-quality results.
• **Bottom Dumps and Side Dumps**: These specialized trailers require precise control over gates or tipping mechanisms for controlled material release. The feathering and disengage functions ensure that materials are discharged accurately and safely, avoiding premature or uncontrolled release.
• **Platform Dumps**: Used for specialized loads, the controlled lifting and lowering provided by the K80 valve enhance safety and operational efficiency during loading and unloading procedures.
• **Other Specialized Heavy Equipment**: Any vehicle utilizing an air-actuated PTO for auxiliary hydraulic functions, such as cranes, utility trucks, vacuum trucks, or refuse vehicles, can benefit from the K80 Series' precise control and safety features.

In each of these applications, the K80 Series valve contributes significantly to operational safety, efficiency, and equipment longevity by providing operators with the tools for precise, controlled, and responsive hydraulic power management. Its adaptability to varying pressure requirements and its resilient construction make it a dependable choice across the heavy-duty sector.

Installation and Maintenance Considerations

Proper installation and routine maintenance are paramount to realizing the full benefits and ensuring the longevity of the Buyers Products K80 Series valve. While the brass push-lock fittings facilitate easier connection, adherence to best practices is essential:

• **Professional Installation**: It is strongly recommended that installation be performed by qualified personnel familiar with vehicle pneumatic and hydraulic systems. This ensures correct plumbing, secure mounting, and proper calibration of the pressure regulation.
• **Air Supply Quality**: The valve relies on a clean, dry, and regulated air supply. Implementing or verifying the presence of an inline air filter and moisture separator in the vehicle's air system upstream of the K80 valve is crucial. Contaminated air (with oil, water, or particulate matter) can degrade internal seals and mechanisms, leading to premature failure.
• **Tubing Selection**: Use high-quality, appropriately sized pneumatic tubing (e.g., nylon or polyurethane) rated for the operating pressures and temperatures. Ensure tubing runs are free from kinks, sharp bends, or abrasive contact points.
• **Mounting**: The valve should be securely mounted in an accessible location within the vehicle cab or chassis, protected from direct exposure to excessive heat, moisture, or physical damage. Consider environmental factors like road spray or impact when selecting a mounting position.
• **Leak Checks**: After installation, thoroughly check all pneumatic connections for leaks using a soapy water solution. Even minor leaks can lead to compressor overuse and reduced system efficiency.
• **Routine Inspection**: Periodically inspect the valve, levers, and connections for signs of wear, damage, or looseness. Check the functionality of both feathering and disengage levers, and verify the spring return action. Ensure the colored sleeves are intact and clearly visible.
• **Seal Integrity**: Over time, elastomeric seals may wear or harden. While the K80 Series is designed for durability, replacement of internal seals may be required as part of a comprehensive maintenance schedule to prevent air leaks and maintain optimal performance.

By adhering to these guidelines, operators and fleet managers can ensure the K80 Series valve operates reliably throughout its service life, contributing to uninterrupted operations and enhanced safety.

Safety and Compliance Integration

The design philosophy behind the Buyers Products K80 Series deeply integrates principles of operational safety and regulatory compliance. The "Spring to Neutral / Deadman Control" is a prime example of a safety feature often mandated or highly recommended by industry standards for hydraulic and pneumatic equipment. This inherent design characteristic prevents unintended operation and brings equipment to a safe, neutral state if operator input ceases.

Furthermore, the precise feathering capability contributes significantly to safe operation by preventing abrupt movements of heavy loads or machinery. This reduces the risk of load shifts, vehicle instability, and injury to personnel working near the equipment. The clear distinction between feathering and automatic disengage levers, aided by the dual-color sleeves, minimizes operator confusion and facilitates rapid, correct response in critical situations.

By offering such robust control and inherent safety features, the K80 Series assists organizations in meeting their obligations for safe workplace practices and potentially reducing liability associated with heavy equipment operation. The reliability afforded by its durable construction and brass push-lock fittings also reduces the risk of unexpected component failure that could lead to dangerous scenarios.

Conclusion

The Dual Lever Feathering Disengage Spring Return PTO/Pump Air Control Valve from Buyers Products, specifically the K80 Series, stands as a benchmark in pneumatic control technology for heavy-duty applications. Its sophisticated dual-lever design, featuring intuitive color-coded sleeves, provides operators with unparalleled command over hydraulic functions. The integration of full-range feathering capabilities in models like the K80F, K80DF, K85F, and K85DF, ensures precise modulation of hydraulic power, leading to smoother operations, reduced mechanical stress, and extended equipment lifespan.

Coupled with a decisive automatic disengage function and an essential spring-to-neutral/deadman control, the K80 Series prioritizes safety, preventing accidental engagement and ensuring that hydraulic systems revert to a safe state upon operator release. The valve's capacity to regulate air pressure from 10 to 125 PSI, combined with its 5-port configuration and robust brass push-lock fittings, underlines its versatility, ease of integration, and long-term reliability in harsh operating environments.

Designed for a comprehensive range of vehicles including dump trucks, various trailer types, and other specialized mobile equipment, the K80 Series is more than just a component; it is a critical system enabler that enhances efficiency, promotes safety, and optimizes the performance of complex hydraulic machinery. Investing in the Buyers Products K80 Series valve is an investment in precision control, unwavering safety, and enduring operational excellence for any fleet operating heavy-duty pneumatic-hydraulic systems.
