K90 - Standard Valve - Single Lever Air Control Valve PTO/Pump

Buyers Products K90 Series Power Take Off/Hoist Control Valve operates pneumatic truck functions with the simplicity of a single lever. It's built to perform with a design that allows for controlled lowering (feathering) and smoother operation. Built-in safety features vary by style and help reduce operator error. All valves have a control pad indicator light that warns of PTO engagement. The K90 has automatic disengagement of the PTO in lower setting, while the K90D has a "dead man" control on the hoist lever, which returns to neutral position and stops motion when user engagement is not present.

Specifications

Advanced Technical Overview: Buyers Products K90 Series Single Lever Air Control Valve for PTO/Pump Applications

The Buyers Products K90 Series Single Lever Air Control Valve represents a cornerstone in pneumatic control technology, meticulously engineered for the demanding environments of vocational truck operations. As a "Standard Valve," its design prioritizes reliability, broad compatibility, and robust performance in managing Power Take-Off (PTO) and hydraulic pump functions. Integrating sophisticated pneumatic logic with a user-centric single-lever interface, the K90 Series streamlines complex operations while enhancing safety and precision, making it an indispensable component for modern heavy-duty fleets requiring superior auxiliary equipment control.

Pneumatic Control System Fundamentals and the K90

Pneumatic systems are widely favored in commercial vehicles for their intrinsic safety, operational cleanliness, and cost-effectiveness when compared to hydraulic or electrical alternatives for certain control tasks. The K90 Series valve leverages these advantages by serving as a central command unit for a truck's pneumatic functions. Its core role involves the precise modulation and direction of compressed air to actuate various components. Specifically, it manages the engagement and disengagement of a PTO unit and controls the raising and lowering actions of associated hydraulic pumps, which typically power applications such as dump bodies, hoists, snowplows, and refuse compactors. The valve's internal architecture is designed to meter air pressure proportionally, a fundamental capability that underpins its highly valued "feathering" functionality.

The Critical Role of Precise Power Take-Off (PTO) Management

A Power Take-Off (PTO) is a mechanical device that diverts engine power to auxiliary equipment, most commonly a hydraulic pump. The operational integrity and longevity of the PTO, the connected pump, and indeed the entire drivetrain, hinge on the smooth and controlled engagement and disengagement of this unit. Abrupt or improperly timed PTO activation can lead to significant mechanical shock, accelerating wear and potentially causing severe damage to transmission components. The K90 Series valve is specifically engineered to counteract these risks. By delivering a meticulously regulated pneumatic signal to the PTO clutch mechanism – often a pneumatic cylinder that shifts gears or engages a friction plate – the K90 ensures a gradual and controlled engagement sequence. This precise control minimizes shock loading, thereby extending the operational lifespan of critical drivetrain and auxiliary components while safeguarding against costly repairs and unexpected downtime.

Unlocking Precision: The "Feathering" Capability for Hoist and Pump Control

The K90 Series valve's exceptional "feathering" capability is a defining technical attribute, offering superior control over hydraulic hoist and pump operations. Feathering refers to the ability to achieve fine, proportional control over the speed and position of hydraulic cylinders or motors. This is accomplished by the K90 proportionally varying the pneumatic pressure signals sent to the primary hydraulic control valve, which in turn precisely regulates the hydraulic fluid flow. For applications demanding meticulous load handling, such as spreading granular materials, operating precision cranes, or articulating dump bodies, feathering delivers profound operational benefits:

• Enhanced Precision and Accuracy: Operators gain the ability to make minute adjustments in equipment movement, crucial for tasks requiring exact positioning and controlled material distribution.
• Mitigated Shock Loading: The gradual engagement and disengagement of hydraulic functions eliminate sudden impacts and jolts, significantly reducing mechanical stress on the vehicle chassis, hydraulic system components, and the transported load. This directly translates to lower maintenance requirements and prolonged equipment life.
• Optimized Smoothness of Operation: The absence of abrupt movements creates a more stable, comfortable, and predictable operating environment, which actively reduces operator fatigue and elevates overall task efficiency.
• Superior Safety Profile: Controlled and predictable movement of heavy loads inherently improves workplace safety by substantially reducing the risk of sudden, uncontrolled descent or ascent, thereby preventing potential accidents and material damage.

The sophisticated mechanical design of the single lever and its intricately calibrated internal pneumatic valving work in concert to translate nuanced operator inputs into precise pneumatic outputs, enabling this essential feathering action. This advanced technical feature positions the K90 significantly above conventional on/off pneumatic valves, offering a level of control typically associated with more complex and often higher-cost control systems.

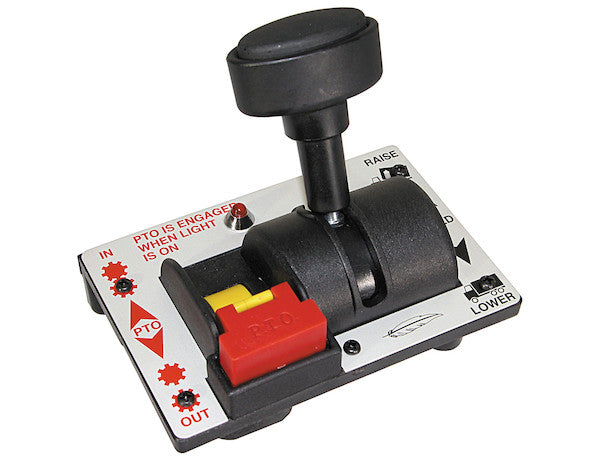

Ergonomics and Streamlined Operation: The Single Lever Advantage

The single lever actuation of the K90 Series valve embodies a deliberate design philosophy focused on maximizing operational ergonomics and minimizing the potential for human error within demanding vocational environments. In the often-cluttered and complex cab of a commercial vehicle, simplifying control interfaces is paramount for both safety and operational efficiency. A single lever provides a highly intuitive and consolidated control point for multiple functions, including PTO engagement, hoist raise, and hoist lower, each accessible through distinct and tactile positions. This unified control scheme significantly reduces the operator's cognitive load by eliminating the need to manage multiple, disparate buttons or levers. The robust manual lever provides clear haptic feedback, allowing the operator to distinctly feel each operational position and the progressive resistance associated with proportional feathering. This direct, mechanical linkage between the operator's input and the valve's action ensures unwavering reliability, particularly in challenging operational conditions where electronic controls might be susceptible to adverse factors like moisture, vibration, or extreme temperature fluctuations.

Integrated Safety Mechanisms for Enhanced Operational Assurance

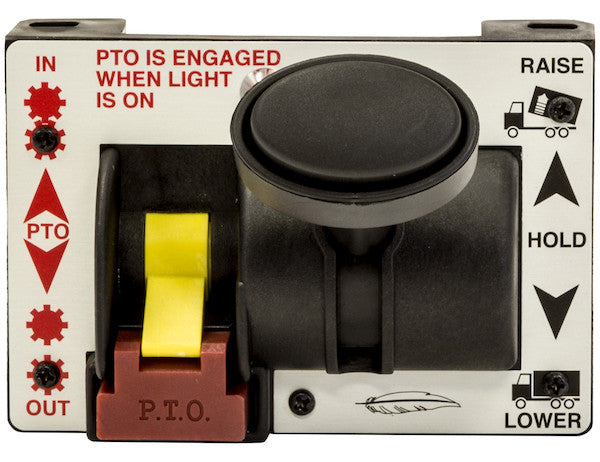

Safety is a paramount consideration in all heavy-duty vocational operations, and the K90 Series valve is designed with intelligent safety features to proactively mitigate risks. A prominently integrated control pad indicator light serves as an immediate visual confirmation of PTO engagement. This illuminated feedback mechanism ensures that the operator is continuously apprised of the system's operational status, thereby preventing critical errors such as inadvertently driving the vehicle with the PTO still engaged or attempting to move with auxiliary equipment still deployed. A key safety feature of the standard K90 model is its automatic disengagement of the PTO when the hoist lever is moved to the lower setting. This critical interlock functions to prevent unintentional drive-away incidents with the PTO active, particularly when the hydraulic function (e.g., dump body) has been fully lowered. This feature significantly reduces the risk of costly drivetrain damage, premature component wear, and potential hazards to personnel or surrounding property. It is important to note that while the specific K90 variant described here features automatic disengagement, other K90 Series models, such as the K90D, incorporate a "dead man" control, which returns the hoist lever to neutral and halts motion when operator engagement is not continuously present. This design variation allows for tailored safety solutions based on specific fleet protocols and application requirements.

Detailed Technical Specifications: Components and Performance

Rated Pressure: 125 PSI

The K90 Series valve is precision-engineered to operate at a maximum rated pressure of 125 PSI (pounds per square inch). This specification is fundamentally important as it ensures seamless compatibility with the typical operating pressures of standard truck air brake systems, which generally fall within this range. A robust pressure rating guarantees that the valve can consistently withstand the peak pressures of the pneumatic system without structural compromise, thereby providing a stable and reliable control signal for the PTO and hydraulic pump. Adherence to this rated pressure ensures optimal functional performance, maximizes longevity, and effectively prevents premature failure that could arise from over-pressurization.

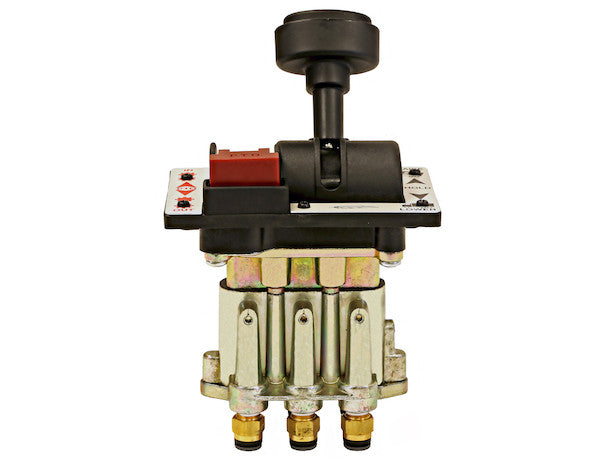

Number of Ports: 5-Port Configuration

The sophisticated 5-port architecture of the K90 valve is integral to its comprehensive multi-functional control capabilities. Each port is meticulously designed to fulfill a specific and critical role within the pneumatic control circuit, enabling a complete command over the PTO and associated hydraulic functions:

1. Pressure Supply (Input): This primary inlet port receives regulated compressed air directly from the vehicle's main air supply system, acting as the pneumatic power source for all subsequent valve operations.
2. Exhaust (Output): This port facilitates the rapid venting of spent air from the valve's internal chambers or from controlled pneumatic actuators to the atmosphere. This rapid exhaust capability is crucial for achieving quick response times during disengagement or lowering functions.
3. PTO Engagement (Output): This dedicated output port delivers precisely metered air pressure to the pneumatic cylinder or actuator responsible for engaging the PTO unit, ensuring a smooth and controlled activation sequence.
4. Hoist/Pump Raise (Output): This port supplies the necessary air pressure to activate the "raise" function of the connected hydraulic control valve. This action facilitates the lifting of dump bodies, snowplows, or other implements, with the feathering capability critically dependent on the proportional output from this port.
5. Hoist/Pump Lower (Output): This port provides air pressure to activate the "lower" function of the associated hydraulic control valve. This output is also fundamental to the valve's feathering operation, enabling controlled and gradual descent, and is directly linked to the K90 model's automatic PTO disengagement safety feature.

This meticulously designed 5-port arrangement enables the K90 to manage the entire control cycle for a PTO and dual-action hydraulic system from a single, integrated, and highly efficient unit.

Port Type: Brass Push Lock Fittings

The strategic incorporation of brass push-lock fittings for all pneumatic connections underscores the K90 Series' unwavering commitment to superior durability, streamlined installation, and long-term system integrity. Brass, as an alloy, is highly prized for its exceptional resistance to corrosion, particularly in environments routinely exposed to moisture, road salts, and other corrosive agents prevalent in commercial vehicle operations. Push-lock fittings, also widely recognized as push-to-connect or quick-connect fittings, offer a distinct array of advantages:

• Accelerated Installation: Pneumatic tubing can be rapidly and securely inserted into the fittings without the requirement for specialized tools, adhesives, or crimping processes, thereby substantially reducing installation time and associated labor costs.
• Robust and Secure Connection: Once inserted, the tubing is firmly gripped by an internal collet, establishing a reliable, leak-free seal that is engineered to withstand the significant vibrations and pressure fluctuations inherent in heavy-duty truck applications.
• Simplified Maintenance and Serviceability: Disconnecting tubing for routine maintenance, diagnostics, or system modifications is a straightforward process, typically requiring only a simple, tool-free push on the release collar.
• Uncompromising Reliability: The inherent strength and corrosion resistance of brass, synergized with the proven sealing mechanism of push-lock technology, collectively guarantee long-term operational reliability and sustained performance even under the most demanding conditions.

These fittings are designed for compatibility with standard pneumatic tubing diameters (e.g., 1/4" or 3/8" OD tubing), ensuring broad integration capabilities across various vehicle platforms and pneumatic system designs.

Robust Materials and Precision Construction for Extreme Duty

The K90 Series valve is fabricated from an optimized selection of high-quality materials, chosen specifically for their ability to endure the harsh and often punishing operating conditions encountered by vocational trucks. Beyond the anti-corrosive brass fittings, internal components are meticulously chosen for their superior wear resistance, chemical compatibility with various compressed air qualities, and their capacity to maintain dimensional stability across a wide spectrum of operating temperatures. The valve body itself is engineered for maximum robustness, providing critical protection for the intricate internal pneumatic circuitry against both physical impact and environmental ingress. The adherence to stringent manufacturing tolerances during production ensures consistently precise performance, minimizes the potential for internal air leakage, and contributes significantly to an extended service life, even under continuous and heavy duty cycling.

Versatile Applications Across Diverse Vocational Segments

The Buyers Products K90 Series Single Lever Air Control Valve boasts an expansive application spectrum across a multitude of vocational truck operations where reliable and precise PTO and hydraulic hoist control are absolutely paramount. Its inherent versatility allows for seamless integration into a wide array of vehicle types and functions. Typical applications include, but are not limited to:

• Dump Trucks: Providing precise control over bed lifting and lowering, essential for accurate material spreading and controlled dumping operations.
• Refuse Vehicles: Enabling robust and safe management of compactor mechanisms, loading arms, and container lift systems.
• Utility and Service Trucks: Controlling the deployment and operation of cranes, aerial lifts, trenchers, and other essential auxiliary equipment requiring controlled articulation.
• Snowplows and Material Spreaders: Facilitating accurate positioning and angling of plow blades and the controlled dispensing of de-icing agents or sand.
• Wreckers and Rollbacks: Managing winch functions, boom operations, and deck tilting with critical precision and safety.

The universal nature of its pneumatic interface allows the K90 to integrate seamlessly into diverse OEM and aftermarket systems, providing a standardized, high-performance control solution that enhances the functionality and efficiency of specialized vehicle fleets.

Installation Considerations and Optimal System Integration

While the K90 Series is engineered for straightforward installation, achieving optimal performance and ensuring maximum safety necessitates careful integration into the vehicle's existing pneumatic and hydraulic systems. Key installation considerations typically encompass:

1. Clean Air Supply Connection: Establishing a reliable connection to a clean, regulated air supply from the vehicle's pneumatic system, ideally downstream of an air dryer and filter to prevent contamination of the valve and downstream components.
2. Precise Tubing Runs: Accurately routing appropriate pneumatic tubing (e.g., nylon or polyethylene) from the K90's output ports to the respective pneumatic actuators governing the PTO and the hydraulic control valve.
3. Secure Mounting: Permanently mounting the control valve within the vehicle's cab, typically on the dashboard or console, in a position that offers ergonomic access to the operator without obstructing other critical controls or visibility.

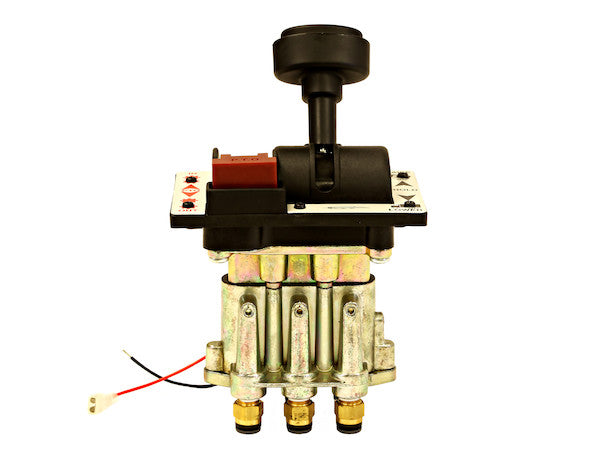

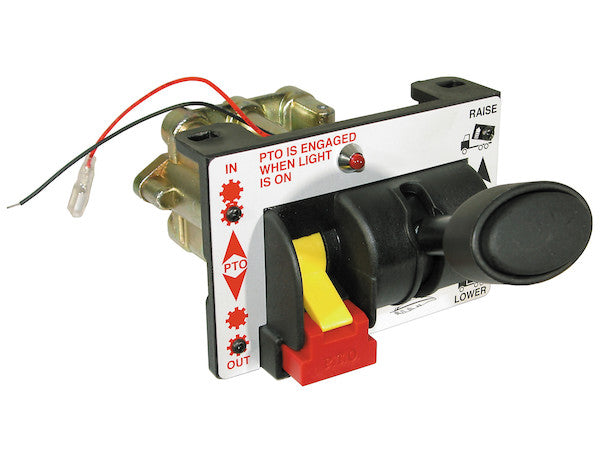

4. Electrical Connection for Indicator: Wiring the control pad indicator light to a suitable 12V or 24V DC power source, ensuring it provides clear illumination upon PTO engagement and other operational statuses.
5. Comprehensive System Testing: Conducting thorough functional testing of all controlled systems (including PTO engagement, hoist raise/lower, feathering action, and all integrated safety interlocks) to verify correct operation and confirm the integrity of all pneumatic connections to prevent leaks.

Adherence to the manufacturer's specific installation guidelines and recognized industry best practices for pneumatic system integration is strongly recommended to guarantee long-term operational reliability, safety compliance, and maximum system performance.

Conclusion: A Benchmark in Advanced Pneumatic Control Technology

The Buyers Products K90 Series Single Lever Air Control Valve unequivocally sets a new benchmark in pneumatic control technology for both PTO and hydraulic pump applications. Its sophisticated engineering is defined by an intuitive single-lever operation, advanced proportional feathering capabilities, and robust integrated safety features, including the essential PTO engagement indicator and automatic disengagement in the lower setting. This meticulous design positions it as a preeminent solution for operators of vocational trucks. The valve's formidable construction, underscored by its 125 PSI rating and the incorporation of durable brass push-lock fittings across its versatile 5-port configuration, guarantees exceptional reliability and facilitates straightforward maintenance even in the most challenging operational environments. By delivering unparalleled precision, significantly enhancing operational safety, and simplifying complex control tasks, the K90 Series not only optimizes vehicle functionality but also makes a substantial contribution to reducing operational costs, extending the lifespan of critical equipment, and improving overall fleet productivity. The K90 Series valve represents more than just a component; it is a strategic and intelligent investment in the efficiency, safety, and enduring longevity of heavy-duty vocational fleets.
