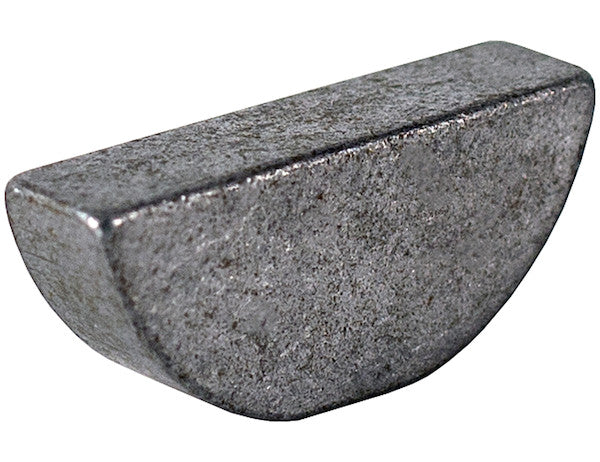

KBN - Woodruff Key 5/16 x 1 Inch

Buyers Products Woodruff Key comes in a variety of diameters and thicknesses to fit your driveline needs.

Specifications

Advanced Technical Overview: Woodruff Key 5/16 x 1 Inch for Precision Driveline Applications

The Woodruff Key, a critical mechanical component in power transmission systems, provides a robust and reliable means of securing rotating elements to shafts, ensuring synchronous torque transfer. This particular specification, the Woodruff Key 5/16 x 1 Inch, represents a common dimension within industrial, automotive, and agricultural machinery, indicating a nominal thickness of 5/16 inches (approximately 7.94 mm) and a nominal diameter of 1 inch (25.4 mm). Manufactured from high-quality carbon steel with a plain finish, this key is engineered for consistent performance and durability in demanding operational environments.

Design Principles and Geometric Advantages

Unlike traditional square or rectangular keys, the Woodruff key features a distinctive semicircular or segmental shape. This unique geometry is strategically designed to mitigate common issues associated with stress concentration and alignment in key-shaft interfaces. The semicircular profile, which is fitted into a correspondingly milled keyseat (a semicircular groove) in the shaft, offers several inherent advantages:

• Reduced Stress Concentrations: The gradual curvature of the keyseat and key minimizes the sharp corners found in conventional square keyways. These sharp corners act as stress risers, significantly increasing the likelihood of fatigue cracks and material failure in the shaft, especially under dynamic or fluctuating loads. The smooth transition provided by the Woodruff key's design distributes stresses more evenly across the shaft material, enhancing the overall fatigue life of the assembly.
• Self-Aligning Capability: The design allows the key to pivot slightly within its keyseat during assembly, facilitating easier alignment between the key, shaft, and the mating component (e.g., hub, gear, pulley). This self-aligning property is particularly beneficial when assembling components that might have slight misalignments due to manufacturing tolerances or during field maintenance, reducing assembly time and preventing forced fits that could damage components.
• Enhanced Shear Resistance: The larger cross-sectional area of the Woodruff key, particularly its depth within the shaft, increases its shear resistance. The key effectively resists torsional forces by engaging a greater volume of material within both the shaft and the hub, thereby distributing the load over a broader shear plane.
• Controlled Keyseat Machining: The semicircular keyseat can often be milled more efficiently and with greater precision than a rectangular keyway, especially using specialized Woodruff keyseat cutters. This method generally results in a cleaner cut and a more consistent fit, which is crucial for maximizing torque transmission efficiency and minimizing backlash.

Material Science: Carbon Steel with Plain Finish

The selection of carbon steel as the primary material for this Woodruff key is predicated on its superior balance of mechanical properties, cost-effectiveness, and versatility. Carbon steel, an alloy primarily composed of iron and carbon (typically up to 2.1% by weight), offers a range of desirable characteristics for power transmission components:

• High Tensile Strength and Yield Strength: Carbon steel exhibits excellent resistance to deformation under tensile and compressive loads, making it highly suitable for applications where the key must withstand significant shear and bearing stresses without permanent deformation.
• Hardness and Wear Resistance: The inherent hardness of carbon steel provides good resistance against abrasive wear, which is crucial in dynamic interfaces where relative motion or fretting corrosion might occur between the key, shaft, and hub. While the "Plain" finish suggests no additional surface hardening treatment has been applied, the base material's properties are still robust.
• Fatigue Resistance: For components subjected to repetitive loading cycles, such as in driveline applications, fatigue resistance is paramount. Properly selected carbon steel, particularly in conjunction with the stress-reducing geometry of the Woodruff key, contributes to a longer service life.
• Machinability: Carbon steel is readily machinable, allowing for efficient manufacturing processes to achieve the precise dimensional tolerances required for proper fit and function.
• Cost-Effectiveness: Compared to alloy steels or specialty materials, carbon steel offers an economically viable solution without compromising critical mechanical performance requirements for standard applications.

The "Plain" finish indicates that the key has not undergone specialized surface treatments such as plating (e.g., zinc, chrome) or phosphating. This finish is suitable for many internal applications where corrosion resistance is managed by the overall system environment (e.g., oil bath, enclosed housing) or where subsequent finishing processes are applied by the end-user. For exposed applications, additional rust preventative coatings or protective greases may be applied during installation.

Precision Manufacturing and Quality Assurance

The production of a Woodruff key, such as the 5/16 x 1 Inch variant, involves precise manufacturing processes to ensure adherence to stringent dimensional tolerances and material specifications. The typical manufacturing sequence includes:

1. Material Selection and Preparation: High-grade carbon steel bar stock is selected, often in specific metallurgical grades optimized for keying applications.
2. Forming: Keys can be produced via cold heading, stamping, or precision machining. Stamping from sheet or plate stock is common for high volumes, while machining from bar stock offers higher precision for critical applications.
3. Semicircular Profile Machining: Specialized cutters are used to generate the precise semicircular profile, ensuring the correct diameter and arc length.
4. Thickness Control: Grinding or precision milling ensures the key's thickness (5/16 inch in this case) is maintained within tight tolerances to achieve the required fit with both the shaft keyseat and the hub keyway.
5. Deburring and Finishing: Edges are deburred to remove any sharp burrs, which could interfere with assembly or initiate stress concentrations. The plain finish is then applied or maintained.
6. Quality Control: Each batch undergoes rigorous quality control inspections, including dimensional verification using precision gauges (calipers, micrometers, go/no-go gauges), material hardness testing, and visual inspections for surface defects. Adherence to industry standards like ANSI B17.1 (now ASME B17.1) for Parallel and Taper Keys and Keyseats is crucial for interchangeability and reliable performance.

Applications and Operational Context

The 5/16 x 1 Inch Woodruff key finds extensive utility across a broad spectrum of mechanical systems where secure torque transmission between a shaft and a hub-like component is required. Common applications include:

• Automotive Systems: Used in crankshafts, camshafts, power take-off (PTO) units, steering mechanisms, and accessory drives to secure gears, pulleys, and flywheels.
• Agricultural Machinery: Critical in securing components in tractors, harvesters, tillers, and other farm equipment, often in PTO shafts or drive train components subjected to varying loads.
• Industrial Equipment: Found in conveyor systems, pumps, compressors, gearboxes, electric motors, and machine tools, where reliable transmission of rotary motion is essential.
• Small Engines: Common in lawnmowers, generators, and other small internal combustion engines for securing flywheels or output shafts.
• Marine Applications: Used in propulsion systems and auxiliary equipment where components need to withstand corrosive environments and dynamic loads.

In these applications, the Woodruff key's primary function is to resist the rotational shear forces that attempt to dislodge the hub from the shaft. The key acts as a sacrificial element in extreme overload conditions, designed to shear before more expensive shaft or hub components are permanently damaged, thus simplifying repairs and minimizing downtime.

Installation and Fit Considerations

Proper installation of the Woodruff key is paramount for its effective function and the longevity of the entire assembly. The key fits into a semicircular keyseat milled into the shaft and a straight keyway machined into the bore of the mating hub. A precise fit is crucial:

• Keyseat and Keyway Preparation: Both the keyseat in the shaft and the keyway in the hub must be free from burrs, dirt, or any obstructions. The dimensions of these features must conform to the specified tolerances for a 5/16 inch thick, 1 inch diameter Woodruff key.
• Fit Type: Ideally, the key should exhibit a snug sliding fit (clearance fit with minimal clearance) within both the shaft keyseat and the hub keyway. An interference fit, while increasing friction, can induce unwanted stresses and make assembly difficult. Excessive clearance can lead to backlash, fretting, and premature wear.
• Key Engagement: The key must be fully seated in the shaft keyseat, and a significant portion of its depth must engage with the hub keyway to ensure maximum contact area for torque transmission. Insufficient engagement reduces the effective shear area and can lead to key failure or deformation of the keyway in the hub.
• Assembly Sequence: Typically, the key is first placed into the shaft keyseat. The hub is then carefully slid over the key and onto the shaft, ensuring the hub keyway aligns smoothly with the key. Gentle tapping with a soft-faced hammer may be used for final seating, avoiding excessive force that could damage the key or the keyways.

Performance Characteristics and Failure Modes

The performance of a Woodruff key is primarily characterized by its torque capacity and resistance to various failure modes:

• Torque Capacity: This is determined by the key's shear strength and the contact area it provides within the hub and shaft. The 5/16 x 1 Inch carbon steel key is engineered to transmit significant torsional loads relative to its size, providing a reliable coupling for many driveline applications.
• Shear Failure: Under excessive torsional load, the key can fail by shearing across its cross-section. This is often a designed failure mode, acting as a "mechanical fuse" to protect more expensive components.
• Crushing or Bearing Failure: If the material of the key, shaft, or hub is insufficient in compressive strength, the contact surfaces can deform or crush under high bearing stresses. This can lead to loosening of the joint and eventual failure.
• Fretting Corrosion: In assemblies with slight relative motion (due to loose fits or dynamic loads), fretting corrosion can occur, leading to surface degradation and accelerated wear.
• Fatigue Failure: Repeated loading and unloading cycles can lead to fatigue cracks initiating and propagating within the key or the keyways, even at stresses below the material's yield strength.

Maintenance and Inspection

Regular inspection and proactive maintenance are essential to ensure the continued reliability of Woodruff keyed joints. Operators should look for:

• Signs of Wear or Deformation: Visual inspection for peening, crushing, or deformation on the key surfaces, shaft keyseat, or hub keyway.
• Corrosion: Especially for plain finish keys in environments susceptible to moisture, signs of rust or corrosion should be addressed.
• Looseness: Any noticeable play or backlash in the keyed connection indicates potential wear or improper fit.

If any signs of significant wear or damage are observed, the key should be replaced. When replacing a key, it is also prudent to inspect the corresponding keyseats and keyways for damage, as a worn key may indicate underlying issues with the mating components.

Compliance with Industry Standards

Buyers Products ensures that its Woodruff keys, including the 5/16 x 1 Inch variant, are manufactured in accordance with relevant industry standards. These standards, such as ASME B17.1 (formerly ANSI B17.1) for Keys and Keyseats, dictate critical dimensions, tolerances, and material specifications. Adherence to these standards guarantees interchangeability, facilitates proper fit, and ensures the expected performance characteristics across various OEM and aftermarket applications. This commitment to standardization underscores the reliability and compatibility of the product within a global mechanical engineering context.

Conclusion

The Woodruff Key 5/16 x 1 Inch from Buyers Products exemplifies a meticulously engineered component designed for superior performance in torque transmission applications. Its intelligent semicircular geometry, coupled with the inherent strength and durability of carbon steel, provides a reliable, stress-optimized solution for securing rotating machine elements. From its precision manufacturing to its strategic advantages in stress distribution and ease of assembly, this Woodruff key is an indispensable component for maintaining the integrity and efficiency of diverse driveline systems across various industries. Buyers Products' commitment to quality and precise specifications ensures that this key delivers consistent, long-term performance, reinforcing its role as a fundamental element in robust mechanical designs.
