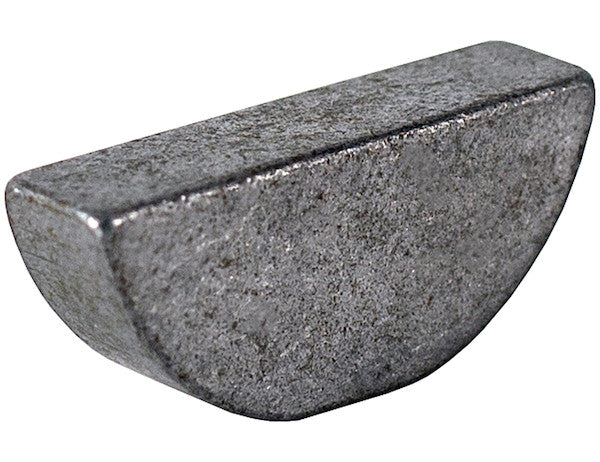

KCN - Woodruff Key 5/16 x 1-1/8 Inch

Buyers Products Woodruff Key comes in a variety of diameters and thicknesses to fit your driveline needs.

Specifications

The Buyers Products Woodruff Key, specifically dimensioned at 5/16 x 1-1/8 inches, represents a fundamental component in precision mechanical engineering, designed for robust and reliable power transmission in a multitude of industrial and commercial applications. This particular key, crafted from high-grade carbon steel with a plain finish, is engineered to meet the demanding requirements of driveline systems where secure shaft-to-hub connections are paramount. Understanding the nuanced design, material properties, manufacturing precision, and application contexts of this Woodruff key is crucial for engineers, procurement specialists, and maintenance professionals seeking optimal operational performance and longevity from their mechanical assemblies.

At its core, a Woodruff key is a semicircular, disc-shaped key that fits into a correspondingly shaped keyway milled into the shaft. Unlike traditional rectangular or square keys (often referred to as parallel keys) that necessitate a straight keyway extending along the shaft, the Woodruff key's unique geometry offers several distinct advantages. The keyway for a Woodruff key is typically cut deeper into the shaft, but its rounded bottom significantly reduces stress concentrations that can arise at the sharp corners of a parallel keyway. This design attribute is particularly beneficial in applications subjected to cyclical loading, vibration, or shock, as it minimizes the likelihood of fatigue cracks initiating at the keyway ends, thereby enhancing the overall structural integrity and fatigue life of the shaft.

The specific dimensions of this Buyers Products Woodruff Key—a thickness of 5/16 inch (approximately 0.31 inches) and a nominal diameter of 1-1/8 inches (approximately 1.13 inches)—are critical for achieving a precise fit within the mating keyway in the shaft and the keyseat in the hub. The thickness dictates the width of the slot into which the key slides, while the diameter corresponds to the semicircular profile that ensures stable seating within the shaft's keyway. These dimensions adhere to established industry standards, such as those set forth by ASME B17.2, which govern the interchangeability and performance characteristics of Woodruff keys. Adherence to these standards is vital for ensuring component compatibility, ease of assembly, and predictable mechanical performance across various machinery platforms.

The material choice of carbon steel for this Woodruff key is deliberate and strategic. Carbon steel, a versatile and widely utilized ferrous alloy, offers an excellent balance of strength, toughness, and cost-effectiveness for keying applications. While the specific grade of carbon steel is not detailed, it typically falls within the range of medium-carbon steels (e.g., AISI 1045 or 1050) which provide a suitable combination of hardness and ductility. These steels can withstand significant shear and bearing stresses without permanent deformation or brittle fracture, properties essential for effectively transmitting torque between rotating components. The carbon content in these steels contributes to their tensile strength and hardness, allowing the key to resist the forces attempting to shear it or crush its contact surfaces during operation. The robust nature of carbon steel ensures that the key can endure the high-stress environment of a driveline system, providing reliable mechanical linkage over extended operational periods.

The "plain" finish specified for this Woodruff key indicates that it has not undergone any additional surface treatments such as plating (e.g., zinc, nickel) or black oxide coating. A plain finish means the key's surface is as-machined or as-stamped, presenting the inherent properties of the carbon steel itself. While this finish does not offer enhanced corrosion resistance, it is often preferred in applications where the key is internal to an assembly, lubricated, or operates in a controlled environment. For applications in corrosive environments, additional protection would typically be provided by the system's overall design, such as an oil bath, protective housing, or by specifying a different material or surface treatment for the key itself. The plain finish also ensures a consistent dimensional profile, which is critical for achieving the intended fit and proper engagement within the keyway and keyseat.

Manufacturing precision plays a pivotal role in the performance of Woodruff keys. These keys are typically produced through stamping, cold heading, or machining processes. Stamping involves cutting the key from sheet or plate stock, suitable for high-volume production of smaller keys. Cold heading, a process where metal is formed at room temperature, produces keys with improved grain structure and strength. Machining, which involves material removal using milling or grinding operations, is employed for higher precision requirements or for larger, custom keys. Regardless of the manufacturing method, stringent quality control measures are implemented to ensure that the keys meet precise dimensional tolerances for thickness, diameter, and profile accuracy. Deviations in these parameters can lead to loose fits, premature wear, stress concentrations, or complete key failure. Buyers Products' commitment to providing components that fit driveline needs underscores their focus on manufacturing excellence and adherence to dimensional accuracy, which is paramount for the dependable function of power transmission systems.

The primary application of this Woodruff key, as indicated, is within driveline systems. Driveline systems are complex assemblies of components responsible for transmitting power from an engine or motor to a final driven component, such as wheels, propellers, or industrial machinery. Common components in driveline systems where Woodruff keys are extensively utilized include gearboxes, transmissions, pulleys, sprockets, impellers, and couplings. In these assemblies, the key's function is to establish a positive mechanical lock between a shaft and a hub, preventing relative rotation between the two components and ensuring that torque is transmitted efficiently and reliably. For instance, in an agricultural tractor's PTO (Power Take-Off) shaft, a Woodruff key might secure a universal joint yoke, transmitting power from the tractor's engine to an implement. In an industrial pump, it could secure an impeller to the motor shaft, enabling fluid movement. The key’s semi-circular base allows it to rock and align itself within a tapered keyway on the hub, facilitating easier assembly and compensating for minor misalignments, which is a significant practical advantage in many field assembly or maintenance scenarios.

When selecting a Woodruff key, several engineering considerations are critical to ensure proper function and prevent premature failure. The primary modes of failure for keys are shear failure and crushing (bearing) failure. Shear failure occurs when the applied torque creates shear stress exceeding the key's material shear strength, causing the key to break across its thickness. Crushing failure happens when the contact pressure between the key and the keyway/keyseat exceeds the material's bearing strength, leading to deformation or wear of the key or the mating components. Proper selection involves calculating the maximum torque to be transmitted, considering dynamic loads, and ensuring that the selected key's material properties and dimensions can safely withstand these stresses. The relatively large bearing area of a Woodruff key, particularly along its curved base, helps distribute stress more effectively compared to other key types, contributing to its robustness.

Installation and maintenance procedures are equally important for the successful long-term operation of Woodruff keyed connections. The keyway in the shaft is typically cut with a specialized Woodruff keyseat cutter, ensuring the correct semicircular profile. The keyseat in the hub, however, is generally a straight rectangular slot. During installation, the Woodruff key is first placed into the shaft's keyway. Its semi-circular shape allows it to pivot slightly, making it easier to align the hub onto the shaft, especially when the keyway in the hub is slightly misaligned with the key. A proper fit is crucial; the key should fit snugly in both the shaft's keyway and the hub's keyseat, minimizing any backlash or play. Excessive clearance can lead to impact loads, accelerating wear and fatigue. Conversely, an overly tight interference fit can induce stresses in the shaft or hub, potentially leading to cracking. Regular inspection for signs of wear, deformation, or corrosion is recommended, especially in high-load or vibratory applications. Worn or damaged keys should be promptly replaced to prevent cascading failures in the driveline system.

Compared to other mechanical joining methods, Woodruff keys offer a distinct set of advantages. While splines provide superior torque capacity and better dynamic balancing for high-speed applications, and taper keys offer a wedging action that can prevent axial movement, Woodruff keys strike an excellent balance between ease of manufacturing, cost-effectiveness, and reliable torque transmission. Their self-aligning characteristic simplifies assembly, particularly in blind applications or where precise alignment during installation is challenging. Furthermore, the semicircular keyway in the shaft, being deeper at its center and shallow at its ends, helps to maintain a greater shaft cross-sectional area compared to a straight keyway of equivalent torque capacity, thereby reducing the stress concentration factor along the shaft. This makes Woodruff keys a preferred choice in situations where shaft integrity is a primary concern but complex spline manufacturing is not economically or technically feasible.

The consistent quality and dimensional accuracy provided by Buyers Products are critical in the context of industrial components. As a supplier of essential parts for driveline systems, Buyers Products understands the severe operational environments these components face. Their Woodruff keys are manufactured under strict quality control protocols, ensuring that each key conforms to the specified dimensions and material properties. This commitment translates into tangible benefits for end-users: reduced downtime due to premature component failure, consistent performance, and simplified maintenance routines. The availability of Woodruff keys in a variety of diameters and thicknesses further demonstrates their comprehensive approach to serving diverse driveline needs, offering solutions for a wide array of shaft sizes and torque requirements. This specific 5/16 x 1-1/8 inch key is a testament to that dedication, providing a robust, precisely engineered solution for critical power transmission applications.

In conclusion, the Buyers Products Woodruff Key, with its 5/16 inch thickness and 1-1/8 inch diameter, fabricated from durable carbon steel with a plain finish, is an indispensable component for secure and efficient power transmission in driveline systems. Its unique semicircular design, combined with the inherent strength of carbon steel and precise manufacturing, ensures superior stress distribution, ease of assembly, and reliable operation across a broad spectrum of industrial and mechanical applications. From heavy machinery and automotive systems to agricultural equipment and power tools, this Woodruff key provides a steadfast mechanical link, safeguarding against rotational slippage and ensuring the seamless transfer of kinetic energy. For engineers and maintenance professionals, understanding its technical specifications, design advantages, and proper application protocols is key to leveraging its full potential in enhancing the longevity and performance of their mechanical systems, thereby embodying Buyers Products' commitment to delivering high-quality, dependable industrial solutions.
