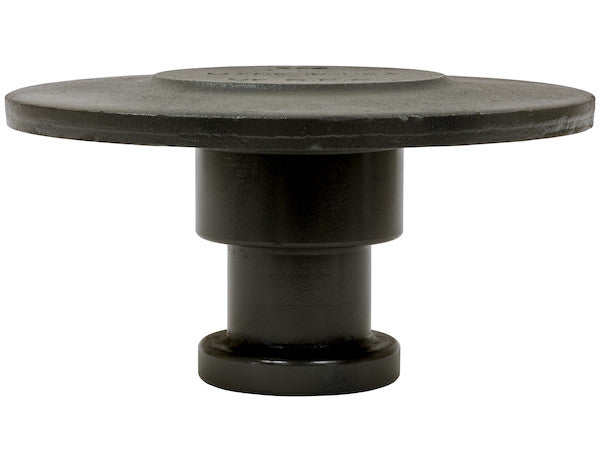

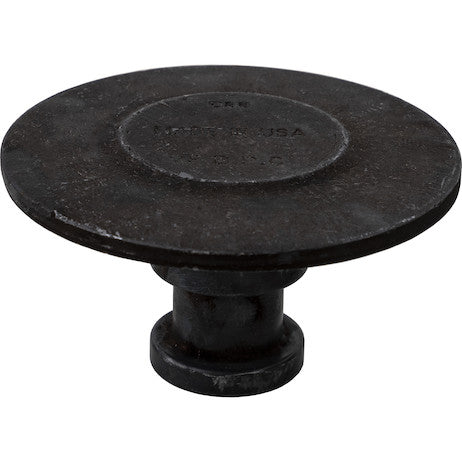

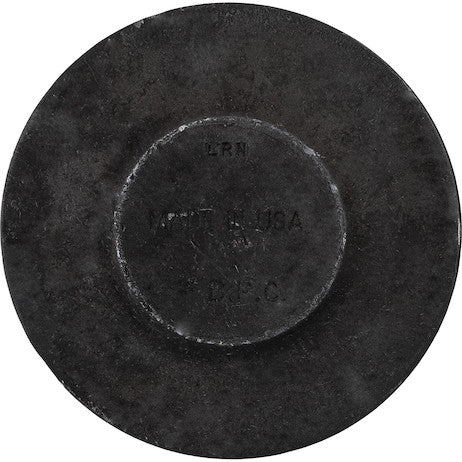

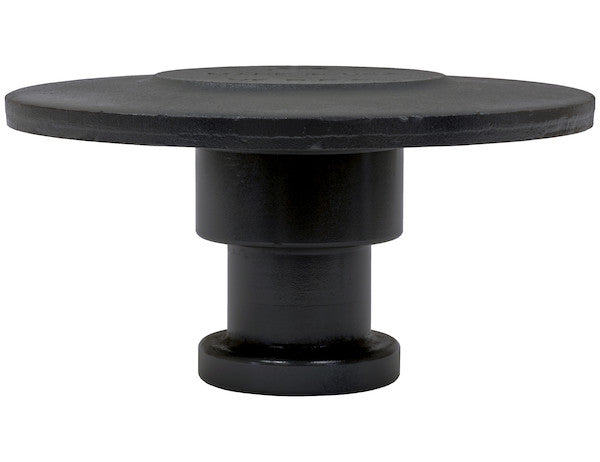

Trailer King Pins from Buyers Products provide strength and reliability in coupling your fifth wheel. They are forged from AISI 8630 steel and heat-treated to maintain a hardness of 302-363 BHN and 150,000 PSI in ultimate strength. They're available in several weldable bolster plate thicknesses. An 8 hole bolt-on version is also available.
Specifications
| Bolster Plate Thickness (in.) | 0.50 |
|---|---|
| Brinell Hardness | 302-363 BHN |
| Finish | Plain |
| Material | Forged Steel |
| Mount Type | Weld |
Advanced Engineering: The 2-Inch Forged SAE Trailer King Pin with 1/2 Inch Bolster Plate - Weld On
The 2-inch Forged SAE Trailer King Pin with 1/2 Inch Bolster Plate, Weld-On, from Buyers Products represents a critical component in heavy-duty trailer coupling systems. As the foundational link between a semi-trailer and its tractor's fifth wheel, the king pin is paramount for operational safety, load integrity, and fleet reliability. Meticulously manufactured from AISI 8630 steel, through precision forging and specialized heat treatment, this king pin delivers exceptional strength and durability. It is engineered to meet the stringent demands of commercial transportation, providing a secure and reliable interface for diverse hauling applications, even under the most challenging road and environmental conditions.
The Crucial Role of the King Pin in Commercial Transport
The king pin is the primary mechanical coupler, enabling the pivotal connection between a semi-trailer and the tractor. This critical component withstands immense static and dynamic loads, including vertical compression, torsional stresses during turns, and significant longitudinal forces during acceleration and braking. Its integrity is paramount; any compromise can lead to catastrophic detachment, resulting in severe accidents and extensive losses. Therefore, selecting a king pin that exceeds industry standards for strength and reliability is an absolute necessity. The 2-inch diameter conforms to the SAE J700 standard, ensuring universal compatibility with standard fifth wheels, which is crucial for interoperability within mixed fleets and across different manufacturers.
Material Excellence: The Advantages of AISI 8630 Steel
The choice of AISI 8630 steel is central to this king pin’s superior performance. This low alloy steel is renowned for its excellent balance of strength, toughness, and hardenability. Its precise alloying elements, including carbon, manganese, silicon, chromium, nickel, and molybdenum, work in concert. Chromium and molybdenum enhance hardenability and wear resistance, while nickel improves toughness, particularly at low temperatures. This specific composition allows AISI 8630 to achieve very high strength and hardness after heat treatment, making it ideal for high-stress applications like king pins. Its inherent metallurgical cleanliness and fine grain structure further contribute to resistance against wear, fatigue, and fracture, ensuring prolonged service life under rigorous dynamic loading.
Advanced Manufacturing: The Forging Process for Unmatched Strength
These king pins are manufactured using hot forging, a process that produces components with superior mechanical properties compared to casting or machining from bar stock. Forging plastically deforms hot metal, refining its grain structure and aligning the grain flow with the part's contour. This optimized grain flow significantly enhances strength, toughness, and fatigue resistance, especially along planes of maximum stress. Unlike machined parts, which can have interrupted grain lines creating stress risers, forged components offer continuous grain flow, maximizing resistance to impact and repetitive loading cycles. This dense, uniform microstructure is inherently more resilient to cracks and fractures, foundational to achieving the king pin's specified 150,000 PSI ultimate strength and guaranteeing operational integrity.
Precision Heat Treatment: Optimizing Hardness and Ultimate Strength
Following forging, each king pin undergoes a meticulously controlled heat treatment, critical for realizing the full potential of AISI 8630 steel. This involves precise quenching and tempering cycles. Quenching rapidly cools the hot steel, transforming it into a hard, but brittle, martensitic structure. Tempering then reheats this structure to a lower temperature, increasing ductility and toughness while retaining high strength and hardness. This process ensures the king pin achieves a Brinell Hardness of 302-363 BHN, providing exceptional resistance to abrasive wear from constant friction with the fifth wheel. Simultaneously, it optimizes the steel's toughness, preventing brittle fracture and enabling the component to withstand high-impact and dynamic stresses. This balance of hardness and 150,000 PSI ultimate tensile strength is vital for longevity and safety in heavy-duty transport.
Design and Dimensions: Adherence to the 2-Inch SAE Standard (J700)
The design adheres strictly to the 2-inch nominal diameter specified by SAE Standard J700. This international standard dictates the dimensional requirements for king pins, ensuring universal compatibility and interchangeability across diverse tractor-trailer combinations. The 2-inch diameter engages with the fifth wheel's locking jaws, and adherence to this precise specification is a fundamental safety requirement. Deviations could lead to improper coupling, excessive wear, premature failure, and hazardous detachment. Exacting tolerances during manufacturing ensure a snug yet articulating fit within standard fifth wheel mechanisms, minimizing play and extending the service life of both components. The design also optimizes stress distribution, preventing localized stress concentrations and ensuring mechanical integrity under continuous operation.
The Integral Bolster Plate: Structural Integrity through 1/2 Inch Thickness
The integral bolster plate, with its 1/2-inch (0.50 inches) thickness, is an essential part of this weld-on king pin assembly. It provides a robust, flat surface for welding the king pin to the trailer's upper coupler. This substantial thickness is critical for creating strong, reliable welds capable of transferring immense forces from the king pin into the trailer structure without failure. Thinner plates would be more susceptible to distortion and insufficient load-bearing capacity. The 1/2-inch plate ensures proper load distribution, spreading concentrated forces over a larger area of the trailer’s upper coupler, preventing localized stress and potential deformation. Manufactured from compatible steel, it ensures excellent weldability and structural continuity with the king pin body, reinforcing the overall strength and durability of the coupling system.
Weld-On Installation Methodology: A Secure and Permanent Connection
The weld-on mounting configuration offers superior structural integration and adaptability. It allows for custom positioning and creates a monolithic bond, making the king pin an intrinsic part of the trailer's load-bearing structure. However, safe and successful installation is contingent on precise welding procedures and adherence to industry best practices. Key considerations include: meticulous surface preparation, selection of appropriate welding processes (e.g., GMAW, SMAW) and filler materials suitable for high-strength steels, and proper preheating or post-weld treatment to prevent cracking. All welding must be performed by certified and experienced welders, adhering to codes like AWS D1.1. Post-weld inspection, including visual and potentially non-destructive testing, is crucial. Correctly executed, weld-on installation provides an incredibly robust and permanent connection, maximizing strength and longevity while eliminating issues like bolt loosening common with bolt-on alternatives.
Performance and Reliability Under Extreme Conditions
This 2-inch Forged SAE Trailer King Pin is engineered for exceptional reliability under the most demanding conditions. Designed to endure continuous cycles of immense vertical load, dynamic shear forces, and torsional stress, its robust material and design minimize fatigue failure risks. The 150,000 PSI ultimate strength offers a substantial safety margin, and the 302-363 BHN hardness ensures superior wear resistance at the coupling interface. These king pins withstand environmental aggressors like extreme temperatures, moisture, and road salts. Compliance with SAE J700 guarantees adherence to industry safety parameters, while Buyers Products' quality assurance ensures each unit meets stringent performance benchmarks. This focus on durability translates into reduced downtime, lower maintenance costs, and enhanced operational efficiency and safety for fleet operators.
Versatile Applications Across Industries
Given its robust design and adherence to universal standards, this king pin is ideal for a wide range of heavy-duty commercial trailer applications. This includes dry van, refrigerated (reefer), flatbed, lowboy, tanker, and dump trailers. It serves critical industries such as logistics, construction, agriculture, waste management, and heavy equipment transport. In these diverse sectors, the king pin provides the indispensable link that ensures the safe and efficient movement of goods, often under demanding load and environmental conditions, making it a cornerstone of reliable commercial transport.
Maintenance and Inspection for Sustained Safety and Longevity
Continuous safety and optimal performance require regular inspection and maintenance of the king pin and bolster plate. Operators should conduct visual inspections for abnormal wear on the bearing surface, which can indicate misalignment or insufficient lubrication. Critical checks include looking for hairline cracks in the king pin body, bolster plate, and weldments; any deformation or bending; and ensuring weld integrity for weld-on versions. Corrosion should also be monitored. Fatigue cracks or significant deformation necessitate immediate replacement. Adherence to fifth wheel lubrication schedules extends component life. Promptly addressing any identified issues is paramount for preventing coupling failures and ensuring compliance with safety regulations.
Why Choose Buyers Products King Pins: A Commitment to Quality and Safety
Choosing the 2-inch Forged SAE Trailer King Pin from Buyers Products is an investment in superior quality, unwavering safety, and long-term operational reliability. With a legacy of engineering excellence and a commitment to robust manufacturing, Buyers Products delivers components that consistently exceed industry specifications. The meticulous selection of AISI 8630 steel, advanced forging, and precision heat treatment result in a king pin with exceptional strength, wear resistance, and fatigue life. This ensures fleets operate with maximum confidence, minimizing downtime, reducing costly repairs, and enhancing the safety profile of every journey. For critical infrastructure components like king pins, where failure is not an option, Buyers Products offers engineered durability and consistent performance.
Conclusion: The Definitive Choice for Heavy-Duty Coupling
In summary, the 2-inch Forged SAE Trailer King Pin with 1/2 Inch Bolster Plate, Weld-On, is a meticulously engineered, safety-critical component for heavy-duty transportation. Its construction from premium AISI 8630 forged steel, precision heat treatment for optimal hardness and ultimate strength, and strict adherence to SAE standards ensure unparalleled reliability and operational longevity. For applications demanding uncompromising safety, durability, and performance, this king pin stands as the definitive choice, providing the secure and robust connection essential for efficient and safe transport across all industries.
