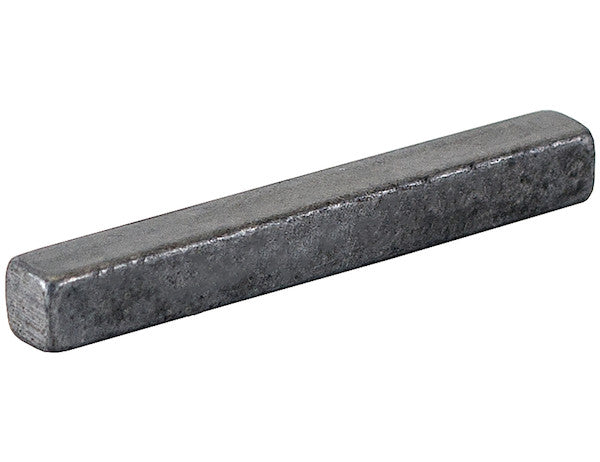

KS402 - 1/4 Inch Square Key Stock x 2 Inch

Specifications

The 1/4 Inch Square Key Stock x 2 Inch represents a critical component in mechanical power transmission systems, engineered for precision, durability, and reliable performance. This specific key stock, characterized by its square profile, 0.250-inch (1/4 inch) nominal width and height, and 2.000-inch (2 inch) length, is manufactured from high-quality carbon steel with a plain finish. Its fundamental role is to establish a secure, non-rotational coupling between a shaft and a rotating component such as a gear, pulley, sprocket, or coupling hub. By preventing relative motion between these interconnected elements, the key stock facilitates the efficient transfer of torque, thereby maintaining the synchronous operation essential for machinery and equipment across diverse industrial and commercial applications.

Key stock, in its essence, is a standardized bar of metal with a precise cross-sectional shape, designed to be cut to specific lengths to create machine keys. These keys are crucial mechanical fasteners that fit into corresponding grooves, known as keyways, machined into both the shaft and the mating component's bore. The engagement of the key within these keyways creates a positive mechanical lock, ensuring that rotational force applied to the shaft is effectively transmitted to the driven component without slippage. The selection of the appropriate key type and dimensions is paramount for the integrity and operational efficiency of any mechanical system.

The square key, as exemplified by this 1/4 inch stock, is one of the most common and versatile types of machine keys. Its symmetrical square cross-section offers distinct advantages in torque transmission. When a square key is correctly fitted, the tangential forces generated during torque transfer are primarily resisted by shear stress within the key material and compressive stress between the key and the keyway walls. The large contact area provided by the flat sides of the square key, especially when compared to radius-ended keys, contributes to its high load-bearing capacity and robust performance. This design minimizes stress concentrations within the keyway, thereby extending the lifespan of both the key and the components it connects. The simplicity of the square key's geometry also lends itself to straightforward machining of keyways, making it a cost-effective solution for many engineering applications.

Precision in dimensional specifications is non-negotiable for key stock. The stated Key Size (Width) of 0.250 inches (1/4 inch) signifies a critical dimension that must be maintained within tight tolerances to ensure proper fit and function. An undersized key can lead to excessive clearance, resulting in backlash, wear, and eventual failure under dynamic loads. Conversely, an oversized key can prevent proper assembly or induce unwanted stresses in the shaft and hub, potentially leading to material fatigue or cracking. This 1/4-inch nominal dimension aligns with common imperial sizing standards prevalent in many industries, ensuring compatibility with a vast array of existing components and designs. The precision manufacturing process employed for this key stock guarantees that its cross-sectional dimensions adhere to stringent industry standards, promoting optimal engagement and reliable torque transfer. This precise fit is crucial for minimizing play and maximizing the mechanical advantage of the keyed joint.

The Key Length of 2.000 inches (2 inches) is also a significant parameter. While key stock is often supplied in longer lengths to be cut down as needed, this 2-inch pre-cut segment offers immediate utility for specific applications or as a standard replacement part. The length of the key directly influences the total shear area available to resist the rotational forces. A longer key provides a larger shear area, theoretically allowing for higher torque transmission capacity before shear failure occurs. However, the effective length of a key is often limited by the length of the keyways in the shaft and hub. A 2-inch length is practical for many small to medium-sized power transmission assemblies, balancing the need for sufficient shear strength with considerations for compact design and ease of assembly. Its convenience makes it suitable for quick repairs, maintenance, and prototyping where standard lengths are preferred over custom cutting.

Material selection is fundamental to the performance characteristics of key stock. This product is manufactured from Carbon Steel, a widely utilized ferrous alloy celebrated for its excellent balance of mechanical properties, machinability, and cost-effectiveness. Carbon steel, primarily composed of iron and carbon (typically up to 2.1% by weight), offers a favorable combination of tensile strength, yield strength, hardness, and ductility for power transmission applications. The specific grade of carbon steel used for key stock, often falling into categories like plain carbon steel (e.g., C1018, C1045), is chosen to provide sufficient strength to resist the shear and compressive stresses encountered in keyed joints, while also possessing enough toughness to withstand shock loads and fatigue cycling. C1018 steel, for instance, is a low-carbon steel known for its good machinability and weldability, often used when moderate strength is required. C1045, a medium-carbon steel, offers higher strength and hardness, making it suitable for applications demanding greater load capacity. The choice of carbon steel ensures that the key stock can reliably transmit torque without deforming permanently or fracturing under normal operating conditions, thereby contributing to the longevity and safety of the mechanical system.

The Plain finish specified for this key stock indicates that the material is supplied without any additional surface coatings or treatments, such as plating, anodizing, or painting. This means the key stock will exhibit the natural surface characteristics of the carbon steel from which it is manufactured, typically a mill finish. A plain finish offers several advantages: it is cost-effective, readily available, and allows for direct machining, welding, or subsequent surface treatment by the end-user if required. For applications where the key is fully enclosed within a housing or lubricated, a plain finish is often entirely adequate, as it minimizes complexity and cost without compromising functional performance. However, in environments exposed to moisture, chemicals, or other corrosive agents, a plain carbon steel key may be susceptible to rust and corrosion. In such cases, the plain finish allows for easy application of rust-preventative oils, greases, or appropriate coatings by the user to enhance corrosion resistance, ensuring long-term operational integrity in diverse environmental conditions. It also enables direct contact for electrical conductivity if that is a secondary requirement within the assembly.

The applications for 1/4 Inch Square Key Stock x 2 Inch are extensive and encompass virtually every sector involving rotating machinery. Common uses include, but are not limited to, the coupling of shafts to impellers in pumps, securing gears to motor shafts in reduction gearboxes, connecting pulleys to drive shafts in belt-driven systems, and attaching sprockets to shafts in chain drive mechanisms. This size is particularly prevalent in light to medium-duty industrial machinery, agricultural equipment, construction machinery, material handling systems, and various types of power tools. Within manufacturing plants, these keys are integral to conveyor systems, automated production lines, and packaging machinery. The ubiquity of this component underscores its fundamental importance in facilitating the reliable transmission of mechanical power, thereby underpinning the functionality of countless industrial and consumer products.

The manufacturing process for key stock typically involves either hot rolling or cold drawing steel bars to achieve the desired cross-sectional dimensions. Cold drawing, in particular, enhances the dimensional accuracy, surface finish, and mechanical properties (such as tensile strength and hardness) of the material. After forming, the bars are precisely cut to the specified 2-inch length. Throughout the manufacturing process, strict quality control measures are implemented to ensure that the key stock adheres to critical tolerances for width, height, length, and straightness. Adherence to recognized industry standards, such as ASME B17.1 for Keys and Keyseating, is crucial. These standards define the nominal dimensions, tolerances, and material specifications for machine keys, ensuring interchangeability and predictable performance across different manufacturers and applications. This commitment to precision manufacturing and adherence to standards provides engineers and technicians with reliable components that integrate seamlessly into their designs and maintenance protocols.

Proper installation of key stock is critical for its effective function. The key must be fitted snugly into both the shaft keyway and the hub keyway to ensure full surface contact and eliminate any rotational play. This often involves selecting the appropriate fit type, which can range from a clearance fit (allowing for easy assembly but potential for slight play) to an interference fit (requiring force for assembly but providing a more rigid connection). Lubrication of the key and keyways during assembly can facilitate insertion and prevent galling. Once installed, the key works in conjunction with other shaft retention methods, such as set screws, retaining rings, or interference fits, to maintain axial position and prevent the key from dislodging during operation. Regular inspection of keyed joints during maintenance routines can identify signs of wear, fretting corrosion, or deformation, allowing for timely replacement and preventing catastrophic equipment failure.

In conclusion, the 1/4 Inch Square Key Stock x 2 Inch in plain finish carbon steel is a meticulously engineered component that serves as a cornerstone of mechanical power transmission. Its precise dimensions, robust material properties, and standardized form factor make it an indispensable element for securing rotating components and transmitting torque efficiently and reliably. From its intrinsic design advantages as a square key to the inherent strength and versatility of carbon steel, every aspect of this product is optimized for demanding industrial environments. It embodies the principles of sound mechanical engineering, offering a dependable solution for new equipment design, maintenance, repair, and overhaul operations across a multitude of industries. This key stock represents a commitment to quality, performance, and the foundational integrity required for the continuous and effective operation of mechanical systems worldwide.
