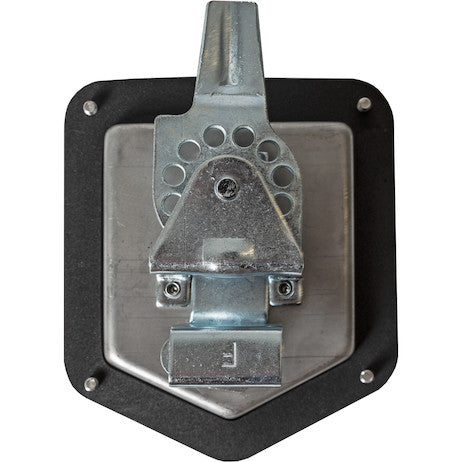

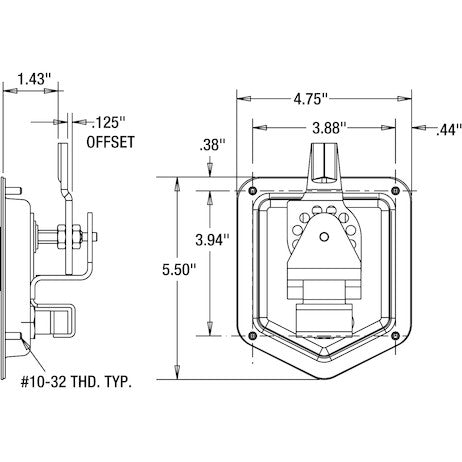

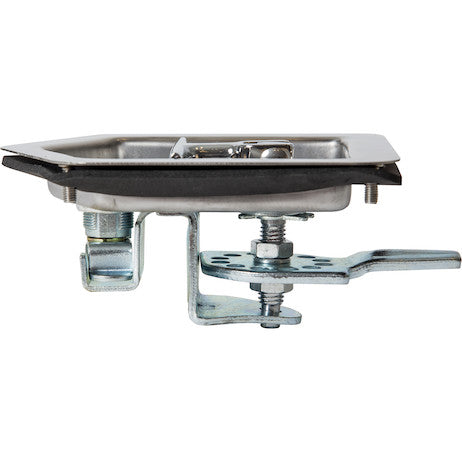

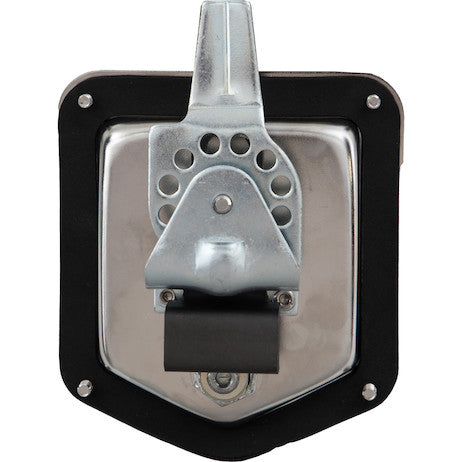

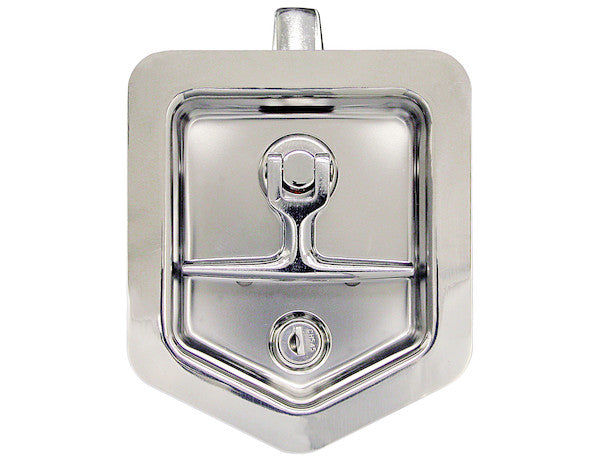

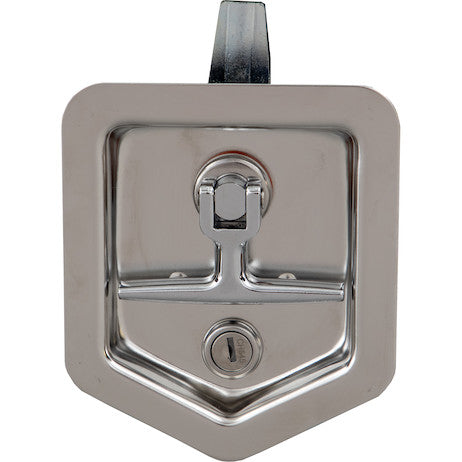

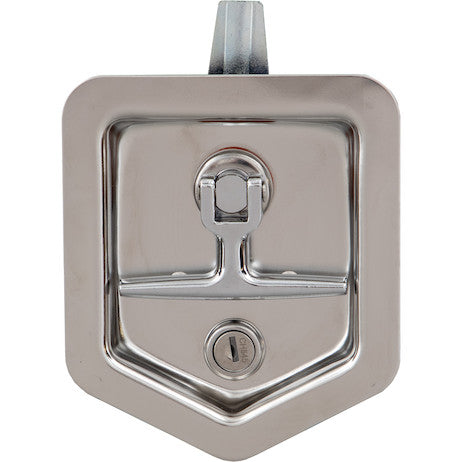

The latch assembly includes a lock cylinder, key set, and gasket, ensuring you have everything needed to complete the installation. The latch is made of polished stainless steel for durability and corrosion resistance. It features four mounting studs on the back, which ensures a smooth and professional flush mount installation. The latch cam can adjust from 1-1/4 inch to 2- inches to suit a variety of panel depths. The overall latch measurements are 4.75 inches wide by 5.50 inches tall, making it the perfect size for most applications.
This heavy-duty T-handle latch is used to produce Buyers Products Truck Tool Boxes. It can also be used as a universal aftermarket part to replace broken or damaged latches on a variety of applications such as cabinets, chests, trucks, trailers, and RVs.
Specifications
| Gasket Included | Y |
|---|---|
| Gasket Thickness | 0.06 |
| Handle Finish | Polished |
| Handle Material | Stainless Steel |
| Height (in.) | 5.50 |
| Housing Finish | Polished |
| Housing Material | Stainless Steel |
| Latch Style | T-Handle |
| Locking | Yes |
| Maximum Cam Size | 2.00 |
| Minimum Cam Size | 1.13 |
| Mount Height (in.) | 3.95 |
| Mount Type | Stud |
| Mount Width (in.) | 3.88 |
| Width (in.) | 4.75 |
The 6-Inch Stainless Steel Single-Point T-Handle Latch with Key Cylinder, Gasket, and Keys represents a pinnacle of robust engineering and functional design, specifically tailored for demanding industrial, commercial, and recreational applications. This heavy-duty latch, manufactured by Buyers Products, is a testament to unwavering quality, providing an optimal solution for securing compartments, toolboxes, and access panels on work trucks, utility trailers, service vehicles, storage chests, and even recreational vehicles (RVs). Engineered for unparalleled durability and reliability, it is constructed to endure the harshest operational environments and consistent daily usage, making it an indispensable component in any setup where security and long-term performance are paramount.
Advanced Material Science and Uncompromising Durability
At the core of this latch's exceptional performance is its meticulously chosen material: high-grade stainless steel. Both the handle and housing of this T-handle latch are crafted from stainless steel, renowned for its superior mechanical properties and inherent resistance to environmental degradation. Specifically, stainless steel alloys like 304 or 316 are often employed in such applications due to their high chromium content, which forms a passive layer on the surface. This layer provides extraordinary protection against oxidation, rust, and various forms of corrosion, even when exposed to moisture, road salts, chemicals, and extreme temperatures.
The polished finish applied to both the handle and housing not only enhances the aesthetic appeal of the latch, contributing to a professional and clean appearance, but also serves a functional purpose. Polishing creates a smoother surface, which further reduces the propensity for dirt and grime accumulation, making cleaning and maintenance significantly easier. This surface treatment also minimizes microscopic surface imperfections that could otherwise act as initiation sites for corrosion or fatigue cracks, thereby extending the operational lifespan of the component. The intrinsic strength of stainless steel ensures that the latch can withstand significant mechanical stress, impact, and vibration without deforming or failing, a critical attribute for equipment frequently subjected to dynamic loads and rough handling on job sites or during transit. This material choice guarantees a product that will maintain its structural integrity and visual appeal for many years, even under continuous, rigorous use.
Precision Engineering and Ergonomic Design
The design of this 6-inch T-handle latch is a masterclass in combining ergonomic functionality with robust mechanical precision. The T-handle style is chosen for its superior grip and ease of operation, even when wearing gloves, facilitating swift and secure latching or unlatching. This ergonomic advantage is particularly valuable in environments where efficiency and user comfort are important.
As a single-point latch, its mechanism is designed for straightforward and reliable engagement. Upon rotation of the T-handle, an internal cam or pawl rotates to engage with a strike plate or frame, drawing the door or panel securely into its closed and locked position. This direct-action mechanism minimizes complexity and potential points of failure, ensuring consistent performance. The "flush mount" characteristic is a key design consideration, contributing significantly to both safety and aesthetics. The latch is designed to sit virtually flush with the exterior surface of the panel, compartment door, or toolbox. This minimizes protrusions that could snag on clothing, equipment, or obstacles, thereby reducing the risk of injury or damage. From an aesthetic standpoint, a flush mount provides a clean, integrated look that is highly desirable for modern vehicle bodies, premium toolboxes, and sophisticated storage solutions.
The flush mount installation is securely facilitated by four robust mounting studs located on the back of the latch housing. These studs, precisely spaced for optimal load distribution and stability, ensure a tight and enduring connection to the mounting surface. The stud-mount design eliminates the need for visible fasteners on the exterior face, further enhancing the clean, flush aesthetic and deterring tampering. The mounting dimensions are critical for seamless integration; with a mount width of 3.88 inches and a mount height of 3.95 inches, these specifications ensure compatibility with standard panel cutout dimensions for a professional-grade installation. The overall dimensions of the latch, measuring 4.75 inches wide by 5.50 inches tall, provide ample surface area for secure mounting while remaining compact enough for diverse applications.
A crucial technical feature of this latch is its adjustable cam. The latch cam, the component that directly engages with the strike plate or frame, offers a significant adjustment range, specifically from a minimum of 1.13 inches to a maximum of 2.00 inches. This adjustability is vital for accommodating varying panel depths and material thicknesses, as well as for fine-tuning the compression required for an optimal seal. By allowing the cam to be precisely positioned, installers can ensure a secure, rattle-free closure across a wide spectrum of applications, from thin-gauge sheet metal compartments to thicker composite panels. This flexibility significantly broadens the applicability of the latch, eliminating the need for multiple specialized latches for different panel configurations and reducing inventory complexity for manufacturers and distributors alike. The precise adjustment mechanism typically involves threaded components, allowing for micro-adjustments that ensure consistent tension and engagement over time.
Integrated Security and Environmental Sealing
Security is a paramount concern for storage solutions, particularly for valuable tools, equipment, or sensitive contents. This 6-inch T-handle latch integrates a robust key cylinder and comes complete with a set of keys, offering reliable physical security. The locking mechanism, embedded within the T-handle assembly, prevents unauthorized access, providing peace of mind for owners of toolboxes, service vehicles, and storage units. The key cylinder is designed for smooth operation and features durable internal components resistant to common forms of manipulation, ensuring long-term security performance. The inclusion of a dedicated key set simplifies the installation process, ensuring the latch is immediately functional and secure upon mounting. This locking capability transforms any compartment into a secure storage area, protecting assets against theft and vandalism, a critical factor for professional contractors, fleet managers, and vehicle owners.
Beyond security, the latch system also addresses environmental protection through the inclusion of a high-quality gasket. The gasket, with a thickness of 0.06 inches, plays a critical role in creating a formidable barrier against external elements. When the latch is closed and engaged, the gasket compresses between the latch housing and the mounting surface, forming a tight seal. This seal is instrumental in preventing the ingress of water, dust, dirt, and other contaminants into the secured compartment. For applications such as truck toolboxes and trailer storage, where contents are exposed to varying weather conditions and road debris, this level of environmental protection is indispensable. The gasket also serves to dampen vibrations, reducing noise and preventing wear between the latch and the panel. This contributes to the overall longevity of both the latch and the surrounding structure, ensuring that the integrity of the enclosure is maintained over years of service. The material composition of the gasket is typically chosen for its resilience against temperature fluctuations, UV radiation, and chemical exposure, ensuring its sealing properties remain effective throughout its operational life.
Broad Spectrum of Applications and Universal Adaptability
The design versatility and robust construction of the Buyers Products 6-inch Stainless Steel Single-Point T-Handle Latch make it an ideal solution across a comprehensive range of applications.
- Work Trucks and Utility Trailers: These vehicles operate in some of the most challenging environments imaginable. The latch's heavy-duty stainless steel construction, combined with its locking mechanism and weather-sealing gasket, makes it perfectly suited for securing compartments, side boxes, and access panels on commercial work trucks, utility trailers, flatbeds, and service vehicles. It reliably protects valuable tools, equipment, and supplies from theft, weather damage, and road grit, ensuring operational continuity for tradesmen and service professionals. The flush mount design also prevents snagging, which is crucial for safety and efficiency on busy job sites.
- Truck Tool Boxes: As a component integral to Buyers Products' own line of truck tool boxes, this latch exemplifies the standard for security and durability in this product category. Its capacity to withstand constant opening and closing, heavy vibration from vehicle movement, and exposure to all types of weather conditions ensures that tools stored within remain safe, dry, and readily accessible. The T-handle's ergonomic design facilitates quick access, which is essential for efficiency during demanding workdays.
- Cabinets and Storage Chests: Beyond vehicular applications, the latch is exceptionally well-suited for industrial cabinets, storage chests, and outdoor utility enclosures. Its corrosion resistance is particularly beneficial for cabinets in chemical plants, marine environments, or food processing facilities where hygiene and resistance to corrosive agents are critical. For general storage chests, whether in workshops, garages, or outdoor settings, it provides reliable security and protection against environmental elements.
- Recreational Vehicles (RVs) and Campers: The demands of RV and camper storage compartments are unique, requiring a balance of security, weather resistance, and aesthetic integration. The polished stainless steel finish complements modern RV designs, while the locking feature safeguards personal belongings and utility equipment. The flush mount profile reduces aerodynamic drag and potential hazards, and the robust weather seal protects contents from rain, dust, and road spray encountered during travel.
- Universal Aftermarket Replacement: A significant advantage of this T-handle latch is its widespread applicability as a universal aftermarket part. Its standardized dimensions (4.75" W x 5.50" H overall, 3.88" W x 3.95" H mount) and adjustable cam (1.13" to 2.00" range) make it a highly adaptable replacement for broken, damaged, or worn-out latches on a diverse array of equipment. This includes upgrading older, less secure latches or repairing existing installations on trucks, trailers, RVs, toolboxes, and custom storage units from various manufacturers. The inclusive nature of the lock cylinder, keys, and gasket means that a complete repair or upgrade solution is provided in a single package, simplifying procurement and installation for maintenance personnel and DIY enthusiasts alike.
Installation Considerations and Long-Term Maintenance
The installation of the 6-inch Stainless Steel T-Handle Latch is designed to be straightforward, facilitated by its stud-mount configuration. For optimal performance and longevity, precise panel preparation is essential. A clean, accurately cut mounting hole corresponding to the latch's housing dimensions (3.88" W x 3.95" H) is crucial for achieving the intended flush fit. The four mounting studs require corresponding drilled holes in the panel, ensuring a secure, anti-rotation mount. Once inserted, the studs are typically secured with nuts and washers from the interior side of the panel, providing significant clamping force. The integrated 0.06-inch gasket should be positioned correctly during installation to ensure a watertight and dust-proof seal against the mounting surface. Proper torque application to the mounting nuts is important to prevent over-compression of the gasket, which could compromise its sealing integrity, or under-tightening, which could lead to looseness and premature wear.
Once installed, the adjustable cam feature allows for precise calibration. After mounting the latch, the cam should be adjusted to achieve appropriate compression on the door or panel against its frame, ensuring a secure, rattle-free closure without excessive force being required to operate the handle. This adjustment is critical for both the sealing function of the gasket and the overall security of the locked compartment.
For long-term maintenance, stainless steel components are inherently low-maintenance. Regular cleaning with mild soap and water can maintain the polished finish and prevent the buildup of corrosive substances, especially in environments exposed to road salt or chemicals. The lock cylinder should be periodically lubricated with a graphite-based lubricant, particularly in dusty or harsh conditions, to ensure smooth key operation and prevent seizing. Inspecting the gasket periodically for signs of wear, cracking, or compression set is also recommended to ensure the continued integrity of the environmental seal.
Conclusion
The Buyers Products 6-inch Stainless Steel Single-Point T-Handle Latch stands as a superior choice for a broad spectrum of demanding applications. Its robust construction from polished stainless steel ensures exceptional durability and resistance to corrosion, capable of enduring the most rigorous operating conditions. The thoughtful engineering behind its flush-mount design, ergonomic T-handle, and adjustable cam provides both aesthetic integration and unparalleled functional versatility. Coupled with a reliable key cylinder for enhanced security and an integrated gasket for comprehensive environmental sealing, this latch offers a complete and highly dependable solution. Whether for OEM integration into high-performance truck toolboxes or as a universal aftermarket replacement for critical security points on commercial vehicles, industrial cabinets, or recreational equipment, this latch delivers uncompromising quality, security, and longevity, making it an invaluable investment for any application requiring a heavy-duty, reliable, and secure closure mechanism.
