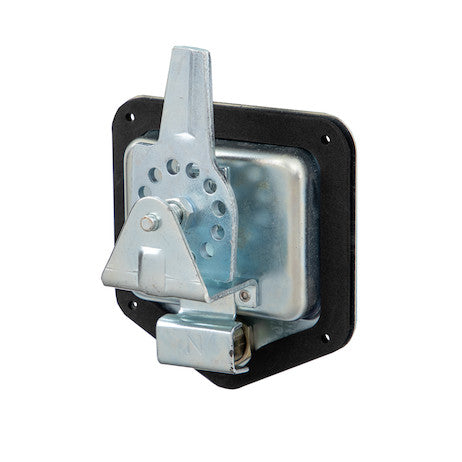

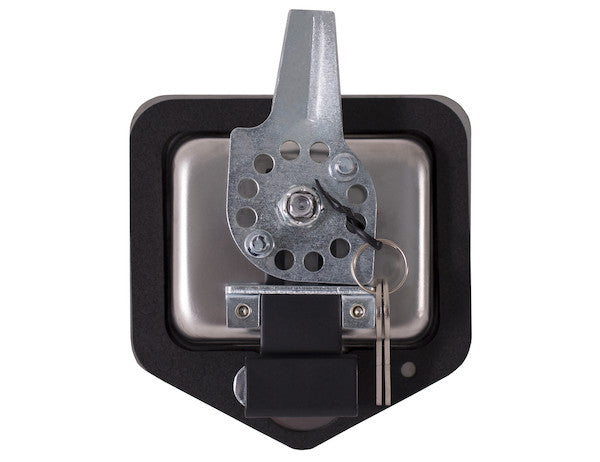

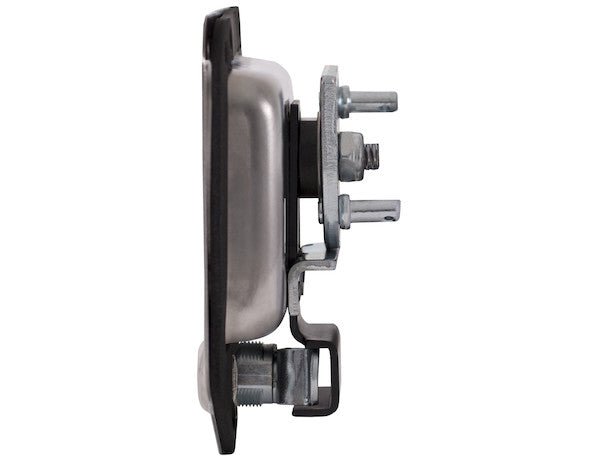

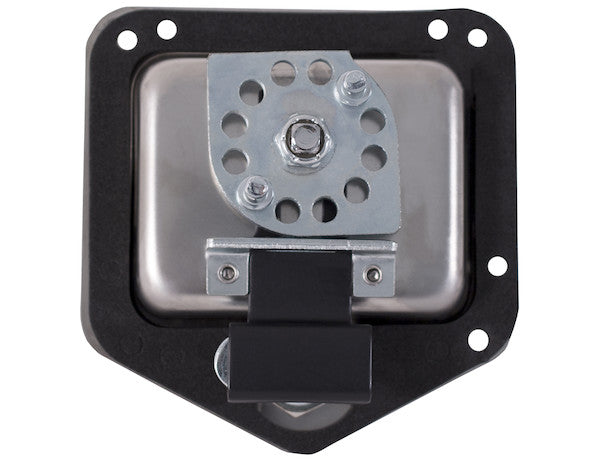

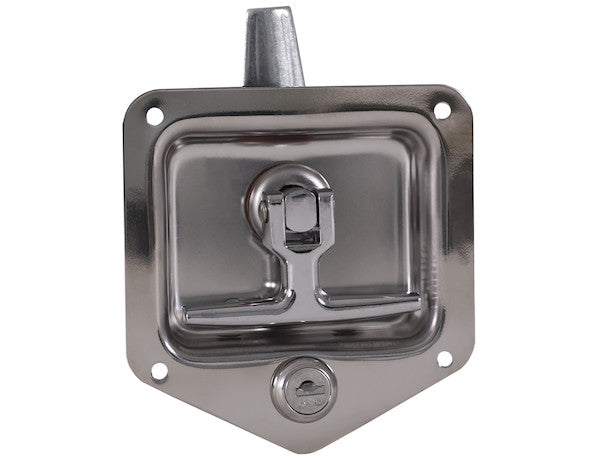

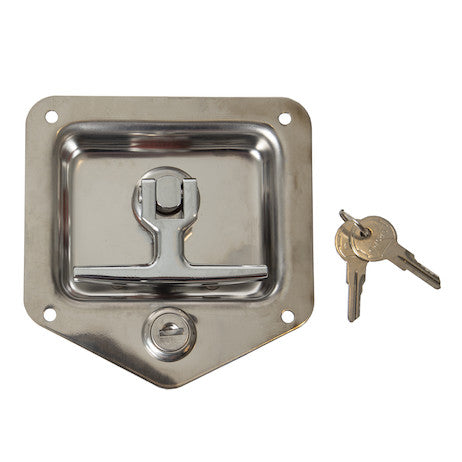

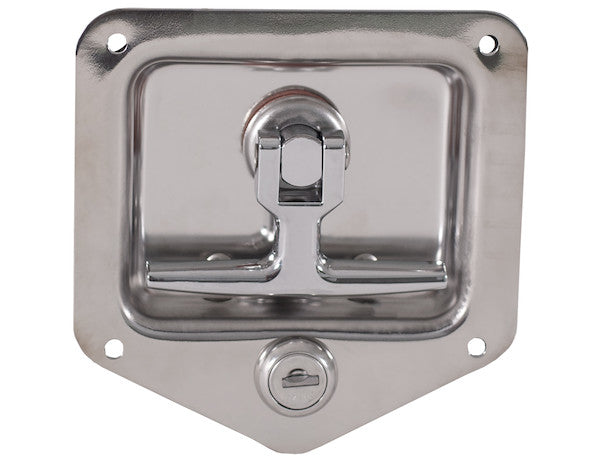

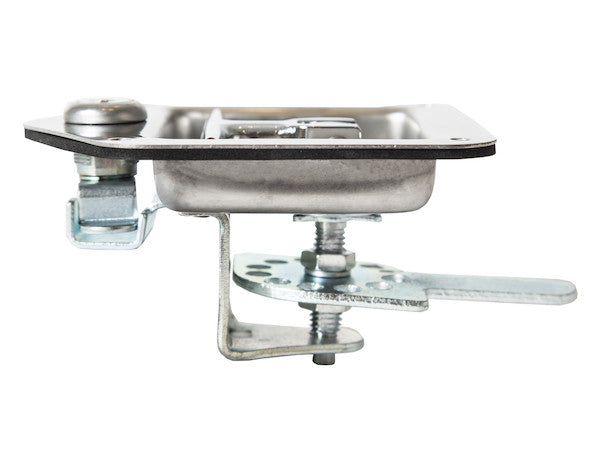

The Buyers Products 5-inch Stainless Steel Multi-Point T-Handle Latch Kit is the perfect choice for applications that require a high-quality and locking multi-point latch. These heavy-duty latches are designed for work trucks and trailers, truck tool boxes, cabinets, and storage chests. They are built to withstand the toughest job sites and daily use. This complete latch kit includes the latch, lock cylinder, key set, gasket, and a pair of 34-inch rods and rod guides, ensuring that you have everything you need to complete the installation. The latch is constructed with polished stainless steel for durability and corrosion resistance. It is designed with 4 pre-drilled mounting holes for fast and easy installation on a variety of surfaces. The cam is adjustable from 1-1/4 inches to 2 inches to suit a variety of panel depths. The overall latch measurements are 4.75 inches wide by 4.88 inches tall making it the perfect size for many applications. This heavy-duty T-handle latch is the perfect universal aftermarket part to replace broken or damaged latches on a variety of applications such as cabinets, chests, trucks, trailers, and RVs.
Specifications
| Gasket Included | YES |
|---|---|
| Handle Material | Stainless Steel |
| Height (in.) | 4.88 |
| Housing Finish | Polished |
| Housing Material | Stainless Steel |
| Latch Style | 3 Point T-Handle |
| Locking | Yes |
| Maximum Cam Size | 2.00 |
| Minimum Cam Size | 1.13 |
| Mount Height (in.) | 3.38 |
| Mount Type | Bolt-On |
| Mount Width (in.) | 3.88 |
| Width (in.) | 4.75 |
Technical Deep Dive: The Stainless Steel Flush Mount 3-Point T-Handle Latch Kit
In demanding industrial and commercial applications, the security and reliability of access points are paramount. The Stainless Steel Flush Mount 3-Point T-Handle Latch Kit represents a pinnacle of engineering designed to address these critical requirements. This comprehensive technical overview will delve into the specific attributes, material science, operational principles, and application advantages that position this latch kit as a superior choice for robust enclosure security.
Precision Engineering and Multi-Point Security
At its core, this product is distinguished by its 3-point latching mechanism. Unlike traditional single-point latches that secure an access panel at a single central location, a 3-point system engages at three distinct points: typically the center of the door/panel and two additional points, usually at the top and bottom edges. This geometric distribution of locking forces offers several significant advantages. Firstly, it provides superior security against forced entry, as any attempt to pry open the panel encounters resistance at multiple, spatially separated points, making it significantly more difficult to deform the panel or dislodge the latching points. Secondly, the even distribution of pressure across the panel’s periphery ensures a tighter, more uniform seal when used in conjunction with a gasket. This is critical for applications requiring protection against environmental ingress, such as dust, moisture, and even certain airborne contaminants. The prevention of panel warping or rattling, particularly in high-vibration environments, is another direct benefit, contributing to both the longevity of the enclosure and the integrity of its contents.
Material Science: The Indispensable Role of Stainless Steel
The selection of stainless steel for both the handle and housing material is a deliberate engineering choice driven by the demanding environments in which this latch kit is intended to operate. Stainless steel is an iron-based alloy characterized by a minimum of 10.5% chromium content, which forms a thin, passive oxide layer on the surface. This chromium oxide layer is self-repairing and provides exceptional resistance to corrosion, rust, and staining, especially when compared to conventional steel alloys. For the "polished" finish specified, this not only enhances the aesthetic appeal but can also contribute to improved surface passivity and ease of cleaning, further deterring the adherence of corrosive agents or debris.
The specific grade of stainless steel, while not explicitly detailed, is typically an austenitic grade like 304 or 316 for these types of applications. Grade 304 stainless steel offers an excellent balance of strength, formability, and corrosion resistance, making it suitable for a wide range of general-purpose applications exposed to atmospheric and freshwater conditions. Grade 316, often referred to as marine-grade stainless steel, includes molybdenum, which significantly enhances its resistance to pitting and crevice corrosion in more aggressive environments, such as those exposed to chlorides (e.g., saltwater or certain industrial chemicals). Regardless of the exact grade, the inherent mechanical properties of stainless steel, including its high tensile strength and resistance to impact and abrasion, ensure that the latch mechanism can withstand the physical rigors of daily operation on job sites, work trucks, and trailers.
Flush Mount Design: Aesthetics Meets Functionality
The "flush mount" characteristic of this T-handle latch is a key design consideration that merges aesthetic integration with practical advantages. A flush design means that when the latch is closed, its exterior profile sits nearly level with the surface of the door or panel, minimizing protrusion. This design reduces the risk of accidental snagging by clothing, equipment, or passing objects, which is a common concern in high-traffic or tight operational spaces. Beyond safety, the flush mounting contributes to a cleaner, more streamlined appearance, which is often desirable in modern vehicle design and industrial enclosures. Furthermore, by reducing exposed components, the flush design can offer a subtle enhancement to security, making it marginally more difficult for would-be intruders to gain leverage or tamper with the mechanism.
Comprehensive Kit for Seamless Integration
The provision of a complete kit streamlines the installation process and ensures optimal performance. Each component plays a vital role:
The Latch Unit and T-Handle Mechanism
The central latch unit houses the locking cylinder and the internal mechanisms that actuate the rods. The T-handle itself is ergonomically designed for a comfortable and positive grip, even when wearing work gloves. Its robust construction ensures reliable engagement and disengagement of the rods. The inherent simplicity and mechanical reliability of the T-handle design make it a preferred choice for applications where frequent access and secure closure are essential.
Lock Cylinder and Key Set
Security is paramount, and the included lock cylinder and key set provide controlled access. These components are precision-engineered to resist common forms of manipulation and unauthorized entry. The locking mechanism transforms the multi-point latch from a mere closure device into a secure barrier, critical for protecting valuable tools, equipment, or sensitive contents within enclosures. The inclusion of multiple keys in the set ensures redundancy and convenient access for authorized personnel.
Gasket: The Seal of Protection
The "Gasket Included" specification highlights a crucial element for environmental protection. The gasket, typically made from a durable elastomer such as EPDM, neoprene, or silicone, creates a resilient seal between the latch housing and the mounting surface, as well as between the door panel and its frame. This seal prevents the ingress of water, dust, dirt, and other environmental contaminants, protecting the interior of the enclosure and its contents. The material of the gasket is chosen for its compression set resistance (its ability to return to its original shape after compression), UV resistance, temperature stability, and resistance to common chemicals or oils encountered in specific applications. A properly installed gasket also contributes to vibration dampening, reducing noise and preventing component fatigue.
34-Inch Rods and Rod Guides: Actuating the Multi-Point System
The pair of 34-inch rods are the primary mechanical links that transmit the rotational force from the T-handle cam to the locking points at the periphery of the panel. These rods are constructed to be rigid enough to prevent flexing during operation, ensuring smooth and consistent engagement. Their length is standardized to accommodate a wide range of common panel sizes, and they can be cut to length during installation for a precise fit. The accompanying rod guides are essential for maintaining the correct alignment of the rods, minimizing friction, and ensuring effortless operation over the lifespan of the latch. These guides prevent the rods from binding or deflecting, which could compromise the multi-point engagement.
Optimized Dimensions and Adjustable Cam Mechanism
The latch's overall dimensions of 4.75 inches wide by 4.88 inches tall strike a balance between a compact footprint and sufficient surface area for robust mounting. The mounting dimensions (3.88 inches wide by 3.38 inches high) with four pre-drilled bolt-on holes facilitate quick and secure installation, providing ample load distribution for the mounting fasteners. The "Bolt-On" mount type offers a reliable and sturdy attachment method, critical for applications subject to vibration and dynamic loads.
A standout feature is the adjustable cam, with a range from 1.13 inches (minimum) to 2.00 inches (maximum). This adjustability is a critical design element, as it allows the latch to accommodate varying panel depths or material thicknesses precisely. Proper cam adjustment ensures optimal compression of the gasket, creating an effective environmental seal, and guarantees secure engagement with the keeper or strike plate on the enclosure frame. Incorrect cam adjustment can lead to a loose closure, compromised sealing, or excessive force required to operate the latch, all of which diminish performance and longevity. This wide adjustment range enhances the latch's versatility, making it suitable for a broader spectrum of custom and standard enclosure designs.
Diverse Application Scenarios and Industry Relevance
The robust design and comprehensive feature set of this latch kit make it an ideal solution across numerous demanding sectors:
- Work Trucks and Commercial Vehicles: Essential for securing toolboxes, utility body compartments, service truck storage, and side compartments, protecting valuable equipment from theft and environmental exposure. Its heavy-duty construction is designed to withstand constant road vibration, impacts, and exposure to varying weather conditions.
- Trailers: From enclosed cargo trailers to utility trailers and specialty trailers, this latch provides secure closure for doors, ramps, and access panels, preventing accidental opening during transit and safeguarding contents.
- Truck Tool Boxes: A primary application, where the multi-point locking mechanism significantly enhances the security of valuable tools and equipment, making it a difficult target for opportunistic theft. The stainless steel construction also ensures resistance to corrosion from spilled chemicals or outdoor exposure.
- Industrial and Outdoor Cabinets: For electrical enclosures (where NEMA rating is not explicitly required but robust sealing is beneficial), storage cabinets, and control panels in industrial settings, the latch offers reliable security and environmental protection.
- Storage Chests: Heavy-duty job site chests or large utility storage units benefit from the multi-point locking capability, enhancing security for contents.
- Recreational Vehicles (RVs) and Marine Applications: While only RVs are explicitly mentioned, the inherent corrosion resistance of stainless steel makes this latch exceptionally well-suited for marine environments where exposure to saltwater spray and high humidity is common. For RVs, it provides secure and weather-tight closure for exterior compartments, enhancing both security and comfort.
- Agricultural Equipment: Used for securing access panels and compartments on tractors, combines, and other farm machinery, where durability and resistance to dust, mud, and moisture are critical.
Installation, Maintenance, and Longevity
Installation is designed to be straightforward, aided by the pre-drilled mounting holes and the "Bolt-On" type. A crucial step involves precisely cutting the rods to length and correctly positioning the rod guides to ensure smooth, unimpeded operation. Proper adjustment of the cam is vital to achieve the desired panel compression and seal integrity. Detailed instructions should always be followed to ensure optimal performance.
Maintenance requirements for a stainless steel latch are minimal. Regular cleaning with a mild detergent and water, particularly in corrosive environments, is recommended to preserve the polished finish and prevent the buildup of contaminants that could compromise the passive layer. Periodic inspection of the gasket for signs of wear, cracking, or compression set ensures the ongoing integrity of the seal. The robust construction of the internal mechanisms typically requires little to no lubrication, contributing to a low total cost of ownership over the product's extended lifespan. The inherent durability of stainless steel, combined with the precision of the multi-point mechanism, ensures that this latch kit is built for long-term reliability even under challenging operating conditions, significantly reducing the need for frequent replacements.
Conclusion: An Investment in Uncompromising Security and Durability
The Stainless Steel Flush Mount 3-Point T-Handle Latch Kit stands as a testament to thoughtful engineering and material selection for critical applications. Its advanced 3-point locking mechanism delivers superior security and sealing, while the premium polished stainless steel construction ensures exceptional durability and corrosion resistance across a broad spectrum of challenging environments. The complete kit, including the adjustable cam and comprehensive mounting hardware, facilitates ease of installation and versatile application across work trucks, trailers, toolboxes, cabinets, and RVs.
Choosing this latch kit represents an investment in uncompromising security, operational reliability, and extended product life. It provides peace of mind that valuable assets are protected and that access points are securely sealed, minimizing operational downtime and maintenance expenditures. For professionals and industries demanding the highest standards of hardware performance, this T-handle latch kit delivers a superior solution.
