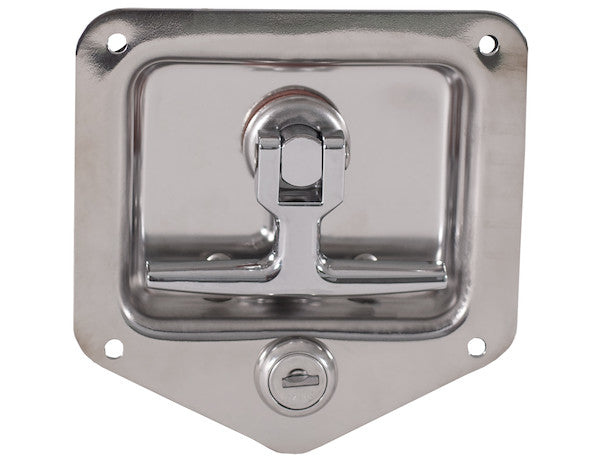

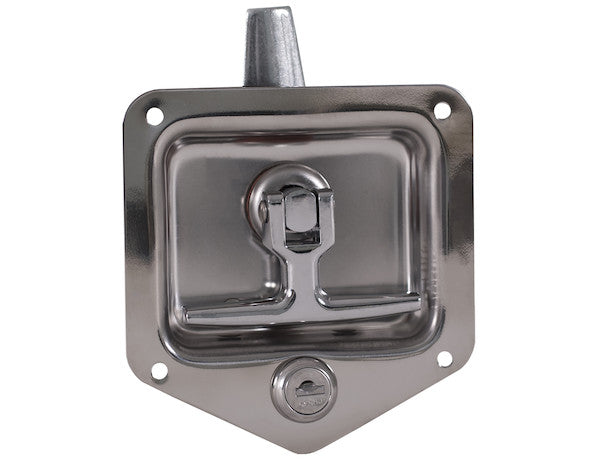

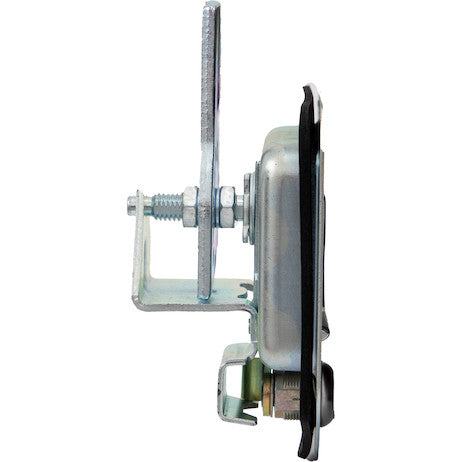

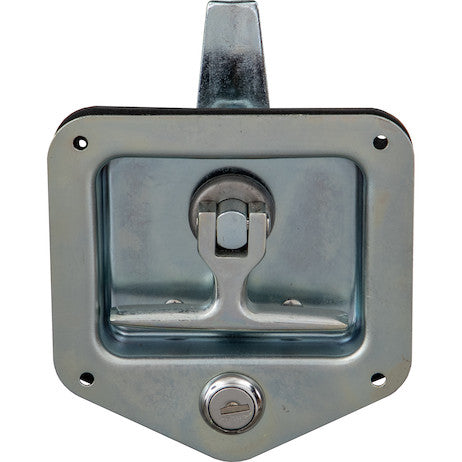

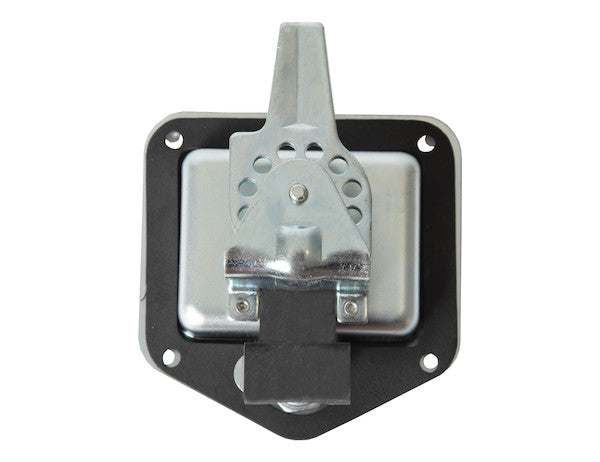

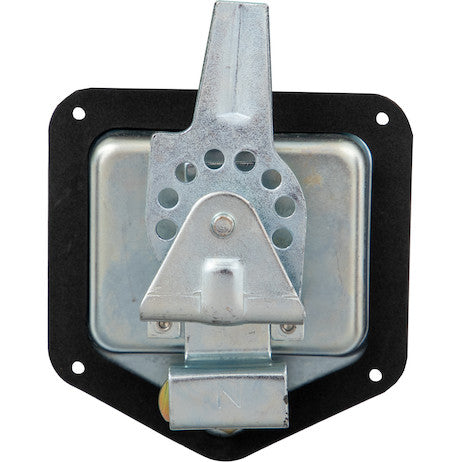

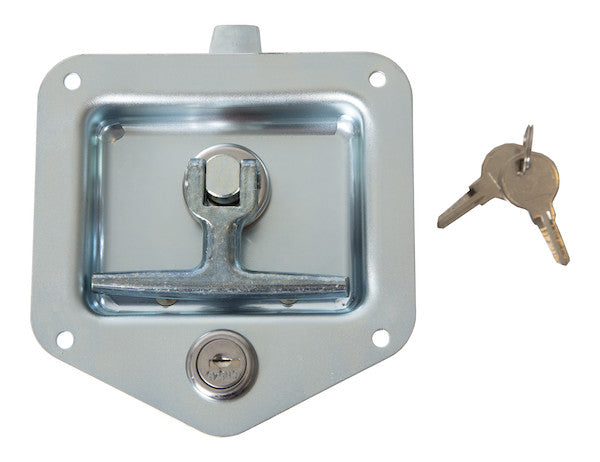

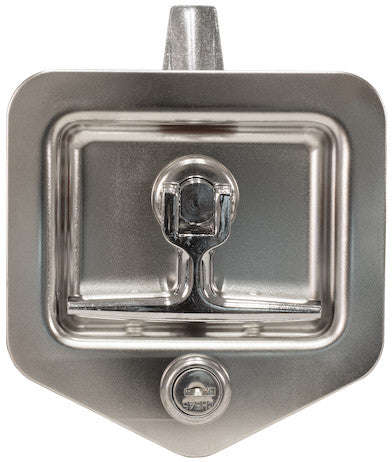

Each latch assembly includes a lock cylinder, key set, and gasket. The overall latch measurements are 4.75 inches wide by 4.88 inches tall making it the perfect size for many applications. The latch cam is adjustable from 1-1/4 in. to 2 inches to suit a variety of panel depths.

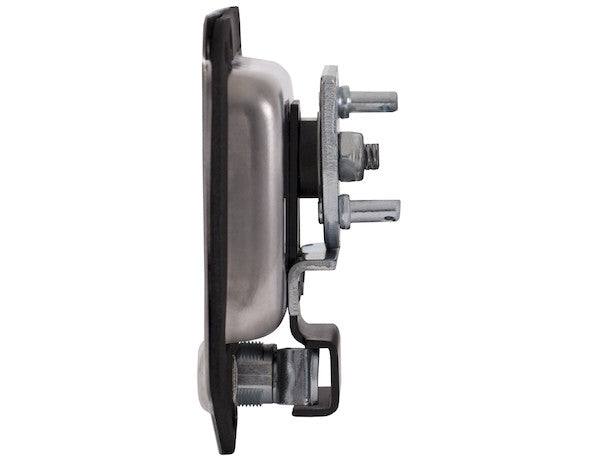

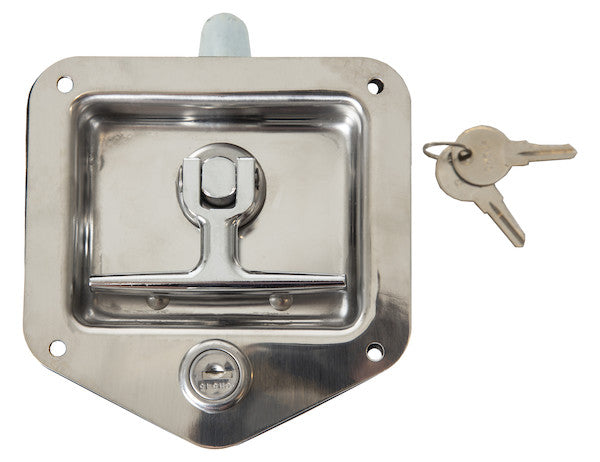

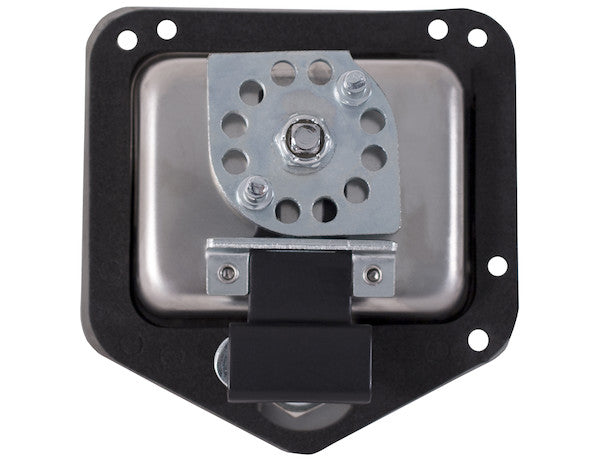

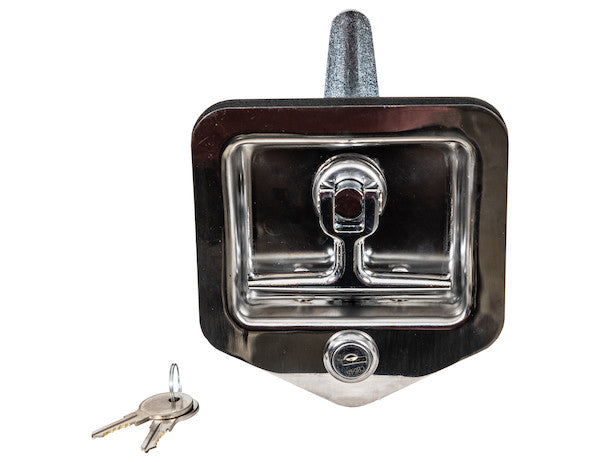

Two finish options are available. Select either polished stainless steel or zinc-plated steel. Both finishes are durable and corrosion-resistant. The latches are also offered with a choice of stud mount installation or 4 pre-drilled mounting holes. Select the finish and mounting type that???s best suited to your application.
These heavy-duty T-Handle latches are used in the production of Buyers Products Truck Tool Boxes, and can also be used as a universal aftermarket part to replace broken or damaged latches on a variety of applications like cabinets, chests, trucks, trailers, and RVs.
Specifications
| Gasket Included | YES |
|---|---|
| Gasket Thickness | 0.11 |
| Handle Finish | Zinc Plated |
| Handle Material | Carbon Steel |
| Height (in.) | 4.88 |
| Housing Finish | Zinc-Plated |
| Housing Material | Carbon Steel |
| Latch Style | T-Handle |
| Locking | Yes |
| Maximum Cam Size | 2.00 |
| Minimum Cam Size | 1.13 |
| Mount Height (in.) | 3.95 |
| Mount Type | Bolt-On |
| Mount Width (in.) | 3.88 |
| Width (in.) | 4.75 |
Technical Overview: Zinc Plated Steel Flush Mount Single Point T-Handle Latch Assembly with Mounting Holes
The Zinc Plated Steel Flush Mount Single Point T-Handle Latch Assembly, featuring pre-drilled mounting holes, represents a robust and meticulously engineered solution for securing enclosures across a diverse range of demanding industrial, commercial, and recreational applications. Designed for superior reliability and durability, this heavy-duty latch system integrates advanced material science with precision mechanical design to deliver consistent performance in challenging environments. Its flush-mount profile and single-point locking mechanism, combined with its zinc-plated carbon steel construction, establish it as a premium choice for securing work trucks, trailers, toolboxes, cabinets, and various storage compartments.
Material Science and Corrosion Resistance: The Zinc Plated Carbon Steel Advantage
The fundamental strength and resilience of this T-handle latch stem from its carbon steel construction, specified for both the handle and housing components. Carbon steel is renowned for its high tensile strength, excellent yield strength, and inherent toughness, making it an ideal choice for heavy-duty applications where mechanical stress and impact resistance are critical. Its cost-effectiveness, coupled with superior workability, allows for the precise fabrication required for a high-performance latch assembly.
To augment the inherent properties of carbon steel and specifically address the pervasive issue of corrosion, both the handle and housing undergo a zinc plating process. This electrogalvanization technique involves depositing a thin layer of zinc onto the steel substrate using an electrochemical process. The zinc layer acts as a sacrificial coating, providing galvanic protection to the underlying carbon steel. In corrosive environments, zinc preferentially oxidizes, corroding instead of the steel, thereby significantly extending the service life of the component. This mechanism is particularly effective against common corrosive agents such as moisture, road salts, and mild chemicals often encountered in outdoor and mobile applications.
The zinc plating process typically includes a passivation layer, often a chromate conversion coating, which further enhances the corrosion resistance, limits the formation of "white rust" (zinc oxide), and improves paint adhesion if secondary coatings are applied. The uniformity and adhesion of the zinc layer are crucial for its long-term performance, ensuring comprehensive protection across the entire surface. This carefully selected material combination provides a superior balance of strength, impact resistance, and environmental protection, making it suitable for applications that require a durable and low-maintenance locking solution.
Precision Engineering: Flush Mount and T-Handle Mechanics
The design philosophy of this latch assembly prioritizes both functionality and user experience, manifested through its flush mount profile and ergonomic T-handle mechanism.
Flush Mount Design for Enhanced Security and Aesthetics
The flush mount characteristic means that when installed, the latch handle and housing sit nearly level with the exterior surface of the panel. This design offers several significant advantages:
- Enhanced Security: By minimizing protrusions, the flush mount design inherently reduces potential leverage points for prying or forced entry attempts. This makes the latch more resistant to vandalism and theft, crucial for securing valuable contents in toolboxes and cargo compartments.
- Reduced Snagging and Safety: A low-profile design eliminates sharp edges or protruding parts that could snag on clothing, equipment, or cause injury during operation or proximity. This is particularly important for vehicle applications where personnel frequently interact with the exterior.
- Aesthetic Integration: The clean, streamlined appearance of a flush-mounted latch provides a professional and integrated look, contributing to the overall aesthetic quality of the equipment or vehicle.
- Aerodynamic Efficiency: For trailers and commercial vehicles, a flush design can contribute marginally to reduced air resistance, offering a minor but consistent advantage in fuel efficiency and reduced wind noise.
Achieving a flush mount typically requires a precise cutout in the mounting panel, consistent with the specified mount dimensions (3.88 inches wide by 3.95 inches high), ensuring a snug and stable fit for optimal performance.
Ergonomics and Kinematics of the T-Handle
The T-handle style is selected for its superior ergonomic and mechanical properties. The T-shape provides a natural and comfortable grip, allowing for greater torque application with minimal effort compared to other handle types. This is particularly beneficial in conditions where operators might be wearing gloves, or in cold weather where fine motor skills are compromised. The robust design of the handle, constructed from zinc-plated carbon steel, ensures it can withstand repeated high-force actuation without deformation or fatigue.
Operation involves a simple rotation of the T-handle, which directly actuates the internal latching mechanism. This direct kinematic linkage ensures reliable engagement and disengagement of the cam, providing tactile feedback to the user and confirming the latch's status. The inherent mechanical advantage of the T-handle allows for firm compression of the door against the gasket, ensuring a tight seal.
Single Point Locking Mechanism with Adjustable Cam

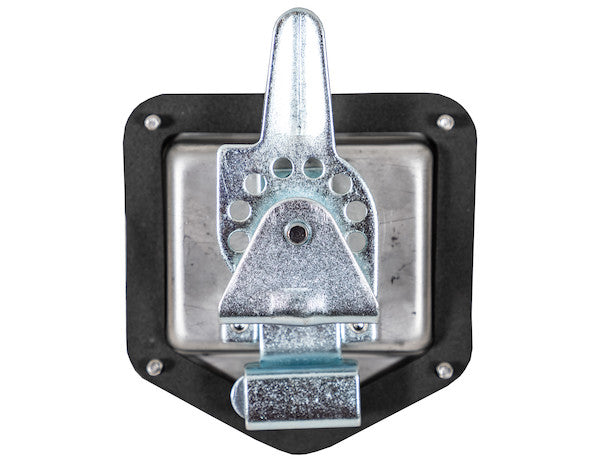

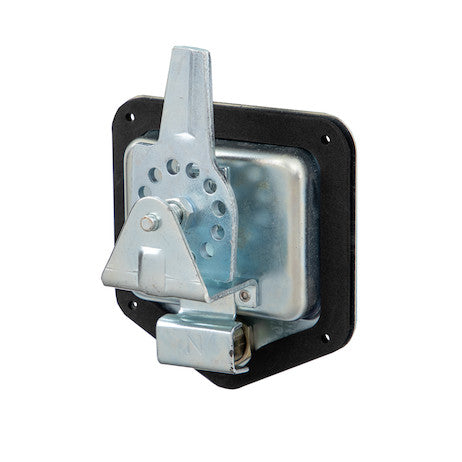

This assembly utilizes a single point locking mechanism, meaning a single cam engages with the door frame or strike plate to secure the enclosure. This design offers simplicity, reliability, and robust engagement. The cam, a critical component, is designed to rotate and hook securely, drawing the door tightly into its closed position.

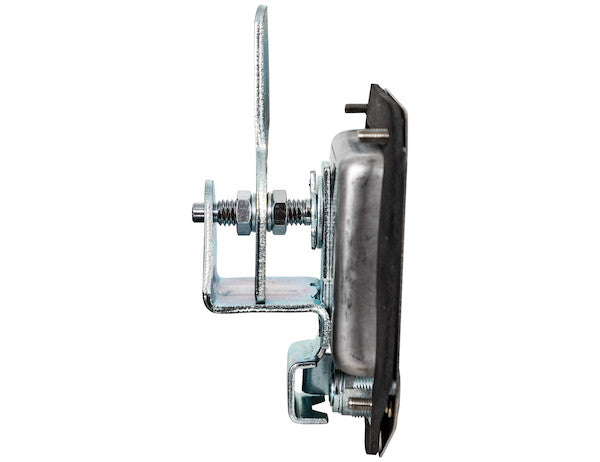

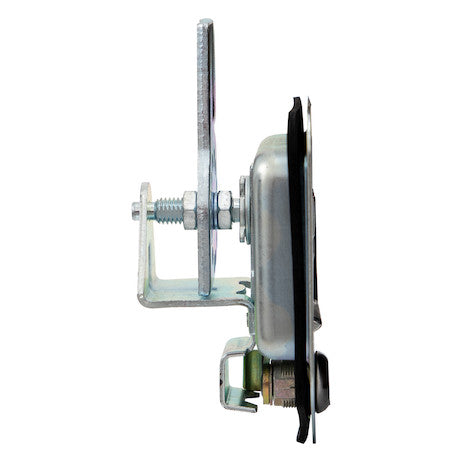

A key feature of this latch is its adjustable cam, offering a range of 1-1/4 inches to 2 inches. This adjustability is paramount for accommodating varying panel depths and door thicknesses, as well as for compensating for manufacturing tolerances in both the latch and the mating enclosure. The ability to precisely adjust the cam depth ensures optimal compression of the gasket, maintaining a watertight and dust-proof seal, and preventing rattling or movement of the door. This fine-tuning capability guarantees a secure and snug fit across a broad spectrum of applications, enhancing both security and environmental protection.
Integrated Security: Lock Cylinder and Key Set
Security is a primary concern for the applications targeted by this heavy-duty latch. Each assembly includes an integrated lock cylinder and a corresponding key set. The lock cylinder typically employs a pin tumbler mechanism, a widely recognized and robust locking technology, offering a reasonable level of security against unauthorized access. The internal components of the lock cylinder are designed for durability and smooth operation, ensuring reliable locking and unlocking over thousands of cycles. The inclusion of a key set provides immediate operational capability and allows for control over access to the secured compartment. When engaged, the lock cylinder prevents the T-handle from rotating, thereby immobilizing the latching cam and securing the enclosure against tampering and theft.
Environmental Sealing and Durability
The operational environments for work trucks, trailers, and outdoor storage are often characterized by exposure to harsh elements. This latch assembly is engineered to provide superior environmental protection through its robust design and integrated sealing mechanisms.
Gasket Inclusion for Ingress Protection
A high-quality gasket, with a specified thickness of 0.11 inches, is integral to the latch assembly. The gasket functions as a barrier against the ingress of water, dust, and other particulate matter, crucial for protecting the contents of toolboxes and storage chests. Typically manufactured from elastomeric materials like EPDM or neoprene, these gaskets offer excellent resistance to UV radiation, ozone, temperature extremes, and common chemicals. The precise compression achieved through the adjustable cam ensures a continuous and uniform seal, preventing leaks and maintaining internal environmental conditions. This level of ingress protection is vital for electronic equipment, sensitive tools, and other components requiring a controlled environment.
Resistance to Environmental Stressors
Beyond the gasket, the entire latch assembly is designed for enduring resilience. The zinc plating provides a robust defense against corrosion induced by humidity, salt spray (common in coastal or road salt-affected regions), and industrial pollutants. The heavy-duty carbon steel construction ensures resistance to physical damage from impacts, vibrations, and continuous usage in rugged conditions. This holistic approach to durability ensures that the latch maintains its functional integrity and aesthetic appearance even after prolonged exposure to the most demanding operational environments.
Mounting and Universal Application Versatility

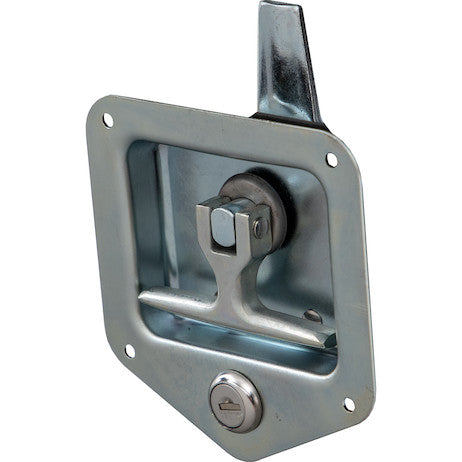

This latch assembly is specifically configured for bolt-on installation via four pre-drilled mounting holes, offering a secure and straightforward method of attachment.

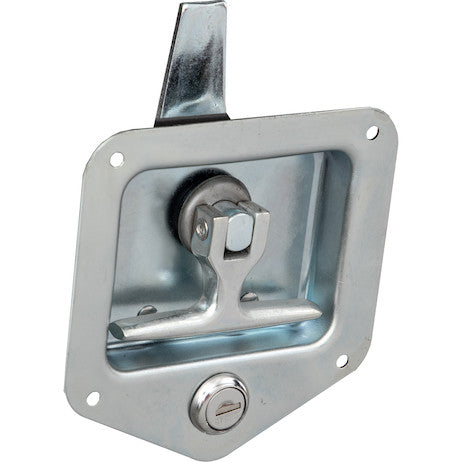

Bolt-On Installation with Mounting Holes
The provision of four pre-drilled mounting holes simplifies the installation process, eliminating the need for on-site drilling and ensuring consistent alignment. Bolt-on mounting offers several advantages: it provides a high-strength mechanical connection, evenly distributes load across the mounting surface, and can be disassembled for maintenance or replacement if necessary. The specified mount width of 3.88 inches and mount height of 3.95 inches define the footprint for securing the latch, necessitating a corresponding pattern of drilled holes on the mounting surface. This method is preferred for applications demanding maximum security and structural integrity, utilizing standard fasteners (e.g., bolts, nuts, and washers) for a vibration-resistant assembly.
Dimensional Precision and Fitment
With overall dimensions of 4.75 inches wide by 4.88 inches tall, this latch is designed to provide a substantial yet proportionate presence. The precise measurements are crucial for integration into existing designs or for new fabrications, ensuring proper fitment and functionality. The detailed specifications allow engineers and fabricators to accurately design cutouts and mounting patterns, ensuring seamless integration and optimal performance.
Broad Spectrum of Applications
While commonly used in the production of Buyers Products Truck Tool Boxes, the universal design and robust specifications of this T-handle latch make it an ideal choice for an expansive array of applications:
- Commercial and Fleet Vehicles: Securing side-access compartments, underbody toolboxes, and utility bins on service trucks, trailers, and emergency vehicles.
- Recreational Vehicles (RVs) and Marine Craft: Providing secure access to storage compartments, battery boxes, and utility panels, offering reliability even in challenging outdoor conditions (though direct saltwater immersion is not recommended for zinc-plated finishes).
- Industrial Enclosures: Locking electrical cabinets, control panels, access doors on machinery, and equipment enclosures in manufacturing facilities, construction sites, and agricultural settings.
- Agricultural Equipment: Used on tractors, harvesters, and implements to secure access panels and storage compartments, withstanding dirt, dust, and weather.
- Custom Fabrication and Aftermarket Replacement: Its standardized design and robust construction make it an excellent choice for custom vehicle builds, metal fabrication projects, and as a reliable aftermarket replacement for damaged or worn-out latches on a wide variety of equipment.
Quality Assurance and Longevity
The Buyers Products brand is synonymous with quality and reliability in heavy-duty equipment. This T-handle latch assembly is manufactured to stringent quality control standards, ensuring consistent performance and long-term durability. The selection of high-grade carbon steel, combined with professional-grade zinc plating and precision-machined components, contributes to an extended service life and reduced maintenance requirements. Each component, from the robust handle to the integrated gasket and lock cylinder, is designed to withstand thousands of operational cycles, maintaining its integrity and functionality under continuous heavy use. This commitment to quality translates into a dependable product that minimizes downtime and provides lasting value.
Conclusion
The Zinc Plated Steel Flush Mount Single Point T-Handle Latch Assembly with Mounting Holes is a testament to precision engineering and material excellence. Its strategic design, encompassing a flush profile for enhanced security and aesthetics, an ergonomic T-handle for effortless operation, and a single-point locking mechanism with an adjustable cam for optimal fitment, sets it apart. The superior corrosion resistance imparted by zinc-plated carbon steel, coupled with an effective environmental sealing gasket and an integrated lock cylinder, ensures unparalleled durability, security, and functional longevity. For any application demanding a heavy-duty, reliable, and secure latch solution that can withstand the rigors of daily use in diverse and challenging environments, this Buyers Products assembly offers a professionally engineered and robust choice.
