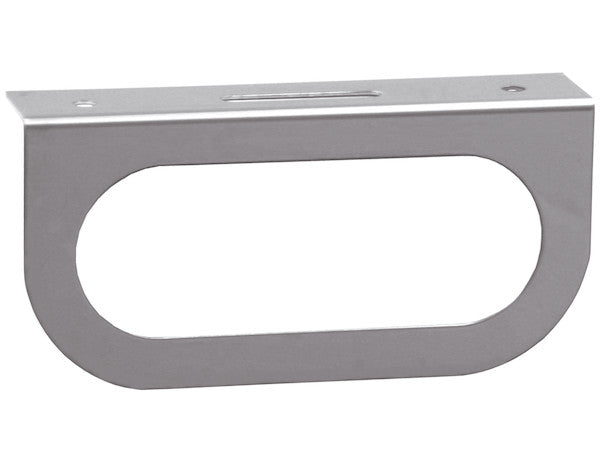

LB1SS - Single Oval Stainless Steel DOT Light Bracket

Buyers Products DOT Light Mounting Brackets from are available in different finishes to help you satisfy DOT requirements for the mounted lights on your truck.

Specifications

The Single Oval Stainless Steel DOT Light Bracket represents a pinnacle of engineering and material science, specifically designed to meet the rigorous demands of commercial vehicle illumination and regulatory compliance. This robust mounting solution is meticulously crafted to securely house industry-standard oval lights, ensuring optimal performance and longevity in challenging operational environments. Its construction from 430 stainless steel, combined with versatile mounting options, makes it an indispensable component for fleet operators and vehicle manufacturers seeking superior quality and unwavering adherence to Department of Transportation (DOT) mandates.

Advanced Material Science: The 430 Stainless Steel Advantage

The selection of 430 stainless steel as the primary material for this DOT light bracket is a deliberate engineering choice, offering a strategic balance of corrosion resistance, mechanical strength, and cost-effectiveness. 430 stainless steel is a ferritic alloy, primarily composed of iron, with a chromium content ranging typically from 16% to 18%. This specific elemental composition imparts several critical properties that are highly advantageous for automotive and commercial vehicle applications.

Firstly, the high chromium content provides excellent resistance to atmospheric corrosion, fresh water, and various mild acids and alkaline solutions. In the context of heavy-duty vehicles, this translates to superior protection against common corrosive agents such as road salt, de-icing chemicals (e.g., magnesium chloride, calcium chloride), exhaust gases, and general environmental pollutants. Unlike conventional carbon steel brackets that are prone to rust and degradation over time, leading to compromised structural integrity and unsightly aesthetics, 430 stainless steel maintains its structural and visual integrity, significantly extending the operational life of the bracket and, consequently, the mounted light. This inherent corrosion resistance mitigates the need for extensive coatings or frequent maintenance, contributing to lower total cost of ownership for fleet managers.

Secondly, 430 stainless steel exhibits good formability and weldability, which are crucial during the manufacturing process. Its moderate strength allows for precise shaping and bending without excessive work hardening, ensuring consistent dimensional accuracy across all units. Furthermore, the material's weldability supports both conventional and advanced welding techniques, facilitating the "Weld-On" mounting option discussed later. While 430 stainless steel is magnetic and does not possess the same level of ductility or extreme corrosion resistance as austenitic grades like 304 or 316, its performance profile is perfectly matched for applications where atmospheric and mild chemical resistance are paramount, and where an optimal balance between material performance and economic viability is required.

Mechanically, 430 stainless steel offers sufficient yield and tensile strength to withstand the constant vibrations, minor impacts, and dynamic stresses encountered during vehicle operation. This robust mechanical performance ensures that the light bracket remains firmly attached and undistorted, thereby maintaining the proper orientation and function of the critical DOT lighting, even under demanding road conditions or off-highway use. The inherent durability of 430 stainless steel contributes directly to vehicle safety by preventing light dislodgement and ensuring continuous visibility, which are fundamental aspects of regulatory compliance.

Precision Engineering and Dimensional Integrity for Optimal Light Integration

The design of the Single Oval Stainless Steel DOT Light Bracket is a testament to precision engineering, with each dimension meticulously calculated to ensure seamless integration with standard commercial vehicle lighting systems. The core feature, a single oval face cutout with a diameter of 6.75 inches, is specifically engineered to accommodate the vast majority of 6-inch oval LED or incandescent lights prevalent in the heavy-duty trucking and commercial vehicle industries. This precise cutout ensures a snug, secure fit for the light, minimizing movement, vibration-induced wear, and potential moisture ingress around the light's seal. A tight fit is crucial not only for the longevity of the light itself but also for maintaining the integrity of its waterproof or weather-resistant properties.

The overall dimensions of the bracket are optimally proportioned for versatility and minimal footprint: a Length of 8.25 inches, a Height of 4.00 inches, and a Depth of 1.65 inches. These measurements provide ample surface area for robust attachment to the vehicle's frame or bodywork, while the shallow depth ensures that the bracket does not protrude excessively, preventing accidental damage and maintaining the aesthetic lines of the vehicle. The strategic depth of 1.65 inches is particularly important, as it provides sufficient clearance behind the mounted light for wiring harnesses, connectors, and heat dissipation, without interfering with adjacent components or requiring significant modification to the vehicle structure.

A key specification, the "Oval Cutout Angle" of 0 degrees, indicates that the oval opening is oriented perfectly horizontally or vertically relative to the bracket's mounting plane. This standardized orientation simplifies installation and ensures that the mounted light can be positioned to meet specific photometric and visibility requirements mandated by DOT regulations. For example, turn signals or tail lights must often be oriented in a particular manner to ensure their light output is visible from specified angles. The 0-degree angle eliminates ambiguity and reduces the potential for installation errors that could lead to non-compliance or reduced safety.

The absence of "Side Cutouts" for additional lights or wiring suggests a dedicated, single-purpose design, which often translates to enhanced structural integrity around the primary light mounting area. By not perforating the sides, the bracket maintains maximum material strength, reinforcing its ability to withstand operational stresses without compromising the secure mounting of the essential DOT light. This focused design approach contributes to the overall reliability and robust nature of the product, simplifying installation and maintenance procedures for the vehicle owner or upfitter.

Versatile Mounting Mechanisms: Bolt-On and Weld-On

Recognizing the diverse installation requirements across various vehicle types and applications, this light bracket offers two primary, highly robust mounting options: Bolt-On and Weld-On. This dual-method approach provides installers with maximum flexibility to achieve the most secure and appropriate attachment for their specific needs.

The "Bolt-On" method is preferred for applications requiring adjustability, removability, or situations where welding is either impractical or undesirable. This method typically involves pre-drilled holes (though not explicitly detailed in the specifications, standard practice dictates the presence of mounting holes on the bracket's rear or flange for this purpose) that align with corresponding holes on the vehicle's chassis, frame, bumper, or body panel. Installation involves the use of appropriate fasteners, such as high-grade bolts, nuts, and washers (e.g., Grade 8 hardware for heavy-duty applications) to ensure a secure, vibration-resistant connection. Critical considerations for bolt-on installations include proper torque specifications to prevent overtightening or loosening, the use of thread-locking compounds or self-locking nuts to resist vibration, and the application of dielectric grease around electrical connections to prevent corrosion. The primary advantage of bolt-on mounting is its non-permanent nature, allowing for easier maintenance, replacement, or repositioning of the bracket or light without structural alteration to the vehicle.

Conversely, the "Weld-On" mounting option provides the ultimate in permanence and structural integration. This method is ideal for heavy-duty applications where maximum strength, durability, and a seamless appearance are paramount. Welding the bracket directly to the vehicle's frame or other structural components creates a monolithic connection that is highly resistant to vibration, impact, and tampering. Technical considerations for weld-on installation include ensuring compatibility between the 430 stainless steel bracket and the base material of the vehicle (e.g., carbon steel or other stainless alloys). Proper welding procedures, including appropriate filler metals (e.g., 309L or 430 stainless steel filler wire), heat input control to prevent sensitization or distortion, and post-weld cleaning/passivation to restore corrosion resistance, are critical for a successful and lasting bond. While more permanent, a properly executed weld-on installation offers unparalleled security and integration, making it a preferred choice for new vehicle builds or extensive fleet upfits where longevity and robustness are non-negotiable.

Unwavering Compliance with Department of Transportation (DOT) Regulations

The fundamental purpose of the Single Oval Stainless Steel DOT Light Bracket is to facilitate the compliant installation of vehicle lighting as mandated by the Department of Transportation, particularly under the purview of Federal Motor Vehicle Safety Standard (FMVSS) No. 108 – Lamps, Reflective Devices, and Associated Equipment. This standard specifies requirements for lighting equipment to ensure the safe operation of vehicles and includes provisions for lamps, reflective devices, and associated equipment for passenger cars, multipurpose passenger vehicles, trucks, buses, trailers, and motorcycles.

A compliant light bracket is not merely an accessory; it is an integral safety component. FMVSS 108 mandates specific mounting locations, heights, visibility angles, and photometric performance for various lights such as stop lamps, tail lamps, turn signal lamps, and marker lamps. This bracket directly supports compliance in several critical ways:

1. Secure Mounting: The primary function of any light bracket is to securely hold the light in place. Loose or vibrating lights can become dislodged, causing a safety hazard and an immediate violation of FMVSS 108. The robust construction from 430 stainless steel and the choice of permanent (weld-on) or high-strength (bolt-on) mounting options ensure that the light remains firmly affixed, regardless of road conditions, vibration, or minor impacts.
2. Proper Orientation: The precise 6.75-inch oval cutout with a 0-degree angle ensures that the mounted light is oriented correctly, allowing its light output to meet the specified photometric and angular visibility requirements. An improperly oriented light, even if functional, may not adequately convey its intended signal (e.g., stop, turn, hazard) to other road users, leading to dangerous situations.
3. Durability and Longevity: Compliance is not a one-time event; it must be maintained throughout the vehicle's operational life. The superior corrosion resistance of 430 stainless steel ensures that the bracket will not degrade due to environmental exposure, maintaining its structural integrity and aesthetic appeal. This durability prevents premature failure of the bracket, which could lead to light malfunction or detachment, ensuring long-term adherence to safety standards and reducing the risk of citations during vehicle inspections.
4. Contribution to Conspicuity: For heavy-duty trucks and trailers, conspicuity treatments (reflective tape and proper lighting) are paramount for preventing accidents. By providing a stable and reliable platform for DOT-approved lighting, this bracket contributes directly to the vehicle's overall conspicuity, making it more visible to other drivers, especially during nighttime or adverse weather conditions.

The careful selection of materials and precise engineering of this bracket underscore its role in upholding the highest standards of vehicle safety and regulatory adherence, thereby protecting both the vehicle operators and other road users.

Operational Integrity and Environmental Resistance

Commercial vehicles operate in a multitude of challenging environments, necessitating components that can withstand extreme conditions without compromise. This Single Oval Stainless Steel DOT Light Bracket is engineered to deliver exceptional operational integrity and environmental resistance across a broad spectrum of real-world scenarios.

1. Vibration and Shock Resistance: Heavy-duty trucks and trailers are constantly exposed to high levels of vibration and shock due from uneven road surfaces, potholes, and engine operation. The robust design of this bracket, coupled with the inherent mechanical properties of 430 stainless steel, provides excellent resistance to fatigue and stress cracking. When installed using either the bolt-on or weld-on method, the bracket creates a secure anchor point, preventing the mounted light from loosening, flickering, or detaching, which are common issues with lesser quality mounting solutions. This reliability ensures consistent illumination and signaling, critical for road safety.
2. Temperature Extremes: From sub-zero winter temperatures in northern climates to scorching summer heat in desert regions, vehicle components must perform reliably across a wide thermal range. 430 stainless steel maintains its mechanical properties and dimensional stability across these extremes, unlike some plastics or coated metals that can become brittle in cold or degrade in intense heat. This thermal stability guarantees that the bracket will not deform or lose its structural integrity, ensuring the light remains secure regardless of ambient temperature fluctuations.
3. Chemical Exposure: Commercial vehicles frequently encounter various chemicals, including fuels, oils, hydraulic fluids, cleaning agents, and the aforementioned aggressive road de-icing compounds. The corrosion resistance of 430 stainless steel makes the bracket highly impervious to degradation from these substances, preventing chemical-induced weakening or aesthetic damage that could compromise its function or appearance over time.
4. Moisture and Contaminant Ingress: The precise 6.75-inch cutout provides a snug fit for oval lights, which, when properly seated with their gaskets, minimizes opportunities for water, dust, and road grime to penetrate the light housing. While the light itself is designed to be sealed, a stable and well-fitted bracket further supports its protective features, extending the life of the light and its electrical connections.

By excelling in these areas of operational integrity and environmental resistance, the Single Oval Stainless Steel DOT Light Bracket reduces the incidence of light failures, minimizes maintenance requirements, and ultimately enhances the overall safety and reliability of the vehicle fleet.

Target Applications and Comprehensive User Benefits

The versatility and robust construction of the Single Oval Stainless Steel DOT Light Bracket make it suitable for an extensive range of commercial and industrial applications. Its design caters specifically to the requirements of various vehicle types that demand high reliability and adherence to safety standards.

Primary Applications Include:

• Heavy-Duty Trucks: Class 8 tractor-trailers, dump trucks, refuse trucks, cement mixers, and other vocational trucks where critical lighting is mounted on bumpers, fenders, cabs, or frame rails.
• Commercial Trailers: Dry vans, refrigerated trailers (reefers), flatbeds, lowboy trailers, and specialized trailers that require marker lights, tail lights, stop lights, and turn signals strategically placed along their length and width.
• Utility and Service Vehicles: Utility trucks, tow trucks, and municipal vehicles that often require supplemental lighting for safety and operational visibility.
• Construction and Agricultural Equipment: Although not always road-legal, many pieces of heavy equipment such as excavators, loaders, and large agricultural machinery utilize similar oval lights for internal site safety or occasional road transit, benefiting from durable mounting solutions.
• OEM and Aftermarket Integration: Ideal for original equipment manufacturers (OEMs) who seek reliable components for their vehicle builds, as well as for aftermarket upfitters and maintenance providers performing repairs or upgrades.

Comprehensive User Benefits:

1. Enhanced Safety: By providing a secure and stable mounting platform, the bracket ensures that critical DOT-mandated lights remain fully functional and correctly positioned. This contributes directly to increased vehicle conspicuity, reducing the risk of accidents, especially in low-light conditions or adverse weather.
2. Reduced Downtime and Maintenance Costs: The exceptional durability and corrosion resistance of 430 stainless steel significantly extend the lifespan of the bracket, and by extension, the mounted light. This minimizes the need for frequent repairs or replacements, leading to reduced vehicle downtime and substantial savings in labor and parts over the life of the fleet.
3. Guaranteed Regulatory Compliance: The bracket's design specifically aids in meeting FMVSS 108 requirements for light placement and orientation. This proactive approach to compliance helps fleet managers avoid costly fines, penalties, and operational interruptions that can result from failed DOT inspections.
4. Versatile Installation: The availability of both bolt-on and weld-on mounting options provides installers with the flexibility to choose the most appropriate method based on vehicle structure, desired permanence, and installation environment, optimizing efficiency and security.
5. Professional Aesthetic: The inherent sheen and clean finish of 430 stainless steel offer a professional and polished appearance that complements the overall look of modern commercial vehicles. Its resistance to rust and staining ensures that this aesthetic quality is maintained for years, projecting an image of quality and meticulous maintenance for the fleet.
6. Long-Term Value: Investing in a high-quality stainless steel bracket means investing in a solution that performs reliably for the long haul. Its resistance to environmental degradation ensures that the bracket will outlast many other vehicle components, providing exceptional long-term value and peace of mind.

In summary, the Single Oval Stainless Steel DOT Light Bracket is more than just a mounting accessory; it is a critical investment in vehicle safety, operational efficiency, regulatory compliance, and the enduring integrity of commercial vehicle lighting systems.

Quality Assurance and Manufacturing Excellence

The manufacturing process of the Single Oval Stainless Steel DOT Light Bracket adheres to stringent quality assurance protocols, ensuring that each unit meets the highest standards of precision, durability, and functional performance. From material sourcing to final inspection, every step is carefully controlled to produce a component that reliably serves its safety-critical purpose.

Precision Fabrication: The brackets are produced using advanced metal fabrication techniques, such as Computer Numerical Control (CNC) laser cutting or precision stamping. These methods guarantee highly accurate dimensional tolerances, ensuring that the 6.75-inch oval cutout perfectly accommodates standard lights and that overall bracket dimensions (8.25" Length, 4.00" Height, 1.65" Depth) are consistently maintained. The 0-degree oval cutout angle is precisely formed, eliminating variations that could affect light orientation and compliance. This precision is vital for minimizing installation complexities and maximizing the secure fit of the light.

Material Integrity: The 430 stainless steel used is sourced from reputable suppliers and undergoes rigorous incoming material inspection to verify its chemical composition and mechanical properties. This ensures that every bracket possesses the specified corrosion resistance, strength, and formability characteristics essential for its intended application and longevity in harsh environments.

Edge Finishing and Safety: Post-fabrication, each bracket is subjected to comprehensive deburring and finishing processes. Sharp edges and burrs, common by-products of metal cutting and forming, are meticulously removed. This not only improves the aesthetic appeal of the product but, more importantly, enhances installer safety by preventing cuts and abrasions during handling and installation. A smooth, clean finish also minimizes potential snag points for wiring and contributes to the overall professional appearance.

Structural Rigidity and Load Bearing: The design of the bracket considers the dynamic loads and vibrations that it will experience in service. The material thickness and structural geometry are optimized to provide ample rigidity, ensuring that the bracket can withstand the forces exerted by road conditions without deforming or failing. This attention to structural integrity guarantees that the mounted light remains stable and functional throughout its operational life.

Consistent Quality Control: Each production batch undergoes thorough quality control checks, including dimensional verification, surface finish inspection, and material property confirmation where necessary. This commitment to consistent quality minimizes product variations, ensuring that every bracket delivered to the customer performs identically and reliably, reinforcing confidence in its ability to meet demanding DOT requirements and operational expectations.

By integrating advanced manufacturing techniques with stringent quality control, this Single Oval Stainless Steel DOT Light Bracket exemplifies engineering excellence, providing users with a highly dependable and high-performance solution for their vehicle lighting needs.

Installation Best Practices and Considerations

While the Single Oval Stainless Steel DOT Light Bracket is designed for straightforward installation, adhering to best practices ensures optimal security, longevity, and regulatory compliance. Both bolt-on and weld-on methods require careful attention to detail.

General Pre-Installation Steps:

1. Safety First: Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection. Ensure the vehicle is safely secured, with the engine off and parking brake engaged.
2. Surface Preparation: The mounting surface on the vehicle must be clean, dry, and free of rust, paint, oil, or debris. For steel surfaces, grinding or sanding to bare metal may be necessary, especially for weld-on applications, to ensure proper adhesion or electrical contact.
3. Layout and Alignment: Carefully measure and mark the desired mounting location. Verify that the chosen position allows for proper light visibility angles as per DOT regulations and provides sufficient clearance for the light, wiring, and other vehicle components. The 0-degree oval cutout angle should be oriented correctly (e.g., horizontally for marker lights) to achieve the intended beam pattern.

Bolt-On Installation Specifics:

1. Drilling: If the vehicle's mounting surface is not pre-drilled, use a drill bit appropriate for the material and fastener size. Start with a pilot hole and gradually increase the size if necessary to ensure clean, accurate holes. Deburr drilled holes to prevent wire chafing if wiring passes through.
2. Fastener Selection: Utilize high-quality, corrosion-resistant fasteners (e.g., stainless steel or zinc-plated Grade 8 bolts). Use flat washers under the bolt head and nut to distribute clamping force, and lock washers or nylon-insert lock nuts to prevent loosening due to vibration.
3. Torque Specifications: Tighten fasteners to the manufacturer's recommended torque specifications. Over-tightening can strip threads or deform the bracket/mounting surface, while under-tightening can lead to loosening.
4. Corrosion Protection for Holes: If drilling into painted or treated surfaces, apply a rust-inhibiting primer or sealant around the drilled holes to prevent future corrosion.

Weld-On Installation Specifics:

1. Expertise Required: Welding should only be performed by qualified and experienced welders familiar with welding stainless steel to carbon steel or other stainless alloys. Incorrect welding procedures can weaken both the bracket and the vehicle's structure.
2. Cleanliness: Absolute cleanliness of both the bracket and the vehicle's mounting surface is critical. Grind down to bare, shiny metal on both parts to ensure a strong, porosity-free weld. Remove any paint, rust, or contaminants.
3. Welding Process and Filler Material: Use appropriate welding processes (e.g., MIG, TIG) and filler metals (e.g., 309L stainless steel filler for welding 430 stainless to carbon steel, or 430 filler for welding 430 to 430). Control heat input to minimize distortion and prevent sensitization of the stainless steel.
4. Grounding: Ensure proper grounding for the welding equipment to prevent damage to vehicle electronics. Disconnect the vehicle's battery if necessary.
5. Post-Weld Treatment: After welding, clean the weld area thoroughly to remove slag, spatter, and heat tint. Passivation of the stainless steel weld area may be necessary to restore full corrosion resistance, especially in harsh environments. Applying a protective coating (e.g., chassis paint) to the adjacent carbon steel weld area is recommended.

Light and Wiring Integration:

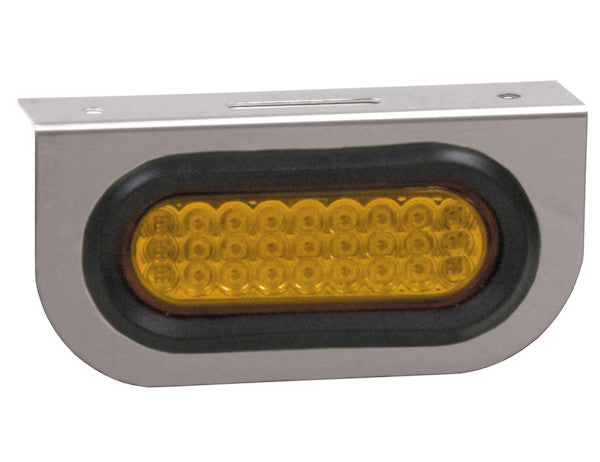

Once the bracket is securely mounted, insert the oval light into the cutout. Ensure the light's rubber grommet or gasket creates a tight seal. Connect the light's wiring to the vehicle's electrical system, ensuring proper insulation, secure connections (e.g., soldered and heat-shrink sealed, or crimped with weather-pack connectors), and routing to prevent chafing or exposure to heat/moisture. Test all light functions (stop, tail, turn, marker, reverse) to confirm proper operation.

By diligently following these installation best practices, the Single Oval Stainless Steel DOT Light Bracket will provide years of reliable service, maintaining vehicle safety and ensuring continuous compliance with regulatory standards.
