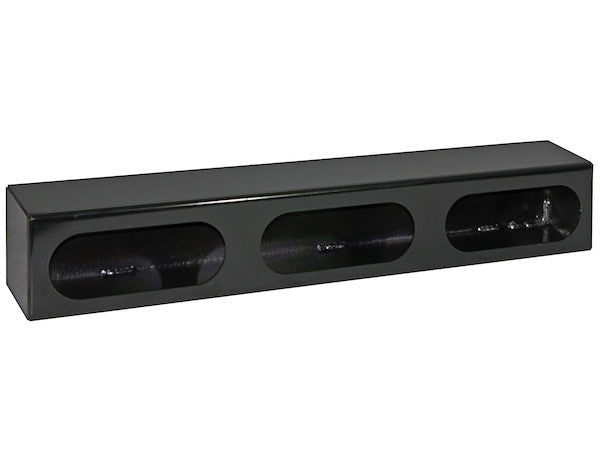

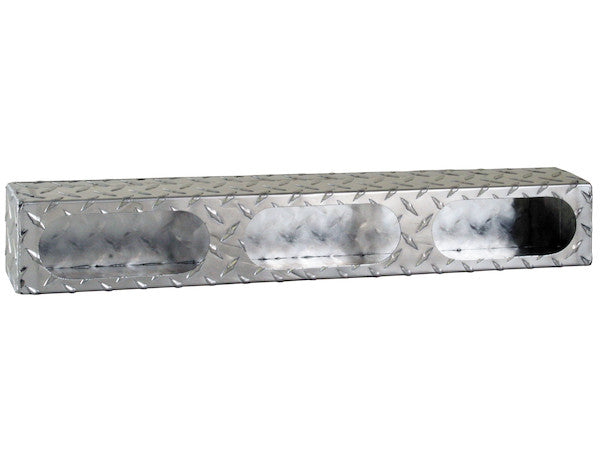

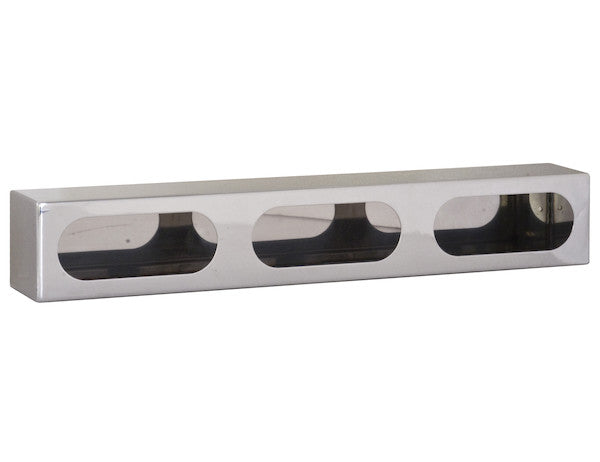

Buyers Products Horizontal Triple Oval Light Boxes are designed to mount 6 in. oval DOT lights. Light boxes are available with stainless steel, black powder-coated steel, or diamond tread aluminum construction.
Specifications
| Depth | 3.00 |
|---|---|
| Face Cutout Diameter | 2.60 x 6.75 |
| Face Cutout Shape | Oval |
| Height | 3.00 |
| Length | 25.00 |
| Material | Aluminum |
| Mount Type | Bolt-On / Weld-On |
| Number of Face Cutouts | 3 |
| Number of Side Cutouts | 0 |
| Oval Cutout Angle | 0 |
| Side Cutout Diameter | - |
| Side Cutout Shape | - |
The Triple Oval Light Box, crafted from premium Diamond Tread Aluminum, represents a pinnacle of engineering and functional design for vehicle auxiliary lighting systems. Specifically engineered to accommodate three 6-inch oval DOT-compliant lights in a horizontal configuration, this light box provides not only a robust mounting solution but also significantly enhances the aesthetic and protective qualities of your vehicle's lighting array. Its construction from diamond tread aluminum distinguishes it from alternatives, offering a unique combination of lightweight properties, exceptional durability, and superior resistance to environmental degradation. This product is meticulously designed for professional applications where reliability, safety, and a refined appearance are paramount.
Material Science: The Excellence of Diamond Tread Aluminum
The selection of diamond tread aluminum as the primary construction material for this triple oval light box is a deliberate choice rooted in advanced material science and practical application benefits. Diamond tread aluminum, often referred to as checker plate or tread plate, typically employs alloys such as 3003-H14 or 6061-T6. These alloys are specifically chosen for their optimal balance of strength, formability, and corrosion resistance. The distinctive raised diamond pattern is not merely for aesthetics; it significantly increases the surface rigidity, providing enhanced structural integrity and resistance to bending or denting under impact. This textured surface also offers an improved grip, which can be advantageous during installation or maintenance in certain operational environments.
Aluminum's inherent properties provide substantial advantages over other materials like steel. Firstly, its remarkable strength-to-weight ratio allows for a lighter assembly without compromising structural integrity. This weight reduction is crucial for commercial vehicles, contributing to improved fuel efficiency, increased payload capacity, and reduced wear and tear on suspension components. Secondly, aluminum exhibits excellent natural corrosion resistance dueating to the formation of a passive oxide layer on its surface, which self-repairs when scratched. This makes it ideal for exposure to harsh weather conditions, road salts, chemicals, and marine environments, drastically extending the product's lifespan compared to untreated steel which is prone to rust. The absence of a need for extensive coatings to prevent corrosion further simplifies maintenance and reduces long-term operational costs.
Furthermore, diamond tread aluminum offers superior thermal conductivity compared to many other metals. While the primary purpose of the light box is structural and protective, this property can indirectly contribute to the thermal management of enclosed LED lights by aiding in the dissipation of heat generated by the light units, thus potentially prolonging their operational life and maintaining optimal performance. The material's non-magnetic properties can also be beneficial in specific applications where electromagnetic interference might be a concern. The reflective quality of the polished aluminum surface can also contribute to overall visibility and a clean, professional appearance on the vehicle, resisting dulling and fading over time with proper care.
Precision Engineering and Design for Optimal Performance
The design of the Triple Oval Light Box is a testament to precision engineering, specifically tailored for maximum utility and integration. With external dimensions of 25.00 inches in length, 3.00 inches in height, and 3.00 inches in depth, this light box is proportioned to offer a compact yet highly effective lighting solution. The internal architecture features three precisely cut oval apertures, each measuring 2.60 x 6.75 inches. These dimensions are meticulously calibrated to ensure a perfect, flush fit for standard 6-inch oval DOT-compliant lights, minimizing gaps and preventing the ingress of moisture, dust, and debris, which can compromise the integrity and performance of the lights.
The horizontal orientation of the three oval cutouts, specified with an Oval Cutout Angle of 0 degrees, ensures a linear and uniform light distribution, critical for compliance with Department of Transportation (DOT) regulations for visibility and signaling. This horizontal alignment is particularly effective for mounting on the rear or sides of trailers, trucks, and other utility vehicles where a broad, unambiguous visual signal is required. The absence of side cutouts (Number of Side Cutouts: 0) reinforces the robust, enclosed design, concentrating protective capabilities on the primary light faces and minimizing potential points of structural weakness or environmental exposure.
Each cutout is engineered with clean, burr-free edges, facilitating straightforward and secure installation of the lights, often employing rubber grommets or flush-mount bezels to further seal and isolate the light unit from vibrations and external elements. The overall structural integrity of the light box ensures that once installed, the lights are securely held in place, impervious to the constant vibrations and impacts encountered during vehicle operation. This design consideration not only protects the lighting investment but also maintains consistent illumination performance, which is a critical safety factor.
Versatile Mounting Capabilities: Bolt-On and Weld-On
Understanding the diverse requirements of vehicle integration, the Triple Oval Light Box offers dual mounting options: bolt-on and weld-on. This versatility ensures compatibility with a broad spectrum of vehicle chassis, frame types, and application-specific installation preferences. The choice between bolt-on and weld-on methods depends on factors such as the substrate material, accessibility, desired permanence, and available tooling.
The bolt-on method provides a robust yet potentially removable attachment. This approach typically involves drilling pilot holes into the vehicle's mounting surface, aligning them with pre-drilled holes in the light box (or marking and drilling as needed), and securing the unit with appropriate corrosion-resistant hardware such as bolts, washers, and nuts. Bolt-on installations are favored for their flexibility, allowing for easier replacement or repositioning of the light box if future modifications are required. It also minimizes heat introduction to the vehicle's frame, which is crucial for certain chassis materials or specialized coatings. Proper torque specifications for fasteners are essential to ensure a vibration-resistant and secure mount.
Conversely, the weld-on method offers a permanent and exceptionally strong attachment, often preferred in heavy-duty applications where maximum structural integration and impact resistance are priorities. Welding directly fuses the light box to the vehicle's frame or structural members, creating a monolithic connection. This method eliminates the need for mechanical fasteners and can provide a very clean, low-profile installation. However, it requires specialized welding equipment and expertise, and consideration must be given to the metallurgy of both the light box and the vehicle's chassis to ensure compatible welding processes and materials. Post-welding treatments, such as painting or coating the weld seams, are often necessary to maintain corrosion resistance in the affected areas. Both methods, when executed correctly, guarantee the light box remains firmly affixed, safeguarding the enclosed lights against the rigors of operational environments.
Enhanced Safety and Operational Benefits
The integration of the Triple Oval Light Box into a vehicle's lighting system translates directly into significant safety and operational advantages. Foremost among these is the dramatic enhancement of vehicle visibility. By providing a dedicated, protected housing for three high-intensity 6-inch oval DOT lights, the system ensures that critical signaling and marker functions are clearly discernible to other road users, regardless of ambient conditions. This proactive approach to visibility is a cornerstone of accident prevention, particularly for large commercial vehicles operating in diverse traffic and environmental scenarios.
Beyond active signaling, the light box acts as a passive safety component by shielding the delicate light units from external hazards. Lights mounted directly onto a vehicle surface are highly susceptible to damage from impacts, road debris, brush, cargo shifts, and even vandalism. The sturdy diamond tread aluminum construction encases the lights, absorbing and dissipating kinetic energy from impacts, thereby significantly extending the lifespan of the costly lighting components. This protective barrier reduces the frequency of light replacement, minimizing maintenance downtime and associated costs, which contributes to lower overall operating expenses for fleet managers and vehicle owners.
Furthermore, the organized and integrated design of the light box contributes to regulatory compliance and operational efficiency. By providing a standard, robust platform for DOT-approved lighting, it simplifies inspection processes and ensures that vehicles meet legal requirements for signaling and marking. The clean installation also facilitates easier wiring management within the enclosure, protecting electrical connections from exposure to moisture and physical damage, which are common causes of electrical failures. This professional presentation also enhances the overall aesthetic of the vehicle, projecting an image of meticulous maintenance and operational excellence.
Broad Spectrum of Applications
The versatility and robust construction of the Triple Oval Light Box make it an indispensable component across a wide array of industries and vehicle types. Its design is particularly well-suited for applications demanding high durability and consistent performance in challenging environments. Commercial trucking operations constitute a primary application, where these light boxes are frequently integrated into the rear and sides of semi-trailers, flatbeds, tanker trucks, and straight trucks. They provide essential brake, turn, and tail light functions, ensuring compliance and safety on highways and urban roads alike.
In the construction and heavy equipment sector, the light box serves as a rugged mounting solution for lights on dump trucks, excavators, loaders, and various types of construction trailers. Here, the diamond tread aluminum's resistance to impact, corrosion from construction site chemicals, and harsh weather conditions is invaluable. Municipal and utility fleets, including snowplows, refuse trucks, road maintenance vehicles, and service vans, benefit from the enhanced visibility and protection, crucial for operations in public spaces and during emergency situations.
Agricultural machinery, such as tractors, combines, and farm trailers, often operate in environments characterized by dust, mud, and uneven terrain. The durable enclosure safeguards lights from these elements, ensuring critical signaling during day and night field operations and when transporting equipment on roads. The marine industry also finds utility in these light boxes, particularly for boat trailers and dockside equipment, where aluminum's superior corrosion resistance to saltwater spray is a distinct advantage. Even in specialized fields like emergency services (ambulances, fire trucks) and recreational vehicles (RVs, custom trailers), where customized lighting configurations are common, the Triple Oval Light Box provides a reliable and aesthetically pleasing foundation for essential illumination.
Manufacturing Excellence and Quality Assurance
The production of the Triple Oval Light Box is underpinned by a commitment to manufacturing excellence and rigorous quality assurance protocols. Each unit is fabricated from high-grade diamond tread aluminum sheets, selected for their consistent material properties and surface finish. The manufacturing process typically involves precision laser cutting or CNC punching to achieve the exact dimensions for the light box body and, crucially, for the three oval cutouts. This automated process ensures unparalleled accuracy, preventing common issues such as misaligned lights or ill-fitting grommets that can compromise weather sealing. Subsequent forming operations, such as bending, are also executed with high precision machinery to maintain tight tolerances and structural integrity across the 25.00-inch length and 3.00-inch depth and height dimensions.
Following fabrication, each light box undergoes thorough quality inspections. These checks encompass dimensional accuracy verification, examination of weld or fastener points for integrity, assessment of the diamond tread pattern for consistency, and a final visual inspection for surface imperfections, burrs, or sharp edges that could hinder installation or pose a safety risk. The aluminum's intrinsic resistance to corrosion means that extensive post-fabrication treatments, such as painting or galvanizing (common for steel components), are not required, simplifying the manufacturing chain and contributing to the product's overall cost-effectiveness and environmental footprint. This meticulous attention to detail at every stage of production ensures that each Triple Oval Light Box meets or exceeds industry standards for durability, functionality, and aesthetic appeal, providing customers with a product designed for long-term, reliable service.
Considerations for Electrical Integration and Thermal Management
While the Triple Oval Light Box serves primarily as a protective housing, its design implicitly supports optimal electrical integration and contributes to the thermal management of the enclosed lights. For modern LED lighting units, which are increasingly prevalent due to their efficiency and longevity, effective heat dissipation is crucial to prevent premature failure. Although aluminum is an excellent thermal conductor, the closed nature of the light box necessitates careful consideration during installation. Proper wiring techniques are paramount; all electrical connections within the light box should be made using weather-resistant connectors, crimped terminals, and, where appropriate, heat-shrink tubing to protect against moisture ingress and vibration-induced disconnections. Using marine-grade or automotive-grade wiring is recommended for maximum resilience against harsh operating conditions.
To further enhance protection and prolong the life of the enclosed lights, some installers may opt to apply a bead of automotive-grade sealant around the perimeter of the light units where they interface with the light box's oval cutouts, even when rubber grommets are used. This creates an additional barrier against water and dust. For applications in extremely high-temperature environments or with exceptionally powerful LED lights, strategic ventilation, such as small, screened drain holes at the bottom of the enclosure (if not factory supplied), could be considered, though this must be balanced against the need for environmental sealing. Ultimately, the robust diamond tread aluminum enclosure provides a stable, protected environment for the electrical components and light units, facilitating a durable and reliable lighting system when integrated with professional wiring practices.
Economic and Environmental Advantages
Investing in the Triple Oval Light Box offers compelling economic and environmental advantages that extend beyond its immediate functional benefits. Economically, the enhanced protection provided to the lights significantly reduces the frequency of replacements and repairs. This translates directly into lower maintenance costs and reduced vehicle downtime, both critical factors for operational efficiency in commercial fleets. The robust construction ensures a longer service life for the light box itself, offering superior long-term value compared to less durable alternatives that might require frequent repair or replacement. The professional appearance maintained by the diamond tread aluminum also contributes to the perceived value and image of a vehicle or fleet, potentially aiding in resale value and brand reputation.
From an environmental perspective, aluminum is celebrated for its excellent recyclability. Aluminum products can be recycled repeatedly without significant loss of quality, a process that requires significantly less energy than producing primary aluminum from raw ore. By choosing a product made from aluminum, consumers and businesses contribute to a more sustainable industrial ecosystem, reducing waste and conserving natural resources. The durability and extended lifespan of the Triple Oval Light Box also mean less frequent disposal, further reducing its environmental footprint over its operational lifetime. This commitment to both performance and sustainability makes the diamond tread aluminum light box a responsible choice for modern vehicle applications.
In conclusion, the Triple Oval Light Box in Diamond Tread Aluminum is more than just a mounting bracket; it is a meticulously engineered component designed to elevate the safety, durability, and aesthetic appeal of vehicle auxiliary lighting. Its superior material composition, precise fabrication, versatile mounting options, and protective qualities coalesce to deliver an indispensable solution for demanding professional applications. This product represents a strategic investment in vehicular safety and longevity, providing a reliable foundation for essential lighting while embodying a commitment to quality and sustainability.
