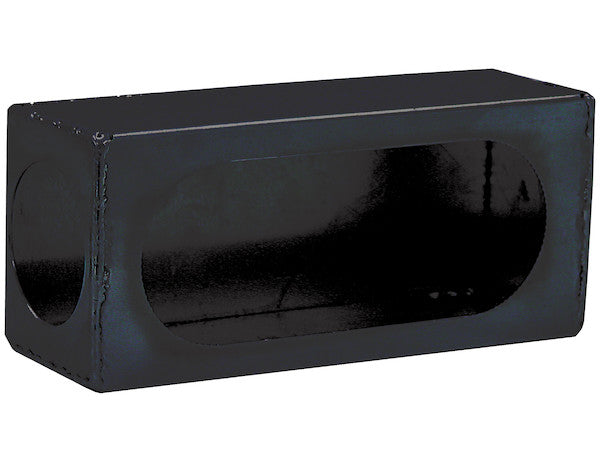

Buyers Products Single Oval Light Boxes are designed to mount 6 in. oval DOT lights. Oval light boxes are available with stainless steel, black powder-coated steel, smooth or diamond tread aluminum, or black polymer construction. Available with a cutout for a 2" side light or front and back cutouts to suit various applications. The 2.13" cutout diameter of LB383SL is suitable for 2" recessed rubber-mounted marker lights.
Specifications
| Depth | 3.00 |
|---|---|
| Face Cutout Diameter | 2.60 x 6.75 |
| Face Cutout Shape | Oval |
| Height | 3.00 |
| Length | 8.00 |
| Material | Carbon Steel |
| Mount Type | Bolt-On / Weld-On |
| Number of Face Cutouts | 1 |
| Number of Side Cutouts | 1 |
| Oval Cutout Angle | 0 |
| Side Cutout Diameter | 2.312 |
| Side Cutout Shape | Round |
The Single Oval Light Box: Engineered for Superior Performance and Durability in Commercial Applications
The Single Oval Light Box, meticulously crafted from black powder-coated carbon steel and featuring a dedicated side light cutout, represents a pinnacle of robust design and functional precision for demanding commercial and industrial vehicle applications. This product is engineered not merely as an accessory, but as an integral component for protecting vital DOT-compliant lighting, ensuring consistent visibility, and upholding operational safety standards across diverse environments. Its specific design parameters, including the accommodation for a 6-inch oval DOT light and a 2-inch recessed side marker light, underscore its commitment to comprehensive lighting solutions.
Advanced Material Science: Black Powder-Coated Carbon Steel
The foundation of this light box's exceptional durability lies in its material composition: high-grade carbon steel, meticulously treated with a black powder coating. Carbon steel, known for its superior strength-to-weight ratio, excellent tensile strength, and inherent toughness, provides an ideal structural basis for components exposed to the rigorous conditions of commercial transportation. Its ability to withstand significant mechanical stress, vibration, and impact ensures the integrity of the light box and, by extension, the critical lighting it houses. The specific carbon steel utilized is selected for its optimal balance of workability—allowing for precise forming and cutting—and its ultimate structural rigidity.
The application of a black powder coating elevates the performance characteristics of the carbon steel significantly. Powder coating is a dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto a grounded substrate. The charged powder particles adhere to the electrically grounded surfaces until melted and fused into a smooth coating in a curing oven. This process creates a finish that is not only aesthetically pleasing but, more importantly, provides a highly durable protective layer. The black finish offers a neutral and professional appearance, seamlessly integrating with the aesthetics of most commercial vehicles while offering superior UV resistance compared to many liquid coatings, preventing fading and chalking over time.
The benefits of this advanced coating system are multifaceted. Firstly, it provides exceptional corrosion resistance, forming an impermeable barrier against moisture, road salts, de-icing chemicals, and other corrosive agents frequently encountered on highways and job sites. This significantly extends the service life of the light box, preventing rust and degradation that could compromise both structural integrity and aesthetic appeal. Secondly, powder coating offers superior chip, scratch, and abrasion resistance compared to conventional paint, safeguarding the light box from physical damage caused by road debris, cargo shifts, and routine wear and tear. This robust protection minimizes the need for frequent maintenance or replacement, contributing to a lower total cost of ownership over the vehicle's lifespan.
Precision Engineering for Optimal Light Integration
The design of this Single Oval Light Box is a testament to precision engineering, meticulously crafted to accommodate standard 6-inch oval DOT-compliant lights and 2-inch side marker lights. The primary face cutout, measuring 2.60 x 6.75 inches with an oval shape, is precisely dimensioned to ensure a snug and secure fit for the designated 6-inch oval lights. This precise fit is critical for several reasons: it prevents rattling and vibration-induced damage to the light fixture, it creates a clean, recessed appearance that protects the lens from direct impacts, and it facilitates proper light beam projection as intended by the manufacturer.
Complementing the main oval cutout is a strategically placed side cutout, specifically a round shape with a diameter of 2.312 inches. This cutout is perfectly suited for 2-inch recessed rubber-mounted marker lights, such as those commonly specified by the Department of Transportation (DOT) for side visibility. The inclusion of this side light provision is a significant safety feature, enhancing lateral visibility of the vehicle or trailer, especially crucial during lane changes, turns, and when parked on the roadside. The precise 2.312-inch diameter ensures compatibility with a wide range of standard 2-inch recessed lights, allowing for versatile lighting configurations.
The overall dimensions of the light box – 8.00 inches in length, 3.00 inches in height, and 3.00 inches in depth – are optimized for a compact yet fully functional form factor. This size allows for installation in various locations on vehicles and trailers without protruding excessively, minimizing the risk of snagging or damage. The single face cutout and single side cutout configuration streamlines installation and wiring, offering a dedicated solution for specific lighting requirements without unnecessary complexity. The manufacturing process involves high-precision cutting techniques, such as laser cutting, to ensure all cutouts are clean, burr-free, and dimensionally accurate, which is vital for proper light gasket seating and long-term water resistance.
Versatile Mounting Capabilities: Bolt-On and Weld-On
Recognizing the diverse structural configurations of commercial vehicles and trailers, the Single Oval Light Box offers dual mounting options: bolt-on and weld-on. This versatility ensures that the light box can be securely integrated into virtually any application, providing maximum flexibility for installers and fleet managers.
The bolt-on mounting capability allows for non-permanent attachment to a vehicle's frame, bumper, or other structural components. This method is advantageous for ease of installation, requiring standard drilling and fastening hardware. It also offers the flexibility to reposition or replace the light box if necessary, simplifying maintenance or modifications. When utilizing the bolt-on method, it is imperative to use appropriate grade fasteners, such as high-strength bolts, washers, and lock nuts, to ensure a vibration-resistant and secure attachment that withstands the dynamic forces encountered during vehicle operation.
For applications demanding the highest level of structural integration and permanence, the weld-on option is available. Welding the light box directly to the vehicle's steel structure creates an exceptionally robust and seamless connection, eliminating the possibility of loosening over time due to extreme vibration or heavy impacts. This method is particularly suitable for heavy-duty trailers, vocational trucks, and equipment where the light box is intended to be an immutable part of the vehicle's chassis. Professional welding practices, adhering to industry standards, are crucial to ensure the integrity of the weld and prevent heat-induced distortions to the light box or adjacent vehicle components.
Regardless of the chosen mounting method, proper installation is paramount to ensure the longevity and effectiveness of the light box and the lights it protects. Secure mounting prevents unwanted movement, reduces stress on wiring connections, and ensures that the lights remain properly oriented for optimal visibility and compliance with regulatory standards.
Broad Spectrum of Applications
The Single Oval Light Box is an indispensable component across a wide array of commercial and industrial sectors, reflecting its robust construction and critical function. Its design caters specifically to the demanding environments faced by:
- Commercial Trucking Fleets: For heavy-duty semi-trucks, box trucks, and regional haulers, providing essential stop, tail, turn, and marker light protection on bumpers, mud flap hangers, or trailer frames.
- Utility and Vocational Vehicles: Including service trucks, municipal vehicles (e.g., snowplows, refuse trucks), and construction vehicles where lighting is frequently exposed to harsh conditions, debris, and potential impact.
- Agricultural Equipment: Protecting lights on tractors, harvesters, and trailers that operate in dusty, muddy, and rugged off-road environments.
- Flatbed and Enclosed Trailers: Offering secure and protected mounting for rear and side lighting on various trailer types, ensuring compliance and enhancing safety for cargo transport.
- Dump Trucks and Equipment Trailers: Where the nature of the work involves frequent loading and unloading of heavy materials, increasing the risk of light damage.
- Specialty Vehicles: Any custom build or specialized equipment requiring robust, recessed lighting solutions for improved protection and aesthetic integration.
In each of these applications, the light box serves a dual purpose: it acts as a protective enclosure, shielding valuable and fragile lighting components from physical damage, and it provides a clean, professional housing that streamlines wiring and installation, contributing to an overall more durable and maintainable lighting system.
Ensuring Regulatory Compliance and Enhanced Safety
Vehicle lighting is not merely a convenience; it is a critical safety feature mandated by numerous regulatory bodies, most notably the Department of Transportation (DOT) in the United States. The Single Oval Light Box plays a pivotal role in facilitating compliance with these stringent regulations. By providing a stable and secure platform for DOT-approved 6-inch oval lights and 2-inch side markers, it ensures that these lights are properly positioned, protected, and functional, thereby meeting visibility standards.
Properly functioning and visible lighting systems are fundamental to road safety. Stop lights, tail lights, turn signals, and marker lights communicate a vehicle's presence, size, and intended actions to other drivers, significantly reducing the risk of collisions. The recessed mounting provided by the light box not only protects the lights but also often presents a clearer, less obstructed light output, as the housing itself is designed to complement the light's beam pattern. The inclusion of a side marker light cutout further enhances safety by increasing the vehicle's lateral visibility, a common requirement for longer vehicles and trailers to define their perimeter, especially at night or in adverse weather conditions.
Investing in a high-quality light box like this is an investment in safety and compliance, minimizing the risk of fines for non-compliant lighting and, more importantly, reducing the potential for accidents caused by insufficient vehicle visibility. It represents a proactive approach to fleet management that prioritizes both operational efficiency and the well-being of drivers and other road users.
Unmatched Durability and Longevity
The synergy between the robust carbon steel construction and the advanced black powder coat finish imbues this Single Oval Light Box with exceptional durability and longevity, designed to perform reliably for years in the most challenging operational environments. The inherent strength of carbon steel provides a foundation that resists deformation, cracking, and fatigue, even under continuous vibration and occasional impact. This structural integrity ensures that the light box maintains its form and continues to securely hold its lighting components throughout its service life.
The powder coating acts as a sacrificial layer against environmental degradation. It creates a formidable barrier against abrasive elements like sand, gravel, and road salt, which can quickly degrade unprotected metals. Furthermore, its resistance to chemical exposure from fuels, oils, and cleaning agents means that incidental spills or routine maintenance will not compromise its protective qualities. This comprehensive protection translates directly into a significantly longer operational lifespan for the light box and, critically, for the lights housed within it, reducing the frequency and cost of replacements.
By preventing premature wear and corrosion, the light box contributes to a more reliable vehicle lighting system, minimizing unexpected failures that could lead to downtime, safety hazards, or regulatory infractions. Its robust construction ensures that it remains an enduring component of the vehicle's infrastructure, providing sustained protection and maintaining a professional appearance even after years of arduous service.
Installation Considerations and Best Practices
While the Single Oval Light Box is designed for straightforward installation, adhering to best practices ensures optimal performance and longevity:
- Location Assessment: Carefully select the mounting location on the vehicle or trailer, considering factors such as available space (referencing the 8.00" L x 3.00" H x 3.00" D dimensions), structural integrity of the mounting surface, and compliance with DOT lighting placement regulations. Ensure clear visibility of the lights once installed.
- Surface Preparation: For bolt-on applications, mark and drill pilot holes accurately. For weld-on applications, thoroughly clean the mating surfaces to remove any paint, grease, or rust, ensuring a strong, contaminant-free weld.
- Mounting Securely: If bolting, use appropriate hardware (e.g., Grade 8 bolts for heavy-duty applications) with lock washers or self-locking nuts to resist vibration. Torque fasteners to manufacturer specifications. If welding, employ proper welding techniques and ensure complete, solid welds without compromising the light box or vehicle structure.
- Light Installation: Carefully insert the 6-inch oval DOT light and the 2-inch side marker light into their respective cutouts. Most recessed lights are rubber-grommet mounted; ensure the grommet is fully seated to provide a watertight seal and vibration damping.
- Wiring Protection: Route wiring away from sharp edges, heat sources, and moving parts. Use appropriate wire loom or conduit for protection. Ensure all electrical connections are clean, secure, and weather-sealed to prevent moisture ingress and corrosion, which can lead to light malfunctions.
- Testing: After installation, test all lights (stop, tail, turn, marker) to ensure they are functioning correctly and are clearly visible. Verify proper alignment and brightness.
- Regular Inspection: Periodically inspect the light box and lights for any signs of damage, corrosion, or loose connections, especially during routine vehicle maintenance checks.
Economic and Operational Advantages
Beyond its immediate function, the Single Oval Light Box delivers significant economic and operational advantages for fleet operators and individual vehicle owners. By proactively protecting essential lighting components, it mitigates the substantial costs associated with frequent light replacement due to breakage or environmental damage. Modern LED lights, while durable, represent a considerable investment, and safeguarding them ensures their full service life is realized. This reduction in replacement frequency translates directly into lower material costs and reduced labor expenditures for maintenance.
Furthermore, the enhanced durability and reliability provided by the light box lead to decreased vehicle downtime. Lights that are constantly failing due to exposure or impact require vehicles to be taken out of service for repairs, impacting productivity and revenue. A protected lighting system operates more consistently, keeping vehicles on the road and operational. The professional, integrated aesthetic afforded by the black powder-coated steel also contributes to a positive brand image for commercial fleets, signaling attention to detail and a commitment to quality and safety.
Conclusion
The Single Oval Light Box in black powder-coated carbon steel with a side light is an exemplary product engineered to meet the rigorous demands of the commercial transportation industry. Its robust material composition, precise engineering, versatile mounting options, and commitment to safety and compliance make it an indispensable solution for protecting and enhancing vehicle lighting systems. This product stands as a testament to durability, functionality, and long-term value, ensuring that critical illumination remains operational and visible under even the most challenging conditions. It is not just a light box; it is a cornerstone of vehicle safety and operational integrity.
