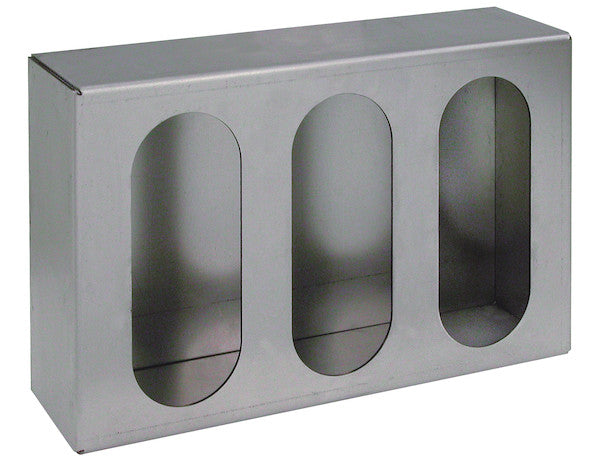

Buyers Products Vertical Triple Oval Light Boxes are designed to mount 6 in. oval DOT lights. Light boxes feature a grey primed steel construction that's ready to be painted.
Specifications
| Depth | 3.00 |
|---|---|
| Face Cutout Diameter | 2.60 x 6.75 |
| Face Cutout Shape | Oval |
| Height | 8.00 |
| Length | 13.00 |
| Material | Carbon Steel |
| Mount Type | Bolt-On / Weld-On |
| Number of Face Cutouts | 3 |
| Number of Side Cutouts | 0 |
| Oval Cutout Angle | 90 |
| Side Cutout Diameter | - |
| Side Cutout Shape | - |
The Grey Primed Steel Triple Oval Light Box represents a critically engineered component designed for the demanding operational environments of commercial and heavy-duty vehicles. This robust housing provides a secure and compliant mounting solution for a trio of 6-inch oval DOT-approved lighting units, vital for ensuring vehicle visibility, safety, and adherence to stringent transportation regulations. Its construction from high-grade carbon steel, meticulously prepared with a grey primer, underscores a commitment to durability, longevity, and ease of aesthetic integration, making it an indispensable asset for fleet managers, vehicle manufacturers, and owner-operators alike.
Advanced Material Science: The Carbon Steel Advantage and Priming Protocol
At the core of this light box's exceptional resilience is its material composition: premium carbon steel. Carbon steel is specifically selected for its superior mechanical properties, including high tensile strength, excellent impact resistance, and inherent rigidity. These characteristics are paramount in applications where components are routinely subjected to significant dynamic stresses, vibrations, and potential impacts inherent in commercial vehicle operations. Unlike lighter materials that may deform or fracture under duress, carbon steel maintains its structural integrity, providing a steadfast enclosure that protects sensitive lighting components from external forces and environmental contaminants. The density and inherent strength of carbon steel also contribute to the overall stability of the light assembly, mitigating oscillation and ensuring consistent light projection.
The choice of carbon steel also facilitates versatile fabrication techniques, allowing for precise cutting, forming, and welding processes that result in a seamless, structurally sound unit. Its excellent weldability ensures that when utilized with the weld-on mounting option, the light box can be integrated into the vehicle's chassis or frame as an integral, permanent fixture, enhancing overall structural stability. This material choice is further justified by its cost-effectiveness relative to exotic alloys, providing an optimal balance of performance and economic viability for large-scale fleet integration.
The grey primed finish is not merely an aesthetic choice but a critical preliminary step in advanced corrosion protection and surface preparation. The primer serves as a sacrificial layer that actively inhibits the oxidation process, protecting the underlying carbon steel from rust and environmental degradation. This is particularly crucial for vehicle components exposed to moisture, road salts, chemicals, and abrasive debris. The primer’s formulation is engineered to bond securely with the steel substrate, creating a consistent, uniform surface that dramatically improves the adhesion of subsequent topcoats. This "ready-to-be-painted" feature offers significant operational advantages: it eliminates the need for labor-intensive surface preparation by the end-user, saving time and reducing labor costs during vehicle customization or fleet branding. Furthermore, the neutral grey hue provides an ideal base for a wide spectrum of finish colors, ensuring that the final paint application achieves optimal coverage, color accuracy, and a professional, uniform appearance that integrates seamlessly with the vehicle's aesthetic scheme. This multi-layered approach to material selection and surface treatment ensures maximal service life and reduced maintenance demands.
Precision Engineering for Optimal Lighting Integration
The design of the Grey Primed Steel Triple Oval Light Box is a testament to meticulous engineering, specifically tailored for the flawless integration of 6-inch oval DOT lights. The precise dimensions and cutouts are critical for performance and compliance. With a depth of 3.00 inches, the light box provides ample internal clearance to accommodate the various depths of standard 6-inch oval lights, including those with integrated wiring harnesses or specialized LED assemblies, while also allowing sufficient space for rubber grommets and wiring connections behind the lights. This depth ensures that the lights are recessed enough to offer protection against incidental impacts and road debris, yet are positioned optimally for maximum light output and visibility.
The face cutout dimensions of 2.60 x 6.75 inches for each of the three oval apertures are engineered with extremely tight tolerances to precisely fit industry-standard 6-inch oval lights. This exact fit is crucial for two primary reasons: first, it ensures a snug and secure installation of the light within its housing, preventing rattling or displacement under vibration. Second, it facilitates the proper seating of the rubber grommets that typically accompany these lights. These grommets are essential for creating a watertight seal, protecting the electrical connections and the light itself from moisture ingress, which is a common cause of premature light failure in harsh environments. The "Oval Cutout Angle: 90" specification indicates that the oval apertures are oriented vertically on the face of the light box, aligning with the common vertical stacking arrangements favored on many commercial vehicle applications for efficient use of space and clear signaling.
The overall dimensions of the light box – 8.00 inches in height and 13.00 inches in length – are optimized for compact yet effective placement. This form factor allows for integration into tight spaces on vehicle rear ends, sides, or other auxiliary mounting points, without encroaching excessively on valuable cargo space or interfering with other vehicle components. The vertical orientation of the three lights in a stacked configuration maximizes signaling effectiveness in a narrow footprint, making it ideal for vehicles where horizontal space is at a premium. The absence of side cutouts further reinforces the light box's primary role as a front-facing light housing, maintaining structural integrity and simplifying its design for robust performance in its intended role.
Versatile Mounting Solutions: Bolt-On and Weld-On
Recognizing the diverse installation requirements across various vehicle types and operational contexts, this triple oval light box offers dual mounting options: bolt-on and weld-on. This versatility provides significant flexibility for installers and vehicle manufacturers.
The Bolt-On mounting method is preferred for applications requiring adjustability, ease of maintenance, or potential future modifications. This method typically involves pre-drilling mounting holes in the light box and corresponding locations on the vehicle chassis or frame. Standardized fasteners, such as high-grade bolts, nuts, and washers (e.g., Grade 8 hardware with locking features), are then used to secure the light box. The advantages of bolt-on installation include:
- Serviceability: Allows for straightforward removal and reinstallation for maintenance, repair, or replacement of the light box or adjacent components.
- Non-Permanent Attachment: Ideal for leased vehicles, temporary installations, or situations where structural modification to the primary vehicle frame is undesirable.
- Reduced Skill Requirement: Requires less specialized equipment and technical skill compared to welding, making it accessible for a wider range of installers.
- Vibration Isolation: When properly installed with resilient washers or mounting pads, bolted connections can offer a degree of vibration dampening, extending the life of both the light box and the lights it contains.
Conversely, the Weld-On mounting method provides an exceptionally strong, permanent, and tamper-resistant attachment. This method involves fusing the light box directly to the vehicle's steel structure using established welding techniques. Key benefits of weld-on installation include:
- Superior Structural Integration: Creates a monolithic connection with the vehicle frame, significantly enhancing the light box's resistance to extreme vibration, impact, and shear forces.
- Maximum Security: A welded connection is highly resistant to theft or accidental detachment, crucial for components exposed to harsh environments or public access.
- Enhanced Durability: Eliminates potential points of failure associated with fasteners, providing a robust solution for the most demanding applications, such as off-road, construction, or refuse vehicles.
- Clean Aesthetic: Can result in a cleaner, more integrated look, especially when the weld beads are ground smooth and painted over.
Comprehensive Applications Across Diverse Industries
The Grey Primed Steel Triple Oval Light Box finds its application across a broad spectrum of industries and vehicle types, where visibility, safety, and regulatory compliance are paramount. Its robust design makes it suitable for:
- Heavy-Duty Trucking and Logistics: Essential for semi-trailers, box trucks, flatbeds, and dump trucks, where rear and side visibility lights (stop, turn, tail, reverse) are critical for preventing accidents on highways and in loading docks.
- Construction and Utility Vehicles: Dump trucks, service trucks, utility trailers, and specialized construction equipment benefit from the durable steel housing that protects lights from debris, impacts, and harsh job site conditions.
- Municipal Fleets: Snowplows, refuse trucks, street sweepers, and emergency support vehicles require highly visible and reliable lighting, especially during adverse weather conditions or nighttime operations.
- Agricultural Equipment: Tractors, harvesters, and agricultural trailers operating in fields and on public roads benefit from enhanced signaling and durability against rough terrain and environmental exposure.
- Fleet Customization and OEM Integration: Vehicle manufacturers and upfitters can integrate these light boxes into their designs, offering a standardized, robust, and customizable lighting solution that meets client specifications and regulatory requirements.
Ensuring DOT Compliance and Enhanced Road Safety
Adherence to Department of Transportation (DOT) regulations is non-negotiable for all commercial vehicles operating on public roadways. This Grey Primed Steel Triple Oval Light Box is explicitly designed to facilitate DOT compliance by providing a standardized, secure, and protected mounting platform for 6-inch oval DOT-approved lights. Proper mounting and protection of these lights are not just about aesthetics; they are fundamental to maintaining the integrity of the lighting system over its operational life, thereby ensuring consistent visibility and reliable signaling to other road users.
The light box ensures that the lights are correctly oriented and positioned, preventing improper light dispersion or obstruction that could lead to non-compliance. By shielding the lights from environmental damage and mechanical impact, it reduces the frequency of light failures, which can result in costly fines, vehicle downtime, and, most critically, increased risk of accidents. Fleet managers can rely on this product to contribute to a strong safety record, reducing liability and insurance costs. The vertical arrangement of the three lights maximizes the visual impact within a concentrated area, making the vehicle's intentions unmistakable to drivers behind or alongside it, whether it's braking, turning, or reversing. This clarity of communication is a cornerstone of proactive accident prevention on busy highways and congested urban routes.
Long-Term Value and Operational Efficiency
Investing in a high-quality light box like this Grey Primed Steel Triple Oval unit translates into significant long-term value and enhanced operational efficiency for any fleet or individual operator. Its robust carbon steel construction and protective priming minimize the need for frequent repairs or replacements of the housing itself, even in the most aggressive operating conditions. This durability extends the lifespan of the mounted lighting units by shielding them from physical damage, water ingress, and corrosion, thereby reducing the total cost of ownership over the vehicle's operational life.
The "ready-to-be-painted" feature offers considerable efficiencies in the customization and finishing stages. Instead of laboriously preparing raw steel surfaces, installers can proceed directly to applying their chosen topcoat, saving valuable shop time and resources. This expedites vehicle upfitting and ensures that newly added components quickly match existing vehicle aesthetics or branding. Furthermore, the standardization provided by a precisely manufactured light box simplifies inventory management for replacement parts and streamlines the installation process for future vehicle builds or modifications across a fleet.
By effectively protecting critical safety lighting, the light box contributes directly to vehicle uptime. Fewer light failures mean less time spent on roadside repairs, fewer regulatory citations, and more time on the road generating revenue. This consistent performance and reduced maintenance burden make the Grey Primed Steel Triple Oval Light Box an economically sound choice for any entity prioritizing safety, reliability, and long-term operational cost-effectiveness within their vehicle fleet.
