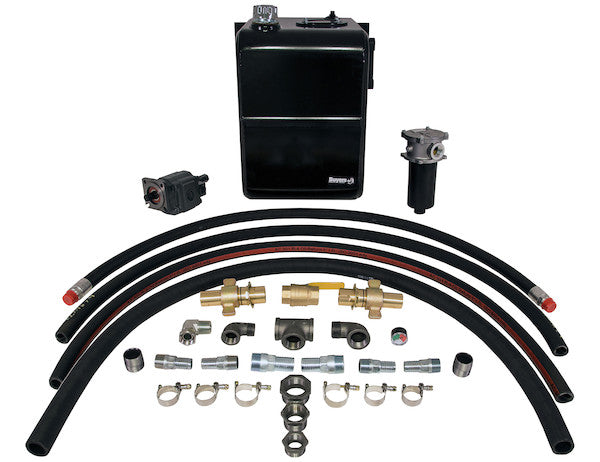

The 37 Gallon Wetline Kit for Live Floor from Buyers Products has everything you need to operate a live floor trailer hydraulic system. It's designed for optimal speed and long life. The kit contains: (1) Upright 37 gal steel reservoir; (1) Tank-mounted 50 GPM return filter; (1) Dowelled pump with built-in relief; (1) Ball valve; and all wing couplers, hoses, adapters, clamps, and fittings. The counter-clockwise rotational kit is available with an 18 GPM or 24 GPM pump. Contact Customer Service for assistance.
Specifications
| Direct or Remote Mount | Direct Mount |
|---|---|
| Flow at 1800 RPM | 42 |
| Pump Rotation | Counterclockwise |
| Reservoir Material | Carbon Steel |
| Reservoir Position | Side Mount |
| Reservoir Volume | 37 |
Comprehensive Technical Overview: Buyers Products 37 Gallon Wetline Kit for Live Floor Applications with 24 GPM CCW Pump
The efficient and reliable operation of live floor trailers in demanding commercial and industrial environments hinges critically on the performance and integrity of their hydraulic systems. The Buyers Products 37 Gallon Wetline Kit, specifically configured with a 24 Gallons Per Minute (GPM) counter-clockwise (CCW) pump, represents a meticulously engineered solution designed to meet these rigorous requirements. This comprehensive kit provides all essential components for seamless integration and robust functionality, ensuring optimal material handling speed, enhanced operational safety, and prolonged system longevity for live floor trailer applications.
Live floor trailers are indispensable assets in sectors ranging from waste management and recycling to agriculture and bulk material transport. Their unique conveying system, often powered by a hydraulic motor, allows for the controlled, efficient unloading of various bulk commodities such as refuse, grain, wood chips, and aggregates. The hydraulic wetline kit serves as the vital power conduit, converting mechanical energy from the truck's Power Take-Off (PTO) into hydraulic energy, which then drives the live floor mechanism. This particular kit is precision-matched to deliver a fluid power solution that supports consistent, high-performance operation, thereby minimizing downtime and maximizing productivity.
Engineering Excellence: Core Components and Their Functional Significance
The Buyers Products 37 Gallon Wetline Kit is a holistic assembly, carefully curated to ensure component compatibility and synergistic performance. Each element is selected for its durability, efficiency, and contribution to the overall system's robust operation. Let's delve into the technical specifications and functional importance of each primary component:
1. The 37-Gallon Upright Carbon Steel Hydraulic Reservoir
The hydraulic reservoir is far more than a simple fluid storage tank; it is a critical component for system health and longevity. The 37-gallon capacity is judiciously sized to accommodate the system's operational volume, which includes fluid expansion due to temperature fluctuations, transient fluid demands during operation, and a reserve for optimal pump suction. Manufactured from robust carbon steel, this reservoir offers superior structural integrity, resistance to impact, and excellent weldability. Carbon steel is a preferred material in demanding mobile applications due to its high strength-to-weight ratio and cost-effectiveness. The 'Upright' configuration, coupled with a 'Side Mount' position, is optimized for efficient space utilization on the truck chassis, while also contributing to effective heat dissipation and air separation. Proper heat management is paramount in hydraulic systems, as elevated fluid temperatures can degrade hydraulic fluid, accelerate seal wear, and reduce component life. The large surface area of the reservoir naturally aids in radiating heat away from the hydraulic oil. Internally, reservoirs often incorporate baffles to create a serpentine flow path. This design promotes the settling of contaminants and allows entrained air to escape, preventing cavitation at the pump inlet and ensuring that cleaner, de-aerated oil is supplied back to the system. A properly designed reservoir also typically includes a filler/breather cap, often equipped with an air filter to prevent airborne contaminants from entering the system, and a sight glass or level indicator to facilitate routine fluid level checks.
2. The Dowelled Hydraulic Pump with Built-in Relief (24 GPM, Counterclockwise)
At the heart of any hydraulic wetline system is the pump, and this kit features a high-performance, dowelled hydraulic pump, specifically configured for a 24 GPM flow rate and counter-clockwise rotation. This is typically a robust gear pump, known for its fixed displacement characteristics, high volumetric efficiency, and exceptional durability in mobile applications. The 'dowelled' construction refers to the use of precisely machined dowel pins to align the pump's internal components, such as the pump body, end plates, and gear housing. This meticulous alignment minimizes internal leakage, reduces wear on bearings and gear teeth, and significantly extends the pump's operational life, especially under intermittent or heavy loads. The 24 GPM flow rate is precisely calibrated to provide optimal speed for the live floor trailer's hydraulic motor, ensuring efficient and timely unloading cycles without excessive energy consumption or fluid heating. The 'Counterclockwise' rotation is a critical specification, dictated by the rotational output of the truck's Power Take-Off (PTO) unit. Mismatched pump rotation can lead to immediate and severe pump damage. Furthermore, this pump integrates a 'built-in relief valve'. This is a vital safety and control mechanism that limits the maximum pressure within the hydraulic circuit. Should the system encounter an overload, a blockage, or if the live floor mechanism reaches its operational limits, the relief valve opens to divert excess fluid back to the reservoir, preventing over-pressurization that could damage the pump, hoses, cylinders, or other components. This integrated design streamlines plumbing and enhances overall system reliability. The 'Direct Mount' configuration means the pump connects directly to the PTO output shaft, eliminating the need for additional drive shafts, couplings, and associated alignment challenges, thereby creating a more compact, efficient, and reliable power unit.
3. The Tank-Mounted 50 GPM Return Filter
Hydraulic fluid contamination is the leading cause of hydraulic component failure. The inclusion of a tank-mounted 50 GPM return filter underscores a commitment to system longevity and reliability. This filter is strategically placed in the return line, ensuring that fluid is thoroughly cleaned before it re-enters the reservoir and is recirculated back to the pump. The '50 GPM' rating signifies the filter's capacity to handle the full return flow of the system, even under peak operational conditions, without creating excessive back pressure that could impede system performance or damage components. While a specific micron rating is not detailed, return line filters for mobile applications typically feature filtration efficiencies in the 10 to 25 micron range, effectively removing particulate contaminants such as metallic wear particles, dirt, and debris that are generated within the system or ingress from external sources. Maintaining fluid cleanliness minimizes abrasive wear on the pump, motor, and control valves, preserves the integrity of seals, and extends the life of the hydraulic fluid itself. Many return filters are equipped with a bypass valve, which opens if the filter element becomes clogged, preventing filter rupture and ensuring continuous (though unfiltered) flow back to the reservoir. A visual or electrical indicator for filter element condition is also a common and valuable feature, signaling when maintenance is required without requiring system shutdown for inspection.
4. The Ball Valve
A simple yet essential component, the ball valve provides a reliable means of isolating sections of the hydraulic circuit. In a wetline kit, it is typically positioned to allow or disallow flow to the live floor system, providing an important safety feature during trailer connection/disconnection, maintenance procedures, or in emergency situations. Its quarter-turn operation ensures quick and decisive action. Constructed from durable materials compatible with hydraulic fluids and system pressures, the ball valve in this kit is designed for long-term, leak-free performance and offers a positive shut-off capability.
5. Wing Couplers, Hoses, Adapters, Clamps, and Fittings
The integrity of any hydraulic system is heavily dependent on the quality and proper installation of its fluid conveyance components. This kit includes a comprehensive assortment of high-quality wing couplers, hoses, adapters, clamps, and fittings, ensuring a complete and leak-proof installation.
- Hydraulic Hoses: These are engineered to withstand the system's operating pressures, temperatures, and fluid compatibility requirements. Typically, hoses conform to SAE standards (e.g., SAE 100R2 for high-pressure applications), featuring multiple layers of synthetic rubber and braided steel reinforcement. Proper hose selection and routing are critical to prevent abrasion, kinking, and excessive bending, which can lead to premature failure and costly leaks.
- Adapters and Fittings: These components facilitate the connection of hoses to the pump, reservoir, and live floor trailer. The kit includes a range of standardized fittings (e.g., JIC, ORB, NPT) manufactured from robust materials like carbon steel, often plated for corrosion resistance. Precision machining ensures tight, leak-free seals, preventing fluid loss and environmental contamination.
- Wing Couplers (Quick Disconnects): These specialized fittings are designed for rapid, secure, and spill-free connection and disconnection of the hydraulic lines between the truck and the live floor trailer. Their robust design, typically featuring a "wing" or lever mechanism, allows for easy operation even with gloved hands. They are engineered to minimize fluid loss during disconnection and prevent the ingress of contaminants into the system when disconnected, thereby safeguarding fluid cleanliness and system integrity.
- Clamps: Essential for proper hose management, clamps secure hydraulic hoses along the truck chassis, preventing movement, vibration-induced wear, and potential damage. Correct placement of clamps mitigates stress on fittings and helps maintain the aesthetic and functional organization of the hydraulic lines.
Operational Dynamics and Performance Optimization
The synergy of these meticulously selected components results in a hydraulic system optimized for the demanding requirements of live floor trailer operation. The 24 GPM pump provides ample flow to drive the live floor at an efficient pace, facilitating rapid material unloading and minimizing wait times. The 37-gallon reservoir ensures sufficient fluid volume for thermal stability and proper air separation, while the 50 GPM return filter diligently maintains fluid cleanliness, directly contributing to extended component life and reduced maintenance intervals. The built-in relief valve provides an instantaneous safeguard against system overloads, protecting expensive hydraulic components from damage.
The kit’s design for "optimal speed and long life" is a direct consequence of this integrated engineering approach. Optimal speed is achieved through the precise sizing of the pump's flow rate relative to the live floor's hydraulic motor requirements. Long life is facilitated by robust material choices, superior filtration, effective heat management, and the protective features of the relief valve and high-quality fittings. The direct mount pump configuration further enhances reliability by reducing potential points of failure associated with remote mounting arrangements, such as misaligned shafts or vibration-induced wear on intermediate couplings.
Installation, Maintenance, and Safety Considerations
While the Buyers Products 37 Gallon Wetline Kit is designed for comprehensive functionality, proper installation and ongoing maintenance are paramount to realizing its full potential and ensuring safe operation. Installation should always follow manufacturer guidelines, focusing on secure mounting of the reservoir, correct alignment and torquing of the direct-mount pump to the PTO, and precise routing of hoses to prevent chafing, kinking, or exposure to excessive heat sources. All fittings must be tightened to specified torque values to prevent leaks, which can lead to fluid loss, contamination, and safety hazards.
Preventative maintenance is critical for extending the life of the hydraulic system. Regular fluid level checks, adhering to recommended hydraulic fluid specifications (viscosity, anti-wear additives), and scheduled filter element replacement (based on operating hours or filter indicator readings) are non-negotiable. Hoses and fittings should be inspected periodically for signs of wear, abrasion, leaks, or corrosion. Any unusual noises from the pump or excessive system temperatures warrant immediate investigation. Comprehensive maintenance not only preserves the system but also ensures compliance with safety standards and operational efficiency.
Safety is an overriding concern with hydraulic systems. Users must be trained on proper operation, potential hazards of high-pressure fluid, and emergency procedures. The integrated relief valve provides a critical layer of protection, but operators should never attempt to bypass or tamper with safety devices. Proper lockout/tagout procedures must be followed during any maintenance or repair work to prevent accidental system activation.
Unrivaled Value and Application Versatility
The Buyers Products 37 Gallon Wetline Kit for Live Floor trailers offers unrivaled value through its combination of a complete, ready-to-install solution, high-quality components, and meticulous engineering. This kit significantly reduces the complexity and guesswork associated with assembling a custom hydraulic system, ensuring that all components are perfectly matched for optimal performance and durability. Its robust construction makes it ideal for continuous heavy-duty use in environments where reliability cannot be compromised.
By investing in this precisely engineered wetline kit, operators of live floor trailers can expect:
- Maximized Uptime: Reliable operation minimizes unscheduled downtime and keeps equipment on the job.
- Enhanced Productivity: Optimal flow rates translate to faster unloading cycles and increased material throughput.
- Reduced Operating Costs: Longevity of components, superior filtration, and protection against over-pressurization lead to fewer repairs and lower maintenance expenses.
- Improved Safety: Integrated relief valve and high-quality, leak-proof connections contribute to a safer working environment.
- Ease of Installation: A complete kit with direct mount pump simplifies the installation process.
The 37 Gallon Wetline Kit is more than just a collection of parts; it is a meticulously designed hydraulic power solution that addresses the specific needs of live floor trailer operations. Its technical sophistication, coupled with its ease of integration and robust performance, makes it an indispensable asset for any fleet requiring dependable and efficient bulk material transport. For further technical inquiries or application-specific guidance, Buyers Products Customer Service remains available to provide expert assistance, ensuring that each customer benefits fully from this high-performance hydraulic solution.
