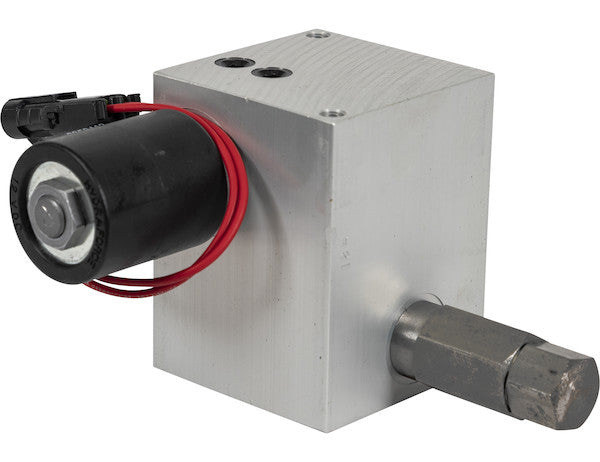

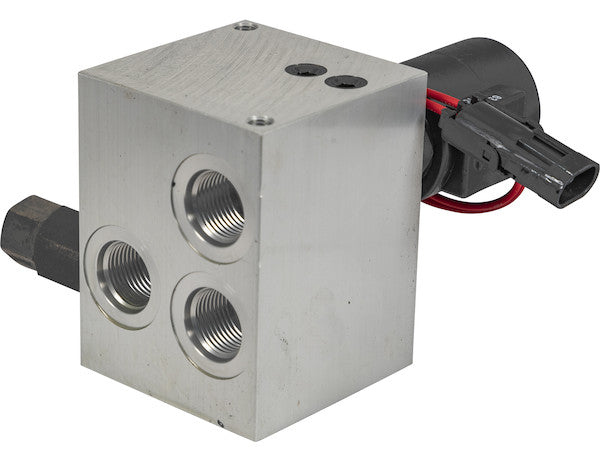

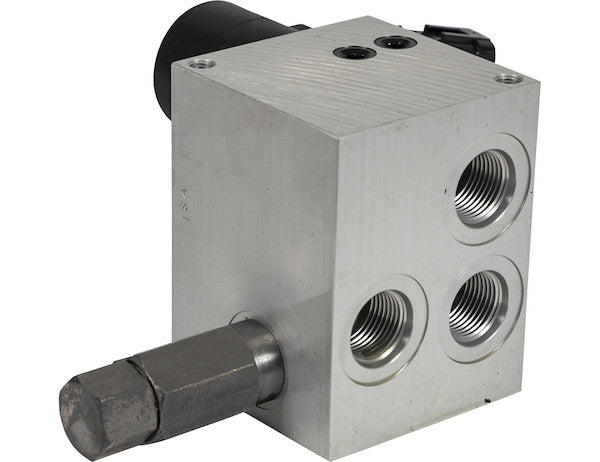

LSV12 - Proportional Hydraulic Valve

Buyers Products Proportional Hydraulic Valve is used with SaltDogg?? Anti-Ice and Pre-wet Liquid Spray Systems.

Specifications

Advanced Technical Overview: Buyers Products Proportional Hydraulic Valve for SaltDogg® Anti-Ice and Pre-Wet Liquid Spray Systems

The Buyers Products Proportional Hydraulic Valve represents a critical component in the sophisticated control architecture of SaltDogg® Anti-Ice and Pre-Wet Liquid Spray Systems. This valve is engineered to provide precise, dynamic control over hydraulic fluid flow, which in turn regulates the application rate of de-icing and anti-icing agents. Its design and operational principles are foundational to achieving optimal material distribution, enhanced operational efficiency, and minimized environmental impact in demanding winter maintenance applications.

Fundamentals of Proportional Hydraulic Control

A proportional hydraulic valve differs significantly from a standard on/off solenoid valve. While an on/off valve provides only two states (fully open or fully closed), a proportional valve allows for infinitely variable control of flow rate or pressure within its operational range. This is achieved through a continuously adjustable spool or poppet position, modulated by an electrical input signal. In the context of liquid spray systems, this capability translates directly into precise control over pump speed, nozzle pressure, or manifold distribution, thereby dictating the exact volume of liquid applied per unit area or time.

The core mechanism typically involves a high-performance solenoid actuator. Unlike a simple pull-type solenoid, a proportional solenoid is designed to generate a force proportional to the applied current, often incorporating a feedback mechanism or a very linear force-displacement characteristic. This force acts upon a precision-machined spool, which then uncovers flow passages within the valve body. The relationship between the electrical input signal (e.g., 0-10V, 4-20mA, or PWM - Pulse Width Modulation) and the hydraulic output (flow or pressure) is carefully calibrated to ensure linearity and repeatability.

Design and Construction Attributes

The Buyers Products Proportional Hydraulic Valve is constructed with robust materials to withstand the harsh operating environments inherent in winter maintenance. Key design considerations include:

• Material Selection: Valve bodies are typically machined from high-grade aluminum or cast iron, selected for their strength, corrosion resistance, and thermal stability. Internal components, such as spools, sleeves, and poppets, are often made from hardened steel, ensuring long wear life and resistance to abrasive contaminants. Seals are chosen for their compatibility with hydraulic fluids and their ability to maintain integrity across a wide range of temperatures, from extreme cold to moderate operational heat.
• Precision Machining: The performance of a proportional valve relies heavily on the tight tolerances and surface finishes of its internal components. Precision machining ensures minimal internal leakage, smooth spool movement, and consistent flow characteristics across its operating range.
• Electrical Interface: The valve incorporates a robust electrical connector, often Deutsch DT series or similar, known for its environmental sealing capabilities against moisture, dust, and vibration. The internal coil is typically encapsulated to protect against ingress and enhance thermal dissipation.
• Spool Configuration: The specific spool design (e.g., 2-way, 3-way, 4-way) dictates the valve's functionality. For regulating flow to a pump or manifold in a liquid spray system, a 2-way normally closed or 3-way flow control configuration is common, allowing for precise metering of hydraulic power to the liquid pump.
• Environmental Protection: Beyond the electrical connector, the entire valve assembly is designed to resist corrosion from road salts, chemicals, and general atmospheric exposure. Coatings or anodization may be applied to external surfaces for enhanced durability.

Integration with SaltDogg® Anti-Ice and Pre-Wet Systems

The primary function of this proportional valve within the SaltDogg® systems is to precisely control the flow of hydraulic fluid to the liquid spray pump. This pump is responsible for drawing anti-ice or pre-wet solution from the storage tank and delivering it under pressure to the spray nozzles. By modulating the hydraulic fluid flow to the pump's hydraulic motor, the proportional valve directly controls the pump's rotational speed, and consequently, the output volume and pressure of the liquid spray.

This sophisticated control is crucial for several reasons:

1. Variable Application Rates: Different weather conditions, road surface types, and treatment objectives require varying application rates of liquid agents. A proportional valve, in conjunction with the system's electronic controller, allows the operator to fine-tune the spray rate from the cab, ensuring optimal coverage without over-application or under-application.
2. Speed-Dependent Application: Modern liquid spray systems often incorporate ground speed sensors. The proportional valve, working with the system's controller, can dynamically adjust the liquid flow rate based on the vehicle's speed, maintaining a consistent application rate (e.g., gallons per lane mile) regardless of variations in travel speed. This eliminates the waste and ineffectiveness associated with fixed-rate systems.
3. Reduced Chemical Waste: Precise control minimizes the over-application of costly chemicals, leading to significant material savings over the operational lifespan of the equipment.
4. Environmental Compliance: By preventing excessive runoff and ensuring targeted application, the system contributes to reduced environmental impact, adhering to increasingly stringent regulations regarding chemical use.
5. System Efficiency: Optimizing pump speed through proportional control reduces unnecessary wear and tear on the hydraulic pump and motor, extends component life, and can contribute to fuel efficiency by only drawing the necessary hydraulic power from the vehicle's engine.
6. Pressure Regulation and Stability: The valve can also be configured to maintain a stable system pressure at the nozzles, which is essential for consistent spray patterns and droplet sizes, further enhancing application uniformity.

Operational Principle and Control Loop

The proportional hydraulic valve operates as a key actuator within a closed-loop or open-loop control system. In a typical SaltDogg® setup:

1. Operator Input: The operator sets the desired application rate via an in-cab control panel or an integrated electronic spreader control unit.
2. Controller Calculation: The electronic controller processes this input, often incorporating data from vehicle speed sensors, GPS for location-based application, and potentially even ambient temperature sensors. It then calculates the required hydraulic flow to achieve the target liquid application rate.
3. Signal Generation: The controller generates an electrical command signal (e.g., a Pulse Width Modulation - PWM signal, or a proportional voltage/current) proportional to the calculated hydraulic flow requirement.
4. Valve Actuation: This electrical signal is sent to the proportional hydraulic valve. The valve's solenoid converts this electrical signal into a precise mechanical force, which positions the spool.
5. Hydraulic Flow Regulation: The spool's position directly modulates the hydraulic fluid flow to the liquid spray pump's hydraulic motor.
6. System Response & Feedback (Optional): In more advanced closed-loop systems, a flow sensor may be integrated into the liquid delivery line or a pressure sensor near the nozzles. This sensor provides real-time feedback to the electronic controller, allowing it to make continuous, dynamic adjustments to the proportional valve's command signal to maintain the desired application rate or pressure, compensating for variables such as fluid viscosity changes or nozzle wear. This feedback mechanism significantly enhances accuracy and stability.

Technical Specifications and Performance Metrics

While specific detailed specifications are proprietary to the manufacturer, a general understanding of performance metrics for such a valve includes:

• Rated Flow Capacity: The maximum hydraulic flow (in GPM or LPM) the valve can handle, which must be matched to the requirements of the liquid spray pump.
• Operating Pressure Range: The minimum and maximum hydraulic system pressures the valve is designed to withstand and operate within.
• Control Signal Range: The specific electrical input signal type and range (e.g., 0-10V, 4-20mA, 0-100% PWM with specified frequency).
• Response Time: The speed at which the valve can change from one flow setting to another in response to a change in the electrical command signal. Faster response times are critical for dynamic adjustments, especially in speed-dependent applications.
• Hysteresis: The difference in output (flow/pressure) for the same input signal when approached from increasing vs. decreasing directions. Lower hysteresis indicates better precision and repeatability.
• Linearity: How closely the relationship between the electrical input signal and the hydraulic output (flow/pressure) conforms to a straight line. High linearity simplifies calibration and improves control accuracy.
• Internal Leakage: The amount of hydraulic fluid that bypasses the intended flow path within the valve, even when fully closed. Minimized leakage is crucial for efficiency and precise control.
• Temperature Range: The ambient and fluid temperature range over which the valve is guaranteed to operate reliably.
• Filtration Requirements: The recommended hydraulic fluid cleanliness level (e.g., ISO 4406 code) to ensure proper operation and longevity of the valve and other hydraulic components.

Maintenance and Longevity

Given its critical role and exposure to demanding conditions, proper maintenance of the proportional hydraulic valve is paramount:

• Hydraulic Fluid Quality: Using clean hydraulic fluid, free of contaminants and within the recommended viscosity range, is essential. Contamination is the leading cause of premature wear and failure in hydraulic components, especially precision valves. Regular fluid analysis and filter changes are highly recommended.
• Electrical Connections: Regular inspection of electrical connectors for corrosion, loose connections, or damage ensures consistent signal integrity.
• Mounting: Ensuring the valve is securely mounted and protected from excessive vibration or physical impact contributes to its longevity.
• Seal Integrity: While not typically user-serviceable without specialized tools, the integrity of external seals should be visually inspected periodically to prevent ingress of moisture and dirt.
• Calibration: Periodic calibration of the valve in conjunction with the system controller may be required to maintain optimal application accuracy, especially after component replacement or significant operational hours.

Conclusion

The Buyers Products Proportional Hydraulic Valve is an indispensable component in SaltDogg® Anti-Ice and Pre-Wet Liquid Spray Systems, elevating their performance from basic application to a highly precise, efficient, and environmentally responsible operation. Its ability to provide infinitely variable control over hydraulic flow directly translates into optimized liquid material usage, reduced operational costs, enhanced safety on winter roads, and improved environmental stewardship. Understanding the technical intricacies of this valve underscores its value as a sophisticated piece of engineering within the broader context of modern winter maintenance technology.
