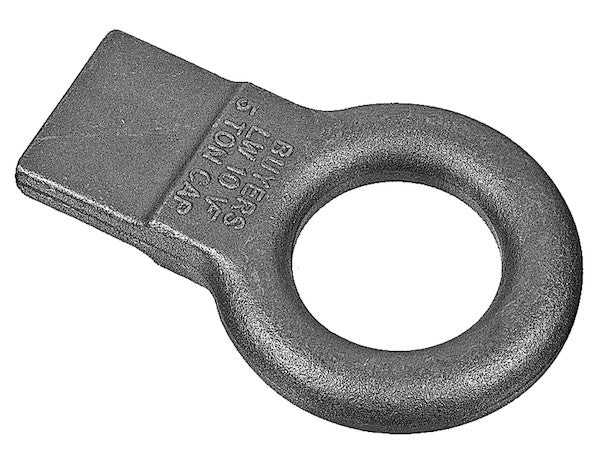

The Weld-On Forged Steel Drawbar from Buyers Products features strong C1020 steel and can be welded directly onto a trailer tongue. It's available in two sizes for maximum towing weights of up to either 10,000 or 20,000 lb. The drawbar is ideal for such uses as baggage cars, agricultural spreaders, and other off-road uses.
Specifications
| Eye Inner Diameter (in.) | 2.50 |
|---|---|
| Eye Outer Diameter (in.) | 4.50 |
| Finish | Plain |
| M.G.T.W. (lbs.) | 10,000 |
| M.V.L. (lbs.) | 1,000 |
| Material | Forged Steel |
Technical Overview: The 2-1/2 Inch I.D. Weld-On Forged Steel Drawbar for Heavy-Duty Towing Applications
In the realm of commercial, agricultural, and industrial towing, the integrity and performance of every component are paramount to operational safety and efficiency. The 2-1/2 Inch I.D. Weld-On Forged Steel Drawbar from Buyers Products represents a pinnacle of robust design and material engineering, specifically engineered to provide a reliable and permanent connection point for heavy-duty trailers and implements. This detailed exposition delves into the technical specifications, material science, design principles, installation considerations, and diverse applications that underscore this drawbar's superior functionality and enduring value in demanding environments.
Engineered for Strength: The C1020 Forged Steel Advantage
The foundation of this drawbar's exceptional strength lies in its C1020 steel material and rigorous forging process. C1020, a low carbon steel, offers excellent weldability, ductility, and a balanced strength-to-toughness ratio. The forging process, involving shaping metal through localized compressive forces, refines the steel's grain structure, eliminating internal voids and aligning grain flow with the part's contour. This optimized grain flow significantly improves fatigue resistance, impact strength, and overall tensile/yield strength, particularly in high-stress areas. Unlike castings with inherent defects or machined parts cutting across natural grain flow, forged components ensure structural homogeneity and enhanced mechanical properties critical for enduring substantial tensile, compressive, and torsional forces in towing. This process results in a drawbar that meets, and often exceeds, performance requirements with an ample safety margin.
Precision Design and Dimensional Integrity
The physical dimensions of the 2-1/2 Inch I.D. Weld-On Forged Steel Drawbar are meticulously engineered to ensure compatibility with standard towing apparatuses and to withstand significant forces. Key dimensions include:
- Eye Inner Diameter (I.D.): 2.50 inches (63.5 mm). This standard internal diameter ensures compatibility with a wide range of pintle hooks, clevis hitches, and lunette rings in industrial, agricultural, and military towing. Precise dimension minimizes play and wear, reducing shock loading and extending component service life.
- Eye Outer Diameter (O.D.): 4.50 inches (114.3 mm). The substantial outer diameter provides significant material thickness around the inner diameter, crucial for distributing stress concentrations under dynamic loads (acceleration, braking, uneven terrain). This maintains structural integrity under full rated MGTW and MVL, preventing deformation or fracture.
The plain finish is a deliberate design choice facilitating optimal weld performance. Supplied without protective coating, it eliminates pre-weld grinding or stripping, ensuring direct metal-to-metal contact for superior weld penetration and fusion. This unhindered access allows professional fabricators to achieve the strongest possible joint, minimizing weld defects. Post-welding, the component can then be prepared and coated with an appropriate protective finish (e.g., industrial primer/topcoat, powder coating, or galvanization), tailored to the operational environment and aesthetic requirements.
Advanced Installation: The Weld-On Advantage and Best Practices
The "weld-on" characteristic offers distinct advantages over traditional bolt-on systems in heavy-duty scenarios, providing a permanent, monolithic connection to the trailer's structural frame. This integration:
- Maximizes Structural Integrity: Creates a continuous joint that effectively becomes part of the chassis, distributing load stresses over a larger area, enhancing overall structural rigidity and towing connection strength.
- Eliminates Fastener Failure Points: A properly welded drawbar removes the risk of loose bolts, sheared pins, or fatigued bolt holes common in high-vibration and heavy-load applications.
- Optimizes Design Flexibility: For custom trailer builders, it offers greater flexibility in integrating the drawbar precisely where it is most structurally sound and functionally optimal.
Professional installation by a certified welder, adhering to standards like AWS D1.1, is essential. Key considerations include:
- Surface Preparation: Mating surfaces must be thoroughly cleaned, free of contaminants for optimal weld quality. The plain finish simplifies this.
- Fit-Up: Proper alignment and tight fit-up are vital for full weld penetration and minimal distortion; gaps must be minimized.
- Welding Process: SMAW, GMAW, and FCAW are suitable for C1020 steel, chosen based on welder expertise, equipment, and environmental conditions.
- Preheating: May be necessary for thicker sections or alloy steels to prevent hydrogen embrittlement and reduce thermal stresses.
- Weld Joint Design: Full penetration groove welds or robust fillet welds with adequate dimensions ensure required strength.
- Post-Weld Inspection: Visual inspection for defects (cracks, undercut) is mandatory; NDT methods (MPI, UT) may be used for critical applications.
- Stress Relieving (Optional): Considered for extremely high-stress applications or very thick sections, though less common for C1020 drawbars.
Adherence to these best practices ensures the weld joint's strength equals or surpasses the parent materials, guaranteeing the drawbar's full rated capacity.
Performance Metrics: MGTW and MVL Explained
Operational capabilities are defined by Maximum Gross Trailer Weight (M.G.T.W.) and Maximum Vertical Load (M.V.L.).
- Maximum Gross Trailer Weight (M.G.T.W.): The maximum total weight of a fully loaded trailer the drawbar safely tows. Buyers Products offers capacities up to 10,000 lb (4,536 kg) and 20,000 lb (9,072 kg). These ratings reflect the drawbar's inherent strength, forged C1020 steel integrity, and its ability to withstand longitudinal tensile and compressive forces during towing. Selecting appropriate MGTW is critical; oversizing provides a safety margin, while undersizing risks component failure and unsafe operation.
- Maximum Vertical Load (M.V.L.) / Tongue Weight: The maximum downward force the trailer's tongue exerts on the drawbar. For the 10,000 lb MGTW variant, MVL is 1,000 lb (454 kg). Proper tongue weight is vital for towing stability (10-15% of MGTW for conventional trailers); the MVL rating ensures the drawbar safely handles this without fatigue or structural degradation.
These ratings incorporate substantial safety factors for dynamic loads and shock forces. Users must strictly adhere to stated capacities, ensuring all towing components meet or exceed requirements for the heaviest towed load.
Versatile Applications Across Demanding Sectors
The durability, high capacity, and weld-on design of the 2-1/2 Inch I.D. Forged Steel Drawbar make it exceptionally suited for diverse heavy-duty applications:
- Airport Ground Support Equipment (GSE): Essential for baggage cars, cargo dollies, and other non-motorized airport trailers operating in high-traffic, dynamic environments. Its robust construction provides reliable connection for heavy loads, enduring frequent impacts, vibration, and rapid operational cycles with a permanent, integrated fixture.
- Agricultural Spreaders and Implements: Ideal for manure spreaders, fertilizer carts, and towed implements in challenging conditions like uneven fields, muddy terrain, and corrosive environments. The forged steel drawbar offers necessary strength and impact resistance against significant loads and shock forces, enhancing durability against torsional stresses.
- Construction Trailers and Equipment: A critical hitch point for pulling compressors, generators, portable welders, and utility trailers on construction sites. This drawbar provides a secure, long-lasting connection capable of enduring constant exposure to dirt, debris, heavy loads, and potential impacts inherent in daily construction work.
- Industrial and Factory Tugs/Dollies: Provides a permanent, high-capacity solution for internal logistics in industrial facilities, warehouses, and manufacturing plants. It ensures safe and efficient movement of heavy machinery, raw materials, and finished goods across factory floors and staging areas.
- Mining and Quarry Operations: Meets extreme demands of mining and quarrying, facing abrasive dust, corrosive materials, heavy shock loads, and continuous operation in rugged terrain. Superior strength, fatigue resistance, and permanent attachment minimize downtime for trailers and specialty vehicles in these harsh environments.
- Custom Fabrications and Specialty Vehicles: Offers trailer manufacturers and custom fabricators a flexible, reliable solution for integrating high-capacity towing into unique chassis designs. Its plain finish allows seamless integration into custom painting or coating schemes.
Maintenance and Longevity
Routine inspection and maintenance are crucial for the prolonged service life and safe operation of this drawbar:
- Weld Integrity Check: Visually inspect weld joint for cracking, fatigue, rust, or deformation. Any compromise requires immediate professional repair.
- Drawbar Eye Wear: Examine the inner diameter for excessive wear, ovaling, or thinning from constant friction with the pintle hook.
- Corrosion Protection: Regularly inspect post-weld painted or galvanized surfaces for chips or scratches. Promptly repair damage to prevent material degradation.
- Structural Deformation: Check for bending, twisting, or other structural deformation, indicating overloading or impact damage.
Adherence to these practices, combined with the inherent robustness of C1020 forged steel and meticulous manufacturing, ensures years of reliable, high-performance service.
Conclusion
The 2-1/2 Inch I.D. Weld-On Forged Steel Drawbar embodies engineering excellence, offering an unparalleled combination of strength, durability, and reliability for heavy-duty towing. Its construction from high-quality C1020 forged steel, precise dimensional specifications, and the distinct advantages of a weld-on attachment converge to meet rigorous demands across commercial, agricultural, and industrial sectors. With capacity options up to 20,000 lb MGTW, it provides a secure, integrated connection, minimizing fastener failure risks and ensuring maximum operational safety. For professionals seeking a permanent, robust, and dependable towing component in challenging environments, the Buyers Products Weld-On Forged Steel Drawbar is an unequivocally superior choice, underpinning the integrity and safety of crucial towing operations.
