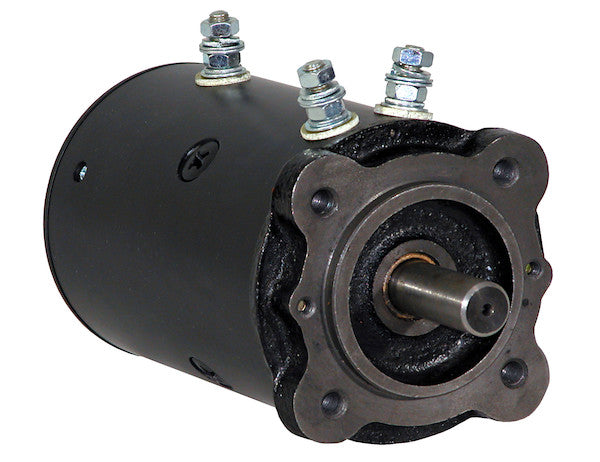

M3300 - Bi-Rotational Motor

Buyers Products Bi-Rotational Motor provides smooth operation in either direction for your spreader or winch. It's ideal for use with the SaltDogg spreader. You can rely on the 12V DC motor and center bolt assembly for steady, sturdy powering.

Specifications

The Buyers Products Bi-Rotational Motor stands as a cornerstone in robust electromechanical drive solutions, engineered for demanding applications requiring precise and powerful bidirectional motion. This advanced 12V DC motor is meticulously designed to deliver seamless operational fluidity, enabling actuation in both clockwise and counter-clockwise directions. This intrinsic capability significantly enhances its versatility, making it an indispensable component for a wide array of industrial, commercial, and utility-scale equipment, particularly within the mobile equipment sector where adaptability and reliability are paramount. Its superior design and construction underscore a commitment to performance and durability, ensuring consistent output even under rigorous operating conditions.

Engineered for Unparalleled Versatility: The Bi-Rotational Advantage

At the core of this product's utility is its bi-directional rotation capability. Unlike conventional unidirectional motors that are constrained to a single rotational vector, this motor offers dynamic flexibility. This characteristic is achieved through sophisticated internal commutation and external control mechanisms, typically involving the reversal of electrical polarity to the motor's terminals. For DC brushed motors, which are often employed for their high starting torque and simplicity in control for 12V applications, this reversal effectively swaps the magnetic fields, causing the armature to rotate in the opposite direction. The result is an immediate and controlled change in motion, crucial for tasks that involve extending and retracting, lifting and lowering, or forward and reverse material distribution.

This inherent design feature eliminates the need for complex mechanical linkages or gearboxes to achieve reverse motion, simplifying system integration, reducing potential points of failure, and optimizing overall system weight and footprint. The smooth transition between rotational directions is vital for sensitive operations, ensuring that the driven mechanism responds precisely to operator input without abrupt jerks or inefficiencies that could compromise equipment integrity or operational safety. The motor's capacity for consistent torque and speed delivery in both directions guarantees that performance is not sacrificed, regardless of the commanded rotational path.

Advanced Applications and Operational Requirements

The Bi-Rotational Motor finds its exemplary application in diverse fields, predominantly excelling in mobile machinery where robust and adaptable power sources are critical. Two primary applications highlight its capabilities:

Material Spreaders, such as the SaltDogg Series

For material spreaders, particularly those like the widely recognized SaltDogg units, the bi-rotational capability is not merely an enhancement but a fundamental requirement for optimal functionality. These systems rely on precise material conveyance and distribution, often through an auger or conveyor belt system that feeds material to a spinner. The ability to reverse the auger or conveyor motor serves several vital functions:

• Clog Clearance: In harsh winter conditions, materials like rock salt, sand, or ice melt can clump or freeze, leading to blockages within the hopper or auger mechanism. A bi-directional motor allows the operator to momentarily reverse the auger, dislodging obstructions and clearing the pathway without manual intervention, significantly reducing downtime and improving operational efficiency.
• Controlled Material Flow: For certain spreading patterns or when approaching areas where material application needs to be precisely curtailed, reversing the auger can quickly stop or even retract a small amount of material, preventing over-application or waste.
• Maintenance and Cleaning: Reversible action aids in completely emptying the hopper or cleaning out residual material after operations, prolonging the life of the spreader components and preventing corrosion.

The operational environment for spreaders is notoriously harsh, exposing components to corrosive agents like salt, extreme temperatures, moisture, and abrasive materials. The robust design of the Buyers Products Bi-Rotational Motor, including its 4.5-inch diameter casing and center bolt assembly, ensures it can withstand these challenging conditions, maintaining its structural integrity and electrical performance over an extended operational lifespan. Its 12V DC power requirement makes it perfectly compatible with standard vehicle electrical systems, ensuring seamless integration and power supply.

Winch Systems

Winches represent another critical application area where bi-directional motor control is indispensable. Whether for vehicle recovery, industrial lifting, marine applications, or utility pulling, a winch must reliably haul and lower loads with precision. The motor's ability to drive the winch drum in both directions allows for:

• Controlled Lifting and Lowering: Operators can precisely control the ascent and descent of loads, ensuring safety and preventing free-fall or uncontrolled movement. This is paramount for delicate operations or when positioning heavy equipment.
• Cable Management: Reversing the motor facilitates proper spooling and unspooling of the winch cable, preventing tangles, kinks, and ensuring even layering on the drum, which is crucial for cable longevity and operational safety.
• Vehicle Recovery: In off-road or emergency situations, a bi-directional winch enables not only pulling a vehicle out of a predicament but also carefully adjusting its position or even assisting in controlled descent down inclines.

The demands on a winch motor include high starting torque, sustained power under load, and robust mechanical construction to manage significant forces. The Buyers Products motor’s specifications, including a 1.6 HP power output (equivalent to 3600 Watts) and a maximum current draw of 300 Amperes, indicate its capability to deliver substantial mechanical energy, making it suitable for managing considerable loads typical in winch operations. The strong 0.750-inch diameter keyed shaft is designed for secure, high-torque transfer to the winch gearbox or drum, minimizing slippage and ensuring reliable power delivery.

In-Depth Analysis of Technical Specifications

The detailed specifications of the Buyers Products Bi-Rotational Motor provide a comprehensive understanding of its performance envelope and design characteristics. Each parameter is carefully chosen to optimize functionality and durability in its intended applications:

• Voltage (12V DC): Operating at 12 Volts DC, this motor is ideally suited for integration into standard vehicle electrical systems, including those found in trucks, utility vehicles, and heavy equipment. This common voltage simplifies power supply requirements, allowing direct connection to the vehicle’s battery system without the need for additional voltage converters, thereby reducing complexity and potential failure points.
• Power (1.6 HP / 3600 Watts): The motor delivers a robust 1.6 horsepower (HP) of mechanical output, which translates to an impressive 3600 Watts of electrical power conversion. This power rating signifies substantial capability for driving demanding mechanical loads, providing the necessary force for effective material spreading and powerful winching operations. The interplay between power, torque, and speed is critical; a higher power rating ensures the motor can maintain performance under varying load conditions.
• Max Current (300 Amperes): A maximum current draw of 300 Amperes underscores the motor's capacity for high power output. This specification highlights the need for properly sized electrical infrastructure, including heavy-gauge wiring, high-current relays or solenoids, and appropriate circuit protection (fusing) to safely manage these current levels. This peak current is typically drawn during start-up or under maximum load conditions, providing the necessary surge for initial actuation or overcoming significant resistance.
• Speed (2000 RPM): With a nominal speed of 2000 RPM (revolutions per minute), this motor offers a versatile base for various applications. While this is typically a no-load or nominal operating speed, it provides ample rotational velocity that can be effectively modulated through external gearing systems (if applicable, though the gear ratio is listed as ‘-‘ for the motor itself, implying direct drive or external gearbox integration) to achieve desired output speeds and torque requirements for the driven equipment, such as an auger or winch drum.
• Duty Cycle (Intermittent): The "Intermittent" duty cycle rating is a critical specification for high-power DC motors in mobile applications. It indicates that the motor is designed for periods of operation followed by periods of rest to allow for thermal dissipation. Continuous operation beyond its rated duty cycle can lead to excessive heat buildup, potentially damaging the motor's windings, insulation, and brushes. This rating is common for spreaders and winches, which typically operate in bursts rather than sustained, continuous power cycles, optimizing for power density and minimizing weight while managing thermal performance within practical limits.
• Diameter (4.5 inches): The motor's compact 4.5-inch diameter contributes to its adaptability for installation in diverse equipment configurations, including those with limited space. The physical dimensions are critical for ensuring proper fitment within existing chassis designs or for new builds where spatial constraints are a consideration.
• Mounting Pattern (4 in. Bolt Circle, 3 in. Pilot): A standardized mounting pattern featuring a 4-inch bolt circle and a 3-inch pilot ensures broad compatibility with a wide range of gearboxes, pumps, and other driven components. The pilot diameter guarantees precise concentric alignment between the motor and the mating component, which is crucial for minimizing vibration, reducing wear on bearings and seals, and ensuring efficient power transfer.
• Shaft Diameter (0.750 inches) and Type (Keyed): The robust 0.750-inch (3/4 inch) diameter shaft is engineered for substantial torque transfer without exhibiting torsional deflection or shear failure under heavy loads. Furthermore, the "Keyed" shaft type provides a positive mechanical lock with the driven component (e.g., a coupler, pulley, or gear), preventing slippage and ensuring reliable, high-efficiency power transmission. This robust interface is critical for applications where sudden load changes or high starting torques are common.
• Case Grounded (No): The specification "Case Grounded (No)" indicates an isolated ground design. This means the motor's electrical return path is not connected to its metallic casing but requires a dedicated ground wire. This design offers several advantages, including enhanced electrical isolation, reduced potential for galvanic corrosion in certain environments, and prevention of unwanted current paths through the vehicle chassis, which can be particularly important in environments where grounding integrity might be compromised or for sensitive electrical systems.
• Center Bolt Assembly: The inclusion of a center bolt assembly is a design feature focused on enhancing the motor's structural integrity and ease of maintenance. This assembly typically involves a long bolt running through the motor's core, connecting the end bells and compressing the stator and rotor stack. This robust construction method ensures superior mechanical rigidity, precise alignment of internal components, and resistance to vibration and impact, all contributing to the motor's overall durability and longevity.
• Warranty (1 Year): A 1-year warranty provides assurance of the product's quality and the manufacturer's confidence in its design and manufacturing processes, offering peace of mind to the end-user.

Construction, Durability, and Environmental Resilience

The Buyers Products Bi-Rotational Motor is constructed using high-grade materials and precision manufacturing techniques to ensure maximum durability and performance in demanding environments. The motor housing is typically made from robust metals, selected for their strength, corrosion resistance, and ability to dissipate heat effectively. Internal components, including the armature, field windings, and brushes (if applicable), are engineered for longevity, with high-quality copper windings for efficient current flow and durable brush materials for extended service life.

Given its common application in outdoor and mobile machinery, significant attention is paid to environmental protection. While not explicitly detailed, such motors are typically designed with adequate sealing against ingress of dust, moisture, and road contaminants like salt spray. This level of protection is essential for preventing internal corrosion and electrical shorts, maintaining operational integrity in varied weather conditions, from freezing winters to humid summers. The sturdy center bolt assembly further contributes to the motor's resistance against physical shock and vibration, ensuring consistent performance even on rough terrain.

Integration and Control Considerations

Integrating the Bi-Rotational Motor into an existing or new system requires careful consideration of the electrical control circuit. For 12V DC bi-directional operation, a common control method involves a specialized reversing solenoid or relay pack (H-bridge configuration). This setup allows the polarity of the voltage supplied to the motor to be reversed, thereby changing its direction of rotation, while also handling the high current demands, particularly the 300A maximum current. Proper wiring with adequate gauge conductors is paramount to prevent voltage drop and overheating, ensuring the motor receives its full operating voltage and preventing potential fire hazards. Furthermore, appropriate fusing or circuit breakers should be installed to protect the motor and the vehicle's electrical system from overcurrent conditions.

While the motor itself is a power unit, its precise speed and torque control can be achieved through compatible motor controllers. Although simple ON/OFF and direction reversal are often sufficient for spreader and winch applications, more advanced controllers can offer variable speed control through Pulse Width Modulation (PWM), allowing for finer adjustments to material dispensing rates or winch speed, further enhancing operational precision and efficiency.

Conclusion: A Reliable Investment in Performance

The Buyers Products Bi-Rotational Motor represents a superior solution for applications demanding dependable, powerful, and versatile bidirectional motion. Its robust 12V DC architecture, coupled with a substantial 1.6 HP power output and an intermittent duty cycle designed for bursts of high power, positions it as an ideal choice for critical equipment such as SaltDogg spreaders and various winch systems. The detailed technical specifications, from its 4.5-inch diameter and standardized mounting pattern to its 0.750-inch keyed shaft and isolated ground design, reflect a meticulously engineered product built for longevity and seamless integration. The center bolt assembly further reinforces its mechanical integrity, ensuring stable and sturdy power delivery. Investing in this bi-rotational motor means equipping your machinery with a component that guarantees smooth operation, enhanced control, and enduring reliability, ultimately contributing to increased productivity and operational safety across a spectrum of challenging environments.
