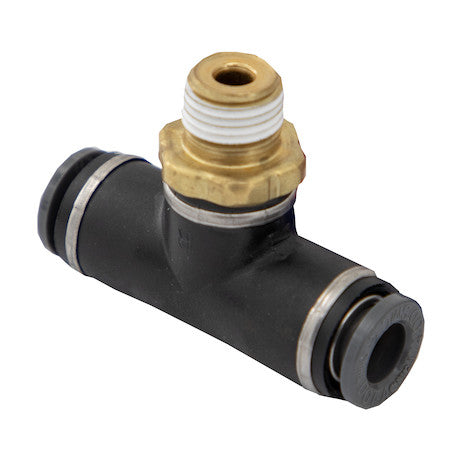

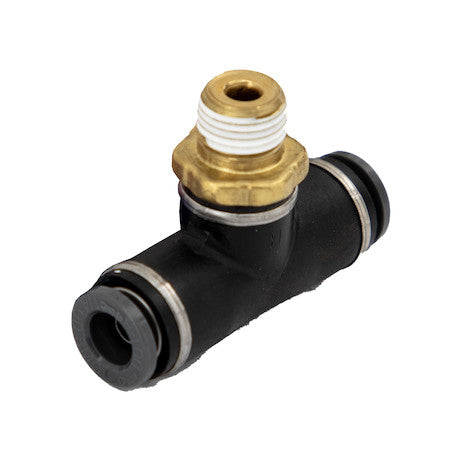

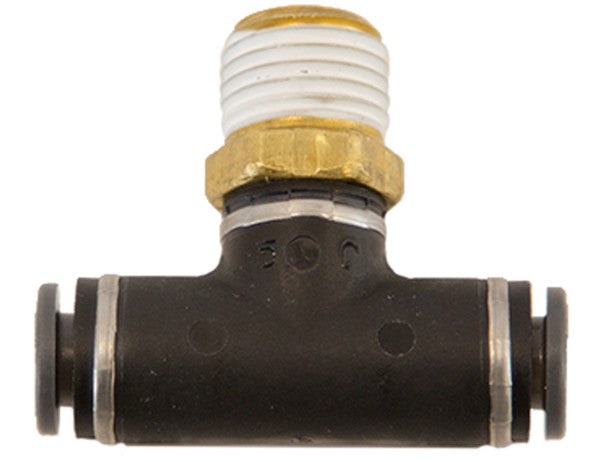

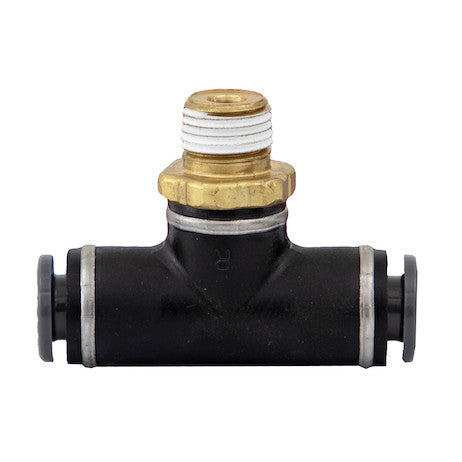

NBT0M25P125S - Brass/Poly DOT Push-In Swivel Male Branch Tee 1/4 Inch Tube OD x 1/8 Pipe Thread

Buyers Products Swivel Male Branch Tees are made of long lasting corrosion-resistant brass and poly. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.

Specifications

Advanced Technical Overview: Brass/Poly DOT Push-In Swivel Male Branch Tee

The Brass/Poly DOT Push-In Swivel Male Branch Tee, with its precise 1/4 Inch Tube OD and 1/8 Pipe Thread specifications, represents a pinnacle in pneumatic fitting technology engineered for demanding applications. This product is meticulously designed to provide reliable, secure, and compliant connections within air brake systems and other critical pneumatic circuits. Its robust construction, innovative push-in mechanism, swivel functionality, and adherence to rigorous Department of Transportation (DOT) standards make it an indispensable component for commercial vehicles and industrial machinery where safety, performance, and longevity are paramount.

Material Science and Engineering: Brass and Polymer Synergy

The selection of materials for this fitting is a deliberate engineering choice, combining the distinct advantages of high-grade brass and advanced polymers. This hybrid approach ensures optimal performance across a spectrum of operational conditions.

Brass Components

The brass elements within this fitting, typically manufactured from alloys like CA360 or similar leaded or lead-free brass compositions, provide exceptional mechanical strength and dimensional stability. Brass is renowned for its:

• Corrosion Resistance: Particularly against moisture and various atmospheric agents, which is crucial in environments where road salt, humidity, and industrial contaminants are present. This inherent resistance significantly extends the fitting's service life.
• Durability and Wear Resistance: Its hardness and structural integrity make it highly resistant to abrasion and deformation under sustained pressure and mechanical stress.
• High Pressure Capability: Brass components contribute significantly to the fitting's ability to withstand the elevated pressures characteristic of air brake systems.
• Thermal Conductivity: While not a primary function, brass offers stable performance across a broad temperature range, maintaining its mechanical properties.
• Machinability: Allows for precision manufacturing of intricate threaded sections and internal mechanisms, ensuring tight tolerances and consistent quality.

Polymer (Poly) Components

The polymer sections, often crafted from engineering plastics such as PBT (Polybutylene Terephthalate) or high-grade Nylon (Polyamide), are strategically integrated to leverage their unique properties:

• Lightweight Construction: Contributing to overall weight reduction in vehicle systems without compromising strength.
• Chemical Resistance: Excellent resistance to oils, greases, fuel, and other common automotive and industrial chemicals, preventing degradation and ensuring seal integrity.
• Flexibility and Impact Resistance: Polymers absorb shocks and vibrations more effectively than brittle materials, enhancing the fitting's resilience in dynamic applications.
• Insulating Properties: Minimizing heat transfer and preventing galvanic corrosion when in contact with dissimilar metals.
• Cost-Effectiveness and Manufacturing Versatility: Injection molding processes for polymers allow for complex geometries and high-volume production with tight tolerances.

The strategic combination of brass for structural integrity and threaded connections, and advanced polymers for the push-in mechanism and outer body components, results in a fitting that is simultaneously strong, lightweight, corrosion-resistant, and highly functional. This synergistic material design is fundamental to the fitting's long-lasting performance and reliability.

DOT FMVSS 571.106 Compliance: The Cornerstone of Safety and Performance

Compliance with Department of Transportation (DOT) Federal Motor Vehicle Safety Standard (FMVSS) 571.106 is not merely a feature; it is a fundamental requirement that underscores the safety and reliability of this Brass/Poly Push-In Swivel Male Branch Tee for use in air brake systems of commercial motor vehicles. This standard is specifically designed to ensure the integrity and performance of air brake hoses and their associated fittings, which are critical for the safe operation of trucks, buses, and trailers.

Key Aspects of FMVSS 571.106 Compliance:

• Pressure Endurance: Fittings must withstand prolonged exposure to specified operating and burst pressures without leakage or structural failure. This includes static pressure tests and cyclic pressure tests that simulate the continuous pressurization and depressurization cycles experienced in a real-world braking system.
• Temperature Cycling: The standard mandates performance across extreme temperature ranges (e.g., -40°F to +200°F or wider), ensuring that the fitting maintains its sealing and mechanical properties in diverse climates and operating conditions.
• Vibration Resistance: Air brake systems are subjected to constant vibration during vehicle operation. Fittings must demonstrate resistance to fatigue and connection integrity under specified vibratory loads.
• Tensile/Pull-Out Resistance: The push-in connection must exhibit sufficient grip on the tubing to prevent accidental disconnection, even under significant tensile forces. This is tested by applying a measured force to the tubing to ensure it remains securely seated in the fitting.
• Leakage Performance: Zero leakage is critical. Fittings are tested under pressure to ensure absolute hermetic sealing, preventing air loss that could compromise braking efficiency.
• Chemical Compatibility: The materials must be compatible with air brake system fluids and environmental contaminants without degrading.

Adherence to FMVSS 571.106 is a testament to the rigorous design, manufacturing, and testing protocols applied to this fitting. It assures fleet operators and vehicle manufacturers that this component will perform reliably in the most demanding safety-critical applications, contributing directly to accident prevention and vehicle operational integrity.

Push-In Connection Technology: Efficiency and Reliability

The "Push-In" or "Push-to-Connect" (PTC) mechanism is a defining feature of this fitting, offering significant advantages in installation speed, ease of use, and system reliability.

Mechanism of Operation:

The core of the push-in connection involves several key internal components:

• Collet (or Grip Ring): Typically made of a robust polymer or metal, the collet features a series of teeth or gripping elements that securely engage the outer diameter of the inserted tubing. Its design allows for one-way insertion and resists pull-out forces.
• O-Ring Seal: A precision-engineered elastomeric O-ring, positioned within the fitting body, creates a hermetic seal around the outer surface of the tubing once it is fully inserted. The material of the O-ring (e.g., NBR, EPDM) is carefully selected for compatibility with compressed air and temperature ranges.
• Release Collar: An external collar, usually made of polymer, allows for quick and easy disconnection. Depressing this collar disengages the collet's gripping action, enabling the tubing to be smoothly removed without tools.

Advantages of Push-In Technology:

• Rapid Assembly: Installation is significantly faster compared to traditional compression fittings or threaded connections, requiring no special tools. This reduces labor costs and streamlines assembly processes.
• Ease of Use: Simply push the prepared tubing into the fitting until it bottoms out. A tactile and audible click often confirms a secure connection.
• Reduced Skill Requirement: The simplicity of installation minimizes the potential for human error, ensuring consistent, high-quality connections across a workforce.
• Field Serviceability: Quick disconnection and re-connection facilitate rapid repairs or modifications in the field, minimizing vehicle downtime.
• Vibration Resistance: The design, especially when coupled with appropriate tubing, offers good resistance to vibration, maintaining connection integrity in dynamic environments.

Tube Compatibility and Best Practices:

This fitting is designed for use with specific types of pneumatic tubing, typically DOT-approved nylon or polyurethane tubing with a 1/4 inch outer diameter. Proper tube preparation is critical for optimal performance:

• Clean, Square Cut: The tubing end must be cut cleanly and squarely, free of burrs or nicks, to ensure proper seating against the O-ring and effective engagement with the collet.
• Avoid Ovality: Tubing must maintain its circular cross-section; ovality can compromise the seal.
• Insertion Depth: Ensure the tube is inserted fully to engage both the grip ring and the O-ring seal completely.

Swivel Functionality: Enhancing Installation and System Dynamics

The inclusion of a "Swivel" mechanism is a critical design feature that significantly enhances the versatility, ease of installation, and long-term reliability of the fitting, particularly in confined or dynamically stressed environments.

Design Rationale and Benefits:

A swivel component allows for rotational movement of one part of the fitting relative to another, even after the initial connection is made. For this male branch tee, the swivel typically applies to the threaded connection, enabling the body of the tee to rotate relative to the pipe thread without compromising the seal.

• Installation Flexibility: In tight spaces or complex routing scenarios, a swivel allows the installer to orient the branch ports of the tee to the desired angle without needing to apply excessive torque to the threaded pipe connection, which could damage the threads or the component it's connecting to. This simplifies assembly and reduces installation time.
• Reduced Tube Kinking and Stress: Without a swivel, aligning a fixed tee might require twisting or bending the attached tubing. The swivel prevents this, allowing the tubing to follow its natural path without experiencing undue mechanical stress, kinking, or premature wear at the connection point. This extends the service life of both the tubing and the fitting.
• Optimal Routing: It facilitates precise alignment of pneumatic lines, allowing for cleaner, more organized routing of hoses and tubes throughout a system, which can improve aesthetics and simplify maintenance access.
• Compensation for Misalignment: In dynamic systems, minor shifts or vibrations can introduce slight misalignments. The swivel action can passively compensate for these, preventing continuous stress on the connections.
• Improved Maintainability: For diagnostic purposes or component replacement, the ability to rotate the fitting can provide better access to specific ports or adjacent components without requiring complete disassembly of the line.

The internal design of the swivel typically involves an O-ring or similar dynamic seal that maintains a leak-proof connection while permitting rotation. This engineering solution ensures that the rotational freedom does not compromise the high-pressure sealing integrity demanded by DOT specifications.

Branch Tee Configuration: System Integration and Functionality

The "Male Branch Tee" configuration defines the fundamental role of this fitting within a pneumatic system: to create a branch off a main line while providing a threaded connection to another component.

Functional Description:

A tee fitting, by its nature, provides a three-way connection. In a "branch tee" configuration, two of the ports are typically in-line, forming the main flow path, while the third port branches off at a 90-degree angle. For this specific product:

• In-Line Ports: Two 1/4 inch push-in ports designed for connecting to pneumatic tubing, forming the through-flow path.
• Branch Port: A 1/8 inch Male Pipe Thread (NPT) connection, designed to screw into a female threaded port on another component. This allows for the integration of a gauge, sensor, valve, or another air-driven device directly into the main air line.

System Applications:

The male branch tee is exceptionally versatile in pneumatic circuit design:

• Pressure Monitoring: Ideal for installing pressure gauges or transducers directly into an air line to monitor system pressure at a specific point.
• Auxiliary Air Supply: Diverting a portion of air flow to power an auxiliary pneumatic component or tool.
• Test Ports: Creating accessible points for system diagnostics and testing without interrupting the main flow.
• System Expansion: Easily adding new functionalities or extending existing pneumatic networks.

Male Pipe Thread (1/8 NPT):

The 1/8 NPT (National Pipe Taper) thread is a crucial specification for the branch connection. NPT threads are tapered, meaning the diameter of the thread decreases along its length. This taper, when combined with a suitable thread sealant (e.g., PTFE tape or liquid pipe sealant), creates a mechanical interference fit that provides a highly effective, pressure-tight seal.

• Standardization: NPT is a widely recognized and utilized standard for threaded pipe connections in North America, ensuring broad compatibility with a vast array of pneumatic components.
• Sealing Mechanism: The tapered design ensures that as the male thread is tightened into a female NPT port, the flanks of the threads deform slightly, creating a metal-to-metal seal that is augmented by the sealant.
• Nominal Size: The "1/8" designation refers to the nominal pipe size, not the actual measured diameter of the threads, which are typically larger.

Proper application of thread sealant and correct torque during installation are essential to achieving a leak-free and robust threaded connection.

Technical Specifications and Performance Parameters

Beyond the fundamental design and materials, the performance characteristics of this Brass/Poly DOT Push-In Swivel Male Branch Tee are critical for engineers and technicians selecting components for demanding applications.

Operating Pressure and Burst Pressure:

Engineered to operate safely and effectively within the high-pressure ranges typical of air brake systems. While specific pressure ratings can vary, DOT-compliant fittings are rigorously tested to withstand both sustained operating pressures (e.g., 150-200 psi) and much higher burst pressures (often exceeding 500-600 psi) without failure. This provides a significant safety margin.

Temperature Range:

The materials (brass and advanced polymers) and sealing elements are selected to maintain performance across a wide operational temperature range, typically from -40°F (-40°C) to +200°F (+93°C). This ensures functionality in extreme cold or hot environments, a common requirement for commercial vehicles traversing diverse climates.

Flow Characteristics:

The internal design of the fitting is optimized to minimize flow restriction, ensuring efficient air delivery and consistent system response, which is particularly vital for the rapid actuation required in air brake applications.

Vibration and Shock Resistance:

Given its intended application in vehicles, the fitting exhibits excellent resistance to continuous vibration and occasional shock loads, preventing connection loosening or material fatigue over time. The push-in mechanism, when properly engaged with compatible tubing, inherently offers a degree of vibration dampening.

Corrosion and Chemical Resistance:

The combination of corrosion-resistant brass and chemically inert polymers ensures the fitting withstands exposure to moisture, road salts, hydraulic fluids, diesel fumes, and other environmental or operational chemicals without degradation of structural integrity or sealing performance.

Installation and Best Practices for Optimal Performance

Proper installation is paramount to leveraging the full potential and ensuring the long-term reliability of this DOT Push-In Swivel Male Branch Tee.

Tube Preparation:

1. Clean Cut: Use a specialized tube cutter to achieve a clean, square, burr-free cut. Shears or knives can distort the tube, leading to leaks or improper seating.
2. Deburring: Ensure the inside and outside edges of the tube are free of burrs or sharp edges that could damage the internal O-ring seal or prevent full insertion.
3. Cleanliness: Keep the tube end clean and free from debris, grease, or contaminants.

Push-In Connection:

1. Full Insertion: Push the prepared tube firmly into the fitting until it bottoms out against the internal stop. A slight tug back on the tube will confirm that the collet has engaged.
2. Visual Check: Ensure no gap exists between the tube end and the fitting body.

Threaded Connection (1/8 NPT):

1. Thread Sealant: Apply an appropriate amount of PTFE thread sealant tape (typically 2-3 wraps clockwise) or a high-quality liquid pipe sealant to the male NPT threads. Ensure sealant does not enter the air passage.
2. Hand Tighten: Start by hand-tightening the fitting into the female NPT port to prevent cross-threading.
3. Wrench Tighten: Use a wrench to tighten the fitting further, typically 1 to 2 turns past hand-tight, according to manufacturer specifications. Avoid over-tightening, which can crack the receiving port or strip the threads. The swivel allows for precise alignment of the branch tee without applying excessive torque to the threaded joint.

System Commissioning:

After installation, the pneumatic system must be pressurized and leak-tested using a leak detection solution at all connection points. Any bubbling indicates a leak that requires immediate attention.

Conclusion

The Brass/Poly DOT Push-In Swivel Male Branch Tee 1/4 Inch Tube OD x 1/8 Pipe Thread stands as a testament to advanced engineering in pneumatic components. Its carefully chosen material composition of brass and high-performance polymers, coupled with the precision of its push-in and swivel mechanisms, delivers unparalleled durability, ease of use, and adaptability. Crucially, its unwavering compliance with DOT FMVSS 571.106 guarantees its suitability for the most critical air brake applications, where safety and reliability are non-negotiable. This fitting is not just a connector; it is a vital link in the chain of safe and efficient operation for heavy-duty vehicles and industrial machinery, offering a superior solution for intricate pneumatic circuit designs requiring robust performance and simplified installation.
