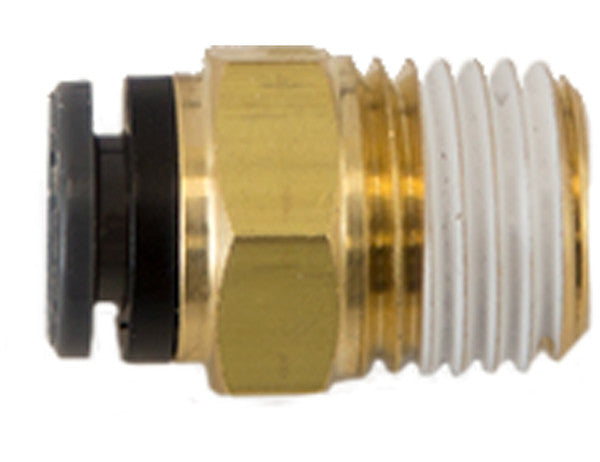

Buyers Products Male Connectors are made of long lasting corrosion-resistant brass and poly. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.
Specifications
| Color | Black |
|---|---|
| Finish | Multiple |
| Fitting Shape | Straight |
| Male/Female/Union | Male |
| Material | Multiple |
| Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations (y/n) | Yes |
| Pipe Thread Size | 1/4 NPT |
| Swivel (y/n) | No |
| Works with Tube Outer Diameter | 3/8 |
The Brass/Poly DOT Push-In Male Connector, designed for 3/8 Inch Tube O.D. and 1/4 Inch Pipe Thread, represents a pinnacle of engineering within the realm of pneumatic systems, particularly those governing air brake applications in commercial vehicles. This component is not merely a connector; it is a critical safety device, meticulously engineered to facilitate reliable and leak-free connections in systems where performance is paramount and regulatory compliance is mandatory. Our commitment to exceeding industry standards is demonstrated by the selection of advanced materials, precision manufacturing processes, and rigorous adherence to Department of Transportation (DOT) regulations, specifically FMVSS 571.106 air brake performance specifications.
Advanced Material Science: Brass and Polymer Integration
The selection of materials for any critical fluid or air handling component is a foundational aspect of its design, dictating its performance, longevity, and safety. This connector integrates a sophisticated blend of brass and advanced polymer compounds, each contributing distinct advantages to the overall functionality and durability of the fitting. The primary body of the connector is crafted from high-grade brass, an alloy renowned for its exceptional mechanical properties. Brass offers superior strength and rigidity, providing robust structural integrity capable of withstanding the mechanical stresses, vibrations, and pressure fluctuations inherent in air brake systems. Its inherent resistance to corrosion, particularly from moisture, road salts, and common automotive fluids, ensures extended operational life even in harsh environmental conditions. The excellent machinability of brass allows for the creation of intricate thread profiles and internal geometries with high precision, which is crucial for achieving secure and leak-tight connections. Furthermore, brass exhibits good thermal conductivity, assisting in the dissipation of localized heat, and its resistance to galling contributes to easier installation and removal without damaging mating threads.
Complementing the robust brass structure, advanced polymers are strategically utilized for components such as the release collar and internal sealing elements. These specialized polymers, often high-performance polyamides or acetals, are chosen for their unique attributes. They offer excellent chemical resistance, resilience against abrasion, and a low coefficient of friction, which facilitates smooth tube insertion and release. The polymer release collar, typically black as specified, provides an ergonomic and efficient mechanism for quick connection and disconnection, without requiring specialized tools. Furthermore, these polymers contribute to the overall weight reduction of the fitting compared to an all-metal design, a factor of increasing importance in vehicle manufacturing. The synergy between brass and polymer creates a connector that combines the structural integrity and corrosion resistance of metal with the ergonomic and sealing advantages of modern plastics, ensuring optimal performance across a wide range of operating conditions and maintaining a multiple finish/material aesthetic.
The Mechanics of Push-In Technology
The "Push-In" mechanism represents a significant advancement in pneumatic connection technology, offering distinct advantages in terms of installation speed, ease of use, and reliability compared to traditional threaded or compression fittings. At its core, a push-in fitting utilizes a sophisticated internal design to create a secure, leak-free seal with minimal effort. When a precisely cut and prepared tube (in this case, 3/8 inch O.D.) is inserted into the connector, it passes through several key internal components. First, a collet or gripping mechanism, often a brass or stainless-steel gripper ring with sharp teeth, securely holds the tubing in place, preventing accidental disengagement under pressure or vibration. This mechanical retention is crucial for the integrity of the air brake system.
Simultaneously, the tubing pushes past an internal O-ring or elastomeric seal, which compresses around the outer diameter of the tube, forming a hermetic seal against air leakage. The integrity of this seal is paramount for maintaining system pressure and ensuring the responsiveness of the air brakes. The polymer release collar, the external black component, facilitates the disengagement process. By pressing the collar inward, the gripping mechanism is released, allowing the tube to be effortlessly withdrawn. This reusability and ease of field maintenance make push-in connectors highly practical for commercial vehicle applications, minimizing downtime and simplifying repairs. The inherent design of the push-in mechanism also provides excellent vibration resistance, as the gripping force dynamically adjusts to maintain tube retention, a critical factor given the constant movement and dynamic loads experienced in heavy-duty transport.
DOT FMVSS 571.106 Compliance: A Mandate for Safety
One of the most critical attributes of this Brass/Poly Push-In Male Connector is its unwavering compliance with DOT FMVSS 571.106, the Federal Motor Vehicle Safety Standard for Air Brake Systems. This standard is not merely a guideline; it is a stringent regulatory requirement that dictates the performance and reliability of all components used in air brake systems of commercial motor vehicles. Compliance ensures that the connector meets rigorous benchmarks for operational safety, durability, and functional integrity under various demanding conditions.
FMVSS 571.106 mandates extensive testing protocols designed to simulate the extreme environments and operational stresses encountered by heavy-duty vehicles. These tests typically include, but are not limited to, pressure cycling, where the fitting is subjected to thousands of cycles of pressure variations to assess fatigue resistance; vibration testing, simulating road conditions to ensure connections remain secure; pull-out force testing, verifying the tubing's retention strength; and temperature range performance, ensuring functionality in both extreme heat and severe cold. The connector's "Yes" rating for meeting these regulations signifies that it has successfully passed these exhaustive tests, guaranteeing that it will perform reliably in critical air brake applications, contributing directly to the safety of drivers, passengers, and other road users. For manufacturers, fleet operators, and maintenance professionals, specifying DOT-compliant components like this connector is not optional; it is a fundamental responsibility to ensure operational safety and regulatory adherence.
Precision Dimensional Specifications: 3/8 Inch Tube O.D. x 1/4 Inch Pipe Thread
The precise dimensional specifications of this connector are fundamental to its universal compatibility within standard pneumatic architectures. The designation "3/8 Inch Tube O.D." refers to the outer diameter of the tubing with which the push-in mechanism is designed to interface. This specific size is highly prevalent in commercial vehicle air brake systems, accommodating a variety of common tubing materials such as Nylon 11/12, polyethylene, and polyurethane, which are chosen for their flexibility, durability, and resistance to environmental factors. The precise tolerance of the push-in mechanism ensures a snug fit, critical for the gripping action and the integrity of the internal O-ring seal. Proper tube preparation, including a clean, square cut and deburring, is essential to maximize the sealing performance and retention capabilities for this 3/8 inch tubing.
The "1/4 Inch Pipe Thread" component of the specification refers to the National Pipe Taper (NPT) thread size, which is a widely recognized standard for general purpose pressure applications in North America. NPT threads are unique due to their tapered design, which allows for a self-sealing connection as the male and female threads are tightened together. This taper creates an interference fit that, when augmented with an appropriate thread sealant (such as PTFE tape or pipe dope), forms a robust and leak-tight joint without the need for additional gaskets or O-rings in the threaded connection itself. A 1/4 NPT thread is a common port size found on various air brake valves, reservoirs, compressors, and other pneumatic components, making this connector highly versatile for integrating different parts of an air brake system. The male configuration signifies that this connector is designed to be threaded into a female NPT port, providing a direct and secure attachment point.
Optimized Design and Construction: Straight, Male, Non-Swivel
The design characteristics of this connector – its straight fitting shape, male configuration, and non-swivel nature – are not arbitrary but are carefully chosen to optimize performance, simplify installation, and enhance reliability in air brake applications. The "Straight" fitting shape is the most fundamental and efficient configuration for connecting two points in a direct, in-line fashion. This design minimizes flow restriction, ensuring that air pressure is transmitted with maximum efficiency throughout the system. Its simplicity also contributes to ease of planning and routing pneumatic lines, reducing complexity in system layouts and facilitating straightforward installation into existing or new air brake circuits. A straight fitting is inherently robust, providing a direct path for force transmission and reducing potential points of failure that might be present in more complex angled or swivel designs.
As a "Male" connector, it is specifically engineered to interface with female-threaded ports on various pneumatic components. This standard configuration ensures broad compatibility across a wide array of air brake system devices, from service valves and reservoirs to actuators and air tanks. The male threading allows for a secure, threaded mechanical connection, which when properly torqued and sealed, forms a durable anchor point for the tubing run. The "Non-Swivel" characteristic is a critical design choice for air brake fittings. Unlike swivel fittings that allow for rotational movement, this connector is fixed once installed. This fixed nature is essential for maintaining the integrity and stability of high-pressure air lines, preventing unintended rotation that could lead to loosening, premature wear of seals, or even complete disconnection under severe vibration or dynamic stress. The absence of a swivel mechanism also reduces the number of potential leak paths and simplifies the mechanical design, contributing to the overall reliability and longevity demanded by DOT regulations.
Aesthetic and Functional Finishes: Black and Multiple
While often overlooked, the "Black" color and "Multiple" finishes specified for this connector contribute both aesthetically and functionally to its suitability for heavy-duty applications. The black color, typically applied to the polymer release collar, serves several practical purposes. Black pigments often incorporate UV stabilizers, providing enhanced resistance to degradation from prolonged exposure to sunlight, which is common in commercial vehicle environments. This helps maintain the material's structural integrity and aesthetic appearance over time. Additionally, a black finish can offer a degree of chemical resistance and can visually integrate seamlessly into the often industrial aesthetic of vehicle chassis and undercarriage components, helping to quickly identify components within a system that may be uniform in color.
The "Multiple" finish and material designation acknowledges the composite nature of the connector. While the polymer components may be black, the brass body typically features its natural metallic luster or may be coated with a protective layer, such as nickel plating or other anti-corrosion treatments. These various finishes are not just for appearance; they are integral to the component's durability. For instance, a clear protective coating on the brass can further enhance its corrosion resistance against specific chemicals or harsh environmental agents without obscuring the material. The combination of black polymer and metallic brass or plated finishes creates a component that is not only functionally superior but also visually clear in its different material properties, aiding in maintenance and inspection routines. This thoughtful consideration of material and finish ensures the connector is built to withstand the rigors of its intended operational environment while maintaining its performance characteristics.
Extensive Applications and Industry Versatility
The Brass/Poly DOT Push-In Male Connector is fundamentally designed for applications demanding the highest standards of safety and reliability, placing it firmly within the heavy-duty and commercial transportation sectors. Its primary application lies within the air brake systems of Class 8 trucks, buses, semi-trailers, and other heavy-duty vehicles where pneumatic power is critical for braking. In these environments, it facilitates robust and dependable connections between air lines and various components such as brake chambers, air tanks, pressure regulators, and ABS (Anti-lock Braking System) modules. The DOT compliance is particularly crucial here, as it directly impacts vehicle safety and legality on public roads.
Beyond core air brake systems, the versatility of this connector extends to other demanding pneumatic applications within these industries. This includes auxiliary air systems for dump trailers, lift axles, air ride suspensions, fifth-wheel kingpin release mechanisms, and air horn systems. Its durable construction and push-in design also make it suitable for general industrial pneumatic systems where quick assembly, reusability, and robust performance are required, such as in factory automation, agricultural machinery, construction equipment, and material handling systems that utilize compressed air. Any application where a 3/8 inch O.D. tubing needs to be connected to a 1/4 inch NPT male port, particularly under conditions requiring high reliability and resistance to vibration and corrosion, stands to benefit from the engineering excellence embodied in this connector. Its adaptability across a spectrum of critical pneumatic operations underscores its value as a highly effective and essential component.
Installation, Maintenance, and Longevity Considerations
Proper installation and routine maintenance are paramount to maximizing the longevity and ensuring the continuous, leak-free performance of the Brass/Poly DOT Push-In Male Connector. For installation, the tubing must be cut squarely and cleanly, free from burrs or nicks that could compromise the O-ring seal or the gripper mechanism. A specialized tube cutter is recommended to achieve the optimal cut. The tube should then be fully inserted into the connector until a definite stop is felt, indicating that it has passed the O-ring and engaged the gripper. A gentle tug on the tube confirms a secure connection. For the 1/4 NPT pipe thread, appropriate thread sealant (e.g., PTFE thread tape or liquid pipe sealant) should be applied to the male threads before assembly into the female port, and tightened to the manufacturer's recommended torque specifications to achieve a leak-tight mechanical seal.
Disconnection is straightforward: simply press the release collar evenly against the connector body and simultaneously pull the tubing away. This allows for quick serviceability without damaging the tubing or the fitting. Regular inspection of the air lines and connectors is advised, particularly in harsh operating environments. Checks should include looking for any signs of physical damage to the tubing or fitting body, ensuring connections remain secure, and listening for any audible air leaks. The robust construction and material selection contribute to the connector's inherent longevity, but adherence to proper installation and maintenance practices significantly extends its service life, minimizes the risk of system failures, and upholds the critical safety standards for which it was designed. This proactive approach ensures the continuous high performance of the air brake system, protecting both investment and operational safety.
Conclusion: Uncompromising Reliability for Critical Systems
In summary, the Brass/Poly DOT Push-In Male Connector, with its precise 3/8 Inch Tube O.D. x 1/4 Inch Pipe Thread specifications, stands as a testament to engineering excellence dedicated to critical pneumatic applications. Its robust construction, combining the inherent strength and corrosion resistance of high-grade brass with the ergonomic and resilient properties of advanced polymers, ensures a product that is built to endure. The sophisticated push-in technology provides an unparalleled balance of rapid installation, secure tube retention, and reliable sealing, making it an indispensable component for efficiency and safety. Above all, its full compliance with DOT FMVSS 571.106 air brake performance regulations underscores its suitability and absolute necessity for commercial vehicle air brake systems, where safety and operational integrity cannot be compromised. This connector is not just a part; it is a critical investment in the safety, reliability, and long-term performance of your pneumatic infrastructure, designed to consistently meet and exceed the rigorous demands of the most challenging environments.
