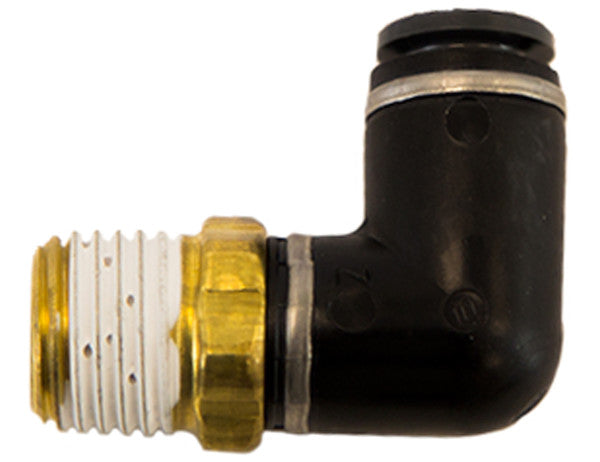

NE90M25P125S - Brass/Poly DOT Push-In Swivel Male Elbow 1/4 Inch Tube OD x 1/8 Inch Pipe Thread

Buyers Products Swivel Male Elbows are made of long lasting corrosion-resistant brass and poly. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.

Specifications

Advanced Technical Overview: Brass/Poly DOT Push-In Swivel Male Elbow for Air Brake Systems

The Brass/Poly DOT Push-In Swivel Male Elbow, specifically engineered with a 1/4 Inch Tube OD and a 1/8 Inch Pipe Thread, represents a critical component in modern pneumatic systems, particularly within the demanding realm of commercial vehicle air brakes. This fitting is meticulously designed to provide a secure, reliable, and efficient connection for air lines, ensuring optimal performance and safety under stringent operating conditions. Its construction combines the inherent strengths of brass with the advanced properties of engineered polymers, culminating in a product that not only meets but exceeds the rigorous requirements of DOT FMVSS 571.106 air brake performance specifications.

Material Science and Engineering: The Synergy of Brass and Polymer

The selection of materials is paramount to the durability and functionality of any pneumatic fitting, especially those subjected to the dynamic stresses of air brake applications. This elbow leverages a sophisticated blend of brass and high-performance polymer to achieve a superior balance of mechanical strength, corrosion resistance, and sealing integrity.

Brass Components: Unyielding Strength and Corrosion Resistance

The metallic elements of this fitting are crafted from high-grade brass, an alloy primarily composed of copper and zinc. Brass is chosen for several compelling reasons in pneumatic system design:

• Exceptional Corrosion Resistance: Brass exhibits inherent resistance to oxidation, rust, and various chemical agents commonly encountered in automotive and industrial environments, including moisture, road salts, and mild acids or bases. This characteristic ensures the longevity and structural integrity of the fitting, preventing material degradation that could lead to leaks or system failure.
• High Mechanical Strength: Brass offers excellent tensile strength and hardness, enabling it to withstand the high pressures and mechanical stresses intrinsic to air brake systems. It maintains its structural form even under significant operational loads and vibration, crucial for maintaining a reliable connection.
• Ductility and Malleability: While strong, brass also possesses sufficient ductility to allow for precision machining of intricate features, such as the NPT threads and the swivel mechanism, ensuring precise dimensions and consistent performance.
• Thermal Stability: Brass performs reliably across a broad temperature range, from extreme cold to elevated heat, without significant loss of mechanical properties. This is vital for air brake systems that operate in diverse climates and generate heat during braking cycles.
• Anti-Galling Properties: Brass has favorable anti-galling characteristics, which reduces the likelihood of threads seizing during installation or removal, facilitating easier maintenance and replacement.
• Conductivity: While not the primary concern for pneumatic fittings, brass's thermal conductivity aids in dissipating heat, contributing to the overall thermal management of the system.

Polymer Components: Lightweight, Resilient, and Sealing Excellence

Complementing the brass structure are advanced polymer components, specifically designed for their mechanical and chemical properties. While the term "poly" is generic, for DOT air brake fittings, high-performance engineering plastics such as Nylon (Polyamide), Acetal (Polyoxymethylene, POM), or specialty polyurethanes are typically employed. These polymers contribute significantly to the fitting's functionality:

• Lightweight Construction: Polymers are significantly lighter than metals, contributing to a reduction in overall vehicle weight, which can lead to improved fuel efficiency and payload capacity.
• Excellent Chemical Resistance: Engineered polymers offer superior resistance to oils, greases, fuels, and various automotive fluids, preventing material degradation and maintaining sealing integrity over time.
• Flexibility and Impact Resistance: The polymer components, particularly the push-in collet and sealing elements, provide a degree of flexibility that aids in absorbing vibrations and minor impacts, enhancing the fitting's resilience in dynamic environments.
• Superior Sealing Performance: Precision-molded polymer seals (e.g., O-rings, internal grab rings) are critical for establishing and maintaining an airtight connection with the air brake tubing. These materials are chosen for their elasticity, low compression set, and resistance to degradation, ensuring a leak-free seal even under fluctuating pressures.
• Electrical Non-Conductivity: In certain applications, the insulating properties of polymers can be an advantage, preventing galvanic corrosion between dissimilar metals if present in the system, though primarily the focus is on pneumatic sealing.

The strategic integration of brass and polymer creates a fitting that capitalizes on the strengths of each material, resulting in a robust, corrosion-resistant, and high-performance solution for demanding pneumatic applications.

Design and Engineering Principles: Precision and Functionality

The design of this Swivel Male Elbow is a testament to meticulous engineering, incorporating several key features that enhance its usability, reliability, and performance.

90° Elbow Configuration: Space Optimization and Directional Control

The 90° elbow shape is fundamental for routing air lines in confined spaces and for making precise directional changes within a pneumatic circuit. This configuration allows for neat and efficient hose layouts, preventing kinks or sharp bends in the tubing that could restrict airflow or induce premature tube failure. Its compact design minimizes the spatial footprint required for installation, a critical factor in the densely packed engine bays and chassis of commercial vehicles.

Swivel Functionality: Enhanced Installation Flexibility and Stress Reduction

The swivel feature integrated into this male elbow is a significant advantage. This mechanism allows the threaded male end to rotate independently of the push-in tube connection, even after the pipe thread has been tightened. The benefits are multifaceted:

• Ease of Installation: Installers can first securely tighten the NPT male thread into the receiving port without having to simultaneously align the tube connection. Once the threaded connection is secure, the push-in port can be rotated to the optimal angle for tube routing, simplifying the installation process.
• Reduced Mechanical Stress: The ability to swivel prevents torsional stress from being transferred to the tubing during installation or in dynamic environments where slight movement might occur. This reduces the risk of tube damage or accidental disconnections, enhancing the overall integrity of the air brake system.
• Optimized Tube Routing: Swivel fittings provide unparalleled flexibility in orienting the tube connection, allowing for precise alignment with adjacent components and contributing to a cleaner, more organized pneumatic layout.

Push-In (Push-to-Connect) Technology: Rapid, Secure, and Tool-Free Connections

The 1/4 inch tube OD connection utilizes advanced push-in (also known as push-to-connect or PTC) technology. This innovative design offers substantial benefits over traditional compression or barbed fittings:

• Instantaneous Connection: Tubing can be inserted into the fitting with a simple push, providing an immediate and secure mechanical grip and pneumatic seal without the need for specialized tools. This significantly reduces installation time and labor costs.
• Secure Retention Mechanism: Internally, the push-in fitting employs a robust collet or grab ring mechanism, often made from hardened stainless steel or a high-strength polymer. This mechanism features multiple teeth that firmly grip the outer diameter of the tubing, preventing accidental pull-out even under high pressure and vibration.
• Leak-Proof Seal: A precision-engineered O-ring, typically made from an elastomer like NBR (Nitrile Butadiene Rubber) or EPDM (Ethylene Propylene Diene Monomer) chosen for its compatibility with air and resistance to environmental factors, forms a tight seal around the tubing. This ensures a leak-free connection, critical for maintaining air pressure in brake systems.
• Reusability and Serviceability: While designed for robust, long-term connections, push-in fittings typically allow for easy disconnection using a release collar. This facilitates quick maintenance, replacement of tubing, or system modifications without damaging the fitting or requiring cutting of the tube.
• Compatibility: These fittings are engineered to work seamlessly with standard air brake tubing materials, such as Nylon 11 or Nylon 12, ensuring broad applicability.

1/8 Inch NPT Male Pipe Thread: Industry Standard for Reliable Sealing

The male pipe thread connection conforms to the 1/8 inch NPT (National Pipe Taper) standard. NPT threads are universally recognized and utilized for their ability to create a mechanical seal upon tightening, particularly when used with an appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant). The tapered design ensures that as the male and female threads engage, they wedge together, providing both a secure mechanical connection and a pressure-tight seal. The 1/8 NPT size is a common standard in air brake systems, ensuring compatibility with a wide array of valves, reservoirs, and other pneumatic components.

DOT FMVSS 571.106 Compliance: The Pinnacle of Safety and Performance

A cornerstone of this product's value proposition is its compliance with DOT FMVSS 571.106. This Federal Motor Vehicle Safety Standard specifically addresses "Brake Hoses" and sets forth stringent performance requirements for air brake components used in commercial motor vehicles. Meeting this standard signifies that the fitting has undergone rigorous testing and demonstrated its ability to perform reliably under the most demanding conditions, ensuring the safety of vehicle operators and the public.

Key aspects of FMVSS 106 compliance pertinent to fittings include:

• Pressure Resistance: Fittings must withstand specified burst pressures significantly higher than typical operating pressures without failure or leakage.
• Leakage Performance: The fitting must maintain a leak-free seal under sustained operating pressures and after exposure to various environmental stressors.
• Pull-Out Resistance: For push-in type connections, the fitting must resist a specified pull-out force without releasing the tubing.
• Temperature Cycling: The fitting must maintain its integrity and sealing performance after exposure to repeated cycles of extreme high and low temperatures.
• Vibration Endurance: It must demonstrate resistance to fatigue and failure when subjected to prolonged vibration, simulating real-world vehicle operation.
• Corrosion Resistance: Materials must resist degradation from environmental factors, as tested by salt spray or other corrosive agents.
• Hose Assembly Integrity: While FMVSS 106 primarily concerns hoses, fittings are integral to hose assemblies and must ensure the overall assembly meets the standard's performance criteria.

By conforming to FMVSS 571.106, this Brass/Poly DOT Push-In Swivel Male Elbow provides commercial vehicle manufacturers and fleet operators with a verified component that contributes to the overall safety and regulatory compliance of their braking systems. This compliance is not merely a label; it represents a commitment to engineering excellence and unwavering reliability in a safety-critical application.

Applications and Operational Context

The primary application for this Brass/Poly DOT Push-In Swivel Male Elbow is within the complex air brake systems of heavy-duty trucks, buses, trailers, and other commercial vehicles. In these environments, fittings are exposed to a multitude of challenges:

• High and Fluctuating Pressures: Air brake systems operate at pressures typically ranging from 80-120 psi, with transient spikes.
• Vibration and Shock: Continuous road vibration and occasional impacts demand fittings that can maintain structural and sealing integrity.
• Temperature Extremes: From frigid winters to scorching summers, and with heat generated by braking, components must perform reliably across a wide temperature spectrum.
• Environmental Exposure: Road salt, moisture, dirt, dust, and corrosive chemicals necessitate robust, corrosion-resistant materials.

Beyond air brakes, this fitting is also suitable for other demanding pneumatic applications requiring DOT compliance or similarly high standards of reliability and performance, such as air suspension systems, auxiliary air systems, and other industrial pneumatic controls where robust, quick-connect solutions are advantageous.

Installation and Maintenance Best Practices

Proper installation is crucial to harness the full benefits of this high-performance fitting:

• Tubing Preparation: Ensure the air brake tubing is cut square and clean, free of burrs or nicks. Chamfering the tube end slightly can aid insertion and protect the internal O-ring seal.
• Push-In Connection: Firmly insert the tubing until it bottoms out in the fitting. A slight tug back will confirm the collet has engaged and the connection is secure.
• NPT Threading: Apply an appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant) to the male NPT threads before installation. Thread the fitting into the receiving port by hand until snug, then use a wrench to tighten to the manufacturer's recommended torque specifications. Avoid over-tightening, which can damage threads or crack the receiving port.
• Post-Installation Inspection: After installation, always perform a leak test using a soapy water solution or an electronic leak detector to ensure all connections are airtight.

Due to its robust construction and high-quality materials, the fitting requires minimal maintenance, primarily focused on periodic inspection for any signs of wear, damage, or potential leaks, especially during routine vehicle inspections.

Conclusion: Engineered for Excellence in Safety-Critical Systems

The Brass/Poly DOT Push-In Swivel Male Elbow with 1/4 Inch Tube OD x 1/8 Inch Pipe Thread represents a superior solution for critical pneumatic connections. Its thoughtful combination of corrosion-resistant brass and high-performance polymer ensures long-term durability and reliability. The innovative push-in and swivel functionalities provide unmatched ease of installation and flexibility, while its male 90° elbow configuration optimizes space and hose routing. Most importantly, its stringent compliance with DOT FMVSS 571.106 underscores its suitability for safety-critical air brake systems, offering peace of mind through certified performance. This fitting is not just a component; it is an engineered promise of safety, efficiency, and steadfast operation in the most challenging commercial and industrial environments.
