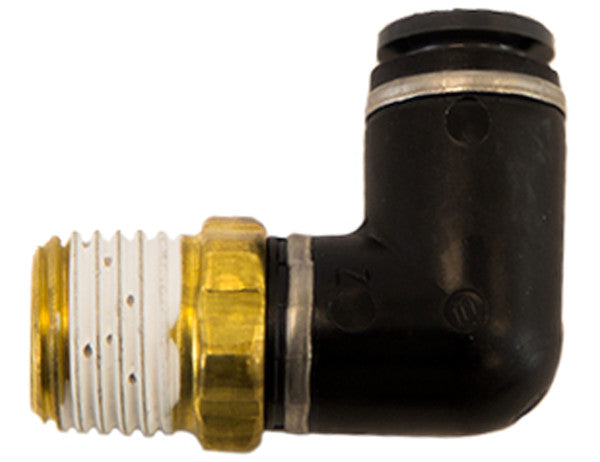

Buyers Products Swivel Male Elbows are made of long lasting corrosion-resistant brass and poly. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.
Specifications
| Color | Black |
|---|---|
| Finish | Multiple |
| Fitting Shape | 90?? Elbow |
| Male/Female/Union | Male |
| Material | Multiple |
| Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations (y/n) | Yes |
| Pipe Thread Size | 1/4 NPT |
| Swivel (y/n) | Yes |
| Works with Tube Outer Diameter | 3/8 |
The Brass/Poly DOT Push-In Swivel Male Elbow, engineered for 3/8 Inch Tube OD and 1/4 Inch Pipe Thread, represents a pinnacle of fluid connection technology tailored for the most demanding pneumatic applications, particularly within air brake systems. This component is not merely a fitting; it is a meticulously designed interface that ensures reliable, leak-free performance and absolute adherence to stringent safety and operational standards. Its construction, integrating high-grade brass with advanced polymers, establishes a new benchmark for durability, ease of installation, and long-term resilience in commercial vehicles and industrial machinery.
Engineering Excellence: The Brass and Polymer Hybrid Design
High-Strength Brass Componentry
The primary structural integrity of this swivel male elbow is derived from its premium brass construction. Brass, an alloy primarily composed of copper and zinc, is meticulously selected for its exceptional mechanical properties and inherent resistance to corrosion. Unlike other metals, brass exhibits a remarkable balance of strength, ductility, and machinability, allowing for the precise fabrication of intricate components such that exact dimensional tolerances are maintained. This is crucial for fittings subjected to dynamic pressures and vibrations characteristic of air brake systems. The specific brass alloy utilized is chosen for its superior resistance to dezincification, a common form of corrosion that can degrade brass in certain environments, thereby ensuring the longevity and structural integrity of the fitting over its operational lifespan. Furthermore, brass possesses excellent thermal conductivity, which helps in dissipating heat and maintaining material stability across a broad range of operating temperatures. The robustness of brass ensures that the threaded male NPT connection provides a secure and unyielding interface with corresponding female ports, capable of withstanding significant torque and internal system pressures without deformation or failure.
Advanced Polymer Elements for Optimized Performance
Complementing the robust brass body are precisely engineered polymer components, integral to the fitting's push-in mechanism and sealing capabilities. These advanced polymers are chosen not just for their cost-effectiveness but for their specific mechanical, chemical, and thermal properties that enhance the overall performance of the fitting. For the collet, which grips the tubing, high-performance engineering plastics such as Acetal (Polyoxymethylene, POM) are commonly employed. Acetal offers outstanding tensile strength, rigidity, impact resistance, and a low coefficient of friction, which facilitates smooth tube insertion and removal while ensuring a secure grip under operational pressures. Its resistance to chemicals commonly found in pneumatic systems, such as lubricating oils and moisture, further contributes to its longevity. The sealing elements, typically O-rings, are manufactured from elastomers like Nitrile Butadiene Rubber (NBR) or Ethylene Propylene Diene Monomer (EPDM). NBR provides excellent resistance to petroleum-based fluids, while EPDM is preferred for its superior resistance to weathering, ozone, and steam, ensuring hermetic sealing against air leakage across a wide temperature spectrum. The strategic integration of these specialized polymers with the brass body creates a composite structure that leverages the strengths of both materials, resulting in a fitting that is simultaneously durable, efficient, and exceptionally reliable.
The Push-to-Connect (PTC) Mechanism: A Paradigm Shift in Fluid Connection Technology
The inclusion of a push-in, or push-to-connect (PTC), mechanism fundamentally transforms the efficiency and reliability of pneumatic system assembly. This innovative design allows for rapid, tool-free tube connection, significantly reducing installation time and labor costs compared to traditional compression or threaded fittings. The operational principle involves a collet and an O-ring system. When the tubing (in this case, 3/8 inch OD) is inserted into the fitting, the polymer collet's teeth automatically grip the outer diameter of the tube, while the internal O-ring creates a positive, leak-proof seal against the tube's surface. The gripping action of the collet tightens under increased pressure, effectively reinforcing the connection as the system operates. Disconnection is equally straightforward, typically requiring only a slight depression of the collet release mechanism, allowing the tube to be withdrawn without damage. This ease of installation and removal makes PTC fittings ideal for maintenance and modifications, minimizing downtime. Furthermore, the inherent design of PTC fittings minimizes the potential for installer error, ensuring consistent, high-integrity connections across an entire system. This mechanism is specifically engineered to withstand the rigorous pressure and vibration cycles mandated by DOT FMVSS 571.106, ensuring unwavering connection security in critical air brake lines.
Swivel Functionality: Enhancing Adaptability and System Longevity
The integrated swivel feature of this male elbow is a critical design advantage, offering unparalleled flexibility during installation and enhancing the longevity of the entire pneumatic system. Unlike fixed elbow fittings, the swivel capability allows the push-in portion of the fitting to rotate freely relative to the threaded pipe connection after installation. This eliminates the need for precise alignment of the tube before securing the threaded connection, simplifying complex tubing routes in confined spaces. More importantly, swivel fittings prevent torsional stress from being imparted to the tubing. Without a swivel, tightening a threaded elbow would inevitably twist the connected tube, potentially leading to kinking, weakening of the tube material, or even premature failure. By allowing the tube end to rotate, the swivel feature mitigates these risks, preserving the integrity of the air lines and prolonging their service life. In applications where the tubing itself may experience slight movements or vibrations, the swivel acts as a stress-relief mechanism, protecting the connection points and ensuring continuous, reliable air flow without compromising sealing integrity.
Precision Angling: The 90-Degree Male Elbow Configuration
The 90-degree elbow shape is purposefully engineered to facilitate directional changes in pneumatic lines within restricted envelopes. In commercial vehicle air brake systems, space is often at a premium, requiring precise routing of air lines to various components such as reservoirs, valves, and brake chambers. The distinct 90-degree angle ensures an efficient and compact turn, minimizing the overall footprint of the tubing path and preventing sharp bends that could restrict airflow or damage the tubing. As a "male" fitting, it features an external thread that interfaces directly with a corresponding female port on a component. The 1/4 Inch Pipe Thread is manufactured to the National Pipe Taper (NPT) standard. NPT threads are tapered, meaning the diameter decreases slightly towards the end of the fitting. This taper, in conjunction with an appropriate thread sealant (e.g., PTFE tape or liquid sealant), creates a mechanical interference fit that provides a highly effective, pressure-tight seal. The male NPT design is ubiquitous in industrial and automotive pneumatic systems, ensuring broad compatibility and a robust connection point.
Dimensional Compatibility: 3/8 Inch Tube OD x 1/4 Inch NPT
This fitting is precisely specified for a 3/8 inch outer diameter (OD) tube and a 1/4 inch National Pipe Taper (NPT) thread. The 3/8 inch tube OD is a widely adopted standard for air brake systems in North America, compatible with common polyamide (nylon) tubing, such as PA11 and PA12. These tubing materials are chosen for their excellent resistance to abrasion, chemicals, and temperature fluctuations, while offering the necessary flexibility and pressure rating for air brake applications. The fitting's internal geometry and collet design are optimized to securely grip and seal against this specific tube dimension, ensuring maximum pull-out resistance and leak prevention. Concurrently, the 1/4 inch NPT thread is a prevalent size for pneumatic connections on numerous air system components, including auxiliary ports, solenoid valves, and smaller air tanks. This common sizing facilitates seamless integration into existing air brake architectures, reducing the complexity and cost of system design and maintenance. The precision in these specified dimensions guarantees a perfect, high-performance fit, critical for the safety and operational efficiency of commercial vehicles.
Adherence to FMVSS 571.106: The Cornerstone of Safety and Performance
A defining characteristic of this Brass/Poly DOT Push-In Swivel Male Elbow is its full compliance with Federal Motor Vehicle Safety Standard (FMVSS) 571.106. This standard, issued by the National Highway Traffic Safety Administration (NHTSA), specifically governs air brake hoses, tubing, and their associated fittings for commercial motor vehicles, including trucks, buses, and trailers. Compliance is not merely a label; it signifies that the fitting has undergone rigorous testing and meets the demanding performance requirements essential for the safe and reliable operation of air brake systems. The requirements of FMVSS 571.106 are comprehensive, addressing various critical performance aspects:
- Pressure Resistance: Fittings must withstand specific burst pressures without failure, typically exceeding the maximum operating pressures by a significant margin. This ensures structural integrity even under extreme transient pressure spikes.
- Vibration Endurance: The fitting-to-tubing connection must maintain its seal and mechanical integrity when subjected to prolonged vibration, simulating thousands of miles of heavy-duty road conditions. This includes resonant frequency tests and broadband random vibration.
- Temperature Cycling: Performance is verified across a wide range of operational temperatures, typically from -40°C to +100°C (-40°F to +212°F). The fitting must resist leakage, cracking, or material degradation through repeated cycles of extreme hot and cold, ensuring reliability in diverse climates.
- Pull-Out Force: The push-in connection must withstand specified axial forces without the tube detaching or leaking. This test quantifies the mechanical grip strength of the collet system, confirming the tubing will remain securely fastened under vehicle acceleration, braking, and suspension movements.
- Corrosion Resistance: Components must demonstrate resistance to corrosion through standardized salt spray tests, ensuring long-term durability when exposed to road salts, moisture, and other environmental contaminants.
- Leak Integrity: Throughout all testing phases, leakage rates must remain below a specified maximum, underscoring the fitting's ability to maintain system pressure and prevent air loss, which is paramount for brake system functionality.
Achieving FMVSS 571.106 compliance means that this fitting is not only designed for durability but has been independently verified to perform flawlessly under the most challenging real-world operating conditions, directly contributing to vehicle safety and operational assurance.
Operational Parameters and Performance Metrics
This Brass/Poly DOT Push-In Swivel Male Elbow is designed for robust performance across typical air brake system parameters. It reliably operates within a pressure range commonly specified for commercial air brake systems, often up to 150 PSI (10.3 bar), with a significant burst pressure margin to accommodate safety factors. The material selection ensures a wide operational temperature range, typically from -40°F to +200°F (-40°C to +93°C), maintaining sealing and mechanical integrity in extreme climates. Its design minimizes flow restriction, ensuring efficient air delivery to critical brake components. The vibration and pull-out resistance characteristics, verified through DOT compliance, translate to an extended service life and reduced maintenance frequency. These rigorous performance metrics underscore the fitting's suitability for continuous, heavy-duty operation.
Applications and Industries
The primary application for this high-performance Brass/Poly DOT Push-In Swivel Male Elbow is within the air brake systems of commercial vehicles, including heavy-duty trucks, semi-trailers, buses, and other specialized transport vehicles. Its DOT compliance makes it indispensable for components requiring regulatory approval. Beyond road vehicles, its robust construction and push-in convenience also make it suitable for industrial pneumatic control systems, heavy equipment (e.g., construction and agricultural machinery), and other applications where reliable, high-pressure air connections are critical and exposure to harsh environments is expected. It is an ideal choice for OEMs and aftermarket service providers who prioritize safety, reliability, and ease of installation.
Installation Best Practices and Maintenance
To maximize the performance and longevity of the Brass/Poly DOT Push-In Swivel Male Elbow, adherence to proper installation practices is essential. For the push-in connection, the 3/8 inch OD tubing must be cut squarely and cleanly, free of burrs or scoring, to ensure a perfect seal against the internal O-ring and an optimal grip by the collet. Simply push the tubing firmly into the fitting until it bottoms out, then pull back gently to confirm a secure lock. For the 1/4 inch NPT threaded male end, an appropriate thread sealant, such as PTFE tape or a liquid pipe thread sealant, should be applied to the threads before tightening into the female port to ensure a leak-free connection. Avoid overtightening, which can damage the threads or the component. Routine maintenance involves periodic inspection of tubing and fittings for signs of wear, damage, or potential leaks, particularly in high-vibration areas. The push-in design facilitates quicker replacement if necessary, minimizing vehicle downtime and operational disruption.
Conclusion
The Brass/Poly DOT Push-In Swivel Male Elbow with 3/8 Inch Tube OD and 1/4 Inch Pipe Thread is an exemplary component engineered for critical air brake applications. Its intelligent hybrid material construction, combined with the efficiency of a push-to-connect mechanism and the adaptability of a swivel design, delivers superior performance, simplified installation, and uncompromising safety. Adherence to the rigorous FMVSS 571.106 standard underscores its capability to meet and exceed the demands of commercial vehicle operations, ensuring longevity and reliability in the most challenging environments. This fitting is a testament to precision engineering, offering a robust and dependable solution for fluid connection systems where performance cannot be compromised.
