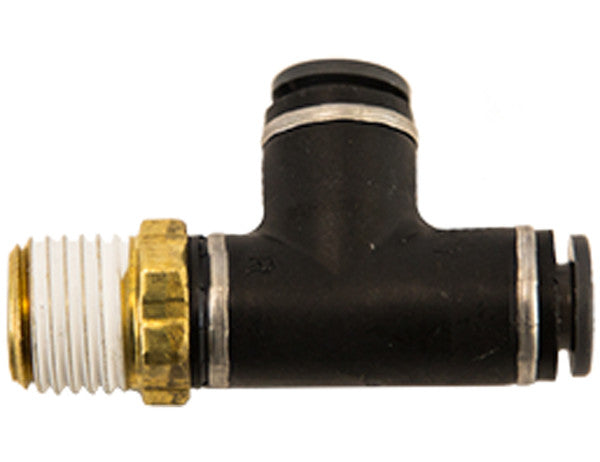

NRT0M25P125S - Brass/Poly DOT Push-In Swivel Male Run Tee 1/4 Inch Tube O.D. x 1/8 Pipe Thread

Buyers Products Swivel Male Run Tees are made of long lasting corrosion-resistant brass and poly. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.

Specifications

Advanced Technical Overview: Brass/Poly DOT Push-In Swivel Male Run Tee

The Brass/Poly DOT Push-In Swivel Male Run Tee, engineered for 1/4 Inch Tube O.D. x 1/8 Pipe Thread applications, represents a critical component in advanced pneumatic and fluid power systems, particularly those requiring adherence to Department of Transportation (DOT) Federal Motor Vehicle Safety Standard (FMVSS) 571.106 for air brake performance. This fitting is meticulously designed to provide reliable, secure, and efficient connections, combining the robust properties of brass with the chemical and physical advantages of advanced polymers. Its innovative push-to-connect mechanism, integrated swivel functionality, and run tee configuration offer unparalleled flexibility, ease of installation, and long-term durability in demanding operational environments.

Precision Engineering and Material Science

The fundamental integrity of this fitting stems from its dual-material construction: high-quality brass and engineered polymer components. Brass, primarily an alloy of copper and zinc, is selected for its superior corrosion resistance, high tensile strength, excellent machinability, and thermal conductivity. These properties make it ideal for the main body of the fitting, ensuring structural rigidity and longevity, even when exposed to harsh environmental conditions, vibrations, and temperature fluctuations. The inherent resistance of brass to oxidation and common corrosive agents found in industrial and automotive settings significantly extends the fitting’s operational lifespan.

Complementing the brass core are strategically integrated polymer elements. These polymeric components, often constructed from materials such as Nylon 12 or high-performance acetal, are crucial for the push-in mechanism and effective sealing. Polymers offer several advantages: they are lightweight, resistant to a wide range of chemicals including fuels, oils, coolants, and brake fluids, and possess excellent dielectric properties. Their elasticity and resilience contribute to superior sealing performance and vibration dampening. For instance, the grab ring (collet) within the push-in mechanism is typically made from a durable polymer, designed to securely grip the tubing without marring, while internal O-rings, often made from EPDM or Nitrile rubber, provide airtight seals that maintain integrity across varying pressures and temperatures. The judicious combination of brass and polymer results in a fitting that leverages the best attributes of both material classes: the strength and corrosion resistance of metal, coupled with the sealing efficacy, chemical inertness, and lightweight nature of advanced plastics.

Advanced Design Features: Push-In, Swivel, and Run Tee Configuration

Each design element of this fitting—the push-in connection, the swivel capability, and the run tee shape—is engineered to optimize system performance and installation efficiency.

Push-In (Push-to-Connect) Technology

The push-in connection system revolutionizes assembly by eliminating the need for specialized tools, soldering, or flaring, common with traditional connection methods. This mechanism operates on a simple yet highly effective principle: a precisely engineered collet (grab ring) with internal teeth or barbs grips the outer diameter of the tubing, while an internal O-ring creates a hermetic seal against the tube’s surface. To install, the operator simply pushes the tubing firmly into the fitting until it bottoms out, at which point the collet engages, and the O-ring compresses, forming a leak-tight connection. This method offers significant benefits:

• **Rapid Assembly:** Substantially reduces installation time and labor costs.
• **Ease of Use:** Simplifies complex pneumatic layouts, making connections accessible even in confined spaces.
• **Reliability:** Provides a secure and repeatable connection, resistant to accidental disconnection under typical operating pressures and vibrations.
• **Versatility:** Compatible with various types of flexible tubing, including Nylon, polyurethane, and polyethylene, provided they meet the specified outer diameter.

Integrated Swivel Functionality

The "Swivel" designation indicates that the threaded male end of the run tee can rotate independently of the main body, even after the pipe thread connection has been tightened. This feature offers critical advantages in system design and maintenance:

• **Stress Reduction:** Prevents twisting and kinking of tubing during installation and operation, which can lead to premature wear or failure.
• **Simplified Alignment:** Allows for easier alignment of tubing runs, especially in complex or confined installations where precise orientation is difficult to achieve with fixed fittings.
• **Enhanced Flexibility:** Accommodates dynamic movement and vibration without imparting undue stress on the tubing or the connecting port.
• **Improved Serviceability:** Facilitates easier removal and reinstallation of components by allowing rotational freedom without disturbing the integrity of other connections.

Run Tee Configuration

The "Run Tee" shape is a fundamental plumbing configuration that enables the branching of a fluid or pneumatic line. In this specific fitting, the male pipe thread is located on the main run, allowing it to be directly threaded into a manifold, valve, or component port. The two push-in ports are then located perpendicular to this threaded connection and in line with each other along the main run, effectively creating a distribution point. This design is crucial for:

• **System Expansion:** Splitting a single line into two separate paths.
• **Gauge or Sensor Integration:** Providing a convenient tap-off point for pressure gauges, sensors, or other auxiliary devices.
• **Optimized Layouts:** Creating compact and efficient pneumatic circuits, minimizing the number of individual fittings required.

Adherence to DOT FMVSS 571.106 Air Brake Performance Specifications

A cornerstone of this product's technical superiority is its full compliance with DOT FMVSS 571.106. This federal standard is a stringent regulatory requirement for air brake hoses, tubing, and fittings used in commercial vehicles, ensuring the highest levels of safety and operational reliability. Compliance signifies that the fitting has undergone rigorous testing and meets specific performance criteria designed to prevent air brake system failures. Key aspects covered by FMVSS 571.106 include:

• **Pressure Cycling:** The fitting must withstand a specified number of pressure cycles (typically millions) without leakage or structural degradation, simulating real-world operational stress.
• **Burst Pressure:** It must tolerate internal pressures far exceeding normal operating conditions without rupturing, providing a substantial safety margin.
• **Pull-Out Resistance:** The push-in connection must maintain its grip on the tubing under significant tensile forces, preventing accidental disengagement, which is critical during vehicle operation and sudden braking.
• **Temperature Extremes:** The materials and design must function reliably across a broad range of temperatures, from extreme cold to intense heat, without compromising sealing or structural integrity.
• **Vibration Resistance:** The fitting must endure prolonged periods of high-frequency vibration without developing leaks or structural fatigue, mimicking the harsh conditions experienced in heavy-duty vehicles.
• **Chemical Compatibility:** Resistance to common automotive fluids and contaminants is verified to ensure long-term performance.

Achieving this certification is not merely a regulatory checkbox; it is a testament to the fitting's robust design, material selection, and manufacturing quality. For fleet operators and vehicle manufacturers, using DOT-compliant fittings is paramount for legal adherence, operational safety, and minimizing liability risks associated with air brake system malfunctions.

Precision Sizing and System Compatibility

The specified dimensions – 1/4 Inch Tube O.D. and 1/8 Pipe Thread – are crucial for seamless integration into standard pneumatic systems.

• **1/4 Inch Tube O.D. (Outer Diameter):** This dimension refers to the external diameter of the flexible tubing intended for use with the push-in ports. The precision of this measurement is vital for the push-in mechanism to create an effective and leak-free seal. The internal collet and O-ring within the fitting are precisely sized to grip and seal against tubing with a 1/4 inch O.D. Any deviation in tubing size can lead to compromised sealing or insecure connections. This standard size is commonly found in light to medium-duty pneumatic circuits and auxiliary air systems on vehicles.
• **1/8 Pipe Thread (NPT):** This denotes the National Pipe Taper thread specification for the male threaded connection. NPT threads are widely used in pneumatic and hydraulic applications for their ability to create a mechanical seal by an interference fit between the tapered threads. The 1/8 NPT size is a smaller standard, frequently employed for connecting to control valves, pressure sensors, compact cylinders, or other components where a modest flow rate and footprint are required. Proper application of a compatible thread sealant (e.g., PTFE tape or liquid sealant) is essential to ensure a leak-tight connection at the threaded interface, complementing the integrity of the push-in connections.

Installation Best Practices and Methodologies

Proper installation is paramount to achieving the full performance and safety benefits of the Brass/Poly DOT Push-In Swivel Male Run Tee. Adherence to these best practices will ensure a durable, leak-free, and compliant connection:

• **Tubing Preparation:** Always use tubing that is cut squarely and cleanly, free from nicks, scratches, or burrs. A specialized tube cutter designed for plastic tubing is recommended to ensure a perpendicular cut. Imperfect cuts can compromise the seal and lead to leaks.
• **Cleanliness:** Ensure both the tubing ends and the fitting ports are clean and free of debris, dust, or contaminants before assembly. Foreign particles can damage O-rings or prevent proper seating.
• **Proper Insertion:** To make a connection, simply push the prepared tubing firmly into the push-in port until it bottoms out. A slight resistance will be felt as the O-ring engages, followed by a positive "click" or tactile sensation as the collet securely grips the tubing. A visual inspection should confirm that the tubing is fully seated and the collet is engaged.
• **Threading:** For the 1/8 NPT male pipe thread, apply a suitable thread sealant (e.g., PTFE thread tape or an anaerobic pipe sealant) to the male threads. Hand-tighten the fitting into the receiving port, then use a wrench to tighten an additional 1 to 2 turns, or according to manufacturer-specified torque values. Avoid over-tightening, which can damage the threads or distort the fitting, and under-tightening, which can result in leaks.
• **Testing:** After installation, pressurize the system and perform a leak test using a soapy water solution or a dedicated leak detection spray. Inspect all connections for bubbles, indicating a leak. Rectify any leaks immediately.
• **Disassembly (if needed):** To disconnect the tubing, depress the collet flange evenly against the fitting body, then pull the tubing out. Never attempt to pull the tubing out without depressing the collet, as this can damage the fitting or the tubing.

Diverse Industrial and Commercial Applications

The robust design and DOT compliance of this fitting make it indispensable across a broad spectrum of critical applications:

• **Heavy-Duty Trucking and Transportation:** Essential for air brake systems in tractor-trailers, buses, and other commercial vehicles, where safety and reliability are paramount and mandated by DOT regulations. Also used in auxiliary air systems for suspensions, seats, and other pneumatic functions.
• **Construction Equipment:** Integrated into the pneumatic circuits of excavators, loaders, bulldozers, and other heavy machinery for control systems and auxiliary functions.
• **Agricultural Machinery:** Utilized in pneumatic systems for seeders, sprayers, and other farm equipment that rely on air power for operation.
• **Industrial Automation:** Employed in factory automation, robotics, and assembly lines where pneumatic cylinders, valves, and actuators require reliable air supply distribution.
• **Material Handling Systems:** Used in conveyor systems, packaging machinery, and other equipment requiring pneumatic control for movement and manipulation.
• **Specialized Vehicle Manufacturing:** Incorporated into the pneumatic systems of utility vehicles, emergency vehicles, and military equipment.

Performance Parameters and Environmental Resilience

This fitting is engineered to perform reliably under challenging operational conditions:

• **Pressure Ratings:** Designed to withstand the typical operating pressures of air brake systems (up to 150 psi or higher, depending on specific model and safety factors) and burst pressures significantly above these limits, in compliance with FMVSS 571.106.
• **Temperature Range:** Operates effectively across extreme temperature variations, often from -40°F (-40°C) to 200°F (93°C), ensuring performance in diverse climates and industrial environments. The chosen polymer and brass compositions retain their mechanical properties within these ranges.
• **Vibration Resistance:** The secure grip of the push-in collet and the robust threaded connection, often coupled with the flexibility offered by the swivel feature, provide excellent resistance to vibration, preventing loosening and leakage over extended periods of operation.
• **Flow Characteristics:** The internal bore of the fitting is designed to minimize flow restriction, ensuring efficient transmission of air or other pneumatic media, which is crucial for responsive system performance.
• **Resistance to Media:** Primarily designed for compressed air, the material selection also provides resistance to common contaminants found in air systems, such as oil mist and moisture.

Longevity, Maintenance, and Total Cost of Ownership (TCO)

The Brass/Poly DOT Push-In Swivel Male Run Tee is designed for exceptional longevity, contributing to a lower total cost of ownership. The corrosion-resistant brass and durable polymers resist degradation, wear, and fatigue, extending the service life of the fitting. Minimal maintenance is typically required beyond periodic visual inspections for signs of wear, damage, or leaks. The reliability of these fittings reduces unplanned downtime and associated repair costs, leading to significant operational savings over the life of the equipment. Furthermore, the ease of installation and reduced labor costs for assembly contribute to a favorable TCO compared to more labor-intensive fitting types.

Comparison with Alternative Fitting Technologies

The push-to-connect design offers distinct advantages over traditional fitting types:

• **Vs. Compression Fittings:** Compression fittings require tightening a nut to compress a ferrule onto the tubing, demanding specific torque and often specialized tools. They are prone to over-tightening or under-tightening, leading to leaks or tubing damage. Push-in fittings eliminate these variables, offering a consistent, tool-free connection.
• **Vs. Barbed Fittings:** Barbed fittings, typically secured with hose clamps, are generally suitable for lower-pressure applications and can be more susceptible to leaks under vibration or high pressure. Push-in fittings provide a more robust and higher-pressure rated seal.
• **Vs. Flared Fittings:** Flared connections require specialized flaring tools and precise tube preparation, which can be time-consuming and require skilled labor. Push-in fittings simplify this process dramatically.

The speed, ease, and reliability of the push-in mechanism, especially when combined with the swivel feature, position this fitting as a superior choice for modern pneumatic systems, particularly those with critical safety requirements like air brakes.

Safety Protocols and System Integrity

Given its application in air brake systems, the safety implications of this fitting are paramount. Any failure in an air brake fitting can lead to a catastrophic loss of braking capability, posing severe risks to vehicle occupants and the public. The DOT FMVSS 571.106 compliance ensures that this fitting is engineered to prevent such failures, but optimal safety also relies on proper system design, installation, and ongoing maintenance. Users must ensure that the fitting is selected for the correct pressure and temperature ratings of the specific application, that tubing is compatible and correctly prepared, and that all connections are periodically inspected for integrity. Prioritizing these safety protocols guarantees the full performance of the air brake system and the longevity of the vehicle.

Environmental Considerations and Material Sourcing

The materials chosen for this fitting, brass and high-performance polymers, reflect a commitment to durability and potentially, recyclability. Brass is a highly recyclable material, reducing the demand for virgin resources. Many engineering polymers, while more complex to recycle, contribute to product longevity, which inherently reduces waste by extending the operational life of components. Responsible sourcing of materials and efficient manufacturing processes are key considerations in the overall environmental footprint of such critical components, aligning with industry best practices for sustainability.

Conclusion

The Brass/Poly DOT Push-In Swivel Male Run Tee with 1/4 Inch Tube O.D. x 1/8 Pipe Thread represents a pinnacle of engineering for pneumatic and air brake systems. Its thoughtful design, combining the strength and corrosion resistance of brass with the sealing and lightweight advantages of advanced polymers, delivers a product that is not only highly efficient and easy to install but also rigorously compliant with the most demanding safety standards. The push-in connection facilitates rapid assembly, the swivel function provides critical flexibility and stress relief, and the run tee configuration optimizes system layouts. By adhering to DOT FMVSS 571.106, this fitting offers an assurance of unparalleled reliability and safety in heavy-duty and industrial applications. For engineers, technicians, and fleet managers, this fitting is an indispensable component, offering a superior combination of performance, compliance, and total cost efficiency.
