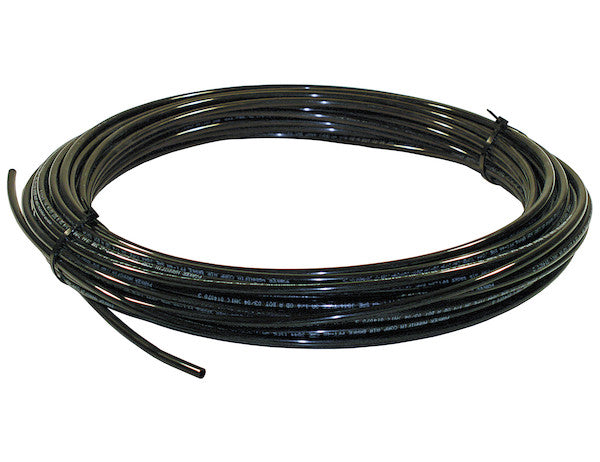

Buyers Products DOT Nylon Air Tubing is made of durable nylon for flexibility and performance. It's available in a variety of lengths, colors, and hole diameters to address any application.
Specifications
| Color | Black |
|---|---|
| Finish | Plain |
| Length | 500 |
| Material | Nylon |
| Tube Outer Diameter | 3/8 |
Advanced Technical Overview: 3/8 Inch Black DOT Nylon Air Tubing for Critical Pneumatic Systems
The 3/8 inch black DOT nylon air tubing, supplied in a substantial 500-foot length, represents a critical component in the design, maintenance, and repair of air brake systems and various other demanding pneumatic applications. Engineered for superior performance and unwavering reliability, this tubing adheres rigorously to the stringent standards mandated by the Department of Transportation (DOT), specifically FMVSS 106 (Federal Motor Vehicle Safety Standard No. 106). This compliance is not merely a regulatory formality; it is an absolute necessity, guaranteeing the product's fitness for purpose in safety-critical environments such as commercial vehicle braking systems, where component failure can lead to catastrophic consequences.
Material Science and Engineering: The Foundation of Performance
At the core of this high-performance tubing is its material composition: an advanced grade of nylon. Specifically, DOT-approved air brake tubing typically utilizes Polyamide 11 (PA11) or Polyamide 12 (PA12). These engineering thermoplastics are celebrated for a combination of intrinsic properties that render them exceptionally well-suited for pneumatic applications in harsh operating conditions. Unlike traditional rubber hoses or other polymer types, nylon offers a unique balance of attributes:
- Exceptional Flexibility: The material’s inherent elasticity allows for tight bend radii without kinking or compromising structural integrity, facilitating complex routing within confined spaces, common in vehicle chassis and industrial machinery. This flexibility is maintained across a broad temperature spectrum, a crucial factor for mobile applications exposed to diverse climates.
- High Burst and Working Pressure Ratings: Nylon's robust molecular structure provides superior resistance to internal pressure. This tubing is designed to safely operate within the typical pressure ranges of air brake systems (up to 150 psi or higher, depending on wall thickness), with a substantial safety factor to account for pressure spikes and fatigue. The burst pressure significantly exceeds the working pressure, ensuring a wide margin of safety.
- Outstanding Abrasion and Impact Resistance: Commercial vehicles and industrial environments often subject components to constant rubbing, impacts from road debris, and general mechanical stress. Nylon's toughness and high tensile strength enable it to withstand these abuses far better than many alternative materials, prolonging service life and reducing the frequency of replacement.
- Superior Chemical Resistance: The tubing exhibits excellent resistance to a wide array of chemicals commonly encountered in automotive and industrial settings. This includes petroleum-based products like diesel fuel, hydraulic fluids, engine oil, and grease, as well as road salts, diluted acids, and alkaline solutions. This chemical inertness prevents degradation, swelling, or embrittlement, maintaining the tubing's mechanical properties over time.
- Broad Temperature Operating Range: This black nylon tubing is formulated to perform reliably across extreme thermal variations, typically from -40°F (-40°C) to +200°F (+93°C). This extensive range ensures consistent performance whether operating in sub-zero winter conditions or the high-heat environments of engine bays and undercarriage applications.
- UV and Ozone Resistance (Black Pigmentation): The black color of the tubing is not merely aesthetic. It incorporates carbon black as a UV stabilizer, which provides excellent resistance to degradation caused by prolonged exposure to ultraviolet radiation from sunlight and atmospheric ozone. This is vital for exterior applications where the tubing is exposed to the elements, preventing material embrittlement, cracking, and premature failure.
- Low Moisture Absorption: While nylon can absorb some moisture, the grades used for air brake tubing are specifically engineered to minimize this. Low moisture absorption helps maintain dimensional stability, mechanical strength, and flexibility, preventing swelling or changes in performance under varying humidity levels.
Precision Dimensions and Form Factor
The specification of a 3/8 inch outer diameter (O.D.) is a standard dimension for various pneumatic control and auxiliary air lines, as well as certain primary air brake circuits. This precise outer diameter ensures compatibility with an extensive range of industry-standard push-to-connect (PTC) fittings, compression fittings, and other connection methodologies. The dimensional consistency across the entire 500-foot length is crucial for creating leak-proof connections and maintaining system integrity.
The 500-foot length provides significant value for commercial users. It allows for large-scale installations, efficient bulk cutting for multiple applications, and minimizes waste compared to purchasing shorter, pre-cut segments. This bulk format is ideal for fleet maintenance operations, truck and trailer manufacturers, industrial assembly lines, and large-scale pneumatic system installations, offering both economic and logistical advantages.
Applications: Where Reliability is Non-Negotiable
The primary and most critical application for DOT-compliant nylon air tubing is in vehicular air brake systems. This includes, but is not limited to:
- Heavy-Duty Trucks and Tractors: Connecting air tanks to brake valves, chambers, and other components, ensuring the reliable transmission of pneumatic pressure for braking.
- Commercial Trailers: Extending air brake circuits from the tractor to the trailer's braking components, including anti-lock braking systems (ABS).
- Buses and Coaches: Integral for both service brakes and parking brake systems.
- Off-Highway and Construction Equipment: Used in braking systems for excavators, loaders, dump trucks, and other heavy machinery.
Beyond braking systems, the robust properties of this tubing make it suitable for a multitude of auxiliary and general industrial pneumatic applications:
- Air Suspension Systems: Supplying air to air springs for vehicle leveling and ride comfort.
- Pneumatic Control Systems: Routing air to operate various auxiliary functions such as door mechanisms, transmission controls, fifth wheel locking, and accessory activation.
- Trailer Auxiliary Air: Powering dump gates, landing gear, and other trailer functions.
- General Industrial Pneumatics: In factories and workshops for air tools, robotic systems, and other machinery requiring compressed air for operation.
- Instrumentation and Process Control: Where precise and reliable air pressure transmission is essential for monitoring and controlling industrial processes.
Installation and System Integration Best Practices
Proper installation is paramount to leveraging the full performance capabilities and ensuring the longevity of DOT nylon air tubing. Key considerations include:
- Clean and Square Cuts: When cutting the tubing to length, it is imperative to use a dedicated tubing cutter that produces a clean, burr-free, and perpendicular cut. Irregular or angled cuts can compromise the seal in push-to-connect fittings and lead to leaks.
- Fitting Compatibility: Ensure that the chosen fittings (push-to-connect, compression, or reusable) are compatible with 3/8 inch O.D. nylon tubing and are rated for the intended pressure and temperature. DOT-approved fittings are also essential for air brake applications.
- Proper Routing: Tubing should be routed to minimize stress and prevent kinking. Avoid sharp bends that exceed the tubing's minimum bend radius. Secure the tubing with appropriate clamps or ties at regular intervals to prevent excessive movement, vibration-induced fatigue, and contact with sharp edges or hot surfaces (e.g., exhaust systems, turbochargers).
- Protection from Abrasions: In areas prone to abrasion, such as where tubing passes through chassis members or near moving parts, use protective sleeves, grommets, or convoluted tubing to shield it from wear.
- Contamination Prevention: Keep the interior of the tubing clean and free from debris during installation. Contaminants can damage internal seals of fittings and pneumatic components, leading to system failure.
- Torque Specifications (for Compression Fittings): Adhere strictly to manufacturer's torque specifications for compression fittings to ensure a secure, leak-free connection without over-tightening, which can damage the tubing or fitting.
Quality Control and Compliance
The production of DOT nylon air tubing involves rigorous quality control measures throughout the manufacturing process, from raw material selection to extrusion and final inspection. Each batch is typically subjected to a battery of tests, including burst pressure, tensile strength, cold bend, heat aging, and dimensional tolerance checks, to ensure consistent performance and full compliance with FMVSS 106. Manufacturers often apply indelible markings on the tubing, indicating the manufacturer's name, material type, dimensions, and the DOT certification, providing traceability and assurance of quality.
Economic and Safety Implications
Investing in high-quality, DOT-compliant nylon air tubing, such as this 3/8 inch black 500-foot roll, offers significant long-term economic benefits and enhances operational safety:
- Reduced Downtime and Maintenance: The superior durability and resistance to environmental factors translate to a longer service life, minimizing the need for frequent repairs or replacements. This directly reduces vehicle downtime and associated maintenance costs.
- Enhanced Safety: In air brake systems, reliability is paramount. DOT compliance ensures that the tubing can withstand the demands of braking, contributing directly to safer vehicle operation and preventing potential accidents caused by brake line failures.
- Optimal System Performance: Consistent internal diameter and smooth bore characteristics contribute to efficient airflow, ensuring that pneumatic signals are transmitted without undue pressure drops, thereby optimizing the performance of air brake components and auxiliary systems.
- Cost-Effectiveness of Bulk Purchase: The 500-foot spool offers a lower cost per foot compared to shorter lengths, making it an economically advantageous choice for operations with high volume tubing requirements.
Conclusion
The 3/8 inch black DOT nylon air tubing, provided in a 500-foot length, is more than just a simple conduit for compressed air. It is a precisely engineered component, built upon advanced material science and manufacturing integrity, specifically designed to meet the rigorous demands of safety-critical and high-performance pneumatic systems. Its adherence to DOT FMVSS 106 standards, coupled with its exceptional flexibility, pressure resistance, chemical inertness, and durability across a wide temperature range, makes it the preferred choice for commercial vehicles, heavy equipment, and industrial applications where reliability, safety, and longevity are non-negotiable requirements. For professionals seeking a robust, compliant, and cost-effective solution for their pneumatic tubing needs, this product offers an uncompromising blend of performance and value.
