Buyers Products Union Tees are made of long lasting corrosion- resistant brass and poly. They are designed to meet DOT FMVSS 571.106 air brake performance specifications.
Specifications
| Color | Black |
|---|---|
| Finish | Multiple |
| Fitting Shape | Union Tee |
| Male/Female/Union | Union |
| Material | Multiple |
| Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations (y/n) | Yes |
| Pipe Thread Size | - |
| Swivel (y/n) | No |
| Works with Tube Outer Diameter | 1/4 |

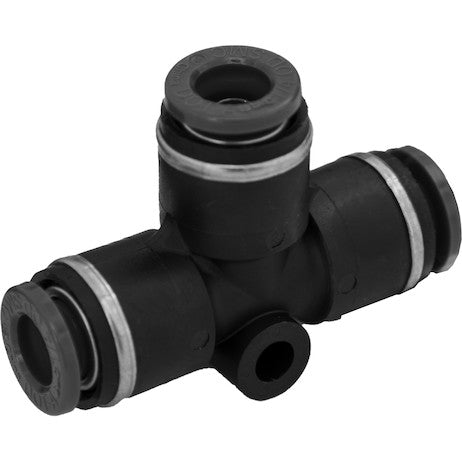

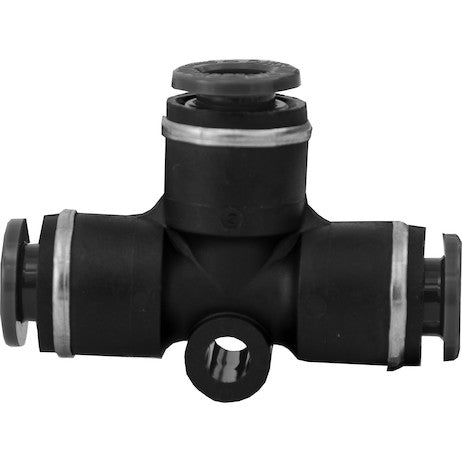

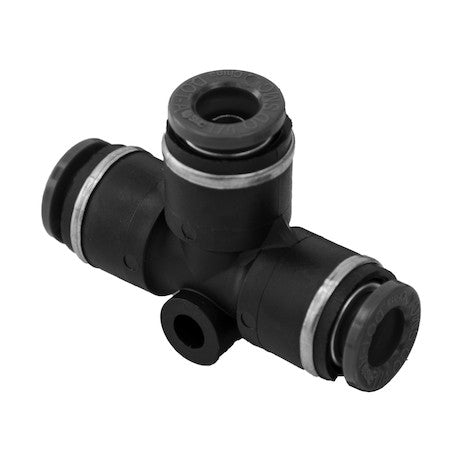

Product Overview: Brass/Poly DOT Push-In Union Tee for 1/4 Inch Tube O.D.
The Brass/Poly DOT Push-In Union Tee, engineered for 1/4 Inch Tube O.D. applications by Buyers Products, is a paramount component in pneumatic systems demanding high reliability, rapid installation, and strict regulatory compliance. This union tee meticulously combines the robust mechanical properties of brass with the chemical and physical advantages of advanced polymers, yielding a durable and high-performing fitting solution. It is specifically designed to facilitate secure and efficient connections within air brake systems and diverse pneumatic circuits, fully adhering to the rigorous performance specifications outlined in DOT FMVSS 571.106. This product underscores a dedication to safety, extended service life, and operational efficiency, making it an indispensable element for commercial vehicle fleets, industrial machinery, and heavy-duty applications.
Material Science: The Synergy of Brass and Polymer Integration
The material composition of the Brass/Poly DOT Push-In Union Tee is a precisely engineered fusion of high-grade brass and advanced polymers, selected to optimize performance under demanding conditions. The metallic components are crafted from brass, an alloy celebrated for its exceptional attributes in fluid power systems. Brass offers inherent corrosion resistance, crucial for environments exposed to moisture, road salts, and atmospheric contaminants, thereby ensuring the fitting's longevity and system integrity. Its superior mechanical strength and ductility allow it to withstand significant operational pressures and vibrational stresses without fatigue. The material's excellent machinability facilitates the creation of precise internal geometries, vital for secure tube retention and leak-free sealing. Furthermore, brass exhibits thermal stability across a wide operational temperature range.
Complementing the brass structure, specialized engineering polymers, typically high-grade nylon (polyamide) or acetal (polyoxymethylene), contribute key functionalities. These polymers are lightweight, reducing overall system mass, and offer superior resistance to a broad spectrum of chemicals, including oils, greases, and hydraulic fluids, preventing material degradation. The polymers' inherent flexibility and resilience are critical for elements like the release collar and sealing O-rings, enabling the push-in mechanism and ensuring a robust, airtight seal against the tubing. The "Black" color of the polymer components often indicates UV stabilization and enhanced durability. This synergistic combination of brass and polymer ensures the fitting delivers robust, long-lasting performance against wear, impact, and environmental challenges encountered in heavy-duty commercial and industrial applications.
DOT FMVSS 571.106 Compliance: The Pinnacle of Air Brake Safety
The Brass/Poly DOT Push-In Union Tee's adherence to DOT FMVSS 571.106 is central to its utility in safety-critical air brake systems. FMVSS 106, specifically "Brake Hoses," establishes stringent performance benchmarks for air brake components in vehicles manufactured for the US market. While primarily addressing hoses, its principles and testing extend to fittings, ensuring their compatibility and reliability within the air brake circuit.
This standard mandates rigorous evaluation of components to endure extreme operational conditions. Tests include pressure retention, burst strength, vibration resistance, extreme temperature cycling, corrosion resistance, and crucially, tube pull-out resistance. The pull-out test is paramount for push-in fittings, verifying that the connection remains secure even under significant tensile loads, preventing air loss during vehicle operation.
Compliance with FMVSS 106 directly impacts public safety, as air brake systems are vital for heavy-duty vehicles. Any component failure can lead to catastrophic braking loss. Buyers Products' explicit "Yes" to meeting these regulations assures users of engineering and testing to the highest safety benchmarks, providing an essential layer of reliability. For commercial vehicle manufacturers and operators, using DOT-approved components is a regulatory imperative, minimizing liabilities and simplifying compliance. This certification underscores the product's professional-grade nature and suitability for applications where failure is unacceptable, validated by a robust regulatory framework.
Push-In Technology: Rapid, Reliable Connections for Enhanced Efficiency
The "Push-In" connection mechanism of this union tee signifies a major advancement in pneumatic system assembly, delivering a powerful combination of speed, ease of use, and unwavering reliability. This technology eliminates the need for specialized tools, substantially cutting assembly time and labor expenses.
At its core, the push-in design integrates a precision-engineered collet (or gripping claw), an elastomeric O-ring seal, and an intuitive release collar. Upon inserting a properly prepared tube (square-cut, deburred, clean) into the fitting, the collet automatically grips the tube's outer diameter, employing angled teeth or wedges to create a secure mechanical lock. Concurrently, the internal O-ring forms a hermetic seal, preventing pressure loss. The design intelligently enhances grip and seal integrity as system pressure increases, pushing the tube further into the collet. Disconnection is achieved by depressing the release collar, which expands the collet, allowing tube removal without damage.
Key advantages include rapid, tool-free installation, leading to reduced labor costs. The reliability stems from a secure, leak-proof connection that withstands specified pressures and vibrations, particularly with compatible DOT-approved nylon or polyurethane tubing. Reusability, subject to tube end integrity, and a compact design further enhance its appeal. Optimal performance hinges on meticulous tube preparation—clean, square, and deburred cuts—and ensuring full insertion until the tube bottoms out. This "Push-In" mechanism provides a robust, user-friendly, and cost-effective solution for creating high-integrity pneumatic connections in dynamic and demanding applications.
Union Tee Configuration and 1/4 Inch Tube O.D. Specifics
The specific "Union Tee" configuration and compatibility with "1/4 Inch Tube O.D." tubing precisely define this fitting's functional role within pneumatic and fluid power systems. A union tee is characterized by its symmetrical design with three identical ports, each accepting a tube of the same outer diameter. Its primary function is to create a three-way connection, enabling a single fluid line to split into two paths, or two lines to merge into one. This versatility is ideal for branching pneumatic circuits, distributing air pressure to multiple components, or collecting return lines. In air brake systems, it facilitates branching air supply to wheel ends or integrating ancillary equipment. The "Union" designation confirms all three connections are for tubing, simplifying installation. The absence of a swivel feature necessitates careful orientation planning during system layout.
The 1/4 inch O.D. compatibility targets applications demanding moderate flow rates and compact sizing. This includes air brake auxiliary lines (e.g., air seats, horns, lift axles), pneumatic control systems in industrial automation for connecting valves, small actuators, and sensors, and instrumentation for precise pressure measurement. It also serves light-duty pneumatic tools and excels in space-constrained installations where compact routing is crucial. The 1/4 inch O.D. balances sufficient flow capacity for auxiliary and control functions with the benefits of a smaller footprint and material efficiency. This specific size and configuration are engineered for seamless integration into systems requiring precise air distribution and reliable connections for control and ancillary pneumatic functions.
Installation Guide and Best Practices for Optimal Performance
Ensuring the long-term reliability and leak-free operation of the Brass/Poly DOT Push-In Union Tee, especially in DOT-regulated air brake systems, relies heavily on meticulous installation. Adherence to these best practices maximizes service life and maintains system integrity.
1. Tube Preparation:
This is critical. Use a specialized tube cutter for plastic tubing to guarantee a perfectly square, burr-free cut, preventing damage to the internal O-ring or collet. Deburr both inner and outer edges carefully. Ensure the tube end is clean and free of contaminants.
2. Tube Insertion:
Insert the tube straight and firmly until it fully bottoms out against the internal stop. A distinct resistance confirms the collet has gripped and the O-ring has sealed. Gently pull the tube to verify secure seating.
3. System Testing:
After installation, pressurize the system and perform a thorough leak check using a soapy water solution; bubbles indicate leaks. Monitor pressure over time for any drops. For air brake systems, conduct full functional tests per manufacturer guidelines.
4. Disconnection (if required):
Depress the release collar firmly and evenly towards the fitting body, then pull the tube straight out. Avoid twisting. If reusing, inspect the tube end for damage and recut if necessary.
5. Routing and Support:
Route tubing to minimize kinks, sharp bends, and excessive stress on fittings. Use appropriate clamps at regular intervals to support tubing, preventing movement and reducing fatigue.
6. Environmental Considerations:
Ensure the system operates within the fitting's specified temperature range. Protect fittings from incompatible chemicals or solvents that could degrade polymer components or O-rings. By diligently following these practices, the Brass/Poly DOT Push-In Union Tee will deliver its designed performance, contributing to safe and efficient pneumatic system operation.
Target Applications and Industries
The Brass/Poly DOT Push-In Union Tee, with its 1/4 Inch Tube O.D. compatibility, is engineered for a diverse range of demanding applications where regulatory compliance, durability, and secure pneumatic connections are essential.
Its primary and most critical domain is Heavy-Duty Trucking and Commercial Vehicles, particularly for air brake systems on trucks, tractor-trailers, and buses. DOT FMVSS 571.106 compliance makes it vital for auxiliary air lines (e.g., air seats, horns, lift axles) where 1/4-inch tubing is common.
In Construction Equipment (excavators, loaders), it supports pneumatic controls amidst dust, dirt, and vibration. Agricultural Machinery (tractors, harvesters) benefits from its durability and corrosion resistance in challenging environments.
Beyond vehicular use, it's highly applicable in Industrial Automation and Pneumatics, connecting control valves, small actuators, sensors, and instrumentation in factory settings, robotics, and assembly lines. Its quick-connect feature enhances efficiency in complex pneumatic panel builds. Other applications include certain Railway Systems and Material Handling Equipment like forklifts, where robust, reliable pneumatic connections are required. The widespread applicability underscores its adaptability and resilience for critical pneumatic functions across diverse operational landscapes.
Maintenance and Longevity for Sustained Performance
While the Brass/Poly DOT Push-In Union Tee is engineered for longevity, routine inspection and proactive maintenance are vital, especially in safety-critical applications like air brake systems. This ensures sustained performance, prevents downtime, and extends system service life.
Regular Inspection:
Periodically conduct visual checks for damage (cracks, abrasions, deformation) on fittings and tubing, particularly where the tube enters the fitting. Perform leak checks using soapy water or an electronic detector; even minor leaks reduce efficiency and can compromise safety. Inspect tubing for wear, kinks, or hardening that could affect the seal.
Environmental Factors:
Consider exposure to extreme temperature cycling, which can stress components. Mitigate constant vibration in heavy-duty applications by proper tube routing and clamping to prevent fatigue. Protect fittings from direct contact with incompatible chemicals or solvents that could degrade polymer components or O-rings.
Replacement Guidelines:
Replace any fitting exhibiting damage, persistent leaks, or material degradation immediately; never attempt repairs in air brake applications. For high-stress or critical systems, consider preventative replacement schedules based on mileage or operating hours. Always use genuine Buyers Products fittings or equivalent DOT-compliant components to ensure compatibility and maintain safety standards. Integrating these maintenance practices ensures the Brass/Poly DOT Push-In Union Tee delivers reliable, safe, and efficient performance throughout its operational life.
Competitive Advantages and Value Proposition
The Brass/Poly DOT Push-In Union Tee distinguishes itself through robust engineering, superior materials, and strict adherence to safety standards, offering significant value to users.
Uncompromised Safety & Compliance:
Its adherence to DOT FMVSS 571.106 is a paramount advantage for commercial vehicles, signifying rigorous testing for pressure integrity, temperature resilience, vibration, and pull-out strength. This provides reduced liability, simplified regulatory adherence, and enhanced operational safety for fleet managers.
Superior Material Construction:
The strategic combination of corrosion-resistant brass and high-performance polymer ensures exceptional durability. Brass provides structural integrity, high-pressure capability, and environmental resistance, while the polymer offers chemical resistance, flexibility for the push-in mechanism, and lighter weight. This dual-material approach maximizes lifespan in harsh conditions.
Efficiency in Installation & Maintenance:
The push-in design accelerates installation by eliminating specialized tools, leading to significant labor cost savings and reduced errors. This efficiency does not compromise reliability.
Reliable, Leak-Free Performance:
Properly installed with DOT-approved tubing, the secure collet grip and O-ring seal ensure a steadfast, leak-proof connection, crucial for maintaining system pressure, consistent air brake performance, and energy efficiency.
Versatility in Critical Applications:
Beyond air brakes, its robust construction and compliance make it ideal for demanding pneumatic applications in construction, agriculture, industrial automation, and material handling where 1/4-inch tubing is utilized.
Brand Reputation:
From Buyers Products, this union tee benefits from an established reputation for high-quality, durable components, reinforcing trust in its performance and support. In essence, this fitting delivers a compelling package of safety, durability, ease of use, and verified performance, representing an intelligent investment for high-integrity, compliant, and efficient pneumatic connection solutions.
