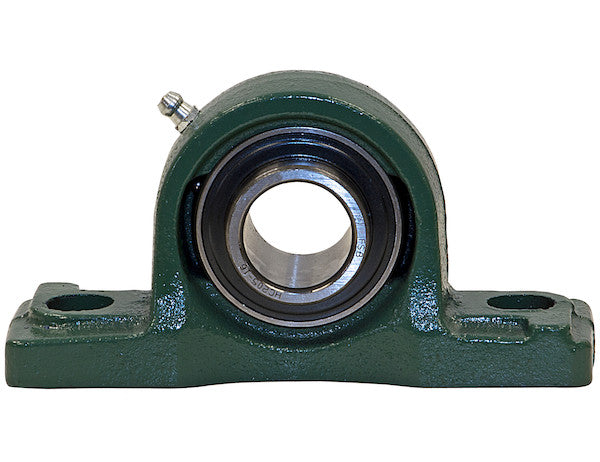

Buyers Products Eccentric Locking Collar Style Pillow Block Bearings are equipped to handle high-speed applications without risking drive shaft slippage. The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the pillow blocks rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The simple 2 hole mounting design makes installation easy even in tight places. The eccentric locking collar means that the drive shaft will not slip, even at high RPMs. The pillow block has a self-aligning design that allows for some shaft misalignment.
Specifications
| Base Thickness | 0.63 |
|---|---|
| Bearing Insert Material | Carbon Steel |
| Bearing Insert Type | Self Aligning |
| Bolt Size | 0.375 |
| Bolt Slot Length | 0.750 |
| Bolt Slot Width | 0.500 |
| Bore Diameter | 0.750 |
| Greasable (y/n) | Yes |
| Housing Finish | Powder-Coat |
| Housing Material | Cast Steel |
| Locking Type | Eccentric Locking Collar |
| Mounting Surface to Shaft Center | 1.313 |
| Overall Depth | 1.50 |
| Overall Height | 2.50 |
| Overall Width | 5.00 |
Advanced Technical Overview: 3/4 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing
This comprehensive technical description details the engineering, performance characteristics, and application suitability of the 3/4 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing. Designed by Buyers Products, this bearing assembly represents a robust solution for demanding industrial applications requiring reliable shaft support, particularly in high-speed operational environments where drive shaft integrity is paramount.
Architectural Design and Material Science
The core of this pillow block bearing’s superior performance lies in its meticulously engineered components and selection of high-grade materials. The assembly comprises a self-aligning bearing insert securely housed within a durable cast steel housing, united by an eccentric locking collar mechanism. Each element is chosen to contribute to the overall resilience, operational efficiency, and extended service life of the unit.
Housing Construction: Cast Steel with Powder-Coat Finish
The bearing housing, a critical component for structural integrity and load distribution, is fabricated from cast steel. Cast steel offers a superior combination of strength, ductility, and impact resistance compared to traditional cast iron, making it exceptionally well-suited for heavy-duty applications where shock loads or vibrational stresses may occur. Its inherent material properties ensure excellent dimensional stability and resistance to deformation under sustained operational forces. The housing's dimensions, including an Overall Height of 2.50 inches, an Overall Width of 5.00 inches, and an Overall Depth of 1.50 inches, are precisely engineered to provide robust support and ease of integration into various machinery frames.
Further enhancing its durability, the cast steel housing features a high-quality Powder-Coat finish. This protective coating provides an excellent barrier against environmental aggressors such as moisture, corrosive chemicals, and abrasive particles. The powder coat not only improves the aesthetic appeal of the bearing unit but, more importantly, significantly extends its lifespan by preventing rust and corrosion, which could otherwise compromise the housing's structural integrity and ultimately lead to premature failure. This finishing process ensures the bearing maintains its operational effectiveness even in challenging industrial conditions.
Bearing Insert: Driveline-Grade Carbon Steel with Self-Aligning Capability
The heart of the pillow block is its bearing insert, manufactured from driveline-grade carbon steel. Carbon steel is selected for its high hardness, wear resistance, and superior load-carrying capabilities. This specific grade is particularly crucial for driveline applications, where bearings are subjected to significant radial and axial forces, as well as torsional stresses from power transmission. The precision machining of the carbon steel races and rolling elements (typically deep groove ball bearings in this configuration) ensures minimal friction and efficient power transfer.
A distinctive feature of this bearing insert is its Self Aligning design. This innovative characteristic allows the inner ring of the bearing to pivot slightly within the outer ring, accommodating a degree of angular misalignment between the shaft and the bearing housing support structure. While ideal shaft alignment is always recommended for optimal bearing life, the self-aligning feature is invaluable for compensating for:
- Initial Installation Misalignment: Imperfections in machinery frames or mounting surfaces, or slight errors during assembly.
- Dynamic Misalignment: Flexing or settling of the machine frame during operation, thermal expansion/contraction, or minor shaft deflections under load.
The self-aligning capability significantly reduces edge loading on the rolling elements, mitigates premature wear, and prevents undue stress concentrations on the shaft and bearing components. This translates directly to enhanced reliability, reduced maintenance frequency, and a substantially longer operational lifespan for the entire driveline system. The bore diameter of 0.750 inches precisely matches the specified shaft diameter, ensuring a snug fit for optimal performance.
Eccentric Locking Collar Mechanism: Unrivaled Shaft Retention
The primary method of shaft attachment in this pillow block bearing is the Eccentric Locking Collar. This mechanism is a key differentiator, providing a secure and vibration-resistant grip on the shaft, particularly vital for "high-speed applications without risking drive shaft slippage."
The eccentric locking collar operates on the principle of wedging. The inner ring of the bearing features an eccentric extension, while the locking collar has a corresponding eccentric bore. When the collar is rotated relative to the bearing's inner ring, the eccentric features engage, creating an interference fit that effectively clamps down on the shaft. A set screw, typically located on the collar, is then tightened to secure the collar's position, preventing it from loosening under dynamic loads or vibrations.
The advantages of an eccentric locking collar over other common locking methods (e.g., set screws directly into the shaft, or concentric collars with adapter sleeves) are substantial:
- Superior Concentricity: Unlike set screws that can cause slight shaft deformation or imbalance, the eccentric locking collar provides a more uniform and concentric grip around the shaft. This is crucial for minimizing vibration and noise, especially at high RPMs.
- Enhanced Holding Power: The wedging action distributes clamping forces more evenly and effectively over a larger surface area of the shaft, resulting in significantly higher resistance to slippage compared to single or double set screws. This direct engagement is paramount for maintaining phase and timing in power transmission systems.
- Resistance to Vibration and Reversing Loads: The inherent mechanical advantage of the eccentric design makes it highly resistant to loosening under severe vibration or frequent changes in shaft direction. This ensures that the drive shaft maintains its position relative to the bearing, preserving alignment and operational integrity.
- Ease of Installation and Removal: While providing a robust lock, the eccentric collar mechanism is designed for relatively straightforward installation and removal, facilitating maintenance and component replacement.
The Locking Type being "Eccentric Locking Collar" is a direct testament to the product's design philosophy centered on maximum reliability and performance in demanding driveline applications where positive shaft retention is non-negotiable.
Maintenance and Longevity: Greasable Design
Proactive maintenance is integral to maximizing the lifespan and efficiency of any rotating machinery component, and this pillow block bearing is engineered with this principle in mind. The designation "Greasable (y/n): Yes" confirms the inclusion of a conveniently located grease fitting. This allows for the periodic replenishment of lubricant within the bearing assembly.
Proper lubrication performs several critical functions:
- Friction Reduction: Creates a hydrodynamic film between the rolling elements and raceways, minimizing metal-on-metal contact and reducing energy loss due to friction.
- Heat Dissipation: Carries away heat generated by friction, preventing thermal degradation of components.
- Corrosion Protection: Forms a protective barrier against moisture and contaminants, safeguarding the bearing surfaces.
- Contaminant Exclusion: The positive pressure created by fresh grease helps flush out old lubricant and prevents the ingress of dust, dirt, and other environmental particles into the bearing chamber.
Regular greasing, as per recommended schedules (which would typically depend on application speed, load, and environmental conditions), ensures continual smooth operation, minimizes wear, and prevents premature bearing failure. The ease of access to the grease fitting simplifies this essential maintenance task, contributing to a lower total cost of ownership over the bearing's service life.
Installation and Integration Features
Ease of installation is a significant consideration in industrial design, impacting both initial setup time and long-term maintenance. This pillow block bearing is designed with a "simple 2 hole mounting design," facilitating straightforward integration into various equipment frames and mounting plates. The physical dimensions supporting this are critical for designers and installers:
- Mounting Surface to Shaft Center: 1.313 inches, providing a standard reference for shaft height.
- Base Thickness: 0.63 inches, ensuring a robust mounting platform.
- Bolt Size: 0.375 inches (3/8 inch), indicating common fastener requirements.
- Bolt Slot Length: 0.750 inches.
- Bolt Slot Width: 0.500 inches.
The inclusion of bolt slots rather than fixed holes offers a crucial advantage: adjustability. These slots allow for minor lateral adjustments during installation, accommodating slight variations in mounting hole centers or enabling precise alignment of multiple bearings supporting a single shaft. This flexibility reduces installation complexity and minimizes the risk of introducing additional stresses into the system due to misaligned mounting points. The standardized bolt size further simplifies hardware procurement and ensures compatibility with common industrial fasteners.
The compact yet robust design, with an Overall Depth of 1.50 inches, allows for effective placement "even in tight places," a common challenge in industrial machinery design where space optimization is critical. The combination of easy mounting, self-aligning capability, and compact dimensions makes this bearing highly adaptable for a wide range of applications.
Performance Capabilities and Application Versatility
This 3/4 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing is engineered for a diverse array of industrial and mobile equipment applications where dependable shaft support and high-speed operation are non-negotiable. Its "driveline-grade steel bearing" and robust "cast steel housing" denote a construction capable of withstanding significant operational stresses.
Typical applications include, but are not limited to:
- Conveyor Systems: Providing critical support for drive and idler shafts in various material handling applications.
- Agricultural Machinery: Supporting power take-off (PTO) shafts, augers, and other rotating components in demanding outdoor environments.
- Construction Equipment: Essential for supporting shafts in compactors, mixers, and other heavy-duty machinery.
- Packaging Machinery: Ensuring precise and reliable operation in high-speed automated lines.
- HVAC Systems: Supporting fan shafts and blower assemblies in industrial air handling units.
- Marine and Automotive Auxiliary Systems: Where robustness against vibration and corrosion resistance are key.
The design ensures minimal operational runout and vibration, contributing to quieter operation and reduced fatigue on adjacent components. The ability to handle "high-speed applications" without "drive shaft slippage" is a direct benefit of the eccentric locking collar, making it suitable for systems where rotational speed is a primary performance parameter. Furthermore, the self-aligning feature significantly reduces the precision required for initial setup, providing tolerance for dynamic operating conditions and extending the bearing’s operational life.
Conclusion
The Buyers Products 3/4 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing represents a high-performance, technically advanced solution for robust shaft support. Its combination of a driveline-grade carbon steel self-aligning bearing insert, a durable powder-coated cast steel housing, and the secure eccentric locking collar mechanism ensures exceptional reliability, prolonged service life, and efficient operation in challenging industrial environments. The integrated grease fitting facilitates straightforward maintenance, while the two-hole mounting design with slotted bolt holes simplifies installation and offers practical adjustability. This bearing is an optimal choice for engineers and procurement specialists seeking a dependable, high-integrity component for critical power transmission and rotational applications where performance under high speeds and resistance to shaft slippage are paramount considerations.
