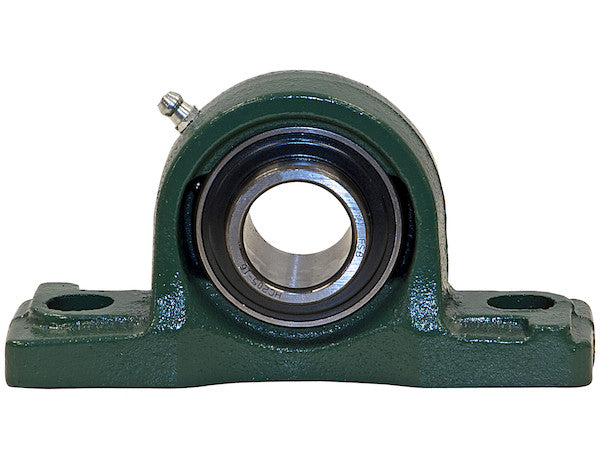

Buyers Products Eccentric Locking Collar Style Pillow Block Bearings are equipped to handle high-speed applications without risking drive shaft slippage. The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the pillow blocks rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The simple 2 hole mounting design makes installation easy even in tight places. The eccentric locking collar means that the drive shaft will not slip, even at high RPMs. The pillow block has a self-aligning design that allows for some shaft misalignment.
Specifications
| Base Thickness | 0.63 |
|---|---|
| Bearing Insert Material | Carbon Steel |
| Bearing Insert Type | Self Aligning |
| Bearing Only Part Number | AR014 |
| Bolt Size | 0.375 |
| Bolt Slot Length | 0.750 |
| Bolt Slot Width | 0.500 |
| Bore Diameter | 0.875 |
| Greasable (y/n) | Yes |
| Housing Finish | Powder-Coat |
| Housing Material | Cast Steel |
| Locking Type | Eccentric Locking Collar |
| Mounting Surface to Shaft Center | 1.438 |
| Overall Depth | 1.50 |
| Overall Height | 2.78 |
| Overall Width | 5.50 |
The 7/8 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing represents a critical component in various industrial and mechanical power transmission systems, engineered for robust performance, reliability, and ease of maintenance. This particular bearing assembly, featuring an eccentric locking collar and a self-aligning design, is meticulously crafted to meet the rigorous demands of applications involving high rotational speeds and significant operational loads, while effectively mitigating common issues such as drive shaft slippage and shaft misalignment.
Advanced Locking Mechanism: The Eccentric Locking Collar
At the core of this pillow block bearing's superior performance is its eccentric locking collar mechanism. Unlike traditional set-screw or taper adapter sleeve designs, the eccentric locking collar provides an exceptionally secure grip on the drive shaft, making it ideally suited for high-speed environments where shaft slippage could lead to severe operational inefficiencies, premature wear, or catastrophic system failure. The principle of operation involves a bore in the bearing insert that is eccentrically machined relative to its outer diameter. The locking collar, with a corresponding eccentric bore, is then fitted onto the shaft and rotated. As the collar rotates, its eccentric bore compresses the inner ring of the bearing onto the shaft. This action creates a robust, interference fit that significantly enhances the frictional grip between the bearing and the shaft, far exceeding the retention capabilities of single or dual set-screw designs. The tight radial clearance established by this locking method minimizes play and vibrations, contributing to stable operation even under dynamic loads and elevated RPMs. This mechanical advantage ensures optimal power transmission efficiency and reduces the likelihood of fretting corrosion, which can occur with less secure locking mechanisms under cyclic loading conditions.
Bearing Insert Composition and Design
The bearing insert, identified by part number AR014, is precision-manufactured from high-grade Carbon Steel. This material selection is paramount for its excellent balance of hardness, toughness, and wear resistance, properties essential for bearing applications. Carbon steel undergoes specific heat treatments and manufacturing processes to achieve the required metallurgical structure that enables it to withstand the stresses of continuous rotation, radial loads, and occasional thrust loads inherent in driveline applications. The "driveline-grade" designation underscores its suitability for transmitting power, where durability and consistent performance are non-negotiable. The internal geometry of the bearing, including its raceways and rolling elements (typically balls, given the self-aligning nature), is optimized for smooth, low-friction rotation. The internal clearance is carefully controlled to accommodate thermal expansion and contraction while maintaining stable operation across varying temperatures. This precise engineering ensures the bearing's longevity and contributes to the overall efficiency of the mechanical system.
Self-Aligning Capability: Mitigating Misalignment Stress
A distinctive feature of this pillow block bearing is its self-aligning capability. This design attribute allows the bearing insert to pivot slightly within the housing, compensating for minor angular misalignments between the shaft and the bearing support structure. In real-world industrial installations, perfect alignment of shafts is often challenging to achieve and maintain due to manufacturing tolerances, frame deflections, and settling over time. Without a self-aligning feature, such misalignments would induce significant bending moments and edge stresses on the bearing's rolling elements and raceways, leading to accelerated wear, increased friction, higher operating temperatures, and ultimately, premature bearing failure. The self-aligning design, therefore, significantly extends the service life of the bearing and the connected machinery by ensuring that the load is distributed evenly across the rolling elements, even when minor shaft deflections occur. This reduces localized stress concentrations, minimizes heat generation, and enhances the kinematic stability of the entire rotating assembly.
Robust Housing Construction: Cast Steel and Powder-Coat Finish
The bearing insert is securely housed within a robust Cast Steel housing, a material chosen for its exceptional strength-to-weight ratio, rigidity, and superior vibration damping characteristics compared to other cast materials. Cast steel offers excellent resistance to impact and shock loads, making the pillow block assembly highly durable and suitable for heavy-duty industrial environments. The casting process allows for complex geometries, ensuring optimal load distribution and structural integrity. The inherent mass of the cast steel also contributes to dissipating heat generated during operation, maintaining a more stable bearing temperature. Furthermore, the housing is finished with a high-quality Powder-Coat. This surface treatment provides a resilient and aesthetically pleasing protective layer that significantly enhances the housing's resistance to corrosion, abrasion, and chemical exposure. Unlike conventional paint, powder coating is thicker, more durable, and environmentally friendly, offering long-term protection against harsh operating conditions, including moisture, dust, and certain corrosive agents, thereby preserving the structural integrity and appearance of the assembly over its operational lifespan.
Precision Dimensions and Mounting Specifics
Understanding the precise dimensions of the pillow block is crucial for seamless integration into existing or new mechanical designs. The Bore Diameter of 0.875 inches (7/8 inch) ensures compatibility with standard shafting of this specific size, a common dimension in many light to medium-duty industrial applications. The Base Thickness of 0.63 inches provides a solid foundation for mounting, contributing to the overall stability and load-bearing capacity of the assembly. The Mounting Surface to Shaft Center dimension of 1.438 inches is a critical parameter for design engineers, defining the height of the shaft centerline relative to the mounting surface. This dimension is essential for calculating belt alignments, gear mesh, and overall machine geometry. The Overall Height of 2.78 inches, Overall Width of 5.50 inches, and Overall Depth of 1.50 inches define the compact footprint of the pillow block, allowing for flexible installation in space-constrained environments. The pragmatic 2-hole mounting design, featuring a Bolt Size of 0.375 inches, along with Bolt Slot Length of 0.750 inches and Bolt Slot Width of 0.500 inches, facilitates straightforward and secure attachment to the machine frame. The slotted holes offer a degree of adjustability during installation, simplifying alignment procedures and accommodating minor variances in mounting hole positions on the equipment frame. Proper torque application for these bolts is critical to ensure a rigid connection and prevent unintended movement of the bearing housing during operation.
Lubrication and Maintenance for Prolonged Service Life
The inclusion of a convenient Greasable fitting underscores the design's emphasis on long-term maintainability and extended service life. Lubrication is a cornerstone of bearing performance, reducing friction, dissipating heat, and preventing corrosion of internal components. The grease fitting allows for easy replenishment of lubricant, pushing out old, contaminated grease and introducing fresh lubricant directly into the bearing's raceways. The type and frequency of lubrication depend on the operating conditions, including speed, load, temperature, and environmental factors such as moisture and dust ingress. Typically, high-quality lithium-based greases with EP (Extreme Pressure) additives are recommended for their excellent performance under varied conditions. Regular re-lubrication, as per established maintenance schedules, is vital for maintaining the protective film between the rolling elements and raceways, thereby preventing metal-to-metal contact, minimizing wear, and ensuring continual smooth operation. This proactive maintenance capability significantly contributes to the low total cost of ownership and maximizes uptime for industrial machinery.
Performance in High-Speed Applications
This pillow block bearing is specifically engineered to excel in high-speed applications. The combination of the secure eccentric locking collar, precision-machined carbon steel bearing insert, and effective lubrication system makes it exceptionally well-suited for such demanding operational profiles. At high RPMs, the forces acting on the bearing components increase significantly. The robust shaft retention prevents fretting corrosion and vibrational resonance, which can be detrimental at elevated speeds. The self-aligning feature ensures that dynamic loads are evenly distributed, preventing localized fatigue. Furthermore, the selection of internal clearance for the rolling elements is crucial; optimal clearance minimizes heat generation due to friction while ensuring kinematic stability. Effective lubrication, facilitated by the greasable design, is critical for managing heat and reducing wear, allowing the bearing to maintain its integrity and performance characteristics even under continuous high-speed rotation. The overall design contributes to reduced noise and vibration, essential for operational comfort and compliance with industrial standards.
Diverse Application Spectrum
The versatility and robust construction of the 7/8 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing make it an indispensable component across a broad spectrum of industries and machinery. Its capability to handle high-speed applications with drive shaft stability makes it ideal for power transmission systems in:
- Conveyor Systems: Providing reliable support for conveyor rollers and drive shafts in manufacturing, packaging, and material handling lines.
- Agricultural Equipment: Supporting various rotating components in machinery such as harvesters, seeders, and tillage equipment, where reliability in harsh, often dirty, environments is crucial.
- Construction Machinery: Used in parts of heavy equipment where robust, self-aligning bearing support is required to withstand shock loads and environmental exposure.
- Industrial Fans and Blowers: Essential for supporting the rotating shafts of large ventilation and exhaust systems, requiring stable high-speed operation.
- Textile Machinery: Contributing to the smooth and precise operation of high-speed spindles and rollers.
- Food Processing Equipment: Where robust, easy-to-maintain components are necessary, although specific sealing and material considerations for hygiene might apply depending on the exact sub-application.
- Packaging Machinery: Ensuring consistent and high-speed operation of automated packaging lines.
- General Industrial Machinery: Any application requiring reliable shaft support that can tolerate some misalignment and operate effectively at higher RPMs.
Commitment to Quality and Performance
Buyers Products maintains a steadfast commitment to engineering excellence, reflected in the meticulous design and selection of materials for this pillow block bearing. The choice of driveline-grade carbon steel for the bearing insert and robust cast steel for the housing, coupled with the protective powder-coat finish, exemplifies a dedication to producing components that offer exceptional durability and longevity. Each specification, from the bore diameter to the mounting dimensions, is precisely controlled to ensure consistent performance and seamless interchangeability. This product is not merely a collection of components; it is an integrated solution engineered to provide optimal shaft support, mitigate operational risks, and contribute to the overall efficiency and reliability of industrial machinery. Its design addresses common challenges in mechanical power transmission, offering a technically sound and economically advantageous solution for demanding applications. By combining high-strength materials, advanced locking technology, and a self-aligning feature, this pillow block bearing stands as a testament to precision engineering, designed to deliver unwavering performance under the most challenging industrial conditions.
