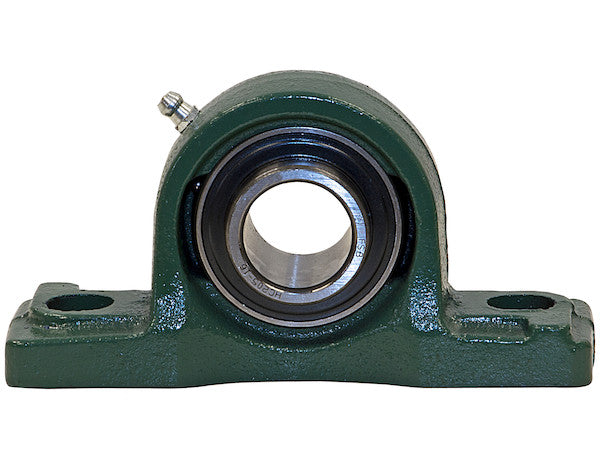

P15 - 15/16 Inch Shaft Diameter Eccentric Locking Collar Style PIllow Block Bearing

Buyers Products Eccentric Locking Collar Style Pillow Block Bearings are equipped to handle high-speed applications without risking drive shaft slippage. The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the pillow blocks rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The simple 2 hole mounting design makes installation easy even in tight places. The eccentric locking collar means that the drive shaft will not slip, even at high RPMs. The pillow block has a self-aligning design that allows for some shaft misalignment.

Specifications

The Buyers Products 15/16 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing represents a pinnacle of precision engineering and robust construction, designed to meet the rigorous demands of industrial and heavy-duty applications. This bearing assembly is meticulously crafted to deliver unparalleled performance, ensuring operational stability and longevity in critical machinery. Engineered with a nominal bore diameter of 0.938 inches, precisely accommodating 15/16 inch shafts, this unit is an indispensable component for systems requiring secure shaft attachment, efficient power transmission, and reliable rotary motion support.

At the core of this bearing's superior performance is its innovative eccentric locking collar mechanism. Unlike conventional locking methods such as setscrew types, the eccentric collar utilizes an offset bore to create a robust interference fit between the bearing inner ring and the shaft. When rotated, the eccentric collar wedges firmly against a corresponding eccentric section on the bearing inner ring, effectively compressing the inner ring onto the shaft. This method ensures significantly higher concentricity between the shaft and the bearing bore, drastically reducing vibration and minimizing the potential for fretting corrosion and premature wear often associated with less precise locking mechanisms. The result is a positive, 360-degree grip around the shaft, providing exceptional holding power that prevents drive shaft slippage even under the most dynamic loads and sustained high rotational speeds. This characteristic is particularly vital in applications where consistent torque transmission and precise angular alignment are paramount, guaranteeing operational integrity and system reliability even at elevated RPMs.

The structural integrity of this pillow block bearing is largely attributable to its robust housing, manufactured from high-quality Cast Steel. Cast steel is selected for its superior mechanical properties, including high tensile strength, excellent impact resistance, and inherent shock absorption capabilities. These characteristics ensure that the bearing housing can withstand significant static and dynamic loads, resist deformation, and endure harsh operational environments without compromising performance. Furthermore, the housing is protected by a durable Powder-Coat finish. This advanced coating provides exceptional resistance against corrosion, abrasion, and chemical exposure, significantly extending the service life of the unit by shielding it from environmental degradation. The powder-coat finish also contributes to the aesthetic appeal of the bearing, making it suitable for applications where appearance is a consideration, while simultaneously offering a hard, resilient layer that resists chipping and scratching. The overall dimensions of the housing, with an Overall Depth of 1.50 inches, an Overall Height of 2.78 inches, and an Overall Width of 5.50 inches, are optimized for space efficiency and integration into various machinery designs, providing a compact yet incredibly strong support structure.

The bearing insert itself is fabricated from premium Carbon Steel, a material renowned for its excellent hardness, wear resistance, and high load-carrying capacity. Carbon steel bearings are exceptionally well-suited for driveline applications where durability and consistent performance under stress are critical. The inherent strength of carbon steel ensures the bearing insert can effectively support radial and axial loads, minimize friction, and maintain its structural integrity over extended periods of operation. Complementing the robust material selection, the bearing features a Self-Aligning design. This critical feature allows the inner ring and rolling elements to pivot within the outer ring, accommodating a degree of angular misalignment between the shaft and the housing. This flexibility is invaluable during initial installation, compensating for minor inaccuracies in mounting surfaces or shaft alignment, thereby simplifying the setup process and reducing installation time. More importantly, in dynamic operating conditions, the self-aligning capability mitigates stresses induced by shaft deflection, thermal expansion, or structural vibrations, preventing premature bearing failure and extending the overall lifespan of both the bearing and the associated machinery. The precise Mounting Surface to Shaft Center distance of 1.438 inches is a crucial dimension for design engineers, enabling accurate calculation of clearances and ensuring proper integration into machine frames.

Ease of maintenance is a significant consideration in industrial equipment, and this pillow block bearing excels in this regard with its integrated grease fitting. This "Greasable" design facilitates routine lubrication, allowing for the convenient introduction of fresh lubricant into the bearing assembly. Regular greasing not only reduces friction and wear but also helps to flush out contaminants, such as dust, moisture, and debris, which can otherwise compromise bearing performance and longevity. Proper lubrication, made simple by the accessible fitting, is key to achieving continuous smooth operation, minimizing frictional losses, and significantly extending the service interval of the bearing, thereby reducing operational downtime and associated maintenance costs. The Bearing Only Part Number, AR015, simplifies ordering and replacement, ensuring continuity of operation with minimal inventory management challenges.

Installation is straightforward thanks to the simple 2-hole mounting design. This configuration offers secure attachment to flat surfaces using standard fasteners. The Bolt Size of 0.375 inches (3/8 inch) is common, allowing for readily available hardware. The elongated Bolt Slot Length of 0.750 inches and a Bolt Slot Width of 0.500 inches provide a degree of adjustability, enabling fine-tuning of the bearing's position during installation to achieve optimal shaft alignment and tension, further enhancing the self-aligning capabilities. The Base Thickness of 0.63 inches provides a solid foundation for mounting, ensuring stability and even distribution of loads from the bearing to the support structure.

The comprehensive design of this pillow block bearing makes it exceptionally versatile across a multitude of industrial sectors. It is ideally suited for applications in material handling systems, such as conveyor belts and roller assemblies, where continuous operation and resistance to shock loads are paramount. In agricultural machinery, it provides robust support for PTO shafts and other rotating components, enduring harsh outdoor environments. Manufacturing and processing equipment, including mixers, fans, and pumps, benefit from its high-speed capabilities and secure shaft retention. Its durability also makes it a preferred choice for power transmission systems in the automotive, textile, and packaging industries. The ability to handle high-speed applications without slippage, combined with its resistance to environmental factors, positions this bearing as a high-reliability component for any demanding rotational machinery.

In summary, the Buyers Products 15/16 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing is a meticulously engineered component that delivers an optimal combination of strength, precision, and operational efficiency. Its driveline-grade Carbon Steel bearing insert, housed within a rugged powder-coated Cast Steel housing, is secured by a high-concentricity eccentric locking collar and supported by a forgiving self-aligning design. The thoughtful inclusion of a grease fitting ensures simplified maintenance and extended service life. For applications demanding unwavering performance, exceptional durability, and steadfast shaft retention under high RPMs and demanding conditions, this pillow block bearing stands as a testament to superior industrial design and manufacturing excellence, offering a dependable solution for critical rotary motion support.
