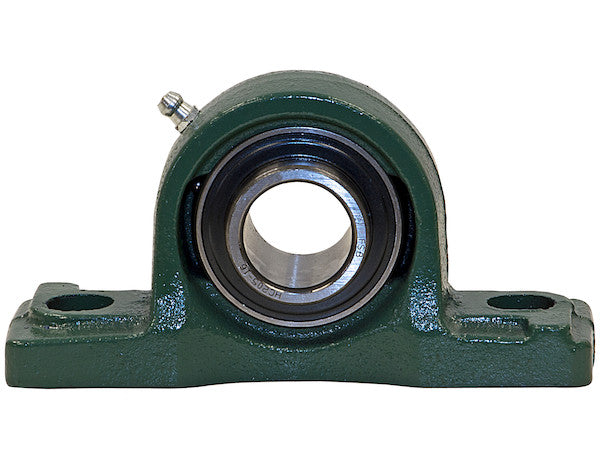

P16 - 1 Inch Shaft Diameter Eccentric Locking Collar Style PIllow Block Bearing

Buyers Products Eccentric Locking Collar Style Pillow Block Bearings are equipped to handle high-speed applications without risking drive shaft slippage. The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the pillow blocks rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The simple 2 hole mounting design makes installation easy even in tight places. The eccentric locking collar means that the drive shaft will not slip, even at high RPMs. The pillow block has a self-aligning design that allows for some shaft misalignment.

Specifications

The 1 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing from Buyers Products represents a meticulously engineered solution designed to meet the rigorous demands of industrial power transmission applications. This comprehensive description delves into the technical intricacies, material science, operational benefits, and application versatility of this specific bearing unit, providing a thorough understanding for engineers, procurement specialists, and maintenance professionals.

Precision Engineering for Uncompromised Performance

At the core of this pillow block bearing's exceptional performance is its precision-machined 1.000-inch bore diameter. This exact bore size is critical for ensuring a perfect fit with standard 1-inch shafts, minimizing rotational runout and vibration. A precise fit is paramount in high-speed applications, where even slight discrepancies can lead to increased wear, premature failure, and reduced operational efficiency. The tight tolerance of the bore ensures optimal interaction with the shaft, allowing the eccentric locking collar to achieve its maximum gripping potential.

Advanced Locking Mechanism: The Eccentric Locking Collar

The defining feature of this bearing is its Eccentric Locking Collar. This advanced locking mechanism provides a superior shaft attachment method compared to traditional set screw designs. The eccentric collar works on the principle of a cam action: as it is rotated relative to the bearing insert, its eccentric bore creates a wedge effect against the shaft, tightening securely around the entire circumference. This 360-degree contact around the shaft offers several critical advantages:

• Enhanced Grip Strength: Unlike set screws that create point contact and can mar the shaft, the eccentric collar distributes clamping force evenly, significantly increasing resistance to axial and rotational slippage, even under severe vibratory loads or torque reversals. This is particularly crucial for maintaining shaft integrity and preventing movement at high RPMs, a key highlight of this product.
• Reduced Shaft Damage: The uniform clamping force minimizes the risk of shaft damage, fretting corrosion, and stress concentrations that can occur with localized set screw pressure. This preserves the shaft's surface finish and structural integrity, extending its lifespan.
• Improved Concentricity: By gripping the shaft evenly, the eccentric collar helps maintain optimal concentricity between the shaft and the bearing bore, contributing to smoother operation, reduced vibration, and quieter performance.
• Simplified Installation and Removal: While providing a robust lock, the eccentric collar mechanism is designed for straightforward installation and removal using a simple wrench, reducing maintenance downtime.

This sophisticated locking type ensures that the drive shaft remains firmly in position, mitigating the risks associated with slippage, which can lead to catastrophic system failures and costly downtime in demanding industrial environments.

Driveline-Grade Carbon Steel Bearing Insert

The bearing insert, crafted from Driveline-Grade Carbon Steel, is engineered for superior load-bearing capabilities and extended service life. Carbon steel is selected for its excellent balance of hardness, strength, and fatigue resistance, properties essential for components subjected to continuous dynamic loads. This specific grade indicates a material optimized for applications where torque transmission and rotational stability are critical, such as in vehicle drivelines or industrial power transmission systems.

Key properties of the Carbon Steel bearing insert include:

• High Tensile Strength: Ability to withstand significant pulling forces without deformation or fracture.
• Excellent Wear Resistance: Minimizes material loss due to friction, ensuring dimensional stability and extended operational periods.
• Fatigue Life: Engineered to endure millions of stress cycles, crucial for applications involving continuous rotation and varying loads.
• Impact Resistance: Capability to absorb sudden shocks and impacts without brittle failure.

Furthermore, the bearing insert is of the Self-Aligning Type. This feature is paramount for accommodating potential angular misalignment between the shaft and the bearing housing. Such misalignments can arise from several factors, including:

• Manufacturing Tolerances: Inherent inaccuracies in the fabrication of machinery frames or shafts.
• Installation Errors: Challenges in achieving perfect alignment during the initial setup.
• Structural Deflection: Flexing or settling of the machine frame under operational loads.
• Thermal Expansion/Contraction: Changes in component dimensions due to temperature fluctuations.

The self-aligning capability allows the bearing insert to pivot slightly within its housing, ensuring that the rolling elements (not explicitly detailed but implied for a "bearing insert") always carry their load uniformly. This prevents localized stress concentrations on the bearing races and rolling elements, which would otherwise lead to premature wear and failure. By compensating for misalignment, the self-aligning design significantly extends the bearing's operational life and reduces internal friction, contributing to overall system efficiency and reliability.

Robust Cast Steel Housing with Durable Powder-Coat Finish

The external housing of this pillow block bearing is constructed from Cast Steel, a material renowned for its exceptional strength, rigidity, and shock absorption characteristics. While the initial description mentioned "cast iron," the specifications clarify "Cast Steel," which offers distinct advantages in demanding applications. Cast steel provides superior ductility and impact resistance compared to cast iron, making it less prone to brittle fracture under sudden loads or impacts. Its robust nature ensures the bearing's structural integrity, protecting the internal components from external forces and environmental damage.

The housing undergoes a Powder-Coat finish, providing a protective layer that enhances the unit's longevity and aesthetic appeal. Powder coating is a highly durable finishing process that applies a dry powder through an electrostatic charge, then cures it under heat to form a hard finish. Benefits of this finish include:

• Superior Corrosion Resistance: Offers an excellent barrier against moisture, chemicals, and corrosive agents, critical for bearings operating in harsh or outdoor environments.
• Enhanced Abrasion Resistance: Protects against scratches, chips, and general wear and tear, maintaining the housing's structural integrity and appearance over time.
• Impact Resistance: The flexibility of the cured powder coat makes it less likely to chip or crack under impact compared to conventional liquid paints.
• Environmental Friendliness: Powder coating is a more environmentally conscious choice, as it contains no volatile organic compounds (VOCs).

This combination of a robust cast steel housing and a resilient powder-coat finish ensures that the pillow block bearing can withstand challenging operational conditions, including exposure to dirt, dust, moisture, and varying temperatures, without compromising its performance or structural integrity.

Ease of Maintenance and Installation

The design incorporates practical features aimed at simplifying maintenance and installation procedures:

• Greasable (Yes) with Included Grease Fitting: Proper lubrication is vital for extending bearing life and ensuring smooth, efficient operation. The inclusion of a grease fitting allows for straightforward periodic re-lubrication, facilitating the replenishment of grease to the rolling elements and races. Regular greasing reduces friction, dissipates heat, and flushes out contaminants, all of which contribute to the bearing's longevity and reliability. The "ease of maintenance for continual smooth operation" is directly addressed by this thoughtful design element.
• Simple 2-Hole Mounting Design: The housing features a straightforward 2-hole mounting pattern. This design simplifies installation, requiring fewer fasteners and less precise alignment during mounting compared to multi-bolt configurations. The specified Bolt Slot Length (0.750 inches) and Bolt Slot Width (0.500 inches) for a 0.375-inch Bolt Size provide flexibility, allowing for minor adjustments during mounting to achieve optimal positioning and accommodate variations in mounting surfaces. This ease of installation is particularly beneficial "even in tight places," minimizing labor time and installation complexity.
• Mounting Surface to Shaft Center (1.438 inches): This precise dimension is crucial for design engineers when integrating the bearing into machinery. It ensures predictable shaft positioning relative to the mounting base, facilitating accurate component spacing and alignment within the overall mechanical system.

Dimensions and Structural Integrity

The physical dimensions of the pillow block bearing are carefully proportioned for optimal performance and integration:

• Overall Width (5.50 inches): Indicates the lateral extent of the housing, providing stability for the bearing unit.
• Overall Height (2.78 inches): Represents the vertical dimension, determining how high the shaft centerline is above the mounting surface.
• Overall Depth (1.50 inches): The front-to-back measurement, influencing the bearing's footprint.
• Base Thickness (0.63 inches): The robust thickness of the mounting base ensures firm attachment to the support structure, distributing loads effectively and preventing deformation under operational stresses.

These precise dimensions are not arbitrary; they are the result of engineering considerations to ensure the bearing provides adequate support, withstands operational forces, and integrates seamlessly into various mechanical setups.

Diverse Industrial Applications

The combination of high-speed capability, robust construction, self-aligning feature, and secure eccentric locking makes this 1-inch shaft diameter pillow block bearing highly versatile across numerous industrial sectors. Typical applications include, but are not limited to:

• Conveyor Systems: Supporting drive and idler shafts in material handling systems where continuous operation and high reliability are critical.
• Agricultural Machinery: Providing robust support for shafts in cultivators, harvesters, and other farm equipment operating in challenging outdoor conditions.
• Fans and Blowers: Ensuring stable and high-speed rotation of fan shafts in ventilation and air handling units.
• Textile Machinery: Maintaining precise shaft alignment and high-speed operation in spinning, weaving, and finishing equipment.
• Packaging Machinery: Contributing to the smooth and precise movement of components in automated packaging lines.
• Food Processing Equipment: Where reliable, easy-to-maintain components are essential, even though specific washdown capabilities are not detailed, the robust construction provides a solid foundation.
• General Industrial Power Transmission: Any application requiring reliable support for rotating shafts, particularly those experiencing vibrations, varying loads, or needing precise shaft retention.

Its ability to handle high-speed applications without drive shaft slippage makes it an ideal choice for systems where dynamic stability is paramount.

Conclusion

The Buyers Products 1 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing is a testament to advanced mechanical engineering, designed for unparalleled performance and durability. From its driveline-grade carbon steel bearing insert with self-aligning capabilities to its robust cast steel housing protected by a powder-coat finish, every component is selected and engineered to ensure maximum operational efficiency and longevity. The eccentric locking collar stands out as a superior mechanism, providing secure, slip-free attachment even at high RPMs, thereby safeguarding critical machinery and minimizing downtime. With its ease of installation, simplified maintenance through a greasable design, and precise dimensional specifications, this pillow block bearing offers a reliable, high-performance solution for a broad spectrum of demanding industrial rotational applications. Investing in this bearing means investing in operational continuity, reduced maintenance costs, and superior mechanical integrity for your industrial systems.
