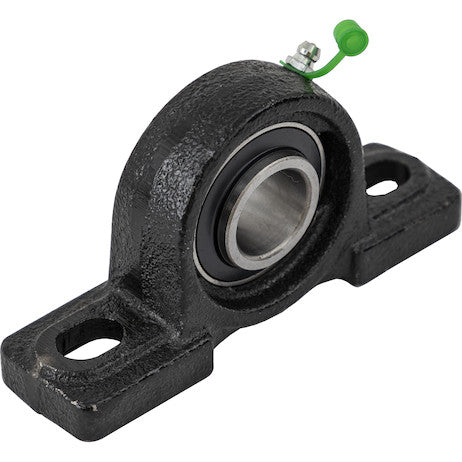

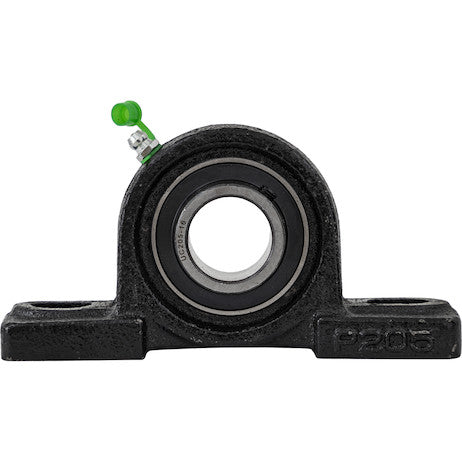

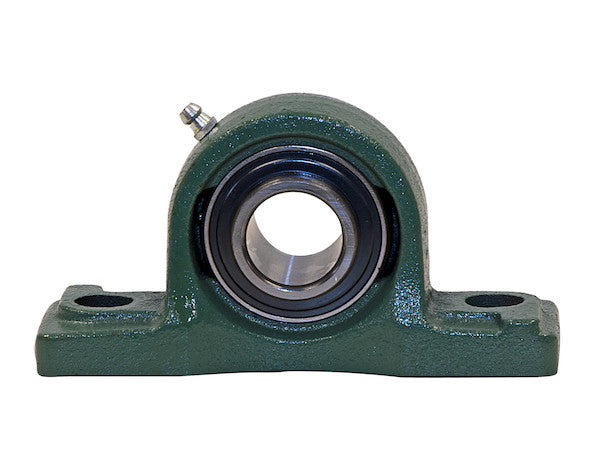

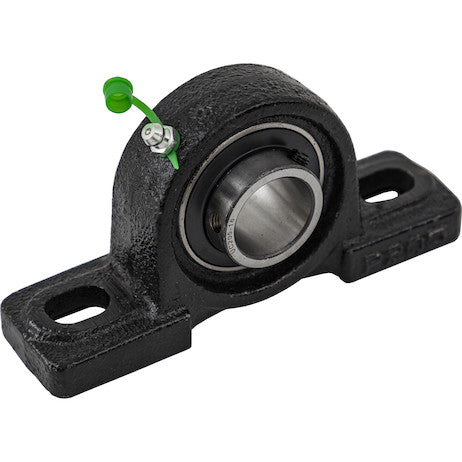

P16SCR - 1 Inch Shaft Diameter Set Screw Style Pillow Block Bearing

Buyers Products Set Screw Style Pillow Block Bearings are built for long life with simple installation and maintenance. The driveline-grade steel bearing is mounted in a cast iron housing which helps make the pillow blocks rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The simple 2 hole mounting design makes installation easy even in tight places. Its set screw design ensures that shaft slippage is avoided.

Specifications

The 1-inch Shaft Diameter Set Screw Style Pillow Block Bearing represents a critical component in mechanical power transmission systems, engineered for robust performance and extended operational longevity. This detailed exposition delves into the technical characteristics, design principles, and application benefits of this specific bearing unit, providing an in-depth understanding for engineers, maintenance professionals, and procurement specialists.

At its core, a pillow block bearing provides support for a rotating shaft while maintaining the integrity and alignment of the mechanical system. This particular model, with its 1-inch bore diameter and set screw locking mechanism, is specifically designed for environments demanding secure shaft retention and ease of maintenance, all within a compact and durable footprint.

Architectural Design and Material Science

The structural integrity and performance longevity of this pillow block bearing are predominantly derived from its meticulously selected materials and optimized design. The housing, specified as Cast Steel, forms the primary external support structure. Cast steel is an alloy renowned for its superior tensile strength, yield strength, and ductility compared to traditional cast iron, offering enhanced resistance to shock loads and fatigue. This material selection ensures that the housing can withstand significant static and dynamic forces, effectively dampening vibrations and reducing noise levels during operation. Furthermore, the housing is treated with a Powder-Coat finish. This advanced coating technique provides a durable, uniform, and aesthetically pleasing surface that significantly enhances corrosion resistance. The powder-coat finish acts as a barrier against moisture, chemicals, and abrasive particles, thereby extending the operational life of the housing, particularly in challenging industrial environments where exposure to corrosive agents is common.

Nestled within this robust housing is the bearing insert, fabricated from high-grade Carbon Steel. Carbon steel is chosen for its excellent hardness, wear resistance, and load-carrying capacity, making it ideal for bearing applications where continuous rotational motion under varying loads is expected. The specific categorization as a "driveline-grade steel bearing" underscores its suitability for power transmission applications where reliability is paramount. Crucially, the bearing insert is of the Self-Aligning type. This intrinsic design feature allows the inner ring, along with the rolling elements, to pivot slightly within the outer ring, compensating for initial misalignment between the shaft and the housing, or for dynamic deflections of the shaft during operation. This self-aligning capability is pivotal in preventing edge loading on the rolling elements, which can lead to premature bearing failure, and thus significantly extends the operational lifespan of the assembly.

Precision Engineering: Bore Diameter and Mounting

The specified Bore Diameter of 1.000 inch (or 25.4 mm) dictates the precise shaft size this bearing is designed to accommodate, ensuring a snug fit critical for minimizing vibration and optimizing power transmission efficiency. The mounting geometry is characterized by a simple 2-hole design, facilitating straightforward installation. The Bolt Size of 0.500 inch (1/2 inch) indicates the recommended fastener diameter for securing the pillow block to its mounting surface. Complementing this, the Bolt Slot Length of 0.750 inch and Bolt Slot Width of 0.500 inch provide a degree of adjustability during installation. These slotted holes allow for minor positional adjustments of the bearing, aiding in achieving optimal alignment and reducing installation complexity, particularly in retrofit scenarios or when mounting on slightly irregular surfaces. The Base Thickness of 0.63 inch contributes to the overall stability and rigidity of the mounted unit, ensuring that load forces are effectively distributed across the mounting platform. The critical dimension of Mounting Surface to Shaft Center, measured at 1.438 inches, is essential for system designers to ensure proper clearances and integration with other machinery components, maintaining precise shaft height relative to the mounting plane.

Secure Shaft Retention: The Set Screw Mechanism

The Locking Type employed in this pillow block bearing is the Set Screw mechanism. This method of shaft attachment is widely utilized for its effectiveness in providing positive shaft retention and preventing rotational slippage, especially in applications subject to moderate loads and vibrations. The set screws are typically threaded into the inner ring of the bearing at an angle, and when tightened, they exert pressure directly onto the shaft. This creates an interference fit, locking the bearing securely to the shaft. A primary advantage of the set screw design is its ease of installation and removal, requiring only standard hex wrenches. It offers reliable concentricity and minimizes the potential for fretting corrosion between the shaft and the bearing inner ring. While highly effective, proper torquing of the set screws is essential to ensure maximum holding power and prevent damage to the shaft. This locking mechanism stands as a testament to the design's focus on both performance and practical utility.

Maintenance and Operational Longevity

A key factor contributing to the "long life with simple installation and maintenance" ethos of this product is its Greasable design, denoted by the "Yes" specification for a grease fitting. The inclusion of a grease fitting, typically a zerk fitting, allows for periodic replenishment of lubricant directly into the bearing insert. This capability is paramount for sustained performance. Lubrication serves multiple critical functions: reducing friction between rolling elements and raceways, dissipating heat, preventing corrosion of internal components, and acting as a barrier against contaminant ingress.

The ability to re-grease the bearing significantly extends its operational life by maintaining the integrity of the lubricant film. Regular maintenance, guided by manufacturer recommendations and application-specific operating conditions (e.g., speed, load, temperature, environmental contaminants), ensures that the bearing continues to operate smoothly and efficiently. The selection of an appropriate grease type, considering factors like viscosity, operating temperature range, and extreme pressure (EP) additives, is crucial for optimizing the bearing's lifespan. Proactive lubrication schedules not only reduce the likelihood of premature failure but also contribute to lower overall maintenance costs and reduced unscheduled downtime.

Dimensional Analysis for System Integration

Understanding the physical dimensions of the pillow block bearing is crucial for effective system design and integration. The Overall Depth of 1.50 inches, Overall Height of 2.78 inches, and Overall Width of 5.50 inches provide a complete dimensional profile. These measurements enable engineers to accurately assess the space requirements for mounting the bearing within an existing or new machinery framework. The relatively compact dimensions are indicative of a design optimized for installations where space might be at a premium. The overall height is important for ensuring adequate clearance and maintaining the desired shaft center height relative to the machine’s chassis. The overall width gives an indication of the footprint on the mounting surface. These precise dimensions contribute to the versatility of the bearing, allowing for integration into a broad spectrum of mechanical assemblies.

Applications and Industrial Utility

The technical specifications and robust design of the 1-inch Shaft Diameter Set Screw Style Pillow Block Bearing make it exceptionally well-suited for a diverse array of industrial applications. Its capacity to support rotating shafts, coupled with its durability and ease of maintenance, positions it as an indispensable component in numerous mechanical systems.

Typical applications include, but are not limited to:

• Conveyor Systems: Essential for supporting drive and idler shafts in belt, roller, and chain conveyors across manufacturing, logistics, and mining industries. The robust cast steel housing and self-aligning bearing are critical for handling continuous loads and potential misalignments.
• Agricultural Machinery: Used in various farm equipment like hay balers, spreaders, and harvesters, where shafts are subjected to heavy loads, shock impacts, and exposure to dirt, dust, and moisture. The powder-coat finish and greasable design offer necessary protection and maintainability.
• Material Handling Equipment: Integral to machinery such as hoists, winches, and lifting platforms, providing reliable support for shafts that manage lifting and pulling forces.
• Textile Machinery: Employed in various stages of textile production, supporting rollers and drive shafts where smooth, continuous operation is crucial for product quality.
• Packaging Machinery: Crucial for the precise and consistent movement of components in automated packaging lines, ensuring high throughput and reliability.
• Industrial Fans and Blowers: Supporting impellers and drive shafts in air movement systems, where stable and low-vibration operation is necessary for efficiency and longevity.
• Pumps and Compressors: Utilized in certain pump and compressor designs to support auxiliary shafts, particularly where robust support and maintainability are prioritized.
• Food Processing Equipment (Non-Direct Contact): While carbon steel and powder-coat might not be suitable for direct food contact zones, these bearings can be used in drive mechanisms and support structures outside the primary processing areas.

The ability to manage moderate to heavy radial and axial loads, resist environmental degradation, and facilitate straightforward maintenance procedures makes this pillow block bearing a cost-effective and reliable solution for optimizing operational uptime and minimizing total cost of ownership across these sectors. Its design particularly excels in scenarios where precise shaft positioning is required, but slight dynamic misalignments are unavoidable, and where a secure, positive lock onto the shaft is essential to prevent rotational slippage, even under vibratory conditions.

Installation Best Practices

For optimal performance and longevity, proper installation of the 1-inch Shaft Diameter Set Screw Style Pillow Block Bearing is paramount. Key considerations include:

1. Shaft Preparation: Ensure the shaft surface is clean, free of burrs, rust, and foreign particles. Lightly chamfering the shaft end can facilitate easier installation without damaging the bearing bore.
2. Mounting Surface Preparation: The mounting surface must be flat, clean, and rigid enough to support the bearing and associated loads without deflection.
3. Alignment: While the self-aligning feature compensates for minor misalignments, strive for the best possible initial alignment. Gross misalignment will still reduce bearing life. Use shims if necessary to achieve proper height and parallelism.
4. Securing to Shaft: Position the bearing on the shaft. Then, carefully tighten the set screws alternately and incrementally until the bearing is firmly secured to the shaft. Refer to manufacturer's recommended torque specifications to prevent over-tightening or under-tightening, which can lead to slippage.
5. Mounting to Structure: Insert the 0.500-inch bolts through the slotted holes. Tighten the mounting bolts evenly. The slotted holes allow for final minor adjustments before full tightening to ensure no undue stress is placed on the housing or shaft.
6. Initial Lubrication: Although typically factory-lubricated, a fresh charge of appropriate grease via the grease fitting upon installation is often recommended to purge any contaminants and ensure a full fill.

Long-Term Maintenance Protocol

To maximize the operational life and efficiency of the bearing, adherence to a structured maintenance protocol is essential:

1. Re-lubrication Schedule: Establish a regular re-lubrication schedule based on the bearing’s operating conditions (speed, load, temperature, environment) and the specific grease type used. Higher speeds, heavier loads, higher temperatures, or contaminated environments will necessitate more frequent re-lubrication. The greasable design facilitates this critical aspect of maintenance.
2. Lubricant Selection: Always use a high-quality grease compatible with the bearing type and application. Consult bearing manufacturers' guidelines for recommended grease specifications (e.g., NLGI consistency, base oil type, additive package).
3. Visual Inspection: Periodically inspect the bearing housing for signs of damage, cracks, or excessive wear. Check for lubricant leakage, which could indicate seal failure (if seals are present).
4. Temperature Monitoring: Monitor bearing operating temperature. An unexpected rise in temperature can indicate insufficient lubrication, overloading, or impending failure.
5. Vibration Analysis: In critical applications, vibration analysis can be employed to detect early signs of bearing degradation, allowing for predictive maintenance rather than reactive repairs.
6. Fastener Integrity: Regularly check the tightness of both the set screws on the shaft and the mounting bolts. Vibrations can cause fasteners to loosen over time, leading to operational issues.

Conclusion

The 1-inch Shaft Diameter Set Screw Style Pillow Block Bearing stands as a robust, technically sound, and versatile solution for a multitude of industrial power transmission requirements. Its combination of a durable cast steel housing with a powder-coat finish, a self-aligning carbon steel bearing insert, and a secure set screw locking mechanism ensures reliable performance even in demanding conditions. The integrated greasing capability facilitates straightforward maintenance, directly contributing to an extended service life and reduced total cost of ownership. Engineered for simple installation and dependable operation, this pillow block bearing exemplifies a commitment to quality and efficiency in mechanical component design. For applications requiring precise shaft support, secure retention, and long-term reliability with manageable maintenance, this bearing offers a superior engineering solution.
