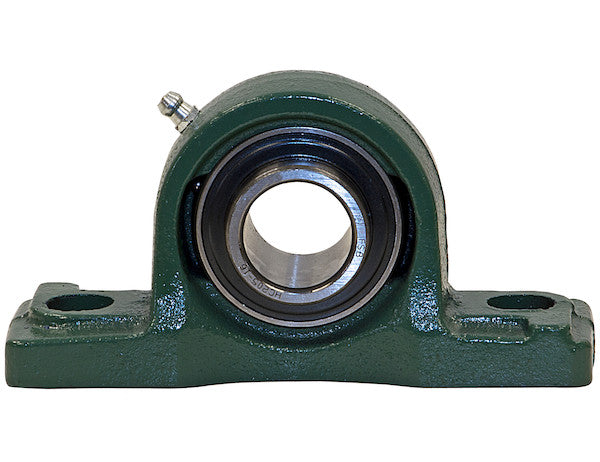

Buyers Products Eccentric Locking Collar Style Pillow Block Bearings are equipped to handle high-speed applications without risking drive shaft slippage. The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the pillow blocks rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The simple 2 hole mounting design makes installation easy even in tight places. The eccentric locking collar means that the drive shaft will not slip, even at high RPMs. The pillow block has a self-aligning design that allows for some shaft misalignment.
Specifications
| Base Thickness | 0.69 |
|---|---|
| Bearing Insert Material | Carbon Steel |
| Bearing Insert Type | Self Aligning |
| Bolt Size | 0.500 |
| Bolt Slot Length | 0.813 |
| Bolt Slot Width | 0.656 |
| Bore Diameter | 1.125 |
| Greasable (y/n) | Yes |
| Housing Finish | Powder-Coat |
| Housing Material | Cast Steel |
| Locking Type | Eccentric Locking Collar |
| Mounting Surface to Shaft Center | 1.688 |
| Overall Depth | 1.88 |
| Overall Height | 3.31 |
| Overall Width | 6.50 |
Advanced Engineering and Performance: The 1-1/8 Inch Eccentric Locking Collar Pillow Block Bearing
The 1-1/8 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing represents a critical component in the realm of industrial power transmission and rotary motion applications. Engineered for environments demanding exceptional reliability and operational stability, this bearing assembly combines robust material science with innovative mechanical design to deliver superior performance. Designed specifically for drive shafts with a nominal diameter of 1.125 inches (1-1/8 inch), it offers a steadfast solution for supporting rotating shafts, facilitating precise alignment, and ensuring consistent operation even under challenging conditions characterized by high rotational speeds and dynamic loads.
Understanding the Core Function of Pillow Block Bearings
Pillow block bearings, also known as Plummer block bearings, are mounted bearing units that provide support for a rotating shaft with the bearing axis parallel to the mounting surface. They consist of a housing, typically cast iron or cast steel, that contains a bearing insert. These units are indispensable in a multitude of industrial applications, including conveyor systems, agricultural machinery, fans, blowers, textile machinery, and material handling equipment, where they accommodate radial and thrust loads while maintaining shaft position. The choice of a pillow block over other bearing types often hinges on ease of installation, maintenance accessibility, and the ability to handle static or dynamic misalignment, which this specific model excels at.
The Mechanical Advantage of the Eccentric Locking Collar
A defining feature of this particular pillow block bearing is its eccentric locking collar mechanism. Unlike traditional locking methods such as set screws or adapter sleeves, the eccentric locking collar provides a concentric grip around the shaft, significantly enhancing its holding power and reducing the likelihood of slippage. This mechanism operates by engaging a cammed collar onto an eccentric extension of the inner ring of the bearing. When rotated, the eccentric feature of the collar wedges against a corresponding eccentric groove on the bearing's inner ring, creating an interference fit that firmly clamps the bearing to the shaft. This tight, uniform grip is particularly critical in high-speed applications where shaft vibration and torsional stresses are prevalent. The absence of direct contact points from set screws minimizes shaft damage and fretting corrosion, contributing to a longer operational life for both the shaft and the bearing. The eccentric locking collar ensures a true concentric lock, which is paramount for maintaining balance and preventing dynamic runout, thereby preserving the integrity of the driveline system.
Optimized for High-Speed Applications and Dynamic Stability
The design of Buyers Products Eccentric Locking Collar Style Pillow Block Bearings specifically targets high-speed applications. The robust locking mechanism is fundamental to this capability, preventing rotational slip between the shaft and the bearing's inner race, which can lead to excessive heat generation, wear, and eventual failure. Furthermore, the inherent stability provided by the concentric grip minimizes dynamic imbalance, a critical factor at elevated RPMs. The selection of driveline-grade carbon steel for the bearing insert material is another key enabler for high-speed performance. Carbon steel possesses excellent hardness, wear resistance, and fatigue strength, ensuring that the rolling elements and races can withstand the cyclical stresses and frictional forces associated with rapid rotation. This meticulous material selection, combined with precision manufacturing tolerances, guarantees consistent performance and extends the operational envelope of the bearing in demanding high-velocity industrial settings.
Robust Construction: Driveline-Grade Carbon Steel Bearing and Cast Steel Housing
The structural integrity and longevity of this pillow block bearing are directly attributable to its high-quality material composition. The bearing insert, crafted from driveline-grade carbon steel, is engineered to endure significant radial and axial loads while maintaining its dimensional stability and surface finish over extended periods of operation. Carbon steel is renowned for its strength-to-weight ratio and resilience against impact and abrasion, making it an ideal choice for the demanding environment of power transmission. Encasing this high-performance bearing is a robust cast steel housing. While earlier versions or general descriptions might refer to "cast iron," the explicit specification of "Cast Steel" in the technical data highlights a superior choice for durability and strength. Cast steel offers enhanced tensile strength, ductility, and impact resistance compared to cast iron, making the housing exceptionally rugged and less prone to brittle fracture under shock loads or extreme operating conditions. The inherent rigidity of cast steel also contributes to superior vibration dampening, protecting the internal bearing components from harmful resonant frequencies and ensuring smoother, quieter operation. Furthermore, the housing is finished with a durable powder-coat, providing an additional layer of protection against corrosion, abrasion, and environmental contaminants, thereby extending the overall service life of the unit and maintaining its aesthetic integrity in harsh industrial environments.
Precision Engineering for a 1-1/8 Inch Shaft Diameter
The precision bore diameter of 1.125 inches (1-1/8 inch) is a critical specification, ensuring a precise fit with standard industrial shafts. This exact sizing is paramount for achieving the intended performance characteristics, particularly with the eccentric locking collar. A precise fit minimizes play between the shaft and the bearing, which is essential for preventing fretting, reducing vibration, and maximizing the efficiency of power transmission. The careful adherence to such tolerances in manufacturing ensures that the eccentric locking mechanism can achieve its full clamping force effectively, guaranteeing shaft retention even under varying loads and speeds. This specific bore size is commonly utilized across a broad spectrum of industrial machinery, making this pillow block bearing a versatile and readily applicable solution for many common drive line applications.
The Advantage of a Self-Aligning Design
A key functional attribute of this pillow block bearing is its self-aligning design. The bearing insert is spherically mounted within the housing, allowing for angular displacement (misalignment) of the shaft relative to the bearing housing without imparting undue stress on the bearing elements or the shaft. This feature is invaluable during initial installation, compensating for minor mounting inaccuracies, and also throughout operation, accommodating shaft deflection or structural distortions that might arise from varying loads, thermal expansion, or foundation settling. By automatically adjusting to these misalignments, the self-aligning design prevents premature wear on the rolling elements and races, reduces frictional losses, mitigates potential shaft binding, and significantly extends the operational lifespan of both the bearing and the entire mechanical system. This inherent flexibility reduces the need for extremely precise mounting, simplifying installation procedures and lowering associated labor costs.
Simplified Installation and Proactive Maintenance
Ease of installation is a significant practical benefit of this pillow block bearing. The simple 2-hole mounting design facilitates quick and straightforward integration into existing or new mechanical setups. The standardized bolt slot dimensions (0.813 inch length, 0.656 inch width) and a recommended bolt size of 0.500 inch allow for compatibility with common industrial fastening hardware and provide a degree of adjustability during alignment. The ergonomic design ensures that installation can be accomplished efficiently, even in constrained spaces, thereby minimizing downtime during assembly or replacement. Beyond installation, the inclusion of an integrated grease fitting underscores a commitment to proactive and simplified maintenance. Regular lubrication is paramount for the optimal performance and longevity of any bearing. The grease fitting allows for easy replenishment of lubricant, ensuring that the rolling elements and races remain adequately lubricated, thereby reducing friction, dissipating heat, and preventing premature wear. Adhering to a proper lubrication schedule, often specified by the application or lubricant manufacturer, ensures continuous smooth operation and significantly extends the bearing's service life, mitigating the risk of unexpected failures and costly repairs.
Detailed Mechanical Specifications and Their Practical Implications
The comprehensive specifications provided offer crucial insights for engineers and maintenance professionals. The Base Thickness of 0.69 inches ensures a solid and stable mounting foundation, capable of absorbing operational forces without distortion. The Bolt Size of 0.500 inches, paired with Bolt Slot Length of 0.813 inches and Bolt Slot Width of 0.656 inches, allows for secure fastening and minor adjustment during installation. The Bore Diameter of 1.125 inches confirms the precise fit for 1-1/8 inch shafts. The Mounting Surface to Shaft Center distance of 1.688 inches (42.88 mm) is a vital dimension for shaft height alignment and system design. The Overall Depth of 1.88 inches, Overall Height of 3.31 inches, and Overall Width of 6.50 inches define the compact envelope of the bearing unit, critical for space-constrained applications. These precise dimensions, combined with the Cast Steel Housing Material and Powder-Coat Housing Finish, confirm the unit's robust construction and suitability for demanding industrial environments. The Greasable (y/n): Yes feature confirms ease of maintenance, while the Eccentric Locking Collar and Self Aligning Bearing Insert Type underscore its advanced mechanical attributes for secure, stable, and adaptable performance.
Applications and Industries Benefiting from this Bearing
The robust design and advanced features of this 1-1/8 inch eccentric locking collar pillow block bearing make it exceptionally versatile across a wide array of industrial applications. Its capability to handle high speeds and resist shaft slippage makes it ideal for power transmission systems in manufacturing plants, including conveyor belt drives, industrial fans, blowers, and pumps. In the agricultural sector, it finds use in various machinery such as harvesters, tillers, and irrigation equipment where reliability and resistance to harsh environmental conditions are paramount. Material handling equipment, including roller conveyors, sorters, and packaging machinery, also benefits from its stable and low-maintenance operation. The self-aligning feature is particularly advantageous in applications where frame flex or slight misalignments are unavoidable, such as in construction equipment or mobile industrial units. Its durable construction ensures a long operational life in environments prone to dust, moisture, and varying temperatures, minimizing the need for frequent replacements and reducing overall operational costs.
Longevity, Reliability, and Total Cost of Ownership
Investing in a high-quality bearing like the 1-1/8 inch Eccentric Locking Collar Style Pillow Block Bearing from Buyers Products translates into significant long-term benefits. The combination of a robust cast steel housing, a durable carbon steel bearing insert, the secure eccentric locking mechanism, and the protective powder-coat finish ensures exceptional longevity and reliability. This extended operational life minimizes unexpected breakdowns, reduces maintenance interventions, and lowers the total cost of ownership over the equipment's lifespan. The ease of lubrication and self-aligning capability further contribute to its cost-effectiveness by reducing labor time for installation and maintenance, and by preventing premature wear on associated components. For operations where uptime is critical and component failure carries high costs, this bearing provides a dependable foundation for sustained productivity.
Conclusion: A Superior Choice for Demanding Applications
In summary, the 1-1/8 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing from Buyers Products stands as a testament to advanced bearing technology. Its unique combination of a high-performance eccentric locking collar, self-aligning capabilities, premium driveline-grade carbon steel bearing, and a rugged powder-coated cast steel housing makes it an outstanding choice for high-speed, demanding industrial applications. Engineered for precision, durability, and ease of maintenance, this bearing not only ensures secure shaft retention without slippage but also accommodates potential misalignments, extending the life of both the bearing and the machinery it supports. For professionals seeking a reliable, high-performance solution that minimizes downtime and optimizes operational efficiency, this eccentric locking collar pillow block bearing represents a superior and strategically sound investment.
