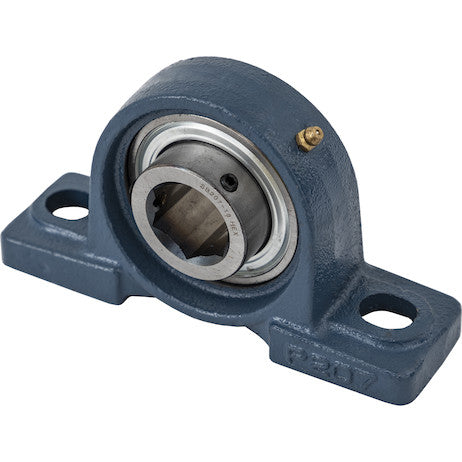

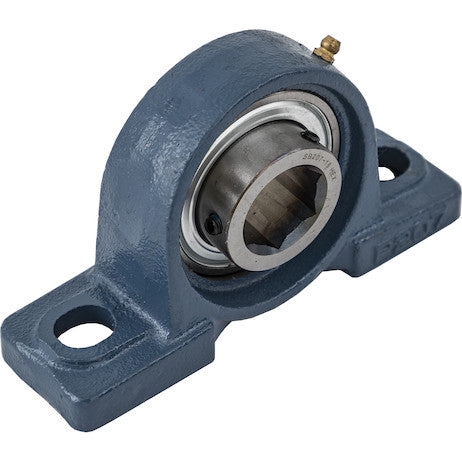

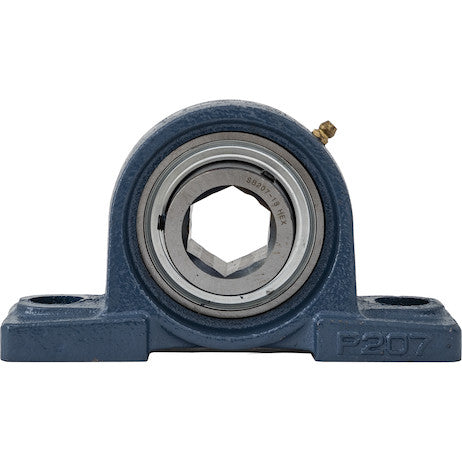

P18HEX - 1-1/8 Inch Hex Shaft Set Screw Style Pillow Block Bearing

Buyers Products Set Screw Style Pillow Block Bearings are built for long life with simple installation and maintenance. The driveline-grade steel bearing is mounted in a cast iron housing which helps make the pillow blocks rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The simple 2 hole mounting design makes installation easy even in tight places. Its set screw design ensures that shaft slippage is avoided.

Specifications

The 1-1/8 Inch Hex Shaft Set Screw Style Pillow Block Bearing represents a robust and highly functional solution for a wide array of industrial and commercial mechanical power transmission applications. Engineered for optimal performance, durability, and ease of maintenance, this bearing unit is meticulously designed to support and precisely locate rotating shafts, ensuring smooth and efficient operation within diverse machinery. Its specialized hex bore and set screw locking mechanism address critical design requirements for specific shaft profiles and operational demands, setting it apart as a preferred component in many systems.

At its core, a pillow block bearing, also known as a plumb block, is a pedestal used to provide support for a rotating shaft with the help of compatible bearings and various accessories. The housing itself is typically bolted to a foundation, allowing the shaft and its components to rotate freely. This particular model, with its cast iron housing, offers exceptional structural rigidity and resistance to external forces, crucial for applications involving significant radial loads or environments prone to impact. Cast iron, known for its high compressive strength and damping capabilities, effectively minimizes vibration and noise, contributing to a more stable and quieter operational environment for the entire mechanical system.

The bearing insert material, identified as carbon steel, is integral to the unit's performance characteristics. Carbon steel bearings are selected for their excellent balance of hardness, wear resistance, and cost-effectiveness. The "driveline-grade" designation signifies that this steel is specifically chosen and treated to withstand the demanding conditions typical of driveline systems, which often involve high rotational speeds, fluctuating loads, and dynamic stresses. This material choice ensures a long operational life and sustained performance under challenging industrial conditions. Furthermore, the bearing insert is of the "self-aligning" type. This crucial feature enables the bearing to compensate for initial static misalignment between the shaft and the bearing housing, or for dynamic misalignment that may occur during operation due to shaft deflection or structural inaccuracies. Self-alignment capability significantly reduces stress concentrations on the bearing elements, thereby extending bearing life and preventing premature failure, which is a common issue with rigidly mounted bearings in imperfectly aligned systems.

A defining characteristic of this particular model is its 1-1/8 inch hex shaft bore diameter. The hexagonal bore is a specialized design choice that offers a superior method of power transmission compared to traditional round bores in certain applications. A hex shaft, when paired with a matching hex bore bearing, provides a positive, non-slip drive, eliminating the need for keys, splines, or press fits that can be prone to wear or loosening over time. This direct engagement ensures robust torque transfer and prevents rotational slippage, which is paramount in applications where precise timing, consistent power delivery, and high torque loads are critical. The 1.125-inch (1-1/8 inch) dimension is a standard size for various agricultural, construction, and specialized industrial equipment, indicating its suitability for a broad range of machinery where hex shafts are employed.

The "Set Screw" locking type further enhances the integrity of the shaft-to-bearing connection. In this design, one or more set screws are threaded into the inner ring of the bearing and tightened directly against the shaft. This creates a secure, positive grip that effectively prevents axial movement and rotational slippage of the shaft within the bearing bore. While simple in concept, the set screw mechanism is highly effective for many applications, especially where occasional removal or repositioning of the shaft is required, offering a balance of secure retention and relative ease of disassembly compared to interference fit methods. The simplicity of this locking mechanism also contributes to the "simple installation and maintenance" aspect highlighted in the initial description.

Maintenance is simplified by the inclusion of a grease fitting, confirming its "Greasable" nature. Regular lubrication is critical for maximizing bearing life and ensuring smooth operation. The grease fitting (typically a Zerk fitting) allows for easy replenishment of lubricant, purging old grease and introducing fresh lubricant to the rolling elements, thereby reducing friction, dissipating heat, and providing a protective barrier against contaminants. This proactive maintenance capability is vital for mitigating wear and preventing premature failure due to inadequate lubrication, particularly in environments exposed to dust, moisture, or varying temperature conditions. The powder-coat finish on the cast iron housing provides an additional layer of protection against corrosion and environmental degradation, further contributing to the unit's long life and rugged durability.

The mounting design emphasizes practicality and reliability. Featuring a "simple 2 hole mounting design," the pillow block can be securely fastened to a mounting surface. The specified "Bolt Size" of 0.500 inches indicates the diameter of the bolts required for secure installation, while the "Bolt Slot Length" of 0.813 inches and "Bolt Slot Width" of 0.656 inches provide crucial dimensions for the mounting hardware. These slotted holes are beneficial as they offer a degree of adjustability during installation, allowing for fine-tuning of the bearing's position along the mounting plane and accommodating minor variations in the mounting structure. This flexibility is particularly advantageous in environments where precision alignment might be challenging or where pre-drilled holes in the support structure may not be perfectly spaced. The "Base Thickness" of 0.75 inches ensures a robust and stable foundation for the bearing, capable of withstanding significant operational loads without deformation.

Dimensional specifications are critical for integration into existing or new designs. The "Overall Height" of 3.66 inches, "Overall Width" of 6.56 inches, and "Overall Depth" of 1.88 inches define the physical envelope of the pillow block unit. These measurements are essential for designers and engineers to ensure proper clearance, fit, and spatial allocation within a machinery layout. The "Mounting Surface to Shaft Center" distance of 1.875 inches is a vital parameter, representing the height from the base of the housing to the centerline of the shaft. This dimension is crucial for ensuring correct shaft height alignment within a system and for calculating appropriate mounting pedestal heights, maintaining design integrity across an assembly.

Applications for this 1-1/8 inch hex shaft set screw style pillow block bearing are extensive, particularly in industries where robust, positive drive, and self-aligning capabilities are paramount. It is commonly found in agricultural machinery such as cultivators, harvesters, seeders, and conveyors, where hex shafts are prevalent for transmitting power to various implements. Its ability to handle dynamic loads and misalignments makes it ideal for rugged outdoor environments. Beyond agriculture, it finds utility in industrial conveyors, material handling systems, packaging machinery, textile equipment, and specialized processing machinery where a non-slip, high-torque connection between the shaft and bearing is necessary. The driveline-grade steel and cast iron housing provide the resilience needed for continuous operation in demanding settings.

From an operational performance standpoint, this bearing is designed to manage substantial radial loads, which are forces acting perpendicular to the shaft axis. While not primarily designed for heavy thrust (axial) loads, its robust construction allows for incidental axial forces common in many applications. The self-aligning feature, as previously mentioned, significantly contributes to its longevity by distributing loads evenly across the rolling elements, even under minor deflections or mounting inaccuracies. This reduces localized stress and heat buildup, which are primary causes of premature bearing failure. The set screw locking mechanism, while effective, generally performs optimally in applications with primarily radial loading and moderate rotational speeds, where vibrations are controlled. For extreme high-speed or highly dynamic load applications, alternative locking methods might be considered, but for its intended use, the set screw design offers excellent reliability and cost-effectiveness.

The manufacturing process adheres to rigorous quality control standards to ensure each pillow block bearing meets the specified technical parameters and performance expectations. The precision machining of the cast iron housing and the high-grade carbon steel bearing insert guarantees dimensional accuracy and consistent operational characteristics. The integration of a durable powder-coat finish not only enhances aesthetic appeal but also provides a superior protective layer against environmental corrosives, extending the product's functional lifespan and maintaining its structural integrity in harsh conditions. This commitment to quality ensures that the bearing delivers reliable service over its extended operational life cycle, minimizing downtime and maintenance interventions for the end-user.

In summary, the 1-1/8 Inch Hex Shaft Set Screw Style Pillow Block Bearing is a meticulously engineered component that combines robust material selection, intelligent design features, and practical maintenance considerations. Its cast iron housing, driveline-grade carbon steel self-aligning insert, hexagonal bore for positive torque transfer, and reliable set screw locking mechanism make it an indispensable solution for supporting rotating hex shafts in diverse industrial and agricultural applications. With its straightforward installation, simplified lubrication via a grease fitting, and inherent durability, this pillow block bearing stands as a testament to efficient mechanical design, offering dependable performance and longevity in demanding operational environments.
