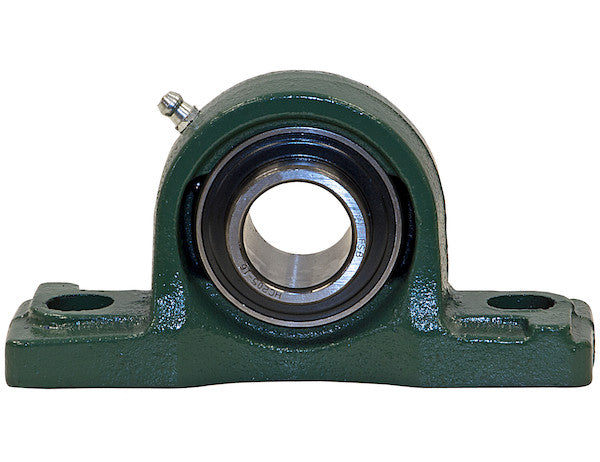

Buyers Products Eccentric Locking Collar Style Pillow Block Bearings are equipped to handle high-speed applications without risking drive shaft slippage. The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the pillow blocks rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The simple 2 hole mounting design makes installation easy even in tight places. The eccentric locking collar means that the drive shaft will not slip, even at high RPMs. The pillow block has a self-aligning design that allows for some shaft misalignment.
Specifications
| Base Thickness | 0.69 |
|---|---|
| Bearing Insert Material | Carbon Steel |
| Bearing Insert Type | Self Aligning |
| Bolt Size | 0.500 |
| Bolt Slot Length | 0.813 |
| Bolt Slot Width | 0.656 |
| Bore Diameter | 1.250 |
| Greasable (y/n) | Yes |
| Housing Finish | Powder-Coat |
| Housing Material | Cast Steel |
| Locking Type | Eccentric Locking Collar |
| Mounting Surface to Shaft Center | 1.688 |
| Overall Depth | 1.88 |
| Overall Height | 3.66 |
| Overall Width | 6.50 |
The 1-1/4 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing represents a critical component in mechanical power transmission systems, engineered for robust performance and exceptional reliability. This bearing unit is meticulously designed to accommodate a nominal shaft diameter of 1.250 inches, ensuring precise fitment and optimal power transfer. Its construction integrates several advanced features, making it a superior choice for applications demanding high operational speeds, resistance to dynamic loads, and extended service life without compromising ease of maintenance or installation.
Advanced Locking Mechanism: The Eccentric Locking Collar
Central to this pillow block bearing's performance is its innovative eccentric locking collar mechanism. Unlike traditional set screw locking methods, which rely on localized pressure points that can mar the shaft and provide less secure retention, the eccentric locking collar employs a cam-action principle. This method involves a collar with an eccentrically machined bore that, when rotated in the direction of shaft rotation, wedges firmly onto the shaft and against a matching eccentric inner ring extension on the bearing insert. This creates a secure, 360-degree concentric grip around the shaft, effectively eliminating the risk of slippage even under high RPM conditions, sudden stops, or reversing loads. The result is a more uniform distribution of clamping force, significantly reducing shaft fretting corrosion and wear, thereby preserving the integrity of both the shaft and the bearing assembly over prolonged operational periods. The positive, non-damaging grip achieved by the eccentric locking collar ensures that power transmission remains consistent and efficient, preventing costly downtime associated with shaft movement or bearing failure.
Robust Construction and Material Science
The durability and reliability of this pillow block bearing are intrinsically linked to its choice of premium materials and robust engineering. The housing, specified as Cast Steel, provides exceptional structural rigidity and resistance to shock loads and vibrations. Cast steel is known for its superior strength-to-weight ratio, excellent castability, and ability to dampen vibrations more effectively than other housing materials, contributing significantly to reduced noise and smoother operation. The housing’s generous dimensions, with an Overall Width of 6.50 inches, Overall Height of 3.66 inches, and Overall Depth of 1.88 inches, are indicative of its substantial build, designed to withstand the rigors of demanding industrial environments. Furthermore, the housing features a resilient Powder-Coat finish. This advanced coating technique applies a dry powder that is then cured under heat, resulting in a hard, durable layer far superior to conventional liquid paints in terms of chip, scratch, and corrosion resistance. This protective finish extends the bearing's operational life, particularly in outdoor or chemically aggressive settings, ensuring its aesthetic and functional integrity.
Internally, the bearing insert itself is fabricated from high-grade Carbon Steel, a material chosen for its inherent strength, hardness, and wear resistance. This "driveline-grade steel" designation signifies a material optimized for high-stress applications where dynamic loads and continuous operation are common. The carbon steel composition provides the necessary metallurgical properties to withstand the constant rolling and sliding contact within the bearing, minimizing friction and heat generation, and thereby maximizing bearing life. The robust nature of this bearing insert material, combined with precision manufacturing, ensures that the internal rolling elements maintain their geometric integrity and performance characteristics over extended periods of service.
Self-Aligning Capability for Enhanced Performance
A critical design feature that enhances the longevity and operational flexibility of this pillow block bearing is its self-aligning capability. Bearing misalignment, whether static (from imperfect installation) or dynamic (from frame distortion under load), is a common issue in mechanical systems that can lead to premature bearing failure, excessive heat, and increased energy consumption. This self-aligning design allows the bearing insert to pivot within its housing, accommodating angular misalignment of the shaft up to several degrees. This flexibility ensures that the load is distributed evenly across the rolling elements, preventing localized stress concentrations that would otherwise accelerate fatigue and wear. By absorbing these misalignments, the bearing operates under optimal conditions, significantly extending its service life, reducing maintenance requirements, and improving overall system efficiency. The ability to automatically compensate for minor shaft misalignments simplifies installation, reduces the need for ultra-precise mounting, and contributes to the bearing's robust performance in real-world applications where perfect alignment is often challenging to achieve.
Precision Dimensions and Mounting Versatility
The specific dimensions of this pillow block bearing are engineered for precise integration into diverse industrial setups. The 1.250-inch Bore Diameter (equivalent to 1-1/4 inches) ensures compatibility with standard shafting, facilitating easy replacement and system design. The Mounting Surface to Shaft Center dimension of 1.688 inches is crucial for calculating drive line heights and ensuring proper clearances in machinery design. The robust Base Thickness of 0.69 inches provides a stable and strong foundation for mounting. For installation, the bearing incorporates a simple 2-hole mounting design, which enhances ease of installation, even in confined spaces where complex multi-bolt patterns would be impractical. The generous Bolt Slot Length of 0.813 inches and Bolt Slot Width of 0.656 inches accommodate common half-inch (0.500-inch) bolts and provide a degree of adjustability, allowing for minor positional corrections during mounting to achieve optimal alignment. This design philosophy underscores the product’s focus on user-friendliness without compromising on structural integrity or secure fastening.
Maintenance and Lubrication for Extended Service
Effective lubrication is paramount for the long-term performance and reliability of any bearing, and this pillow block unit is explicitly designed with maintainability in mind. The inclusion of a readily accessible grease fitting (Greasable: Yes) allows for periodic re-lubrication, which is essential for replenishing the lubricant supply, flushing out contaminants, and mitigating friction and heat generation. Proper lubrication forms a crucial film between the rolling elements and raceways, preventing direct metal-on-metal contact, which is the primary cause of wear. The recommended lubrication schedule will depend on the application’s operating conditions, including speed, load, temperature, and environmental factors. Utilizing the correct type and quantity of high-quality industrial grease is vital to maximize bearing life. Regular greasing not only reduces wear but also helps to seal the bearing against ingress of dust, moisture, and other particulate contaminants, further safeguarding the internal components and contributing to the "continual smooth operation" mentioned in the product description.
Performance in High-Speed and Demanding Applications
The combination of the eccentric locking collar, self-aligning bearing insert, and robust cast steel housing makes this pillow block bearing exceptionally well-suited for high-speed applications. In such environments, the prevention of drive shaft slippage is non-negotiable, as even minor relative movement between the shaft and the inner ring can lead to severe fretting, overheating, and catastrophic failure. The eccentric locking mechanism provides a superior concentric grip, ensuring steadfast shaft retention even under the most demanding rotational speeds. This steadfast connection is critical for maintaining the precise timing and power delivery required in many industrial processes. Furthermore, the self-aligning feature works in concert with the high-strength materials to absorb operational stresses, vibration, and dynamic loading, which are inherent in high-speed machinery. This comprehensive design approach ensures that the bearing can sustain peak performance and reliability over its entire service life, minimizing the potential for unscheduled downtime and costly repairs.
Diverse Application Spectrum
The versatility and robust performance characteristics of the 1-1/4 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing make it an ideal choice for a wide array of industrial and commercial applications. Its ability to handle high speeds without slippage and accommodate shaft misalignment, combined with its rugged construction, renders it indispensable in sectors such as:
- Conveyor Systems: Essential for supporting conveyor belts in material handling, logistics, and manufacturing, where continuous operation and resistance to dust are critical.
- Agricultural Machinery: Used in equipment like harvesters, tillers, and feeders, requiring bearings that can withstand harsh outdoor conditions, shock loads, and varying speeds.
- Industrial Fans and Blowers: Providing reliable support for rotating shafts in ventilation systems, where smooth, vibration-free operation at high RPMs is crucial.
- Textile Machinery: Demanding precision and high-speed operation, these bearings ensure consistent motion and longevity in spinning, weaving, and finishing equipment.
- Packaging Equipment: Critical for automated lines where rapid cycles, precise movements, and minimal downtime are paramount.
- Power Transmission Systems: General industrial applications involving gearboxes, pumps, and other rotating equipment where reliable shaft support is needed.
- Construction Equipment: In various machinery where robust bearings are required to endure heavy loads, impact, and adverse environmental conditions.
Conclusion
The 1-1/4 Inch Shaft Diameter Eccentric Locking Collar Style Pillow Block Bearing stands as a testament to advanced bearing technology, meticulously engineered to meet the rigorous demands of modern industrial applications. From its high-strength carbon steel bearing insert and self-aligning capabilities to its robust cast steel housing with a durable powder-coat finish, every aspect of its design is geared towards delivering superior performance. The eccentric locking collar provides a secure, concentric shaft grip, crucial for high-speed applications and prevention of slippage, while the self-aligning feature mitigates the adverse effects of misalignment, extending bearing life and reducing operational stresses. Coupled with ease of installation and a clear path for routine maintenance via its greasable design, this pillow block bearing offers an unparalleled combination of durability, efficiency, and reliability, making it an invaluable component for optimising power transmission systems and ensuring uninterrupted productivity across diverse industrial landscapes.
