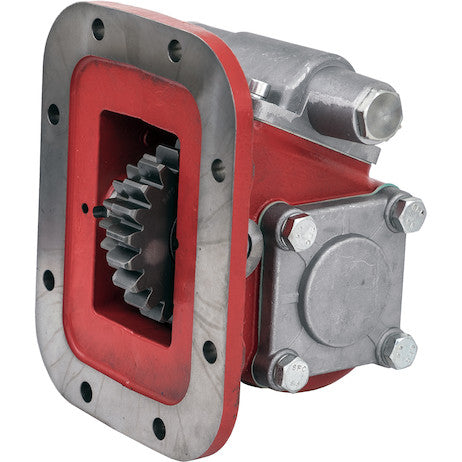

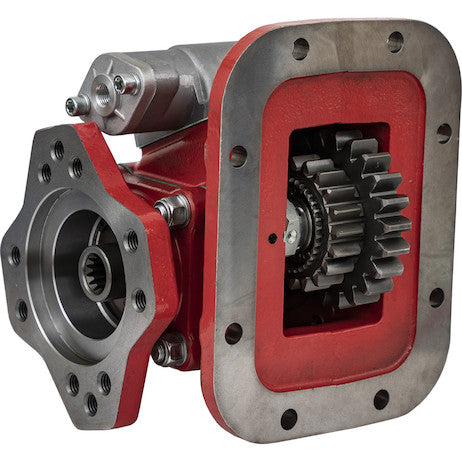

The P2000 Series PTOs from Buyers Products are designed for Eaton Fuller manual transmissions. Each unit is made up of a heavy-duty, cast-iron body, along with a pump mounting flange for superior support of the pump. We offer multiple speed ratios designed for most Eaton Fuller, Road Ranger, and 8-bolt bottom mount applications.
Specifications
| For Use With | Buyers?? Brand Hydraulic Pumps for various Eaton?? Transmission applications |
|---|
The Power Take-Off (PTO) mechanism represents a critical interface in the operational architecture of heavy-duty commercial vehicles, enabling the transference of mechanical power from the vehicle’s transmission to auxiliary equipment. The P2000 Series PTO, manufactured by Buyers Products, is engineered to meet the rigorous demands of vocational truck applications, providing a robust and efficient solution for driving hydraulic pumps and other essential work functions. This comprehensive description details the advanced technical specifications, design philosophies, and operational advantages that position the P2000 Series as a leading choice for fleet operators and equipment manufacturers seeking reliability, performance, and versatility.
At its core, a PTO serves as a mechanical gear system that bolts directly onto a designated aperture on a vehicle's transmission. The P2000 Series specifically targets Eaton Fuller manual transmissions, a dominant platform in the heavy-duty trucking industry, known for its durability and widespread use. This strategic compatibility ensures seamless integration and optimized performance with the most common and robust drivetrain components available. The P2000's design facilitates the activation of various ancillary systems, converting engine power into usable energy for applications ranging from refuse compaction and snow plowing to aerial lifts and mobile cranes. The inherent flexibility and high torque transmission capabilities of the P2000 Series are paramount for maintaining productivity and operational efficiency in challenging work environments.
The structural integrity of the P2000 Series PTO is anchored by its heavy-duty, cast-iron body. Cast iron, as a material, is selected for its superior mechanical properties, including high compressive strength, excellent vibration damping characteristics, and exceptional wear resistance. These attributes are critical in high-stress applications where continuous operation and significant torque loads are standard. The dense metallurgical structure of cast iron effectively dissipates heat generated during operation, contributing to prolonged component life and stable performance. Furthermore, its inherent rigidity minimizes housing deflection, ensuring precise gear meshing and optimal bearing alignment throughout the PTO’s operational lifespan. This robust construction provides a stable foundation for the internal gearing and output shaft, mitigating the risks of premature failure due to fatigue or deformation.
Mounting precision and secure attachment are fundamental to PTO performance. The P2000 Series features an 8-bolt mounting pattern, which conforms to the SAE (Society of Automotive Engineers) standard for heavy-duty PTO apertures. This standardized pattern is ubiquitous across a wide range of Eaton Fuller and Road Ranger transmissions, guaranteeing broad compatibility and facilitating straightforward installation. The 8-bolt configuration provides a significantly stronger and more stable connection compared to lesser bolt patterns, effectively distributing the mechanical stresses across a larger surface area of the transmission case. This minimizes the potential for localized stress concentrations that could lead to cracking or fatigue over time, particularly under high torque conditions and dynamic loads characteristic of vocational truck operations. The integrity of this mechanical interface is critical for maintaining alignment between the PTO’s input gear and the transmission’s PTO drive gear, thereby preventing premature wear and maximizing power transfer efficiency.
A distinctive advantage of the P2000 Series is its direct mount configuration. Direct mounting eliminates the need for intermediate drive shafts or complex bracketry, which are often required with remote-mounted PTO systems. This design choice offers several significant benefits: it reduces overall system complexity, minimizes potential points of failure, and decreases installation time and costs. By directly coupling the PTO to the transmission, power transfer efficiency is maximized, as energy losses associated with additional driveline components are mitigated. Furthermore, direct mounting significantly reduces the overall envelope and weight of the PTO system, contributing to more compact vehicle designs and better weight distribution. The elimination of universal joints and support bearings also translates into reduced maintenance requirements and enhanced reliability over the operational life of the vehicle. This streamlined approach underscores the P2000 Series' commitment to robust, efficient, and user-friendly integration.
The P2000 Series is specified with a "rear position" mounting, which refers to the typical location of the PTO aperture on the transmission housing, usually towards the rear of the main gearbox assembly. This standard positioning is advantageous for several reasons. It often provides optimal clearance for the PTO unit and attached hydraulic pump within the chassis frame, allowing for easier routing of hydraulic lines and hoses without interfering with other vehicle components such as driveshafts, exhaust systems, or suspension elements. Furthermore, the rear position generally allows for better accessibility for installation, routine inspections, and servicing, which are crucial considerations for minimizing vehicle downtime and ensuring operational continuity. This established mounting convention simplifies vehicle design and aftermarket integration, making the P2000 Series a versatile solution for a broad spectrum of commercial truck chassis configurations.

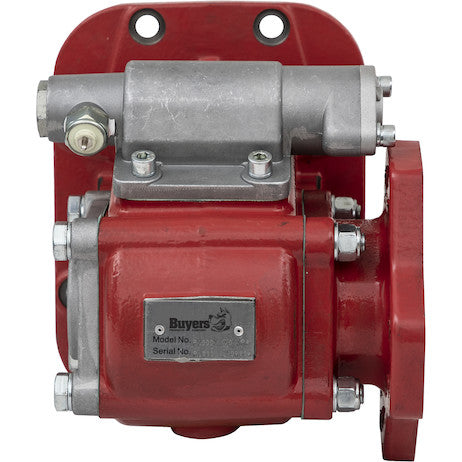

Operational efficiency and responsiveness are greatly enhanced by the inclusion of an air shift mechanism in the P2000 Series. Air shift systems utilize compressed air from the vehicle's pneumatic system to engage and disengage the PTO’s internal clutch or gears. This method offers several key advantages over manual or cable-actuated systems. Firstly, it allows for remote operation, typically via an in-cab switch, significantly reducing driver effort and increasing convenience. This is particularly beneficial in applications where frequent PTO engagement/disengagement is required. Secondly, air shifting provides faster and smoother engagement, reducing shock loads on the drivetrain and prolonging the life of both the PTO and the transmission. The positive, precise engagement characteristic of air shift systems minimizes clutch slippage and ensures full gear mesh, optimizing power transfer and preventing wear. Furthermore, air shift systems can be easily integrated with vehicle safety interlocks, preventing accidental engagement or disengagement, thus enhancing operational safety and protecting equipment.
The term "High ratio" in the P2000 Series specification signifies its capability to deliver a higher output shaft speed relative to the transmission's output speed. This is achieved through carefully engineered internal gearing, where the PTO’s output gear has fewer teeth than its input gear, resulting in a step-up ratio. A high ratio PTO is indispensable for applications that demand faster accessory operation, such as high-volume hydraulic pumps used in refuse collection vehicles for rapid compaction cycles, or snowplow hydraulics requiring quick blade movements. It allows the driven equipment to operate at its optimal RPM range even when the vehicle engine is running at lower, more fuel-efficient RPMs. The availability of "multiple speed ratios," as highlighted in the general description, further underscores the P2000 Series' adaptability, enabling precise matching of the PTO's output speed to the specific requirements of the driven component, thereby maximizing efficiency and preventing both under-speeding and over-speeding of the auxiliary equipment.
One of the most innovative and practical features of the P2000 Series is its rotatable mounting flange. This engineering solution provides exceptional flexibility in configuring the orientation of the driven component, typically a hydraulic pump, once the PTO is mounted to the transmission. The ability to rotate the output flange allows installers to precisely position the pump to achieve optimal clearance within the often-crowded vehicle chassis. This is critical for avoiding interference with chassis rails, exhaust systems, fuel tanks, air tanks, or other peripheral components. Furthermore, a rotatable flange simplifies the routing of hydraulic hoses and lines, ensuring that bends are minimized and that hoses are not subjected to undue stress or abrasion, which can lead to premature failure. This design feature drastically reduces the need for custom fabrication or complex adapters during installation, saving time and labor costs, and ultimately providing a more robust and serviceable installation that accounts for the unique space constraints of individual truck builds.

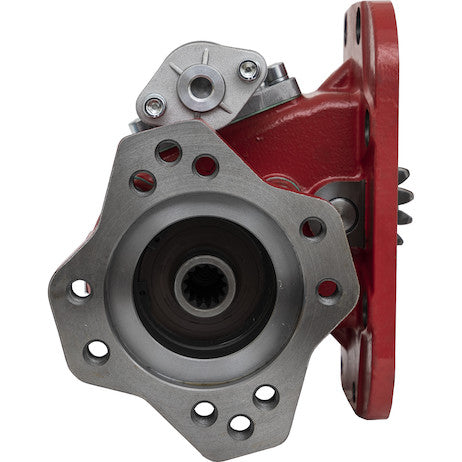

The P2000 Series features a 7/8"-13 T splined shaft as its output interface. This specification refers to a splined shaft with a nominal diameter of 7/8 inch and 13 splines, conforming to industry-standard dimensions for power transmission. Splined shafts are employed for their superior ability to transmit high torque loads while maintaining precise alignment between the PTO and the driven component, such as a hydraulic pump. The multiple teeth of a spline distribute the load over a larger contact area, significantly reducing stress concentrations compared to keyed shafts. This design minimizes the potential for fretting corrosion, shear failure, and backlash, all of which can compromise the integrity of the power transfer. The precise fit provided by the splined interface ensures that the rotational forces are transmitted smoothly and efficiently, protecting both the PTO output shaft and the input shaft of the hydraulic pump from excessive wear and premature failure. The standardization of this spline configuration ensures broad compatibility with a wide array of hydraulic pumps and other auxiliary equipment from various manufacturers.
The integrated pump mounting flange within the P2000 Series is designed for "superior support" of the directly attached hydraulic pump. This is not merely a connection point but a structurally engineered component that significantly contributes to the longevity and performance of the entire PTO-pump assembly. The robust flange is precisely machined to ensure concentricity and perpendicularity with the PTO output shaft, maintaining critical alignment with the pump's input shaft. This rigid, direct support minimizes dynamic deflections and vibrations that could otherwise lead to premature bearing wear in both the PTO and the pump, and can also compromise the integrity of oil seals. By providing a stable and unyielding platform, the P2000 Series ensures that the hydraulic pump operates under optimal conditions, free from excessive stress induced by misalignments or inadequate support. This direct, integrated support reduces complexity and improves reliability compared to systems requiring external pump supports or flexible couplings.
The P2000 Series PTO is engineered for compatibility with Buyers Brand Hydraulic Pumps, creating an optimized, synergistic power package for a multitude of hydraulic applications. This integrated approach ensures that the PTO’s output characteristics, such as torque capacity and speed ratios, are perfectly matched with the operational parameters of Buyers' comprehensive range of hydraulic pumps, including gear pumps, piston pumps, and vane pumps. This compatibility extends to physical mounting standards, ensuring that the pump mounting flange and splined shaft interface are perfectly aligned for a plug-and-play installation experience. This strategic pairing not only simplifies the selection and procurement process for customers but also guarantees a high level of performance and reliability, as both components are designed and tested to work cohesively under demanding conditions. The P2000 Series' versatility also extends to "various Eaton Transmission applications," indicating its adaptability across different models and series of Eaton Fuller transmissions, making it a highly flexible solution for diverse vocational vehicle fleets.
The operational environment for heavy-duty PTOs is inherently challenging, characterized by wide temperature fluctuations, exposure to road debris, moisture, and continuous vibration. The P2000 Series is constructed to withstand these harsh conditions, with its cast-iron housing providing excellent protection for the precision-engineered internal components. The internal gearing, typically manufactured from high-grade alloy steels and subjected to precise heat treatment processes, ensures maximum strength, wear resistance, and shock load capacity. High-quality bearings are utilized to minimize friction and handle significant radial and axial loads, contributing to efficient power transfer and extended operational life. Robust sealing systems are employed to prevent oil leaks and ingress of contaminants, maintaining the integrity of the internal lubrication system and protecting critical components from abrasive wear. Every aspect of the P2000 Series design reflects a commitment to uncompromising durability and reliability, essential attributes for components operating at the heart of critical work functions.
In summary, the P2000 Series PTO from Buyers Products is a meticulously engineered component designed to deliver superior performance and reliability in demanding commercial vehicle applications. Its heavy-duty cast-iron construction, precision 8-bolt direct mount interface, and rear position configuration ensure robust integration with Eaton Fuller transmissions. The high-ratio internal gearing and air shift mechanism provide efficient and responsive power transfer, while the rotatable mounting flange offers unparalleled flexibility for optimal pump orientation. The 7/8"-13 T splined output shaft guarantees secure and efficient power transmission to a wide array of hydraulic pumps and auxiliary equipment. By combining these advanced features, the P2000 Series offers a technically sophisticated solution that enhances operational efficiency, reduces downtime, and contributes to the overall productivity and longevity of vocational truck fleets. It represents a significant investment in reliability and performance, empowering vehicles to undertake the most challenging work with unwavering consistency.
