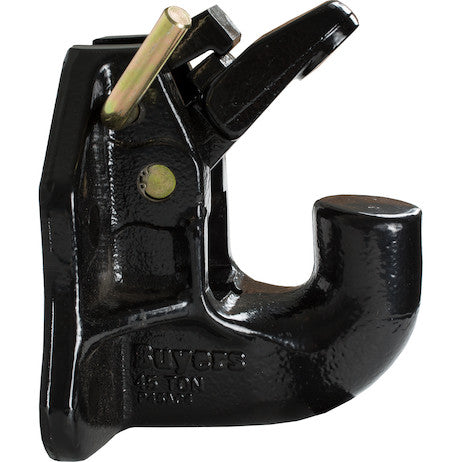

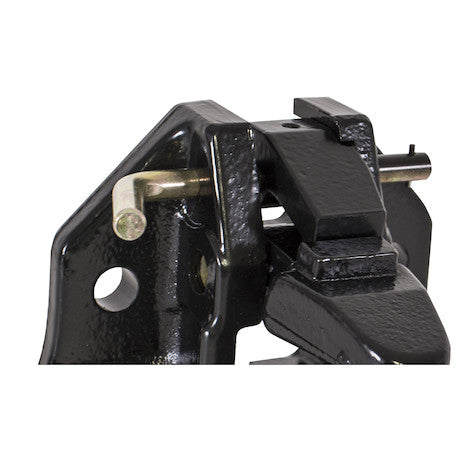

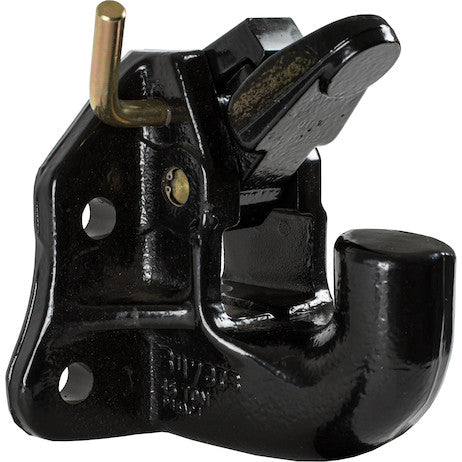

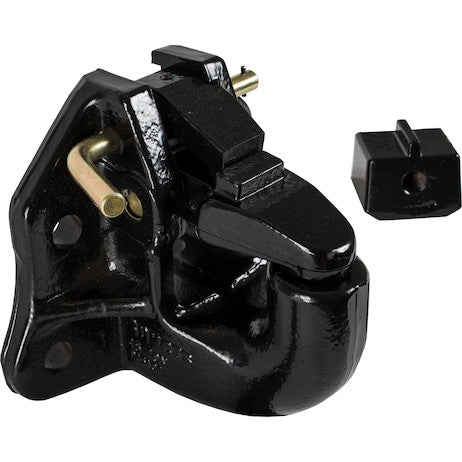

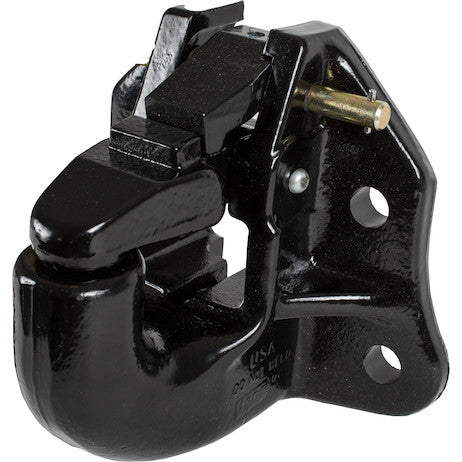

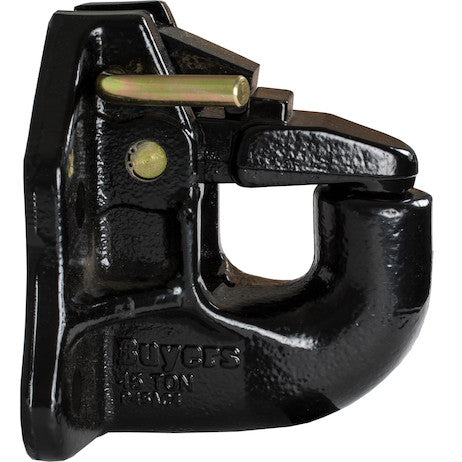

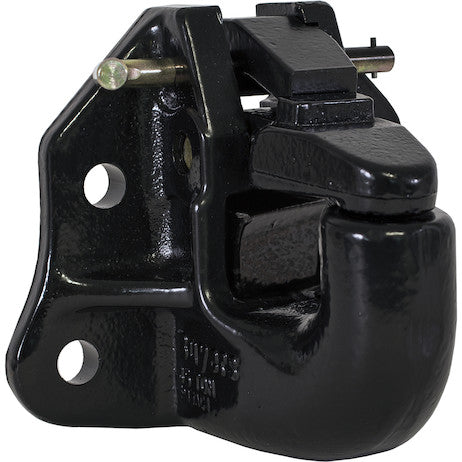

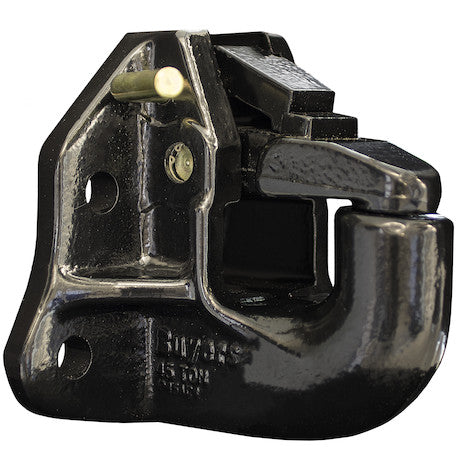

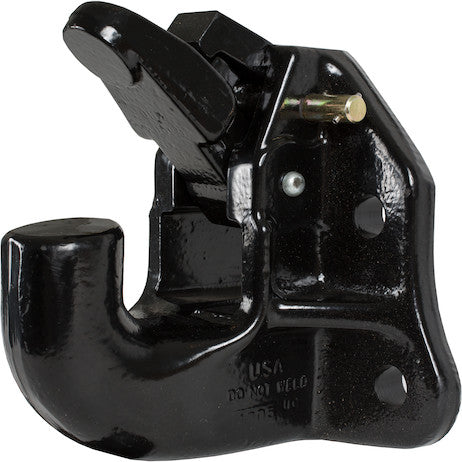

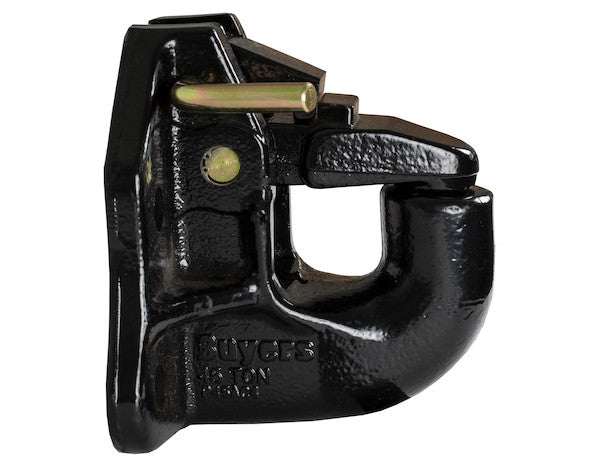

The 45 Ton Air Compensated Pintle Hook with 4 Mounting Holes from Buyers Products cushions movement between the pintle hook and tow ring. This feature saves wear and tear on the parts, especially in sudden motion or braking situations. The 4 hole mount, bolt-on pintle hook uses the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation. The hook is ideal for heavy duty applications such as semi trailers, both off-road and over-the-road. It requires an air brake chamber, which can be ordered separately or together as a kit.
Specifications
| Ball Diameter (in.) | - |
|---|---|
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.38-3.00 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 5.25/6.50 |
| Includes | Pintle Hook Only |
| M.G.T.W. (lbs) | 90,000 |
| M.V.L. (lbs) | 18,000 |
| Material | Austempered Ductile Iron |
| Mounting Hole Diameter (in.) | 0.781 |
| Pintle Hook Type | Air Compensated |
| Vertical Hole Spacing (in.) | 3.00 |
The 45 Ton 4-Hole Air Compensated Pintle Hook: Precision Engineering for Extreme Duty Towing
The Buyers Products 45 Ton Air Compensated Pintle Hook represents a pinnacle of towing technology, meticulously engineered to address the rigorous demands of heavy-duty transportation across diverse operational environments. Designed for unparalleled strength, durability, and operational refinement, this 4-hole mount, bolt-on pintle hook integrates seamlessly with a vehicle's existing air system to deliver a superior towing experience for maximum gross trailer weights (M.G.T.W.) up to 90,000 lbs and maximum vertical loads (M.V.L.) of 18,000 lbs. This advanced pintle hook is not merely a connection point; it is a critical component designed to optimize the performance, safety, and longevity of heavy-duty towing applications.
Advanced Air Compensation Technology: The Core Advantage
At the heart of this pintle hook's exceptional performance lies its innovative air compensated design. Unlike conventional pintle hooks that rely solely on mechanical tolerances and rigid connections, this model leverages pneumatic principles to actively manage the interface between the pintle hook and the drawbar eye. The vehicle's air system is utilized to apply continuous, adjustable pressure, ensuring that the drawbar eye is held firmly and consistently against the pintle horn. This constant engagement provides a range of significant benefits:
- Vibration and Shock Absorption: The air compensation system acts as a sophisticated pneumatic dampener, effectively absorbing dynamic shocks and vibrations that naturally occur during towing, particularly over uneven terrain or during sudden acceleration and braking. This cushioning effect significantly reduces the impact forces transmitted through the hitch components.
- Reduced Wear and Tear: By eliminating slack and minimizing relative movement between the pintle hook and the drawbar eye, the air compensation system drastically reduces abrasive wear on both components. This extends the operational life of the pintle hook, the drawbar eye, and other connected elements of the towing system, thereby decreasing maintenance frequency and associated costs.
- Noise Reduction: The constant, secure engagement eliminates the characteristic "clunking" noise often associated with traditional pintle hooks as the drawbar eye rattles against the pintle hook during travel. This contributes to a quieter operating environment, enhancing driver comfort and reducing auditory fatigue.
- Enhanced Coupling Security: The continuous pressure exerted by the air system ensures a more secure connection, mitigating the risk of inadvertent uncoupling, even under severe dynamic conditions. This feature is paramount for safety, especially when hauling valuable cargo or operating in challenging environments.
- Improved Ride Quality and Cargo Protection: The dampening effect of the air compensation system translates into a smoother ride for the trailer and its contents. This is particularly beneficial for sensitive cargo, reducing the potential for damage due to excessive shock or vibration during transit.

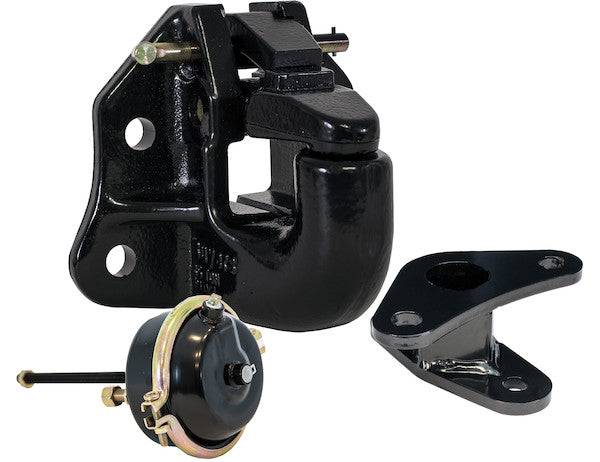

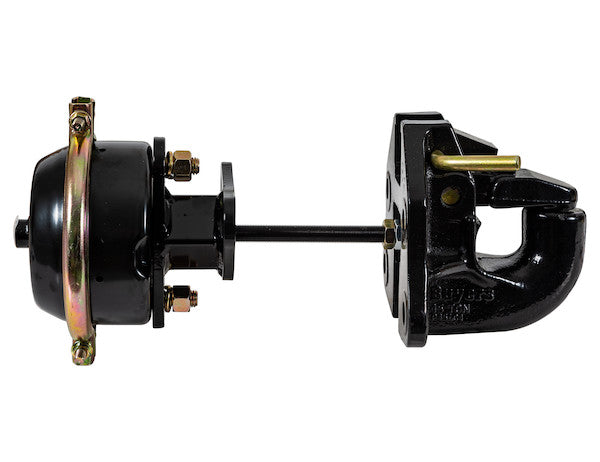

The integration of this technology necessitates a connection to the vehicle's air brake system, typically requiring an air brake chamber. This component, available separately or as part of a comprehensive kit, is crucial for supplying and regulating the pneumatic pressure to the pintle hook, ensuring optimal functionality and responsiveness.
Robust Construction for Unyielding Performance
The inherent demands of heavy-duty towing require materials of exceptional strength and resilience. This 45-ton pintle hook is forged from Austempered Ductile Iron (ADI), a material renowned for its superior mechanical properties. ADI is a class of ductile iron that undergoes a specific heat treatment process called austempering, which transforms its microstructure into a combination of bainite and stabilized austenite. This results in a material that exhibits:
- High Strength-to-Weight Ratio: ADI offers tensile strengths comparable to many alloy steels, but with the casting flexibility and lower density of cast iron.
- Exceptional Toughness and Ductility: Unlike traditional cast irons, ADI possesses remarkable ductility and fracture toughness, making it highly resistant to cracking and brittle failure under impact or extreme stress.
- Superior Wear Resistance: The unique microstructure of ADI provides excellent resistance to abrasive and adhesive wear, critical for components subject to constant friction and heavy loads.
- Excellent Fatigue Resistance: Components made from ADI demonstrate prolonged service life under cyclic loading conditions, which are endemic to towing applications.
This strategic material selection ensures that the pintle hook can withstand the immense static and dynamic forces encountered in 45-ton towing operations, providing long-term reliability and safety. Furthermore, the pintle hook is treated with a durable powder-coat finish in black. Powder coating offers a robust, chip-resistant, and corrosion-resistant layer that protects the underlying ADI from environmental elements such as moisture, road salts, and abrasions. This finish not only contributes to the aesthetic appeal but, more importantly, enhances the longevity and structural integrity of the component, especially in harsh outdoor conditions.
Capacity and Application Versatility
With a Maximum Gross Trailer Weight (M.G.T.W.) of 90,000 lbs and a Maximum Vertical Load (M.V.L.) of 18,000 lbs, this pintle hook is engineered for the most demanding towing scenarios. These specifications define the maximum permissible weight of the fully loaded trailer and the maximum downward force exerted by the trailer tongue on the hitch, respectively. Adhering to these ratings is crucial for ensuring regulatory compliance, operational safety, and preventing premature component failure.
The versatility of this pintle hook makes it an ideal solution for a broad spectrum of heavy-duty applications, including:
- Semi-Trailers and Commercial Hauling: Essential for tractor-trailer combinations used in freight logistics, construction material transport, and oversized load hauling.
- Construction Equipment Transport: Facilitating the movement of heavy machinery such as excavators, bulldozers, and loaders on job sites and between locations.
- Agricultural Equipment: Capable of towing large agricultural implements, wagons, and specialized farm trailers.
- Mining and Quarry Operations: Designed to withstand the extreme conditions and heavy loads typical of mining environments, where robust and reliable towing is non-negotiable.
- Defense and Municipal Fleets: Suitable for military logistics, emergency services, and public works vehicles requiring dependable heavy towing capabilities.
- Off-Road and Over-the-Road Use: Its robust construction and air-compensated design make it equally effective and reliable whether navigating challenging off-road terrain or maintaining stability on high-speed highways.
The ability to operate effectively in both over-the-road and off-road conditions underscores its robust engineering and the adaptive nature of its air compensation system, which maintains consistent performance regardless of terrain variability.
Precision Mounting and Compatibility
The 4-hole bolt-on configuration provides a secure and straightforward installation process. The precise mounting hole specifications are critical for proper fitment and load distribution:
- Mounting Hole Diameter: 0.781 inches
- Horizontal Hole Spacing: 5.25 inches or 6.50 inches (dual spacing options for broader compatibility)
- Vertical Hole Spacing: 3.00 inches
These dimensions are standardized to ensure compatibility with a wide range of mounting plates and vehicle frames commonly found in heavy-duty towing applications. Proper installation requires high-grade fasteners (not included) torqued to manufacturer specifications, ensuring the integrity of the connection between the pintle hook and the vehicle chassis. Furthermore, the pintle hook is designed to accommodate drawbar eyes with an inner diameter ranging from 2.38 inches to 3.00 inches, providing flexibility for various trailer coupling requirements. This broad compatibility ensures that fleet operators can integrate this high-performance pintle hook into existing setups or new vehicle builds with minimal adaptation.
Operational Safety and Driver Experience
Beyond its robust construction and high capacity, the 45 Ton Air Compensated Pintle Hook significantly contributes to overall operational safety and an improved driver experience. By minimizing play and absorbing shocks, the system:
- Reduces Driver Fatigue: A smoother, quieter towing experience with less jarring translates into reduced driver fatigue, particularly during long hauls or operations over rough terrain. This can lead to improved alertness and reaction times, enhancing safety.
- Enhances Vehicle Control: The stable connection reduces dynamic movements between the towing vehicle and the trailer, contributing to better overall vehicle control and stability, especially during maneuvers, braking, or encountering crosswinds.
- Prevents Component Stress: By cushioning the connection, the system reduces stress concentrations on the tow vehicle's frame, suspension, and driveline components, as well as on the trailer's tongue and frame. This preventative measure helps avoid costly repairs and extends the lifespan of the entire vehicle and trailer combination.
The intrinsic safety benefits are paramount in an industry where even minor component failures can lead to severe consequences. The air compensation mechanism actively works to maintain the integrity of the connection, providing peace of mind for operators and fleet managers alike.
Maintenance and Longevity Considerations
While the Austempered Ductile Iron construction and powder-coat finish inherently contribute to the pintle hook's longevity and reduce the need for frequent maintenance, periodic inspection and lubrication are still recommended as part of a comprehensive preventative maintenance program. Operators should regularly inspect the pintle hook for signs of wear, deformation, or damage, particularly in the latch mechanism and the pintle horn area. Lubrication of moving parts, such as the latch and pivot points, according to manufacturer guidelines, will ensure smooth operation and extend component life. The air compensation system itself is designed for reliability, but its associated components, such as the air brake chamber and air lines, should also be routinely checked for leaks or damage to ensure consistent performance.
The design philosophy behind this pintle hook emphasizes minimizing maintenance through robust engineering. By reducing wear on the drawbar eye and the pintle hook itself, it contributes to lower total cost of ownership over the product's lifespan.
Holistic System Integration
The 45 Ton 4-Hole Air Compensated Pintle Hook is not an isolated component but an integral part of a complex towing system. Its optimal performance is achieved when paired with compatible and equally robust components. This includes selecting a drawbar eye that matches the specified inner diameter range, a hitch plate with adequate strength and mounting hole compatibility, and ensuring the vehicle's frame structure can support the substantial M.V.L. and M.G.T.W. ratings. The successful integration of all elements—from the vehicle's frame and air system to the trailer's drawbar and suspension—is paramount for maximizing the benefits of this advanced pintle hook.
For those seeking to equip their heavy-duty vehicles with a towing solution that offers unparalleled strength, enhanced safety, superior ride quality, and extended component life, the 45 Ton 4-Hole Air Compensated Pintle Hook from Buyers Products stands as an exemplary choice. It represents a significant advancement in towing technology, delivering a reliable and efficient connection designed to meet the rigorous demands of modern heavy transportation.
