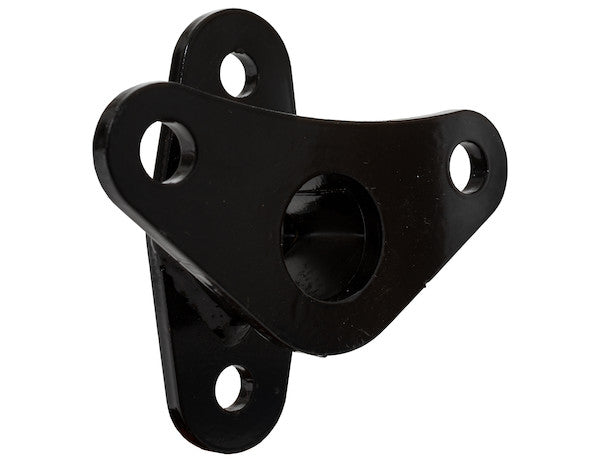

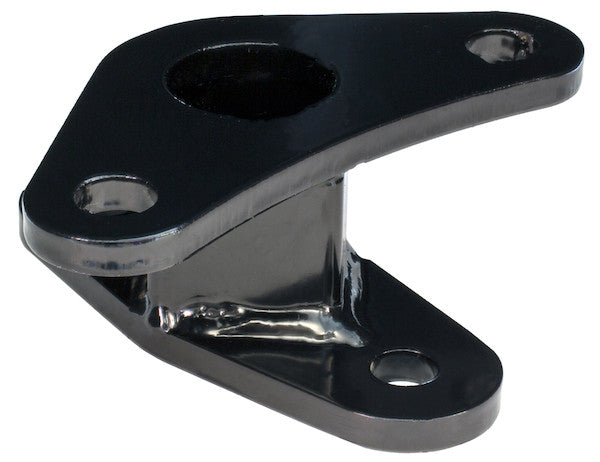

Buyers Products Air Compensated Pintle Hook Brake Chamber Bracket works with the P45AC4 45-Ton Air Compensated Pintle Hook.
Specifications
| Color | Black |
|---|---|
| Finish | Powder-Coat |
| Material | Carbon Steel |
Advanced Technical Overview: 45 Ton 4-Hole Air Compensated Pintle Hook Brake Chamber Bracket
The Buyers Products 45 Ton 4-Hole Air Compensated Pintle Hook Brake Chamber Bracket represents a critical component in heavy-duty towing systems, meticulously engineered to provide superior strength, durability, and operational safety. Designed specifically for seamless integration with the P45AC4 45-Ton Air Compensated Pintle Hook, this bracket serves a pivotal role in maintaining the integrity and functionality of severe-duty trailer braking systems. Its robust construction and intelligent design ensure optimal performance under the most demanding conditions, making it an indispensable asset for commercial, construction, and specialized hauling applications.
Understanding the Pintle Hook System
A pintle hook is a robust coupling device fundamentally different from a traditional ball hitch, primarily designed for heavy-duty towing where significant loads, off-road conditions, or continuous articulation are prevalent. It consists of a stationary pintle (a vertical pin) and a movable lunette eye (a ring or loop) attached to the trailer. The pintle hook's design allows for a greater degree of angular movement between the towing vehicle and the trailer, preventing binding and reducing stress on the coupling during turns, over uneven terrain, or when encountering sudden elevation changes. This enhanced articulation is crucial for large commercial trailers, construction equipment, military vehicles, and agricultural machinery that operate in environments where a standard ball hitch would be prone to failure or instability. The inherent strength of the pintle/lunette combination, often exceeding that of conventional hitches, makes it the preferred choice for gross trailer weights upwards of tens of thousands of pounds, ensuring a secure and reliable connection for massive payloads.
The Advantage of Air Compensation
The "Air Compensated" feature within the P45AC4 pintle hook, which this bracket supports, signifies a significant advancement in towing technology. Traditional pintle hooks can experience a degree of slack or play between the pintle and the lunette eye, especially when not under continuous tension. This slack can lead to undesirable effects such as chucking, jarring, and excessive noise during acceleration, deceleration, or over rough roads. More critically, this constant impact contributes to accelerated wear on the components, reducing their service life and potentially compromising safety over time. Air compensation addresses these issues by incorporating an internal air-operated mechanism, typically an air bladder or cylinder, that exerts continuous, controlled pressure on the pintle mechanism. This constant pressure effectively eliminates or significantly reduces the slack, ensuring a tight and secure coupling even when the trailer is not actively pushing or pulling on the towing vehicle.
The benefits of an air-compensated system are multifaceted. Firstly, it dramatically improves the ride quality by dampening shock loads and vibrations transmitted through the hitch, leading to a smoother and quieter towing experience. This reduction in dynamic shock not only enhances driver comfort but also minimizes fatigue on the towing vehicle's chassis and the trailer's frame. Secondly, and perhaps most importantly, by maintaining constant engagement and reducing free play, wear on the pintle hook and lunette eye components is substantially mitigated. This extends the operational lifespan of the entire coupling system, reducing maintenance frequency and associated costs. Thirdly, the enhanced stability and reduced dynamic impacts contribute to increased safety, particularly when navigating challenging terrains or making sudden maneuvers. The air compensation system ensures that the coupling remains consistently engaged, offering superior control and reducing the risk of component failure under dynamic stress conditions. This technological integration transforms a standard heavy-duty coupling into a precision-engineered interface, optimizing both performance and longevity.
Function of the Brake Chamber Bracket
The 45 Ton 4-Hole Air Compensated Pintle Hook Brake Chamber Bracket is not merely an accessory; it is an integral structural element that facilitates the crucial function of the trailer's air brake system. In heavy-duty applications, trailers are equipped with air brakes, which rely on compressed air to actuate the braking mechanisms. The brake chamber is a key component of this system, converting the pneumatic energy (compressed air pressure) into mechanical force that applies the brakes. Specifically, the brake chamber houses a diaphragm that, when pressurized, moves a pushrod, which in turn actuates the slack adjuster and then the brake cam, ultimately pressing the brake shoes against the drum or disc.
The bracket’s primary function is to securely mount one or more brake chambers directly to the pintle hook assembly or its immediate support structure. This strategic placement ensures that the brake chambers are optimally positioned for connection to the air brake lines and are protected from excessive movement, vibration, or impact during operation. The precision engineering of this bracket guarantees that the brake chambers are held rigidly, preventing unintended movement that could lead to air line damage, reduced braking efficiency, or complete system failure. The robust design of the bracket, capable of withstanding the dynamic forces associated with heavy hauling and braking, is paramount for maintaining the reliability and safety of the entire air brake system. Without a properly designed and installed bracket, the brake chambers would lack the stable foundation required for their critical operation, leading to potential regulatory non-compliance and severe safety risks on the road.
45 Ton Capacity: Engineering for Extreme Loads
The "45 Ton" designation of this bracket, signifying a Gross Trailer Weight (GTW) capacity of 90,000 pounds (45 tons), underscores its application in the most demanding heavy-haul scenarios. This capacity is not merely an arbitrary number but a testament to sophisticated engineering, rigorous material selection, and meticulous manufacturing processes. Achieving such a high rating requires that every component, including this bracket, is designed to withstand immense static and dynamic loads, torsional stresses, and fatigue cycles over an extended operational life. The bracket must not only support the weight of the brake chamber but also transmit the substantial forces generated during braking and provide structural integrity to the pintle hook assembly itself when under maximum load.
Applications requiring a 45-ton capacity include the transportation of heavy construction equipment such as excavators, bulldozers, large cranes, and specialized machinery; multi-axle industrial trailers; and certain military transport vehicles. In these contexts, failure of any hitch component can lead to catastrophic consequences. Therefore, the bracket's design incorporates structural elements that distribute stress efficiently, prevent localized stress concentrations, and maintain dimensional stability under extreme pressure. This high capacity is a direct indicator of its suitability for operations where reliability and safety are non-negotiable, ensuring the secure attachment of critical braking components even when moving the heaviest permissible loads.
4-Hole Mounting Pattern: Standardized Security
The "4-Hole" mounting pattern refers to the standardized configuration of four bolt holes used to secure the bracket to the vehicle's frame or a mounting plate. This particular pattern is a widely accepted industry standard for heavy-duty towing applications, ensuring compatibility with a broad range of truck chassis and trailer tongues designed for pintle hook systems. The use of four bolts provides a significantly more secure and stable attachment compared to a two-bolt system, distributing the immense forces encountered during towing and braking over a larger area. This helps to prevent loosening, rotation, or shearing under severe dynamic loads, which are common in heavy-duty operations.
The precise spacing and diameter of these holes are critical for maintaining proper alignment and ensuring that the fasteners (typically high-strength bolts, washers, and nuts) can exert the necessary clamping force. Proper torqueing of these fasteners is essential during installation to achieve the specified load-bearing capacity and to prevent fatigue failure. The standardized 4-hole pattern simplifies installation, repair, and replacement, as it allows for interchangeability across various manufacturers' compatible components, streamlining maintenance operations for fleet managers and technicians. This design choice highlights a commitment to robust, secure, and universally adaptable engineering practices.
Material Excellence: Carbon Steel
The selection of Carbon Steel as the primary material for this bracket is a deliberate engineering choice, offering a formidable combination of strength, ductility, and cost-effectiveness essential for severe-duty applications. Carbon steel is an iron-carbon alloy with carbon content ranging typically from 0.05% to 2.1% by weight. For structural components like this bracket, medium to high carbon steel grades (e.g., AISI 1045 or specific structural grades like ASTM A36 or A572 Grade 50) are often employed, chosen for their superior mechanical properties. These properties include high tensile strength (resistance to being pulled apart), excellent yield strength (resistance to permanent deformation), and good fatigue resistance (ability to withstand repeated stress cycles without failure).
The inherent ductility of carbon steel allows the material to deform plastically under extreme loads before fracturing, providing a safety margin and visual indicators of overstress. Its weldability is also a critical factor in manufacturing, enabling robust and durable fabricated assemblies. Furthermore, carbon steel offers a favorable strength-to-weight ratio, allowing for a strong yet manageable component. While untreated carbon steel is susceptible to corrosion, this is effectively addressed by the subsequent finishing process. The material's resilience against impact and its ability to maintain structural integrity in varying environmental temperatures make it an ideal choice for components subjected to the harsh, unpredictable conditions of heavy-duty towing.
Superior Protection: Powder-Coat Finish
The application of a Powder-Coat finish to the carbon steel bracket is a crucial step in enhancing its longevity, durability, and aesthetic appeal, especially in environments where exposure to harsh elements is constant. Powder coating is a dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded metal surface. The charged powder particles adhere to the part until melted and fused into a smooth, even coating in a curing oven. This process creates a much thicker and more uniform finish than traditional liquid painting, offering superior performance characteristics.
Key advantages of powder coating include:
- Exceptional Durability: Powder-coated surfaces are significantly more resistant to chipping, scratching, fading, and wear compared to other finishes, crucial for a component exposed to road debris, impact, and repetitive use.
- Corrosion Resistance: The thick, continuous polymer layer forms an excellent barrier against moisture, road salts, chemicals, and other corrosive agents, preventing rust and degradation of the underlying carbon steel.
- Chemical Resistance: It provides robust protection against oils, greases, and various industrial chemicals that might be encountered in a heavy-duty operational environment.
- UV Stability: The finish resists degradation from ultraviolet light exposure, ensuring that the color and protective properties are maintained over time, even with prolonged outdoor exposure.
- Environmental Friendliness: The powder coating process emits minimal volatile organic compounds (VOCs) and hazardous air pollutants (HAPs), making it a more environmentally sound choice compared to solvent-based paints.
Precision Design and Engineering Principles
The design and engineering of the 45 Ton 4-Hole Air Compensated Pintle Hook Brake Chamber Bracket involve sophisticated methodologies to ensure its peak performance and safety. Modern engineering practices, including Finite Element Analysis (FEA), are extensively utilized during the design phase. FEA allows engineers to simulate various load conditions, stress points, and potential failure modes digitally, enabling optimization of the bracket's geometry, material thickness, and structural reinforcements before physical prototyping. This iterative process ensures that the final design efficiently distributes stresses, minimizes localized stress concentrations, and achieves the required safety factors for a 45-ton capacity.
Manufacturing processes are equally critical. High-precision laser cutting ensures accurate dimensions and hole placements, vital for perfect alignment with the pintle hook and vehicle frame. Advanced welding techniques are employed to create strong, consistent, and defect-free joints, which are critical for load transfer and structural integrity. Bending and forming operations are controlled to maintain material properties and prevent micro-fractures. Throughout the manufacturing cycle, rigorous quality control checks are implemented, including dimensional inspections, material testing, and potentially non-destructive testing (NDT) such as magnetic particle inspection or ultrasonic testing on critical welds, to verify compliance with design specifications and industry standards. This commitment to precision engineering ensures that each bracket meets the highest benchmarks for reliability and performance.
Installation, Compatibility, and System Integration
The design of the Buyers Products 45 Ton 4-Hole Air Compensated Pintle Hook Brake Chamber Bracket places a strong emphasis on seamless installation and integration with its intended counterpart, the P45AC4 45-Ton Air Compensated Pintle Hook. This specific compatibility is crucial, as the bracket's dimensions, mounting pattern, and structural characteristics are precisely engineered to complement the pintle hook's design, ensuring optimal fit, load transfer, and overall system functionality. Proper installation is paramount and typically involves securing the bracket and pintle hook assembly to a robust frame member or a reinforced mounting plate on the towing vehicle. Adherence to manufacturer-specified torque values for all fasteners is critical to achieve the designed clamping force, prevent loosening under vibration, and maintain structural integrity.
Beyond the mechanical attachment, the bracket plays a vital role in the integration of the air brake system. It provides a stable platform for the brake chamber(s), allowing for straightforward connection to the trailer's air supply lines. This involves routing air lines to the chamber, ensuring secure pneumatic connections that are free from leaks and protected from physical damage. Furthermore, consideration must be given to the electrical connections for any auxiliary systems, such as ABS sensors or lighting, that might be co-located or routed near the bracket. Professional installation by qualified technicians familiar with heavy-duty towing systems and air brake mechanics is highly recommended to ensure correct alignment, secure fastening, and full compliance with safety regulations.
Safety and Regulatory Compliance
Given its role in heavy-duty towing and braking systems, the 45 Ton 4-Hole Air Compensated Pintle Hook Brake Chamber Bracket is designed with stringent safety and regulatory compliance in mind. All components involved in towing and braking must meet or exceed relevant industry standards and governmental regulations, such as those set by the Department of Transportation (DOT) in the United States and similar bodies internationally. These regulations govern everything from gross vehicle weight ratings and coupling device strength to braking system performance and maintenance requirements. The bracket's 45-ton rating, coupled with its robust material and finish, signifies its adherence to standards that demand exceptional strength and durability for safe operation.
Specific standards that may apply include those from the Society of Automotive Engineers (SAE), such as SAE J847 for pintle hooks, which defines performance criteria and testing procedures. Manufacturers like Buyers Products adhere to these standards through rigorous design, material selection, manufacturing quality control, and testing protocols. Regular inspection and maintenance of the bracket, pintle hook, and brake chamber assembly are critical for continued compliance and operational safety. This includes checking for signs of wear, corrosion, cracks, or loose fasteners. Any compromise to the bracket's integrity could lead to impaired braking performance or coupling failure, posing significant safety hazards to operators and the public. By investing in a high-quality, compliant bracket, operators ensure that their heavy-duty towing setup meets the highest benchmarks for safety and reliability.
Diverse Applications
The robust capabilities of the 45 Ton 4-Hole Air Compensated Pintle Hook Brake Chamber Bracket make it indispensable across a wide spectrum of heavy-duty applications. Its primary utility lies in commercial trucking, especially for flatbed and lowboy trailers transporting heavy construction equipment such as excavators, bulldozers, wheel loaders, and graders. In the construction industry, where equipment is constantly moved between job sites, the reliability and strength of this bracket are paramount. Agricultural operations also benefit, particularly when hauling large farm implements, grain wagons, or livestock trailers across varied terrain.
Beyond these, military logistics extensively utilize pintle hook systems for their ruggedness and articulation, making this bracket suitable for military transport vehicles and support equipment. Specialized heavy-haul sectors, including industrial rigging, oversized cargo transport, and emergency services (e.g., heavy recovery vehicles), also rely on such robust coupling components. The bracket’s design ensures that critical braking infrastructure remains secure and functional, regardless of the challenging environmental conditions, rough roads, or extreme loads inherent in these diverse heavy-duty applications, underlining its versatility and essential role in the heavy transport ecosystem.
Maintenance and Longevity
To ensure the extended operational life and continued safety of the 45 Ton 4-Hole Air Compensated Pintle Hook Brake Chamber Bracket, a proactive maintenance regimen is essential. While the powder-coat finish provides excellent corrosion resistance, regular visual inspections are crucial. Technicians should routinely check for any signs of physical damage, such as cracks, deformation, or excessive wear on the bracket's structure. Particular attention should be paid to the mounting holes and surrounding areas, looking for elongation or metal fatigue. All fasteners securing the bracket to the vehicle frame and the brake chamber to the bracket must be checked for proper torque according to manufacturer specifications, as vibration can cause loosening over time. Any evidence of rust or compromised coating should be addressed promptly to prevent further degradation of the carbon steel beneath. Cleaning off accumulated dirt, salt, and debris helps to preserve the finish and allows for clearer inspection. Adhering to a scheduled maintenance program not only extends the bracket's service life but also contributes significantly to the overall safety and reliability of the entire heavy-duty towing system, minimizing unexpected downtime and costly repairs.
The Buyers Products Advantage
Choosing the Buyers Products 45 Ton 4-Hole Air Compensated Pintle Hook Brake Chamber Bracket means investing in a product backed by a legacy of engineering excellence and a commitment to heavy-duty performance. Buyers Products is renowned for its dedication to producing rugged, reliable, and intelligently designed truck and trailer equipment. This bracket exemplifies their focus on precision manufacturing, utilizing high-grade materials like carbon steel and advanced protective finishes such as powder coating to deliver unparalleled durability. The specific compatibility with the P45AC4 pintle hook ensures a perfectly matched system, eliminating guesswork and guaranteeing optimal integration. Opting for Buyers Products signifies a choice for enhanced safety, reduced operational downtime, and a superior return on investment through the extended lifespan and unwavering reliability of your heavy-duty towing equipment. It's a testament to confidence in a brand that understands the rigorous demands of the heavy-duty industry.
