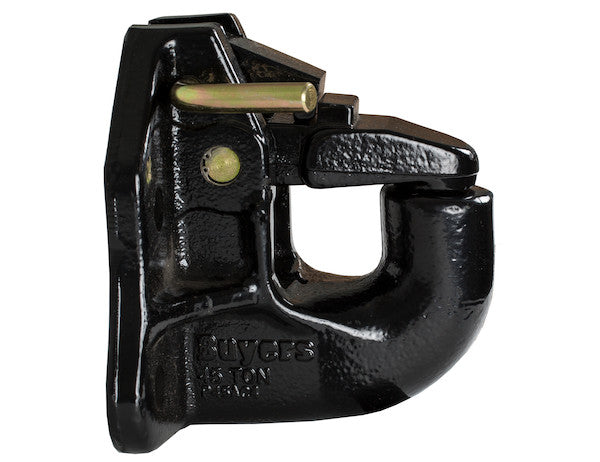

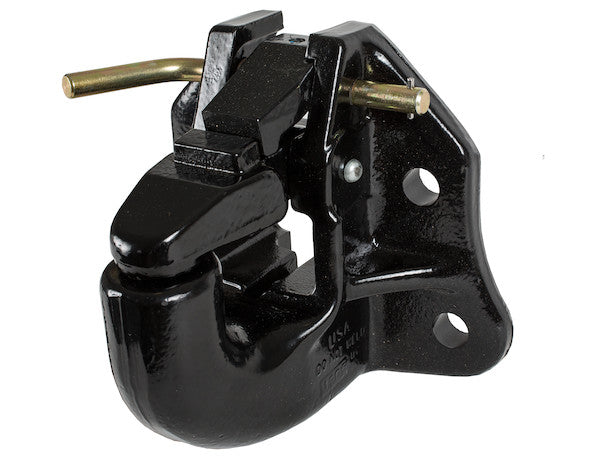

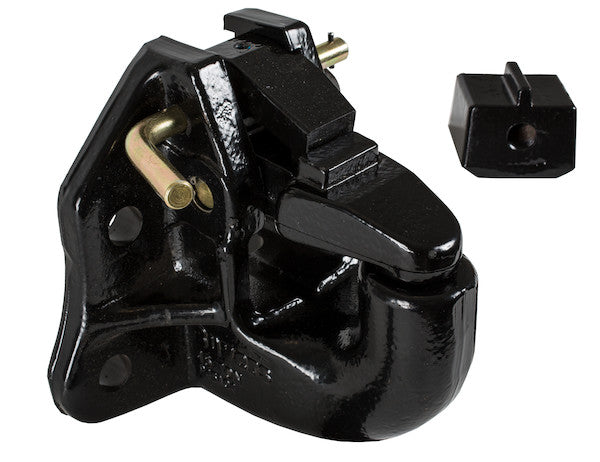

The 45 Ton Air Compensated Pintle Hook with 4 Mounting Holes from Buyers Products cushions movement between the pintle hook and tow ring. This feature saves wear and tear on the parts, especially in sudden motion or braking situations. The 4 hole mount, bolt-on pintle hook uses the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation. The hook is ideal for heavy duty applications such as semi trailers, both off-road and over-the-road. It requires an air brake chamber, which can be ordered separately or together as a kit.
Specifications
| Ball Diameter (in.) | - |
|---|---|
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.38-3.00 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 5.25/6.50 |
| Includes | Pintle Hook, Brake Chamber & Bracket |
| M.G.T.W. (lbs) | 90,000 |
| M.V.L. (lbs) | 18,000 |
| Material | Austempered Ductile Iron |
| Mounting Hole Diameter (in.) | 0.781 |
| Pintle Hook Type | Air Compensated |
| Vertical Hole Spacing (in.) | 3.00 |
Advanced Technical Overview: The 45 Ton 4-Hole Air Compensated Pintle Hook Kit with Brake Chamber and Bracket
The 45 Ton Air Compensated Pintle Hook Kit represents a pinnacle in heavy-duty towing technology, meticulously engineered to address the demanding requirements of commercial and industrial transport operations. This comprehensive kit, including the pintle hook, a compatible air brake chamber, and a robust mounting bracket, provides a superior solution for secure, efficient, and extended-life towing of trailers up to 90,000 pounds Maximum Gross Trailer Weight (M.G.T.W.) and supporting a Maximum Vertical Load (M.V.L.) of 18,000 pounds. Designed for both over-the-road and rigorous off-road applications, its advanced air compensation mechanism, combined with its high-strength material construction, sets a new standard for performance and durability.
Precision Engineering for Unrivaled Performance: The Air Compensation Mechanism
At the core of this system's exceptional capability is its air compensation feature, a significant technological advancement over conventional rigid pintle hooks. This mechanism leverages the vehicle's existing air brake system to dynamically manage the interface between the pintle hook's jaw and the trailer's drawbar eye. Unlike fixed pintle hooks that rely solely on mechanical tolerances and the inherent clearances, the air-compensated design actively applies continuous, adjustable pressure to the drawbar eye, virtually eliminating slack and preventing kinetic energy transference commonly known as "chucking" or "slap."
The operational principle involves an integrated air chamber, which, when pressurized by the vehicle's air supply, exerts force upon a plunger or piston within the pintle hook assembly. This force keeps the pintle's jaw in constant, firm contact with the drawbar eye. The benefits of this dynamic engagement are multifaceted:
- Reduced Wear and Tear: By minimizing the relative movement between the hook and the drawbar eye, abrasive wear on critical components is dramatically reduced. This extends the service life of both the pintle hook and the trailer's drawbar eye, mitigating premature component fatigue and the need for frequent replacements.
- Enhanced Shock Absorption: The air cushion acts as a sophisticated damper, absorbing transient shock loads that occur during acceleration, deceleration, braking, and traversal over uneven terrain. This dampening effect protects the structural integrity of both the towing vehicle's chassis and the trailer frame, as well as their respective drivetrains and suspension systems.
- Improved Vehicle Dynamics and Stability: The elimination of slack translates to a more stable towing experience. Drivers benefit from improved control, particularly during cornering, sudden maneuvers, or in situations with varying road conditions. The precise coupling minimizes oscillatory movements, leading to a smoother, more predictable towing operation.
- Prevention of Uncoupling: The constant clamping force ensures the drawbar eye remains securely seated within the pintle hook, significantly reducing the risk of accidental uncoupling, even under extreme vibrational stress or severe impacts. This is a critical safety feature, especially in heavy-duty applications where unintended separation can have catastrophic consequences.
- Optimized Braking Performance: In sudden braking scenarios, the air compensation system helps to manage the forces exerted between the towing vehicle and the trailer, contributing to a more controlled and stable stop. The reduction in dynamic slack ensures that braking forces are transmitted more efficiently and predictably.
Material Science Excellence: Austempered Ductile Iron (ADI)
The selection of Austempered Ductile Iron (ADI) as the primary material for the pintle hook body underscores a commitment to superior engineering and long-term durability. ADI is not merely a variant of cast iron; it is a high-performance ferrous alloy renowned for its exceptional combination of strength, ductility, and wear resistance, properties often found individually in disparate materials. The austempering heat treatment process transforms ductile iron into ADI, creating a unique microstructure composed of ausferrite (a mixture of acicular ferrite and high-carbon austenite).
Key material advantages of ADI in this application include:
- High Strength-to-Weight Ratio: ADI offers tensile strengths comparable to or exceeding many grades of cast steel, yet with a lower density, contributing to component optimization.
- Exceptional Ductility and Toughness: Unlike conventional cast irons, ADI exhibits significant ductility, meaning it can deform plastically before fracturing. This toughness is crucial in high-impact applications, preventing brittle failure under sudden loads or shocks.
- Superior Wear Resistance: The ausferritic microstructure provides excellent resistance to abrasive and adhesive wear, particularly beneficial in the constant contact environment of a pintle hook and drawbar eye. This prolongs the component's operational life even in harsh, abrasive conditions.
- Fatigue Resistance: Components subjected to repetitive loading cycles, as is common in towing, benefit greatly from ADI's high fatigue strength, ensuring reliability over millions of operational cycles.
- Noise and Vibration Damping: ADI possesses inherent damping characteristics, contributing further to the reduction of noise and vibration in the towing assembly.
The black powder-coat finish applied to the ADI hook not only provides an aesthetically pleasing appearance but also serves as a critical protective layer against corrosion, rust, and environmental degradation, further extending the product's lifespan in challenging outdoor conditions.
Integrated Kit Components: Brake Chamber and Bracket

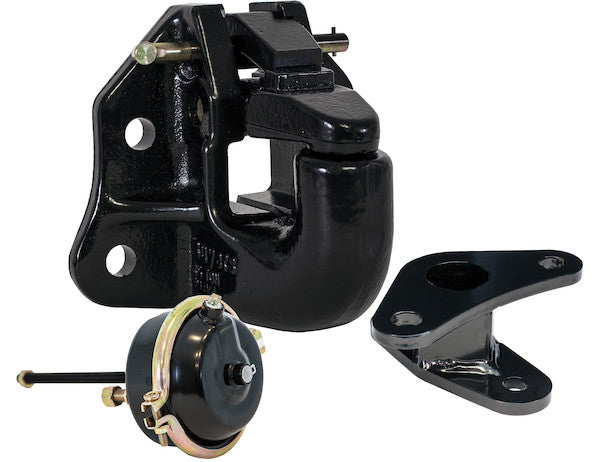

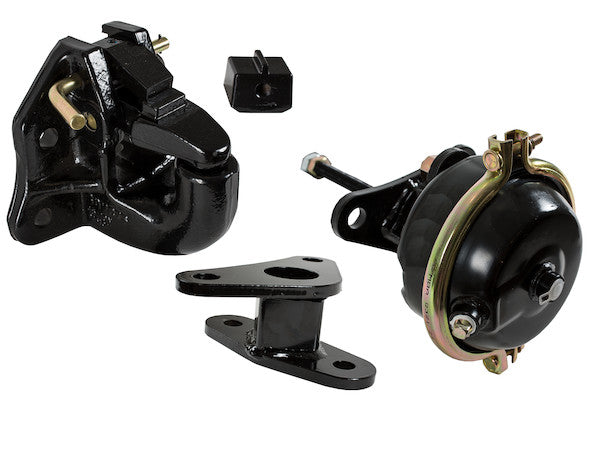

This product is supplied as a comprehensive kit, including the air-compensated pintle hook, a high-quality air brake chamber, and a precisely engineered mounting bracket. The inclusion of these components ensures optimal system integration and simplifies installation for the end-user.

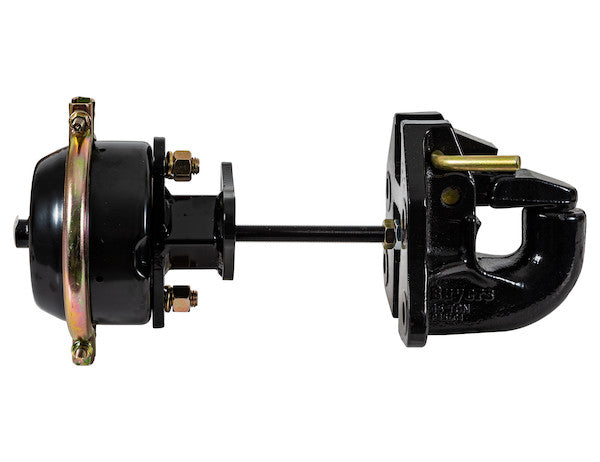

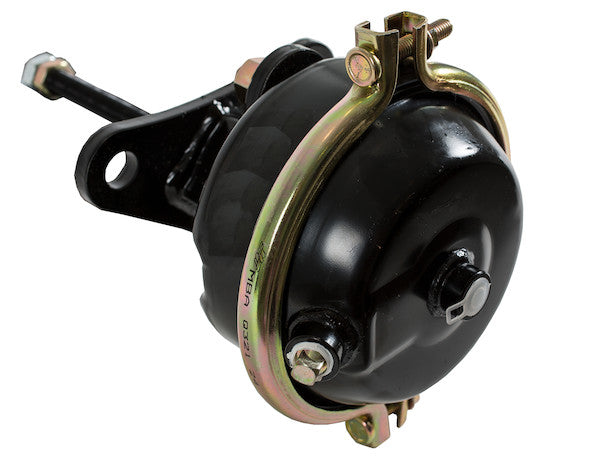

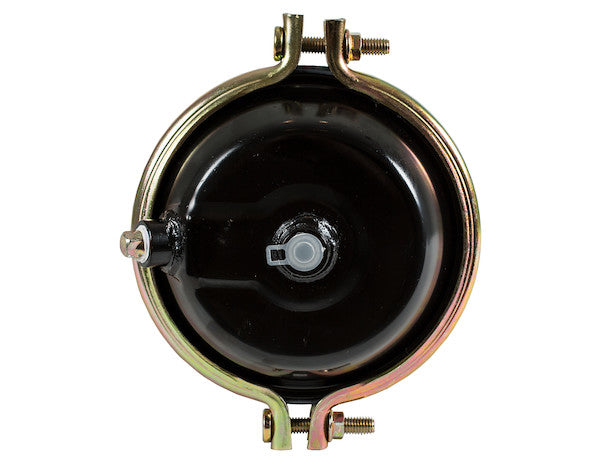

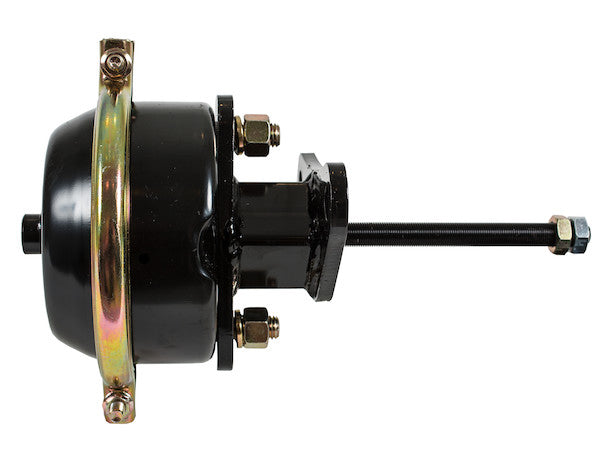

- Air Brake Chamber: The included brake chamber is specifically selected and sized to provide the correct pneumatic force for the pintle hook's air compensation mechanism. It translates air pressure from the vehicle's compressed air system into mechanical force, driving the pintle's jaw to maintain constant contact with the drawbar eye. This direct pairing guarantees compatibility and proper functioning of the air compensation system, preventing issues that might arise from mismatched components.

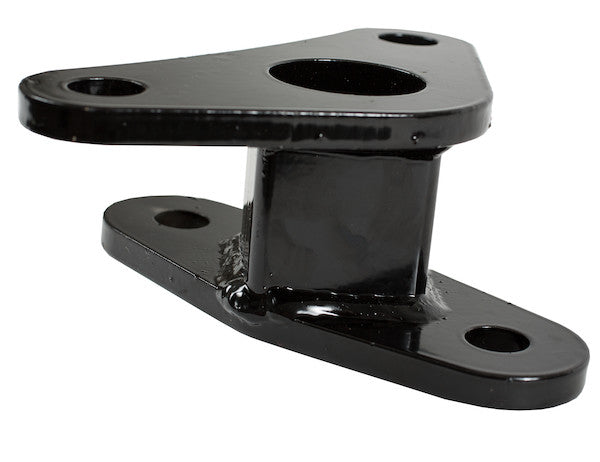

- Mounting Bracket: The robust steel mounting bracket is designed to securely attach the pintle hook to the vehicle's frame. It features a 4-hole bolt-on design, conforming to industry-standard mounting patterns with specified horizontal hole spacing of 5.25/6.50 inches and a vertical hole spacing of 3.00 inches. The mounting hole diameter of 0.781 inches accommodates standard heavy-duty fasteners. This bracket ensures a rigid, stable connection capable of withstanding the immense forces associated with 90,000 lbs M.G.T.W. and 18,000 lbs M.V.L., distributing loads effectively across the vehicle's mounting surface.
Versatility and Application Scope
The 45 Ton Air Compensated Pintle Hook Kit is engineered for a broad spectrum of heavy-duty applications where reliability, safety, and operational efficiency are paramount:
- Commercial Transportation: Ideal for semi-trailers, lowboy trailers, dump trailers, and other heavy haulage equipment used in logistics and freight transport.
- Construction and Mining: Suited for towing large construction equipment trailers, specialized mining vehicles, and other heavy machinery over varied and often challenging terrains.
- Agriculture: Capable of handling large agricultural implements and trailers, ensuring secure coupling during field operations and transport.
- Military and Defense: Meets the rigorous demands of tactical and logistical support vehicles requiring robust and reliable towing solutions.
- Specialized Industrial Operations: Applicable in various other sectors where exceptionally heavy loads need to be transported safely and efficiently.
Its robust design ensures reliable performance in both over-the-road environments, where consistent performance and reduced driver fatigue are critical, and in demanding off-road conditions, where shock absorption and prevention of uncoupling are vital for operational integrity and safety.
Technical Specifications Deep Dive
- M.G.T.W. (Maximum Gross Trailer Weight): 90,000 lbs – This metric denotes the absolute maximum weight of the trailer and its entire cargo that the pintle hook is rated to safely tow. A 90,000 lb M.G.T.W. rating signifies extreme heavy-duty capability, catering to the most substantial towing requirements in industrial and commercial sectors.
- M.V.L. (Maximum Vertical Load): 18,000 lbs – Also known as tongue weight, M.V.L. specifies the maximum downward force that the trailer's drawbar eye can exert on the pintle hook. Proper management of vertical load is crucial for maintaining vehicle stability, braking performance, and preventing excessive stress on the towing vehicle's rear axle and chassis. An 18,000 lb M.V.L. rating indicates robust structural integrity designed to handle significant direct downward pressure.
- Drawbar Eye Inner Dia.: 2.38-3.00 in. – This range indicates the compatibility of the pintle hook with a variety of standard drawbar eye diameters. This flexibility ensures broad interoperability with different trailer types and manufacturers, enhancing the utility of the kit. The air compensation system effectively accommodates this range by ensuring tight contact across the spectrum.
- Mounting Hole Specifications (Horizontal: 5.25/6.50 in., Vertical: 3.00 in., Diameter: 0.781 in.): These precise dimensions ensure compatibility with industry-standard mounting plates and patterns for heavy-duty tow vehicles. The dual horizontal spacing (5.25/6.50 inches) offers versatility for various vehicle chassis configurations. Adherence to these standards simplifies installation and ensures a secure, compliant attachment.
Maintenance and Longevity
While engineered for minimal maintenance, routine inspection is recommended to ensure optimal performance and longevity. Users should periodically check the structural integrity of the pintle hook body, the functionality of the air compensation mechanism, the condition of the air lines, and the security of all mounting fasteners. Given the robust ADI construction and powder-coat finish, the product offers exceptional resistance to wear and environmental factors, ensuring a prolonged operational lifespan with appropriate care.
Conclusion
The 45 Ton 4-Hole Air Compensated Pintle Hook Kit with Brake Chamber and Bracket is an advanced, high-performance towing solution designed for the most rigorous heavy-duty applications. By integrating sophisticated air compensation technology with the inherent strength and durability of Austempered Ductile Iron, this kit provides unparalleled safety, operational efficiency, and extended service life. Its comprehensive nature, including the pintle hook, air brake chamber, and robust mounting bracket, offers a complete, ready-to-install system that significantly enhances the reliability and performance of heavy haulage operations, both on and off the road. Investing in this kit is an investment in safety, efficiency, and the long-term operational integrity of your fleet.
