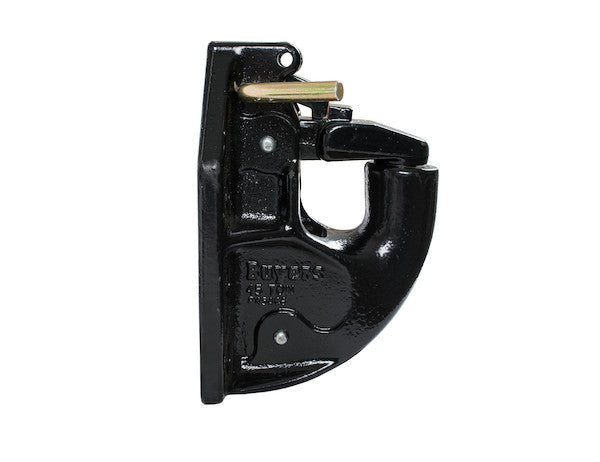

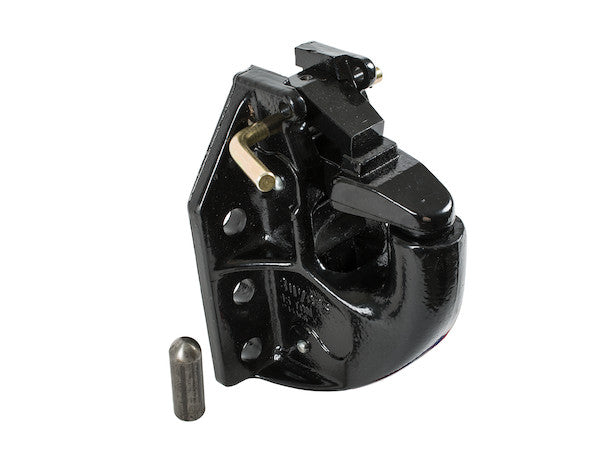

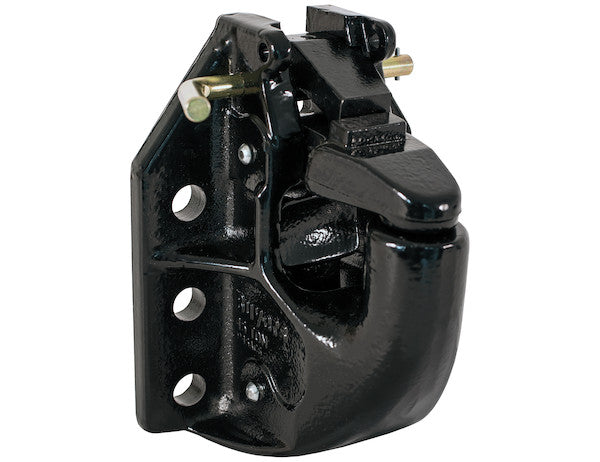

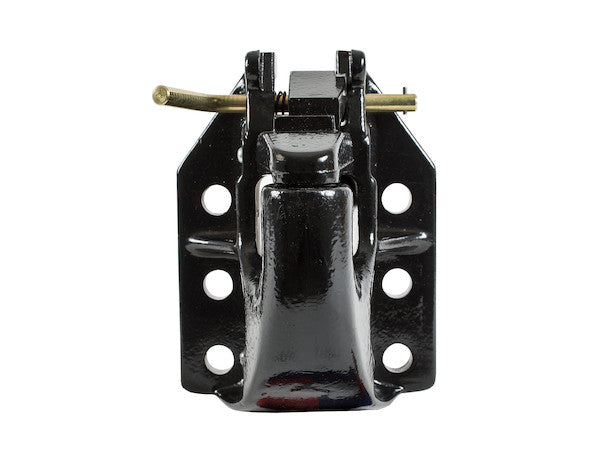

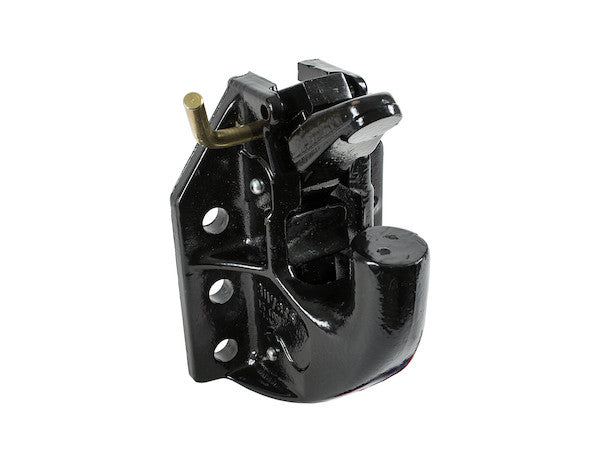

The 45 Ton Air Compensated Pintle Hook with 6 Mounting Holes from Buyers Products cushions movement between the pintle hook and tow ring. This feature saves wear and tear on the parts, especially in sudden motion or braking situations. The 6 hole mount, bolt-on pintle hook uses the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation. The hook is ideal for heavy-duty applications such as semi trailers, both off-road and over-the-road. It requires an air brake chamber, which can be ordered together separately or as a kit.
Specifications
| Ball Diameter (in.) | - |
|---|---|
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.38-3.00 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 5.00 |
| Includes | Pintle Hook Only |
| M.G.T.W. (lbs) | 90,000 |
| M.V.L. (lbs) | 18,000 |
| Material | Austempered Ductile Iron |
| Mounting Hole Diameter (in.) | 0.781 |
| Pintle Hook Type | Air Compensated |
| Vertical Hole Spacing (in.) | 2.125 Bottom / 2.375 Top |
The 45 Ton 6-Hole Air Compensated Pintle Hook represents a pinnacle of towing technology, meticulously engineered for the most demanding heavy-duty applications across diverse industries. This robust coupling device is designed to provide not only exceptional strength and durability but also superior operational dynamics, significantly enhancing safety, reducing maintenance overhead, and improving overall towing performance for tractor-trailer combinations and heavy equipment transport.
Advanced Air Compensation Mechanism
At the core of this pintle hook's superior performance is its innovative air compensation system. Unlike conventional rigid pintle hooks, which can transmit significant shock and impact loads between the towing vehicle and trailer, this model leverages the vehicle's existing air system to create a pneumatic cushion. This system actively maintains a constant, controlled pressure against the drawbar eye, thereby minimizing the typical slack and play inherent in standard pintle hook designs. This continuous pressure absorption is crucial for mitigating the destructive effects of dynamic loads, especially during abrupt braking, rapid acceleration, or traversing uneven terrain.
The pneumatic cushioning effect serves multiple critical functions. Firstly, it substantially reduces the wear and tear on both the pintle hook components and the trailer's drawbar eye. The constant physical impact and friction in rigid setups lead to accelerated material fatigue, deformation, and premature failure. By continuously holding the drawbar eye closely, the air compensation system virtually eliminates the metal-on-metal hammering, preserving the integrity and extending the service life of these critical connection points. Secondly, it significantly absorbs shock, vibrations, and sudden jolts, transforming a potentially harsh and jarring towing experience into a remarkably smoother operation. This dampening effect protects not only the mechanical components but also the cargo, especially when transporting sensitive equipment or materials.
Furthermore, the air compensation mechanism plays a pivotal role in enhancing operational safety. By maintaining a tight, secure connection, it effectively prevents accidental uncoupling, which can have catastrophic consequences in heavy-duty towing scenarios. The reduced slack also minimizes undesirable articulation and oscillatory movements between the towing vehicle and trailer, contributing to greater directional stability and control, particularly at higher speeds or during maneuvers. This translates into a more predictable and safer towing environment for the operator and other road users.
Exceptional Load Capacity and Durability
With an impressive Maximum Gross Trailer Weight (M.G.T.W.) of 90,000 lbs (45 tons) and a Maximum Vertical Load (M.V.L.) of 18,000 lbs, this pintle hook is built to handle the heaviest of loads. This specification underscores its suitability for the most arduous tasks, from transporting large construction machinery and agricultural equipment to military vehicles and specialized industrial trailers. The robust design ensures that the hook can withstand the immense static and dynamic stresses associated with such heavy hauling, maintaining structural integrity and operational reliability under extreme conditions.
The material selection is a key factor in its remarkable strength and longevity. Constructed from Austempered Ductile Iron (ADI), this pintle hook benefits from a proprietary heat treatment process that transforms ductile iron into a material with exceptional mechanical properties. ADI is renowned for its superior combination of high tensile strength, excellent toughness, and remarkable wear resistance. It exhibits significantly higher strength-to-weight ratios compared to traditional cast irons and many grades of steel, while offering superior fatigue resistance. This makes it an ideal material for components subjected to high cyclic loading and abrasive environments, ensuring the pintle hook retains its performance characteristics over an extended operational lifespan even under constant stress and impact.
Complementing its robust construction is a durable powder-coat finish in black. This professional-grade coating provides an additional layer of protection against corrosion, rust, and abrasion, which are common challenges in outdoor and industrial environments. The powder-coat finish ensures that the pintle hook not only performs reliably but also maintains its aesthetic integrity, resisting chipping, fading, and weathering. This meticulous attention to material science and surface treatment underscores the product's engineering for maximum durability and minimal maintenance requirements.
Precision Mounting and Versatility

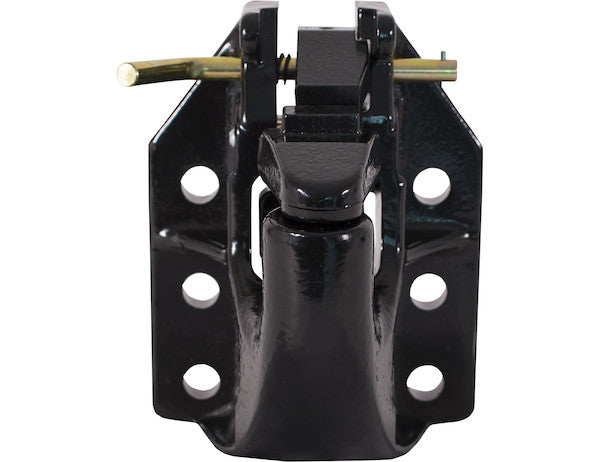

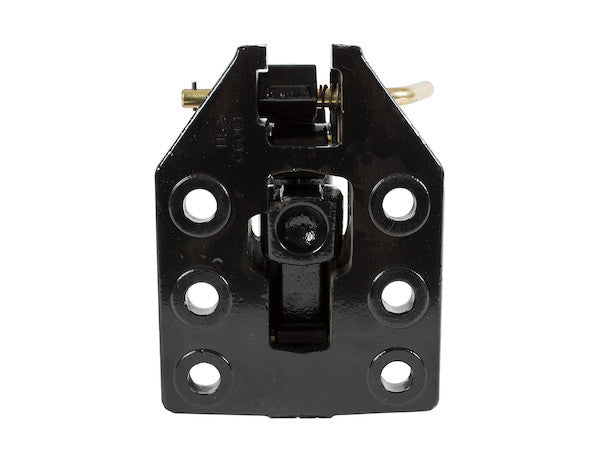

The 6-hole bolt-on mounting configuration provides a secure and stable attachment to the towing vehicle's chassis or pintle mount plate. The precise drilling pattern, with a horizontal hole spacing of 5.00 inches and vertical hole spacing of 2.125 inches (bottom) / 2.375 inches (top), ensures compatibility with standard heavy-duty mounting plates. Each mounting hole has a diameter of 0.781 inches, designed to accommodate high-strength grade 8 fasteners, which are essential for transferring massive towing forces safely and reliably. This multi-point attachment system distributes stress evenly across the mounting surface, preventing localized fatigue and enhancing the overall structural integrity of the towing connection.
The design accommodates a range of drawbar eye inner diameters, specifically from 2.38 inches to 3.00 inches. This versatility ensures compatibility with a broad spectrum of heavy-duty trailers, eliminating the need for specialized tow rings and simplifying fleet management. The precise fit within this range is critical for the effective operation of the air compensation system, ensuring optimal cushioning and engagement with various trailer types.
Comprehensive Applications Across Industries
This 45 Ton Air Compensated Pintle Hook is a crucial component for a wide array of heavy-duty applications. Its exceptional capabilities make it indispensable in:
- Commercial Trucking & Logistics: Ideal for over-the-road semi-trailers, facilitating the safe and efficient transport of goods across long distances, where smooth operation and reduced wear contribute to operational cost savings and driver comfort.
- Construction & Infrastructure: Essential for towing heavy construction equipment such as excavators, bulldozers, loaders, and large utility trailers to and from job sites, often over challenging and uneven terrain.
- Agriculture: Used on large farm tractors and specialized agricultural vehicles to tow heavy implements, grain wagons, and livestock trailers, where the robust design and shock absorption are critical for navigating fields and rough farm roads.
- Mining & Quarry Operations: Deployed in environments characterized by extreme conditions and massive loads, where the pintle hook's high capacity and durability are vital for transporting heavy machinery and material haulers.
- Municipal & Government Fleets: Suitable for heavy utility trailers, refuse haulers, road maintenance equipment, and other specialized vehicles requiring reliable, high-capacity towing solutions.
- Military & Defense: Utilized in tactical and logistical support operations for towing heavy military trailers, artillery, and specialized vehicles where reliability and robustness under extreme stress are non-negotiable.
- Forestry: Employed for towing logging trailers and other heavy equipment used in timber operations, often across rugged and unpaved terrain.
The ability of this pintle hook to perform reliably in both off-road and over-the-road environments underscores its versatility and robust engineering. In off-road scenarios, the air compensation system is particularly beneficial, as it significantly dampens the severe impacts and twists encountered on uneven ground, protecting the entire towing system. On highways, it ensures a smoother ride, reduces trailer sway, and enhances braking stability, contributing to fuel efficiency and operator well-being.
Installation and Maintenance Protocol

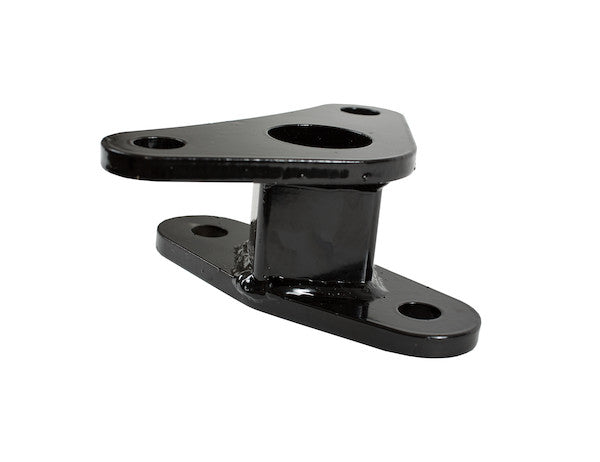

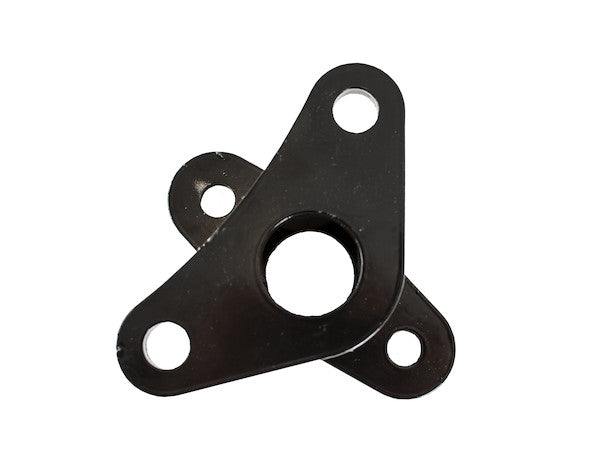

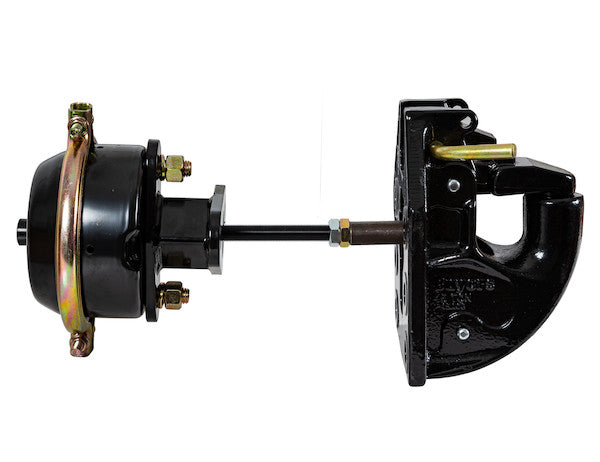

Proper installation is paramount to ensuring the safety and optimal performance of the 45 Ton Air Compensated Pintle Hook. It requires an air brake chamber, which can be acquired separately or as part of a complete kit. This chamber connects to the vehicle's air system, providing the necessary pneumatic pressure for the compensation mechanism. Professional installation is highly recommended to ensure correct alignment, secure fastening with appropriate grade 8 bolts and lock washers, and proper integration with the vehicle's air system, including leak testing.
The mounting surface on the towing vehicle must be sufficiently robust to support the immense forces generated during heavy-duty towing. It should be constructed from high-strength steel and adequately braced to prevent flex or fatigue. Adherence to manufacturer's specifications for bolt torque is critical to prevent loosening under vibration and dynamic loads.
Routine maintenance is straightforward but essential. Regular inspection should include:
- Visual Inspection: Check for any signs of wear, cracks, deformation, or corrosion on the pintle hook body, latch mechanism, and mounting bolts.
- Drawbar Eye Condition: Ensure the trailer's drawbar eye is free from excessive wear, gouges, or deformation.
- Air System Integrity: Verify that all air lines are securely connected, free from leaks, and that the air brake chamber is functioning correctly to maintain proper compensation pressure.

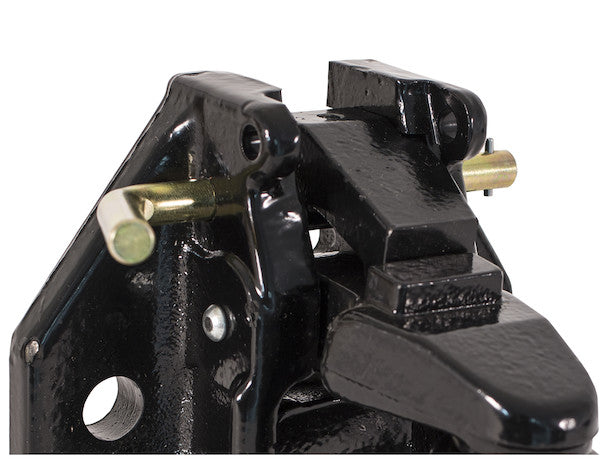

- Latching Mechanism: Confirm that the latch operates smoothly and securely, fully engaging the drawbar eye when coupled.
- Lubrication: Apply recommended lubricants to pivot points and moving parts as per manufacturer guidelines to ensure smooth operation and minimize friction.
- Bolt Torque: Periodically re-check and re-torque mounting bolts to specifications, especially after initial use.
Adhering to these maintenance practices will maximize the lifespan of the pintle hook and ensure continued safe and efficient operation.
Engineering Excellence and Reliability
The design of this 45 Ton Air Compensated Pintle Hook reflects a deep understanding of the complexities and challenges of heavy-duty towing. Every aspect, from the selection of Austempered Ductile Iron for its superior material properties to the precise calibration of the air compensation system, is engineered for maximum reliability and performance. The product undergoes rigorous testing to meet and exceed industry standards, ensuring it can withstand the harshest operating conditions and the most demanding workloads. This commitment to engineering excellence translates into a product that delivers unparalleled peace of mind for operators and fleet managers, knowing their heaviest loads are securely and efficiently transported.
In conclusion, the 45 Ton 6-Hole Air Compensated Pintle Hook is not merely a towing accessory; it is a meticulously engineered heavy-duty component designed to elevate the safety, efficiency, and longevity of demanding towing operations. Its robust construction from Austempered Ductile Iron, coupled with the innovative air compensation system, positions it as an industry leader for applications requiring maximum load capacity, superior shock absorption, reduced wear, and enhanced operational stability. Investing in this pintle hook is an investment in unparalleled towing performance and long-term reliability for your heaviest hauling needs.
