The 45 Ton Air Compensated Pintle Hook with 6 Mounting Holes from Buyers Products cushions movement between the pintle hook and tow ring. This feature saves wear and tear on the parts, especially in sudden motion or braking situations. The 6 hole mount, bolt-on pintle hook uses the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation. The hook is ideal for heavy-duty applications such as semi trailers, both off-road and over-the-road. It requires an air brake chamber, which can be ordered together separately or as a kit.
Specifications
| Ball Diameter (in.) | - |
|---|---|
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.38-3.00 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 5.00 |
| Includes | Pintle Hook, Brake Chamber & Bracket |
| M.G.T.W. (lbs) | 90,000 |
| M.V.L. (lbs) | 18,000 |
| Material | Austempered Ductile Iron |
| Mounting Hole Diameter (in.) | 0.781 |
| Pintle Hook Type | Air Compensated |
| Vertical Hole Spacing (in.) | 2.125 Bottom / 2.375 Top |
Advanced Heavy-Duty Towing: The 45 Ton Air Compensated Pintle Hook Kit
The 45 Ton 6-Hole Air Compensated Pintle Hook Kit with Brake Chamber Bracket represents the pinnacle of modern towing technology, specifically engineered for the most demanding heavy-duty applications. This comprehensive solution transcends the limitations of conventional pintle hooks by integrating a sophisticated pneumatic compensation system, directly leveraging the robust air infrastructure present in most heavy commercial vehicles. Designed for unparalleled durability, enhanced safety, and superior operational efficiency, this kit is an indispensable component for professional operators in construction, agriculture, mining, transportation, and military logistics who routinely tow high-mass trailers over varied and challenging terrains.
The Engineering Advantage of Air Compensation
At the core of this product's superior performance is its innovative air-compensated design. Unlike rigid pintle hooks that rely solely on mechanical tolerances and the inherent elasticity of materials to manage dynamic forces, the air-compensated system introduces an active pneumatic damping element. This mechanism utilizes a precisely engineered piston, actuated by regulated air pressure from the vehicle's onboard system, to maintain a constant, controlled engagement between the pintle hook and the trailer's drawbar eye. This continuous pressure minimizes the interstitial gap that typically allows for jarring and impact forces during transient vehicle maneuvers such as acceleration, deceleration, and traversing uneven surfaces. The result is a resilient cushion that effectively absorbs longitudinal shocks and vibrations transmitted through the driveline. This active cushioning is paramount in preventing premature wear on both the pintle hook and the drawbar eye, significantly extending their operational lifespan and reducing maintenance frequency. Furthermore, by constantly holding the drawbar eye closely, the system dramatically mitigates the risk of accidental uncoupling, a critical safety enhancement, particularly in dynamic operating conditions.
The pneumatic compensation system operates by monitoring and adjusting the pressure exerted on the drawbar eye, ensuring optimal contact without excessive force. This fine-tuned engagement reduces metal-on-metal impact, which is a primary contributor to component degradation in traditional towing systems. The reduction in shock loading not only preserves the integrity of the coupling components but also minimizes stress on the tow vehicle's chassis and drivetrain, contributing to overall vehicle longevity. For the operator, this translates to a smoother, quieter towing experience, reducing driver fatigue and enhancing control, particularly when handling heavy loads on challenging roads or off-road environments. The integration of this technology marks a significant advancement over standard pintle hook designs, offering a tangible return on investment through reduced downtime, lower replacement costs, and improved safety compliance.
Exceptional Load Capacity: 45 Tons (90,000 lbs M.G.T.W.)
The sheer capacity of this pintle hook is a defining feature, rated for a Maximum Gross Trailer Weight (M.G.T.W.) of 90,000 pounds (45 tons). This formidable rating positions it among the heaviest-duty towing solutions available, suitable for trailers carrying substantial payloads. This capacity is essential for applications involving large construction equipment (e.g., excavators, bulldozers), multi-axle heavy-haul trailers, specialized agricultural machinery, or tactical military vehicles. Proper selection of a pintle hook requires careful consideration of the trailer's Gross Vehicle Weight Rating (GVWR) to ensure that the hook's capacity meets or exceeds the maximum anticipated load. Operating within the specified M.G.T.W. is fundamental for safe and legally compliant towing operations.
Complementing its M.G.T.W. is a Maximum Vertical Load (M.V.L.) rating of 18,000 pounds. The M.V.L., often referred to as tongue weight, specifies the maximum downward force that can be safely exerted on the pintle hook by the trailer's drawbar eye. This metric is critical for maintaining proper vehicle stability and steering control. Exceeding the M.V.L. can lead to dangerous handling characteristics, including excessive rear axle load on the tow vehicle, reduced front axle traction, and potential structural damage to both the pintle hook and the vehicle's frame. The substantial M.V.L. of this hook accommodates trailers with significant tongue weight requirements, which are common in heavy-duty towing applications where load distribution is a primary engineering consideration. Adherence to these load ratings ensures not only the mechanical integrity of the coupling but also the dynamic stability of the entire vehicle-trailer combination.
Robust 6-Hole Mounting System and Integrated Brake Chamber Bracket

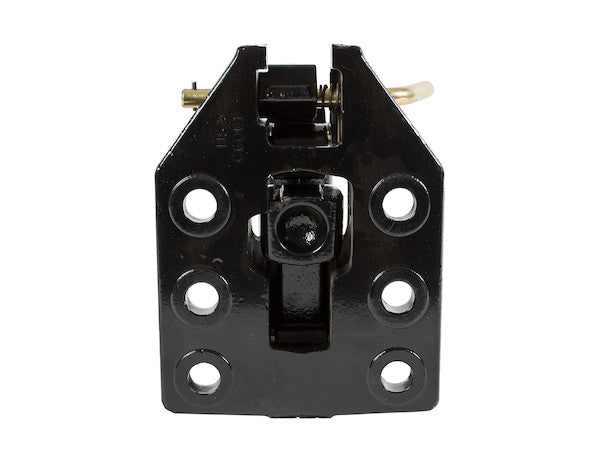

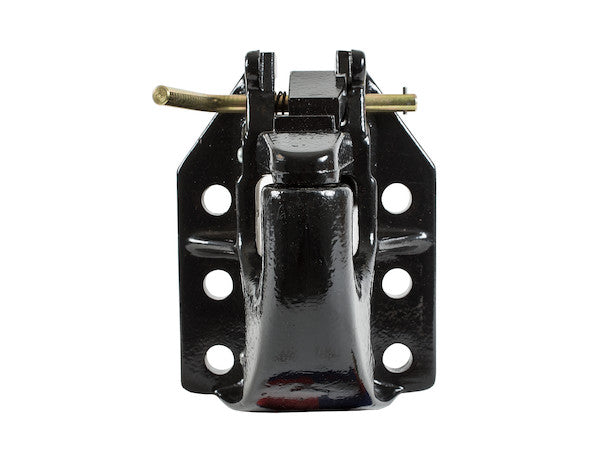

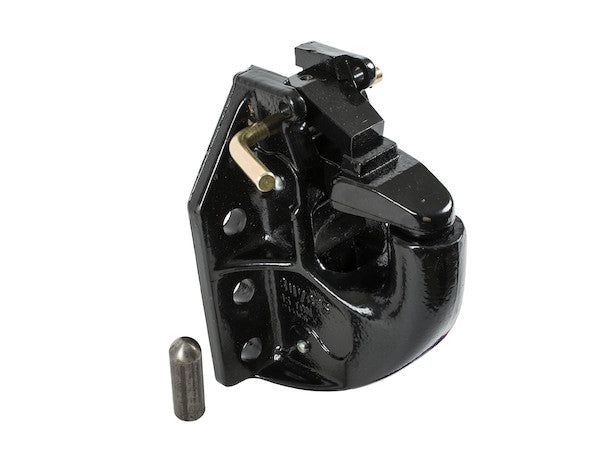

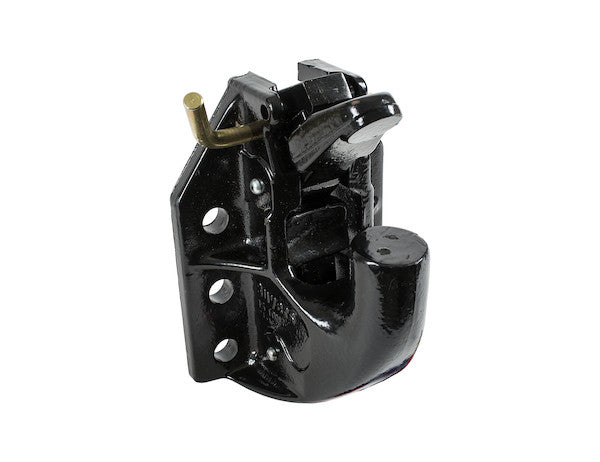

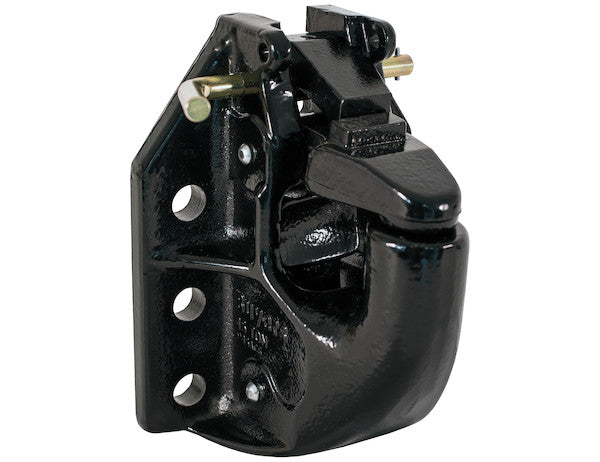

The structural integrity of any heavy-duty pintle hook relies heavily on its mounting system. This 45-ton pintle hook features a robust 6-hole bolt-on configuration, specifically designed to distribute the immense towing and vertical forces over a larger area of the vehicle's frame or pintle mount plate. The precise mounting hole dimensions – 5.00 inches horizontal spacing, 2.125 inches vertical spacing for the bottom holes, and 2.375 inches vertical spacing for the top holes, with a consistent mounting hole diameter of 0.781 inches – ensure compatibility with standard heavy-duty pintle mounting patterns commonly found on Class 8 trucks and other heavy equipment. This multi-bolt pattern significantly enhances the stability of the attachment, minimizing potential for shear or fatigue failures under cyclical loading conditions. It is imperative that appropriate grade 8 or higher fasteners are used during installation, torqued to manufacturer specifications, to guarantee the integrity of the mounting.

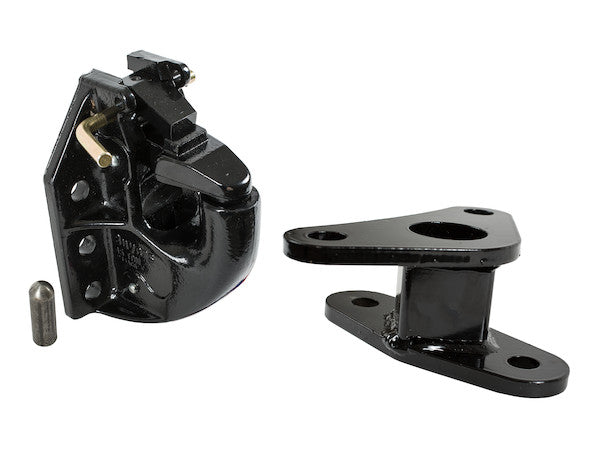

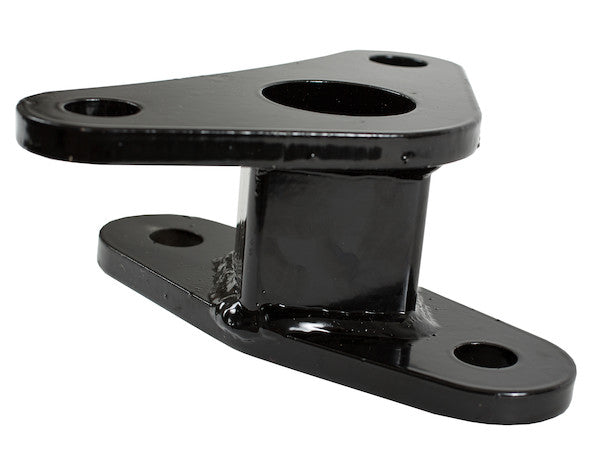

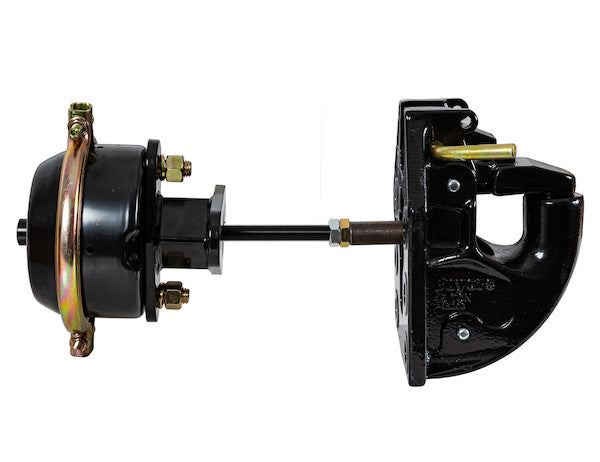

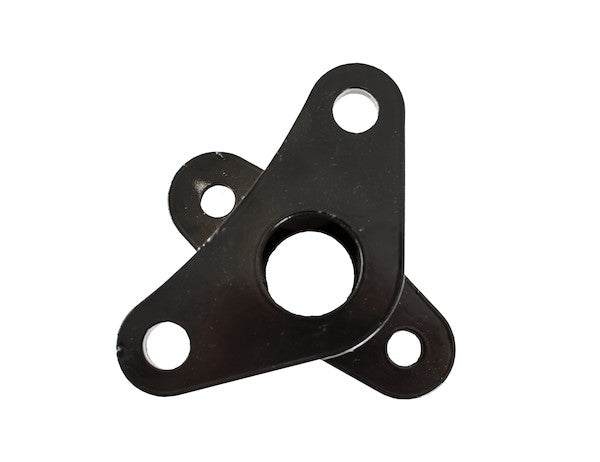

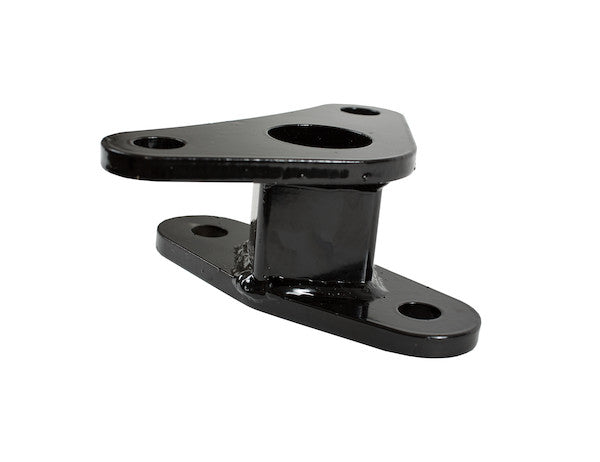

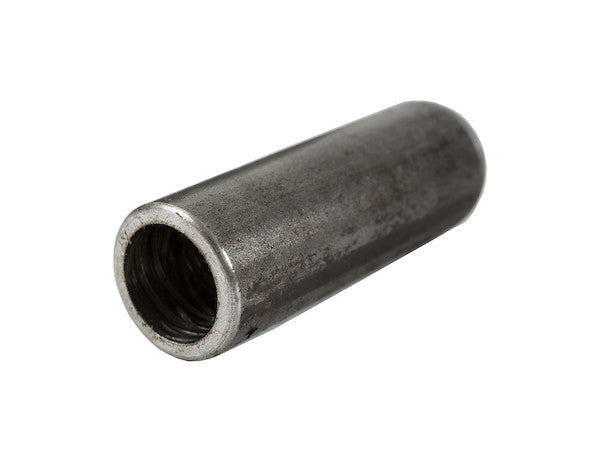

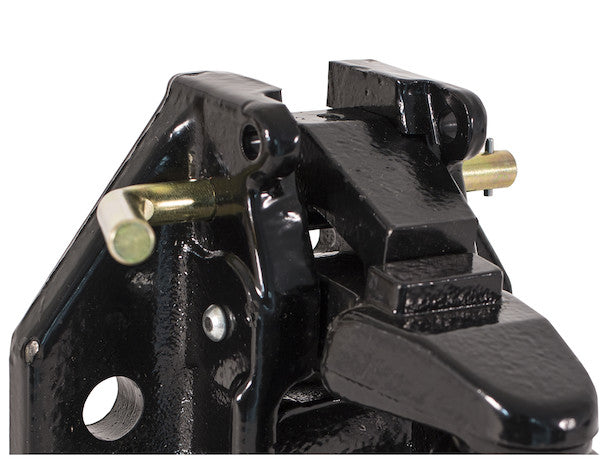

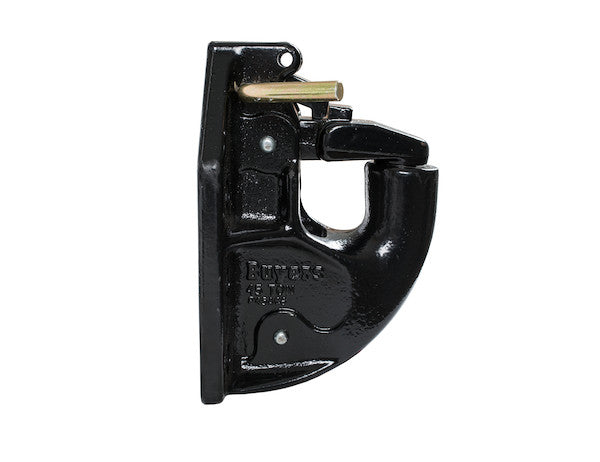

Crucially, this kit includes a dedicated Brake Chamber Bracket. This integrated bracket is not merely an accessory but a vital component that directly supports the functionality of the air-compensated system. The air brake chamber, which is mounted onto this bracket, acts as the pneumatic actuator, converting compressed air from the vehicle's air system into mechanical force to operate the pintle hook's compensation piston. The inclusion of the bracket in the kit streamlines installation, ensuring a precise fit and optimal positioning of the brake chamber for reliable and consistent performance of the air compensation mechanism. This comprehensive kit approach simplifies procurement and guarantees compatibility, eliminating the guesswork often associated with piecing together individual components. The proper connection of the brake chamber to the vehicle's air supply, typically through a dedicated air line with appropriate pressure regulation, is essential for the air compensation feature to function correctly and safely.
Material Science Excellence: Austempered Ductile Iron Construction
The material selection for the 45 Ton Pintle Hook is a testament to its heavy-duty design and expected operational longevity. Constructed from Austempered Ductile Iron (ADI), this component benefits from a specialized heat treatment process that imparts exceptional mechanical properties. Austempering transforms the microstructure of ductile iron into a unique bainitic matrix, resulting in a material that combines the high strength and wear resistance typically associated with hardened steels with the inherent ductility and toughness of ductile iron. This makes ADI an ideal material for high-stress, impact-prone applications like pintle hooks, which are subjected to constant dynamic loading, abrasion, and potential shock forces.
The advantages of ADI in this application are multifaceted:
- Superior Strength-to-Weight Ratio: ADI offers a higher strength-to-weight ratio compared to conventional cast irons and even some cast steels, allowing for robust design without excessive mass.
- Excellent Wear Resistance: The unique microstructure of ADI provides outstanding resistance to abrasive wear, extending the life of the pintle hook under constant engagement with the drawbar eye.
- High Toughness and Ductility: Unlike brittle cast materials, ADI exhibits significant toughness and ductility, making it highly resistant to cracking and fracture even under severe shock loads or impact events. This is critical for safety in towing applications where sudden stresses can occur.
- Fatigue Resistance: The material's inherent properties contribute to superior fatigue resistance, crucial for components that undergo millions of stress cycles throughout their operational life. This ensures long-term reliability and reduces the risk of catastrophic failure.
- Noise and Vibration Damping: ADI possesses good inherent damping characteristics, contributing to the overall reduction in noise and vibration, further complementing the air-compensated design for a quieter, smoother towing experience.
Protective Powder-Coat Finish
Beyond its robust material composition, the 45 Ton Pintle Hook is further protected by a durable black powder-coat finish. This industrial-grade coating is not merely aesthetic; it provides a critical layer of defense against environmental degradation. Powder coating involves applying a dry powder polymer that is then cured under heat to create a hard, protective layer. This process results in a finish that is significantly more resistant to chipping, scratching, fading, and corrosion than traditional liquid paints.
For a component like a pintle hook that operates in harsh outdoor conditions, subjected to road salt, moisture, UV radiation, chemical exposure, and abrasive debris, a high-quality finish is essential. The powder coat creates an impervious barrier, preventing rust and oxidation that could otherwise compromise the structural integrity of the ADI over time. This enhanced corrosion resistance directly contributes to the longevity of the pintle hook, maintaining its functional performance and aesthetic appearance even after prolonged exposure to severe operational climates. The black finish also offers a professional, uniform look that integrates seamlessly with the appearance of most heavy-duty vehicles and trailers.
Optimal Drawbar Eye Compatibility and Engagement
The design of this pintle hook accommodates drawbar eyes with an inner diameter ranging from 2.38 to 3.00 inches. This specific range ensures compatibility with a broad spectrum of heavy-duty trailers while maintaining a sufficiently tight tolerance for effective air compensation. A proper fit between the pintle hook and the drawbar eye is crucial; while the air compensation system minimizes play, starting with a compatible drawbar eye diameter reduces initial free movement and allows the pneumatic system to function optimally. Using a drawbar eye outside this specified range can lead to excessive wear, reduced compensation effectiveness, or even unsafe operating conditions. The engineering behind this dimension ensures that, when coupled, the system can effectively cushion and absorb forces, contributing to the overall safety and longevity of the towing assembly.
Diverse Heavy-Duty Applications
The versatility and robust nature of the 45 Ton Air Compensated Pintle Hook make it suitable for an extensive range of heavy-duty applications, both on-road and off-road. Its design specifically addresses the rigorous demands of industries where reliability and safety are non-negotiable:
- Construction: Hauling heavy equipment such as large excavators, bulldozers, graders, and material transport trailers to and from construction sites, often involving rough terrain.
- Agriculture: Transporting large farming machinery, grain wagons, livestock trailers, and other agricultural implements across fields and rural roads.
- Mining: Moving heavy ore wagons, specialized mining equipment, and support vehicles in challenging, often remote, mining environments.
- Heavy Haul Transportation: Used by professional logistics companies for the movement of oversized and overweight loads, ensuring stable and secure coupling over long distances.
- Utility Services: Supporting utility trucks and trailers that carry power poles, transformers, and trenching equipment, where reliability in all weather conditions is paramount.
- Military and Defense: Ideal for tactical vehicles and trailers requiring robust, dependable towing capabilities in extreme operational theaters.
Whether traversing smooth highways, navigating rugged construction sites, or operating in remote off-road environments, this pintle hook is engineered to deliver consistent, safe, and efficient performance, protecting both the vehicle, the trailer, and the cargo.
Safety, Compliance, and Maintenance Best Practices
The inherent design of the air-compensated pintle hook contributes significantly to towing safety. By actively reducing slack and cushioning dynamic forces, it mitigates common towing hazards such as trailer surging, whipping, and excessive wear that can lead to premature failure or accidental uncoupling. This directly enhances vehicle stability, especially during braking and cornering maneuvers, providing drivers with greater control and confidence. Operators are encouraged to be aware of and comply with all local, state, and federal regulations regarding towing equipment and load securement. Adherence to industry standards, such as those set by SAE International for pintle hooks, is implicit in the design and manufacturing of this high-quality product.
For optimal performance and longevity, a comprehensive maintenance regimen is recommended. Regular visual inspections of the pintle hook, drawbar eye, brake chamber, air lines, and mounting bolts are crucial. Checks should focus on signs of wear, deformation, cracks, or corrosion. The air lines connecting to the brake chamber should be inspected for leaks or damage. Any discernible play or excessive wear between the pintle and the drawbar eye should be addressed immediately. While the air compensation mechanism reduces wear, periodic lubrication of the pintle hook's moving parts, as per manufacturer guidelines, may be necessary. Furthermore, ensuring that the vehicle's air system is functioning correctly and providing the specified pressure to the brake chamber is vital for the air compensation system's efficacy. Professional installation by qualified technicians is strongly advised to ensure correct mounting, proper air line connection, and secure fastening, maximizing the safety and performance benefits of this advanced towing solution.
Economic Advantages and Operational Efficiency
Investing in a high-quality, air-compensated pintle hook offers substantial long-term economic advantages. The reduction in wear and tear on both the pintle hook and the trailer's drawbar eye significantly extends the lifespan of these critical components, translating into fewer replacements and reduced material costs. Furthermore, the minimized stress on the tow vehicle's chassis, suspension, and drivetrain helps to lower overall maintenance expenses and extends the service life of the prime mover. Less downtime due to component failure or unscheduled repairs means increased operational efficiency, allowing for more consistent scheduling and higher productivity. The enhanced safety features also contribute to fewer accident-related costs, including potential liability and insurance premiums. For organizations managing large fleets, these cumulative savings can be considerable, providing a strong return on investment for a technically superior towing solution.
The Buyers Products Difference
Buyers Products is renowned for its commitment to engineering robust, reliable, and innovative solutions for the work truck and trailer industries. The 45 Ton 6-Hole Air Compensated Pintle Hook Kit with Brake Chamber Bracket exemplifies this dedication, combining advanced pneumatic technology, superior material science, and meticulous manufacturing processes. Every component is designed and tested to meet stringent performance criteria, ensuring that customers receive a product that not only meets but exceeds industry expectations for safety, durability, and functionality. By choosing this comprehensive kit, operators are equipping their heavy-duty vehicles with a towing system engineered for the challenges of today's demanding work environments, promising exceptional performance and peace of mind.
