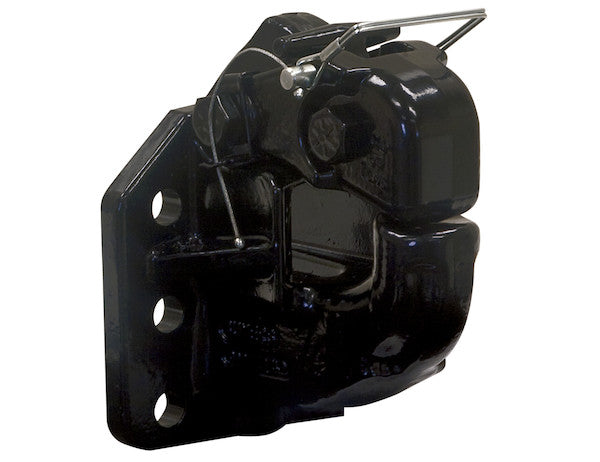

PH50 - 50 Ton Air Compensated Pintle Hook (without Chamber and Plunger)

The 50 Ton Air Compensated Pintle Hook from Buyers Products cushions movement between the pintle hook and tow ring. This saves wear and tear on the parts, as well as improves stability, especially in sudden motion or braking situations. The 6 hole mount, bolt-on pintle hook works in tandem with the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation. The hook is ideal for heavy-duty applications such as semi trailers, both off- and over-the-road. This product can also be used without the air chamber and plunger as a standard pintle hook. For off-road use, the load should be reduced by 25% and a swivel type trailer drawbar should be used.

Specifications

Advanced Engineering and Performance of the 50 Ton Air Compensated Pintle Hook

The 50 Ton Air Compensated Pintle Hook represents a pinnacle in heavy-duty towing technology, engineered to address the inherent challenges of connecting and transporting massive loads. This robust coupling device is designed to provide superior performance, longevity, and safety across a diverse range of demanding applications, from arduous over-the-road freight operations to severe off-highway equipment transport.

Mechanism of Air Compensation and Dynamic Load Management

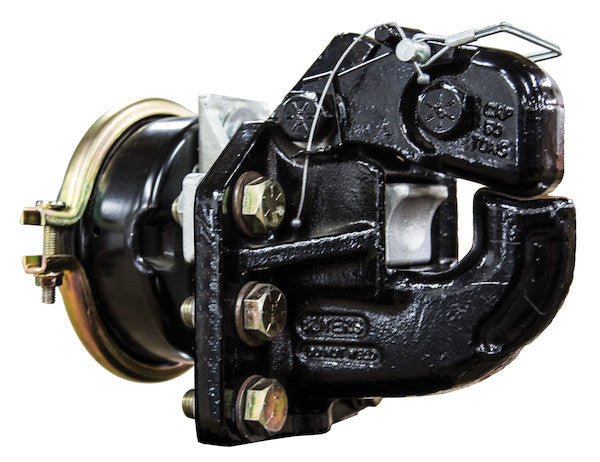

At the core of this pintle hook's advanced functionality is its air-compensated design. While this specific model is supplied without the air chamber and plunger, the fundamental principle of air compensation is paramount to understanding its capabilities and the inherent value of the system it is designed to integrate with. In a fully integrated air-compensated system, a pneumatic cylinder (comprising the air chamber and plunger) is strategically integrated into the pintle hook mechanism. This cylinder utilizes the vehicle’s existing air brake system pressure to exert a constant, controlled force on the pintle hook’s jaw, maintaining a pre-tensioned, virtually zero-slack engagement with the trailer’s drawbar eye. This continuous pneumatic pressure effectively dampens transient forces that typically arise during acceleration, deceleration, and traversal over uneven terrain.

The primary benefit of this pneumatic dampening is the significant reduction in dynamic shock loads. In conventional pintle hook systems, even well-fitted components experience a degree of play, leading to "chucking" or hammering effects as the vehicle and trailer respond to varying tractive forces. This constant impact generates substantial kinetic energy, which is directly absorbed by the coupling components, contributing to accelerated wear, material fatigue, and structural degradation of both the pintle hook and the drawbar eye, as well as the chassis and drivetrain of the towing vehicle. The air compensation system mitigates these effects by dynamically absorbing these impacts, converting high-frequency mechanical shocks into controlled pneumatic resistance. This viscoelastic-like response not only cushions the interaction but also maintains the drawbar eye in a consistent, tightly held position, minimizing relative motion and preventing the cumulative damage associated with repeated impact loading.

Structural Integrity and Material Science

The integrity of any heavy-duty towing component is directly proportional to its material composition and manufacturing precision. This 50 Ton Pintle Hook is fabricated from high-grade Cast Steel, a material chosen for its exceptional balance of strength, ductility, and cost-effectiveness in high-stress applications. Cast steel offers superior tensile strength and yield strength compared to cast iron, providing the necessary resilience to withstand the immense static and dynamic forces inherent in 100,000-pound Gross Trailer Weight (M.G.T.W.) applications. Its inherent ability to absorb impact energy without catastrophic brittle failure is critical for safety in unforeseen stress events, such as sudden braking or collision scenarios. The casting process itself allows for intricate geometries and robust cross-sections, optimizing load distribution and minimizing stress concentrations within the hook's structure.

Further enhancing its durability and operational lifespan, the pintle hook features a premium Powder-Coat finish in Black. This advanced coating technology involves electrostatically applying a dry powder to the steel surface, which is then cured under heat to form a hard, protective layer. The powder-coat finish provides significantly enhanced resistance to abrasion, chipping, and a wide array of environmental corrosives including road salts, moisture, and chemical exposure. Unlike liquid paints, powder coatings are generally thicker, more uniform, and exhibit superior adhesion, resulting in prolonged aesthetic retention and, crucially, extended protection against material degradation due to rust and oxidation. This translates directly to reduced maintenance requirements and an extended service life for the component, even in the most aggressive operational climates.

Precision Mounting and Interoperability

The design incorporates a standardized 6-hole bolt-on mounting pattern, specified with a 5.00-inch horizontal spacing and a vertical spacing of 2.125 inches (bottom) / 2.375 inches (top). These precise dimensions ensure broad compatibility with industry-standard mounting plates and vehicle chassis configurations prevalent in heavy-duty truck and trailer applications. The bolt-on design facilitates secure attachment, crucial for distributing the substantial static vertical load (M.V.L.) of 20,000 pounds and the dynamic forces across the vehicle's structural frame. Each mounting hole has a diameter of 0.781 inches, accommodating high-strength fasteners (typically Grade 8 bolts) designed to withstand the shear and tensile stresses imposed during towing operations. Proper installation with specified torque values is critical to prevent fastener loosening, which could compromise the structural integrity of the hitch assembly and overall towing safety.

Compatibility with drawbar eyes is a critical design parameter. This pintle hook is engineered to accept drawbar eyes with an inner diameter ranging from 2.38 to 3.00 inches. This wide tolerance range accommodates a vast majority of heavy-duty trailer drawbar eyes, providing exceptional versatility for fleet operators and equipment managers. The secure engagement with the drawbar eye is achieved through a meticulously designed jaw and latch mechanism. When engaged, the latch positively locks the drawbar eye within the hook, preventing accidental uncoupling. The air compensation mechanism, when fully integrated, further enhances this security by eliminating slack, ensuring continuous positive engagement even during transient load conditions.

Performance Envelopes and Application Suitability

With a Maximum Gross Trailer Weight (M.G.T.W.) rating of 100,000 pounds, this pintle hook is engineered for the most demanding towing tasks. This substantial capacity makes it suitable for semi-trailers, multi-axle heavy equipment trailers, bulk commodity haulers, and specialized industrial transport platforms. The Maximum Vertical Load (M.V.L.) of 20,000 pounds indicates its capability to manage significant tongue weight, a crucial factor in maintaining optimal vehicle dynamics and stability. Proper load distribution, ensuring the vertical load remains within specifications, is essential to prevent excessive stress on the tow vehicle’s chassis and suspension, as well as to maintain steering control and braking effectiveness.

The air-compensated design inherently improves vehicle train stability. By minimizing the "chucking" effect, it reduces oscillations and pitching movements that can propagate through the vehicle train, especially during severe braking or rapid acceleration. This not only enhances directional stability, reducing the risk of trailer sway, but also contributes significantly to driver comfort by smoothing out the ride quality. For cargo, particularly sensitive or fragile loads, the reduction in dynamic shock protects against damage, preserving the integrity of transported goods.

Versatility Across Operating Environments

This pintle hook is engineered for dual application suitability: both over-the-road and off-the-road environments. For on-highway applications, such as long-haul transportation of heavy goods, the air compensation system provides an unparalleled level of ride smoothness and stability, contributing to reduced driver fatigue, enhanced safety, and prolonged equipment life. The robust cast steel construction and protective powder coat ensure it can withstand the rigors of continuous highway use, including exposure to varying weather conditions and road debris.

In off-road environments, where conditions are often characterized by severe undulations, gradients, and rough terrain, the demands on towing equipment are significantly elevated. This pintle hook is designed to meet these challenges; however, specific operational guidelines must be adhered to for safety and performance optimization. For off-road use, it is critical to reduce the load by 25%. This derating accounts for the increased dynamic forces and shock loads experienced on uneven surfaces, which can momentarily exceed the static rating of the hitch components. Furthermore, the use of a swivel type trailer drawbar is explicitly recommended. A swivel drawbar allows for articulation in multiple axes, preventing binding and excessive torsional stress on the pintle hook and trailer tongue as the tow vehicle and trailer traverse highly uneven ground independently. Failure to use a swivel drawbar in off-road scenarios can lead to premature wear, structural damage, or catastrophic failure due to excessive articulation forces.

Operational Benefits and Safety Enhancements

The integration of an air-compensated pintle hook into a heavy-duty towing setup yields a multitude of operational advantages. The most immediate benefit is the marked reduction in wear and tear on all interconnected components. By dampening shock loads, the fatigue life of the pintle hook, drawbar eye, hitch receiver, and even the vehicle’s chassis and suspension components is substantially extended. This translates into lower maintenance costs, reduced downtime for repairs, and a longer overall operational lifespan for the entire vehicle train.

Safety is paramount in heavy hauling. The air compensation system, by maintaining a tight coupling, effectively prevents accidental uncoupling, even under severe dynamic conditions such as emergency braking or sudden maneuvers. The positive locking mechanism of the pintle hook jaw further augments this safety feature, providing a secure and reliable connection. Enhanced stability minimizes the risk of trailer sway, jackknifing, and loss of control, particularly when navigating challenging road conditions or responding to unexpected hazards.

From a driver perspective, the reduction in jarring and pitching leads to a significantly smoother and more comfortable ride. This mitigation of road shock translates directly into reduced driver fatigue, thereby improving attentiveness and reaction times, which are critical safety factors in long-haul or arduous operations. For cargo, especially delicate or sensitive equipment, the minimized impact forces protect against transit damage, ensuring goods arrive at their destination in optimal condition.

While this product is supplied as the pintle hook only, without the air chamber and plunger, this configuration offers inherent flexibility. It allows users to integrate their preferred or existing air compensation components, or to utilize the hook as a robust, standard-duty pintle hook. This "pintle hook only" approach simplifies inventory management for specialized integrators or provides a straightforward replacement path for an existing system where only the main hook mechanism requires replacement. When operated without the air compensation components, it functions as a conventional, high-capacity pintle hook, necessitating careful attention to drawbar eye fitment and regular inspection to monitor for wear inherent in non-dampened systems.

Installation and Maintenance Considerations

Installation of the 50 Ton Air Compensated Pintle Hook requires adherence to established heavy-duty equipment mounting protocols. The 6-hole bolt pattern demands a robust mounting surface, typically a reinforced hitch plate on the tow vehicle’s frame. It is imperative to use high-grade fasteners (minimum Grade 8) with appropriate thread engagement and to torque all bolts to the manufacturer’s specified values. Over-tightening can lead to fastener fatigue and failure, while under-tightening can result in loosening and catastrophic detachment.

Regular maintenance is crucial for optimal performance and safety. This includes routine visual inspections for signs of wear, cracks, deformation, or corrosion on the pintle hook body, jaw, and latch mechanism. The integrity of the mounting bolts and the mounting plate should also be checked periodically. Lubrication of the pintle hook’s moving parts, such as the jaw and latch pivot points, according to manufacturer recommendations, helps reduce friction, prevent seizing, and extend component life. For systems where an air chamber and plunger are integrated, the air lines, seals, and cylinder components must also be inspected for leaks or damage to ensure the pneumatic compensation system remains fully functional.

Conclusion

The 50 Ton Air Compensated Pintle Hook is a meticulously engineered component designed to exceed the rigorous demands of heavy-duty towing. Its robust cast steel construction, durable powder-coat finish, and generous load capacities (100,000 lbs M.G.T.W. and 20,000 lbs M.V.L.) position it as a premier choice for commercial and industrial applications. While supplied without the air chamber and plunger for integration flexibility, its design fundamentally leverages the principles of air compensation to deliver enhanced stability, reduced wear, improved safety, and superior driver comfort when fully implemented. Its adaptability for both over-the-road and specified off-road operations underscores its versatility as a critical link in the most challenging transport scenarios.
