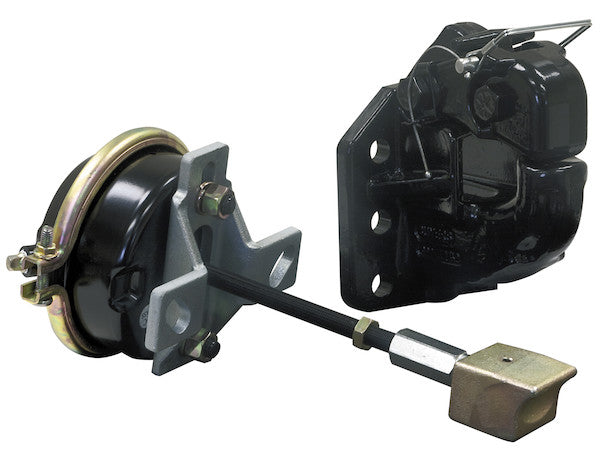

The 50 Ton Air Compensated Pintle Hook from Buyers Products cushions movement between the pintle hook and tow ring. This saves wear and tear on the parts, as well as improves stability, especially in sudden motion or braking situations. The 6 hole mount, bolt-on pintle hook works in tandem with the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation. The hook is ideal for heavy-duty applications such as semi trailers, both off- and over-the-road. This product can also be used without the air chamber and plunger as a standard pintle hook. For off-road use, the load should be reduced by 25% and a swivel type trailer drawbar should be used.
Specifications
| Ball Diameter (in.) | - |
|---|---|
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.38-3.00 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 5.00 |
| Includes | Pintle Hook, Plunger, Brake Chamber & Bracket |
| M.G.T.W. (lbs) | 100,000 |
| M.V.L. (lbs) | 20,000 |
| Material | Cast Steel |
| Mounting Hole Diameter (in.) | 0.781 |
| Pintle Hook Type | Air Compensated |
| Vertical Hole Spacing (in.) | 2.125 Bottom / 2.375 Top |
Advanced Engineering: The 50 Ton Air Compensated Pintle Hook by Buyers Products
In the demanding world of heavy-duty towing, where safety, reliability, and operational efficiency are paramount, the selection of appropriate coupling mechanisms is critical. The 50 Ton Air Compensated Pintle Hook from Buyers Products represents a pinnacle of engineering excellence, specifically designed to address the inherent challenges of high-capacity towing. This robust pintle hook, featuring an integrated air chamber and plunger system, transcends the capabilities of conventional coupling devices by introducing a dynamic cushioning mechanism that significantly enhances performance, extends equipment lifespan, and elevates operational safety.

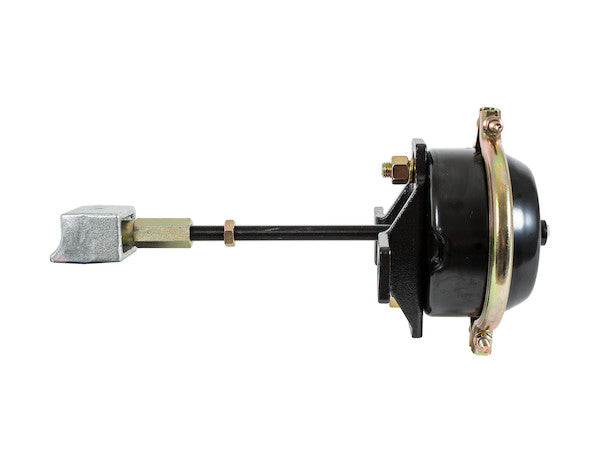

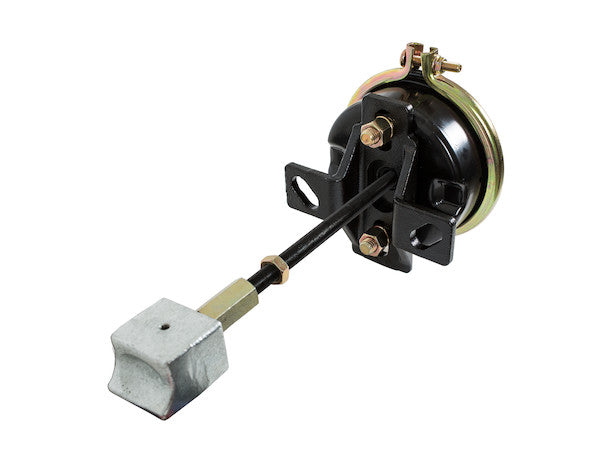

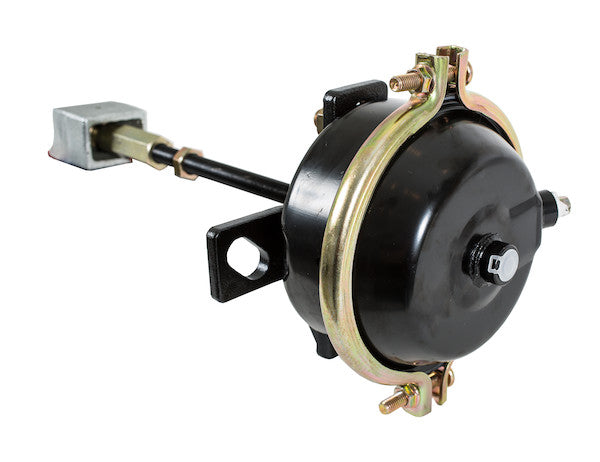

At its core, the air compensated pintle hook operates on a sophisticated pneumatic principle. Unlike standard pintle hooks that rely solely on mechanical tolerances and the inherent flexibility of materials to manage dynamic forces, this advanced system actively mitigates the forces exchanged between the towing vehicle and the towed implement. The primary components of this innovative system include the heavy-duty cast steel pintle hook body, a precision-engineered plunger, and an air chamber – typically a robust brake chamber adapted for this specific application – all seamlessly integrated with a durable bracket. This assembly is designed to connect directly into the towing vehicle’s existing pneumatic system, usually the air brake circuit, to draw the necessary compressed air.
Mechanism of Air Compensation: Dynamic Force Management

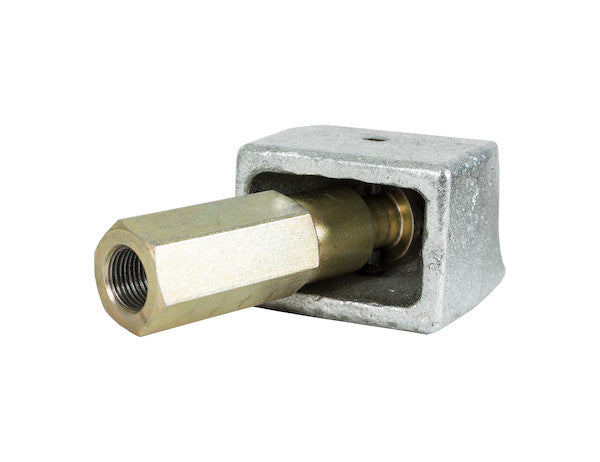

The functional genius of the air compensated pintle hook lies in its ability to maintain a controlled, constant pressure on the drawbar eye. When compressed air from the vehicle’s supply is directed into the air chamber, it actuates the plunger. This plunger then exerts a continuous, precisely regulated force against the drawbar eye of the trailer, effectively eliminating the typical slack or free play that exists in non-compensated pintle hook systems. This constant pre-tensioning of the connection delivers several critical advantages:
- Cushioning of Dynamic Loads: During towing operations, particularly over uneven terrain or under conditions of rapid acceleration and deceleration, significant dynamic forces are generated. These forces manifest as abrupt jolts and shocks that travel through the coupling system. The air compensation mechanism acts as a pneumatic shock absorber, effectively dampening these shocks and distributing the loads more smoothly. This reduces the peak stress on both the pintle hook and the drawbar eye, preventing the rapid accumulation of fatigue damage.
- Enhanced Stability and Control: By eliminating slack, the system prevents the jarring "chucking" sensation commonly associated with heavy trailers, especially during sudden maneuvers or emergency braking. This contributes directly to improved vehicle stability and enhanced driver control, reducing driver fatigue and increasing overall road safety. The reduced longitudinal movement between the tow vehicle and trailer provides a more predictable and controlled towing experience.
- Reduced Wear and Tear: The continuous engagement of the plunger with the drawbar eye minimizes abrasive wear. In standard pintle hooks, the drawbar eye can repeatedly impact the hook during dynamic movements, leading to premature wear on both components. The air-compensated system maintains a tight fit, significantly prolonging the service life of both the pintle hook and the trailer’s drawbar eye. This translates into substantial cost savings over the operational life of the equipment by reducing the frequency of component replacement and associated downtime.
- Prevention of Uncoupling: The constant pressure exerted by the plunger on the drawbar eye acts as an additional safety measure against accidental uncoupling. While the primary locking mechanism of the pintle hook remains crucial, the pre-tensioning minimizes the opportunity for the drawbar eye to lift or dislodge under extreme conditions, providing an extra layer of security and peace of mind.
Engineered for Extreme Loads: The 50 Ton Capacity
With a Gross Trailer Weight (M.G.T.W.) rating of 100,000 lbs (50 tons) and a Maximum Vertical Load (M.V.L.) of 20,000 lbs, this pintle hook is engineered for the most demanding heavy-duty applications. Such high capacities are not merely numbers; they reflect a rigorous design and manufacturing process. The selection of Cast Steel as the primary material is fundamental to achieving this immense load-bearing capability. Cast steel offers superior strength, ductility, and resistance to fatigue and impact compared to other materials. Its ability to absorb and distribute high stresses makes it ideal for components subjected to continuous, heavy dynamic loading in challenging operational environments.
The robust construction is further enhanced by a durable Powder-Coat finish. This finish provides an excellent barrier against environmental degradation, including corrosion from moisture, road salts, chemicals, and abrasion from road debris. The black color of the finish not only provides a professional aesthetic but also indicates a protective coating designed for longevity and resilience in harsh industrial and commercial settings.
Precise Mounting and Seamless Integration
The 6-hole bolt-on mount configuration is a standard for heavy-duty pintle hooks, ensuring a secure and stable attachment to the towing vehicle’s frame or mounting plate. Precision in mounting is paramount for optimal performance and safety. The specified horizontal hole spacing of 5.00 inches and vertical hole spacings of 2.125 inches (bottom) and 2.375 inches (top), along with a mounting hole diameter of 0.781 inches, ensure compatibility with industry-standard mounting patterns. These precise dimensions are critical for distributing the immense towing forces evenly across the mounting surface and preventing localized stress concentrations that could lead to structural failure.

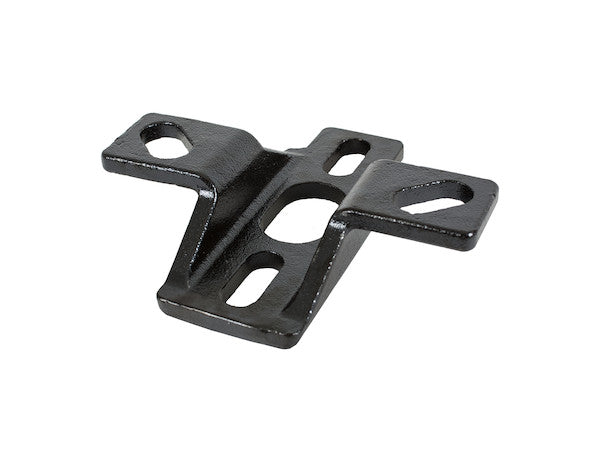

Integration with the vehicle’s existing air system is a key advantage of this design. The air chamber and plunger assembly are designed to interface directly with the pneumatic infrastructure found on most heavy-duty trucks and semi-trailers. This eliminates the need for a separate air supply or complex ancillary systems, simplifying installation and maintenance. The included brake chamber and bracket facilitate a straightforward and secure installation process, ensuring that the air compensation system functions harmoniously with the vehicle's primary operational systems.
Versatile Applications Across Industries
The 50 Ton Air Compensated Pintle Hook is a versatile solution for a broad spectrum of heavy-duty towing requirements. Its robust design and air-compensated functionality make it ideal for:
- Semi-Trailers and Heavy Haul Operations: Essential for connecting tractor units to various types of semi-trailers, including flatbeds, lowboys, dump trailers, and specialized heavy haul equipment, ensuring stable and secure transport of oversized or overweight loads over long distances.
- Construction and Agricultural Equipment: Suited for towing large construction machinery, agricultural implements, and material transport trailers on job sites and farms, where rugged terrain and heavy loads are commonplace.
- Mining and Forestry: Capable of handling the extreme demands of these sectors, including pulling heavy ore carts, logging trailers, and specialized utility vehicles in highly abrasive and challenging environments.
- Military and Defense: The robust design and reliability under stress make it suitable for various military logistics and transport applications.
It is important to differentiate between over-the-road and off-road applications. For standard over-the-road use, the full 100,000 lbs M.G.T.W. rating can be utilized. However, for off-road use, where terrain is significantly more uneven and dynamic forces are substantially higher and less predictable, it is recommended that the load be reduced by 25%. This precaution accounts for the increased shock loading and torsional stresses inherent in off-highway environments. Furthermore, for off-road operations, the use of a swivel-type trailer drawbar is strongly advised. A swivel drawbar allows for angular articulation between the towing vehicle and trailer, preventing binding and excessive stress on the coupling when traversing uneven ground, thus safeguarding both the pintle hook and the trailer structure.
Long-Term Reliability and Economic Advantages
Investing in a high-quality, air-compensated pintle hook like the 50 Ton model from Buyers Products offers significant long-term economic advantages. The reduction in wear and tear on both the pintle hook and the drawbar eye translates directly into lower maintenance costs and extended component life. By minimizing the frequency of replacements, operators can reduce downtime and associated labor costs, leading to improved operational efficiency and profitability. The enhanced stability and safety benefits also contribute to fewer accidents and potential liability, representing substantial indirect cost savings.
The ability to utilize this product as a standard pintle hook by simply detaching the air chamber and plunger assembly further enhances its versatility and adaptability. This feature ensures that the investment remains valuable even if operational requirements change or if the pneumatic system is not active, providing flexibility without compromising the core integrity of the pintle hook itself.
Conclusion
The 50 Ton Air Compensated Pintle Hook with Chamber and Plunger by Buyers Products is more than just a towing accessory; it is a critical safety and performance enhancement for heavy-duty commercial and industrial applications. Its sophisticated pneumatic compensation system actively manages dynamic loads, significantly reduces wear, bolsters vehicle stability, and provides an unparalleled level of coupling security. Manufactured from high-strength cast steel and protected by a durable powder-coat finish, it is built to withstand the harshest operating conditions. With its immense 50-ton capacity, precise mounting specifications, and seamless integration with vehicle air systems, this pintle hook represents a superior choice for professionals demanding the utmost in reliability, safety, and longevity from their towing equipment. For any operation involving substantial loads, investing in this advanced air-compensated pintle hook is a strategic decision that promises enhanced performance, reduced operational costs, and superior safety for years to come.
