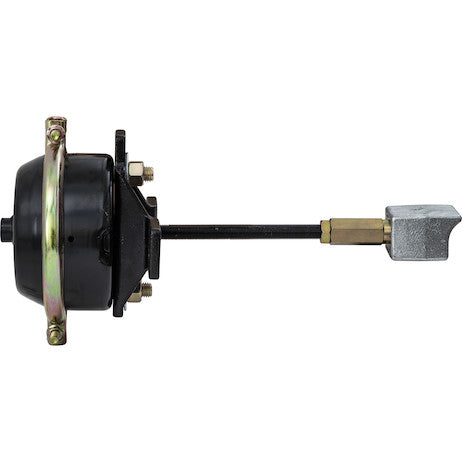

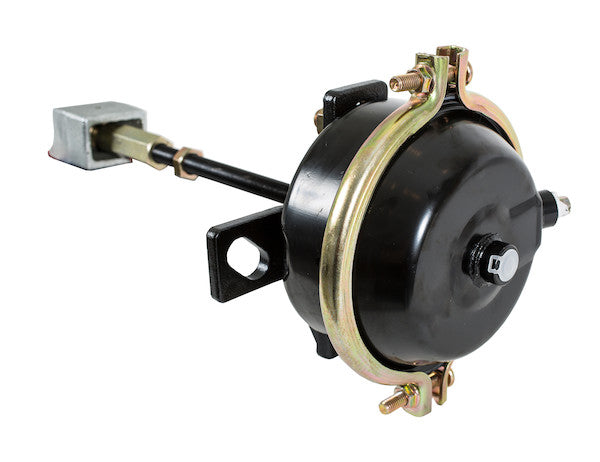

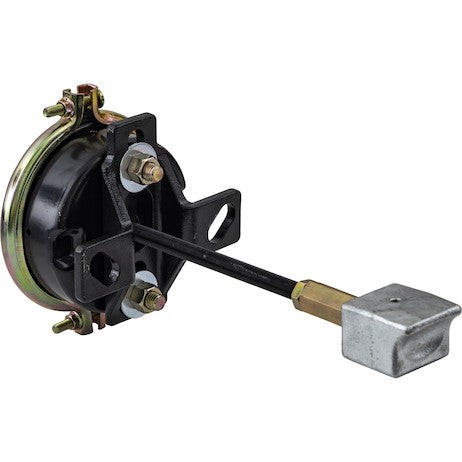

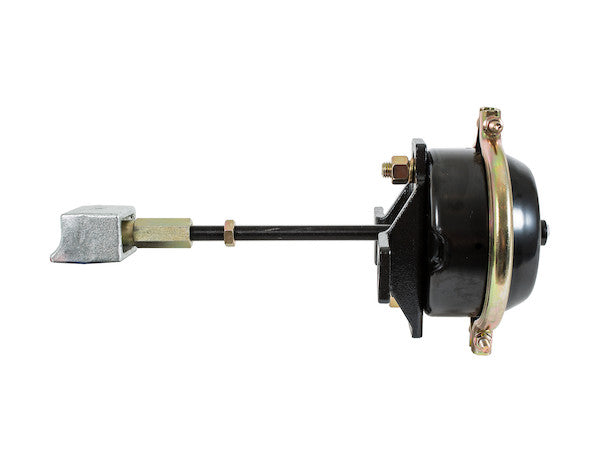

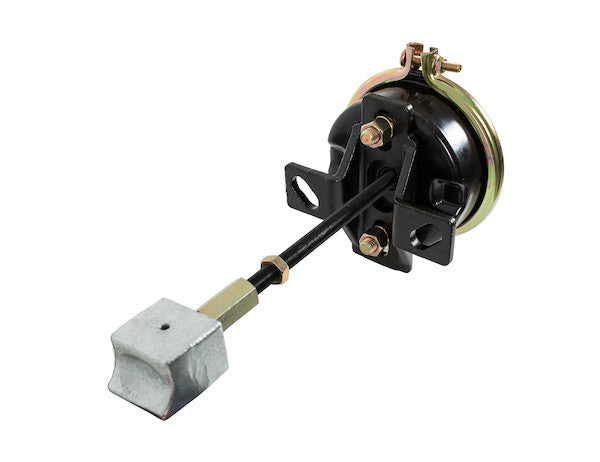

The Air Chamber and Plunger Kit from Buyers Products works like a shock absorber that extends from the vehicle to the eye of the trailer's drawbar. It uses the truck's air brake system to reduce movement between the pintle hook and the eye or ring, and to lock the pintle jaw in place. Together with an Air Compensated Pintle Hook, the air chamber and plunger work to cushion shock and reduce wear. It's ideal for heavy duty applications such as semitrailers, both off-road and over-the-road. For off-road use, the load should be reduced by 25% and a swivel type trailer drawbar should be used.
Specifications
| For Use With | Brake Chamber Mount Kit for PH50 and PH55 50 Ton Air Compensated Pintle Hooks |
|---|
Advanced Technical Overview: Brake Chamber and Mounting Kit for 50 Ton Air Compensated Pintle Hooks
This comprehensive technical description details the functionality, engineering principles, and operational benefits of the Brake Chamber and Mounting Kit, specifically designed for integration with 50-ton air-compensated pintle hooks. This system represents a critical advancement in heavy-duty towing applications, offering enhanced stability, reduced wear, and superior operational control across diverse terrains, from on-road highway transport to demanding off-road environments.
System Architecture and Core Components
The product, referred to as the Air Chamber and Plunger Kit by Buyers Products, operates as an integral component within a larger air-compensated pintle hook system. Its primary function is to act as a pneumatically actuated dampening mechanism, strategically positioned between the towing vehicle and the trailer drawbar eye. The kit comprises two main functional units: the air chamber and the plunger assembly. The air chamber, often a diaphragm or piston type, is a robust enclosure designed to convert compressed air pressure into mechanical force. The plunger, a precision-engineered rod, extends from the air chamber and interfaces directly with the trailer's drawbar eye. This mechanical linkage is crucial for transmitting the dampening forces. The mounting kit provides the necessary structural interface for securely attaching the air chamber and plunger assembly to the towing vehicle's chassis, ensuring optimal alignment and load transfer.
Integration with Vehicle Air Brake System
A defining characteristic of this system is its seamless integration with the towing vehicle's existing air brake system. This obviates the need for a separate, dedicated pneumatic supply, simplifying installation and reducing overall system complexity. The air pressure utilized by the brake chamber is derived from the vehicle's compressed air reservoirs, which typically operate within a pressure range of 80 to 120 psi (approximately 550 to 827 kPa). A dedicated air line, often equipped with a control valve, directs regulated air pressure to the chamber. This controlled air supply is paramount for modulating the force exerted by the plunger, thereby dynamically adjusting the dampening characteristics of the pintle hook system.
Mechanism of Action: Pneumatic Damping and Jaw Locking
The core principle behind the kit's operation involves leveraging pneumatic pressure to achieve both shock absorption and positive jaw locking. When compressed air is introduced into the chamber, it exerts pressure on a diaphragm or piston, which in turn extends the plunger. This extension creates a controlled resistive force against the rotational and longitudinal movements between the pintle hook and the trailer drawbar eye. This resistive force is analogous to the action of a hydraulic shock absorber, but it uses compressed air as the working fluid. The pneumatic pressure effectively cushions the dynamic loads and impacts that occur during acceleration, deceleration, and traversal over uneven terrain.
Beyond dampening, the system also facilitates a critical safety feature: locking the pintle jaw in place. By maintaining a constant, regulated pneumatic pressure, the plunger applies continuous force that actively holds the pintle hook's jaw closed and securely engaged with the drawbar eye. This prevents inadvertent disengagement due to severe vibrations, road irregularities, or sudden movements, significantly enhancing towing safety and operational reliability. The ability to actively lock the pintle jaw under pneumatic pressure distinguishes this system from passive mechanical locking mechanisms, offering a more robust and responsive engagement.
Benefits: Shock Attenuation and Wear Reduction
The synergistic operation of the air chamber and plunger with an air-compensated pintle hook yields several significant operational benefits:
- Superior Shock Attenuation: The primary function is to absorb and dissipate kinetic energy generated by the relative motion between the tractor and trailer. This absorption mitigates the severe jolting and jarring typically associated with heavy-duty towing, especially over rough surfaces. The pneumatic cushioning effect is particularly pronounced during sudden changes in vehicle speed or when encountering potholes and uneven road conditions.
- Extended Component Lifespan: By significantly reducing the impact forces and vibrational stress transmitted through the hitch components, the system dramatically extends the service life of the pintle hook, drawbar eye, and associated mounting hardware. Reduced wear translates directly into lower maintenance costs, decreased downtime, and improved overall operational efficiency. The constant metal-on-metal impact and abrasion inherent in un-dampened pintle systems are largely eliminated.
- Enhanced Operator Comfort: The dampening action translates into a smoother ride for the vehicle operator. Reduced shock and vibration transmitted to the cab lessen driver fatigue, particularly during long-haul operations, contributing to improved safety and productivity.
- Improved Cargo Protection: For trailers carrying sensitive or fragile cargo, the reduced shock and vibration levels minimize the risk of damage to the transported goods.
- Enhanced Vehicle Dynamics and Stability: By stabilizing the connection point, the system contributes to improved overall vehicle dynamics. It helps to suppress pitching and surging motions, leading to a more stable towing configuration, particularly at higher speeds or during emergency braking maneuvers.
Applications and Environmental Considerations
This brake chamber and mounting kit is engineered for heavy-duty applications, specifically targeting semitrailers. Its robust design and functional capabilities make it suitable for both over-the-road (OTR) and off-road towing environments.
Over-the-Road (OTR) Applications:
In OTR scenarios, where trailers traverse paved highways and interstates, the system provides crucial dampening against dynamic forces arising from acceleration, braking, lane changes, and undulating road surfaces. The constant pneumatic locking feature ensures secure coupling throughout transit, minimizing slack and wear, which are common issues in traditional pintle hook setups.
Off-Road Applications:
The system's utility is even more pronounced in off-road applications, such as construction sites, mining operations, forestry, and agricultural settings, where terrain is highly variable and often severely uneven. The ability to absorb extreme shocks and prevent coupling disengagement under harsh conditions is paramount. However, specific operational guidelines must be adhered to for off-road use:
- Load Reduction: A critical safety directive for off-road operations mandates a 25% reduction in the rated load capacity. This derating accounts for the significantly higher dynamic load factors, increased shock loading, and greater torsional stresses inherent in off-road environments. Exceeding this derating can lead to premature component failure or catastrophic coupling separation.
- Swivel-Type Trailer Drawbar: The use of a swivel-type trailer drawbar is explicitly recommended for off-road applications. A swivel drawbar allows for greater angular articulation between the towing vehicle and the trailer, accommodating extreme vertical and horizontal disparities in terrain without imposing excessive bending or torsional stresses on the pintle hook, drawbar eye, or the air chamber assembly. This rotational freedom is essential for preventing binding and potential damage during articulation over obstacles or through deep ruts.
Technical Specifications and Compatibility
The product is designed for seamless compatibility with specific models of 50-ton air-compensated pintle hooks. The provided specification confirms its intended use with the "Brake Chamber Mount Kit for PH50 and PH55 50 Ton Air Compensated Pintle Hooks." This precise compatibility ensures optimal fitment, functional integration, and adherence to the stated load capacities and operational parameters. The PH50 and PH55 designations likely refer to specific models within Buyers Products' heavy-duty pintle hook series, indicating their 50-ton (approximately 100,000 lbs) gross trailer weight (GTW) capacity when used in conjunction with this air compensation system.
The "Brake Chamber Mount Kit" itself is an integral part of the overall solution, providing the rigid and robust structural interface between the air chamber assembly and the towing vehicle’s frame. This mounting kit must be engineered to withstand the significant forces generated by the air chamber and the dynamic loads of towing, preventing flexing, fatigue, and potential failure. Key considerations in the design of the mounting kit include:
- Material Strength: High-strength steels or alloys capable of enduring continuous vibration, shock, and tensile/compressive loads.
- Structural Rigidity: Design to prevent deflection under maximum operational forces, ensuring precise alignment of the plunger.
- Corrosion Resistance: Protective coatings or materials to resist environmental degradation, especially in off-road and harsh weather conditions.
- Ease of Installation: Designed for efficient and secure attachment to common truck chassis configurations, often utilizing existing frame bolt patterns or requiring minimal modification.
Engineering Considerations and Design Principles
The design of the air chamber and plunger kit incorporates several critical engineering principles to ensure reliability and performance:
- Pneumatic System Design: The air chamber must be rated for the maximum operating pressure of a vehicle's air brake system, typically exceeding 120 psi. Internal components, such as diaphragms or seals, must be constructed from highly durable, long-life elastomers (e.g., EPDM, neoprene) capable of withstanding extreme temperatures, ozone exposure, and repeated compression cycles.
- Mechanical Strength and Durability: The plunger rod, being a direct load-bearing component, is typically manufactured from high-tensile steel, heat-treated for enhanced strength and wear resistance. Its surface is often chromed or coated to reduce friction and improve corrosion resistance.
- Fatigue Resistance: All components, especially the mounting kit and the pintle hook itself, are subject to significant cyclic loading. The design must account for fatigue life, using appropriate material selection, stress concentration mitigation (e.g., generous radii, smooth transitions), and robust welding or fastening techniques.
- Environmental Sealing: Given the diverse operating environments, the air chamber and plunger assembly must be effectively sealed against ingress of moisture, dirt, dust, and corrosive agents, which could compromise internal mechanisms and lead to premature failure.
- Adjustability and Maintainability: While not explicitly detailed, advanced systems may offer mechanisms for adjusting the pneumatic pressure or plunger travel to fine-tune dampening characteristics. Furthermore, the design should facilitate routine inspection and replacement of wear components, such as seals and diaphragms, to ensure long-term serviceability.
Conclusion
The Brake Chamber and Mounting Kit for 50 Ton Air Compensated Pintle Hooks represents a sophisticated solution for the demands of heavy-duty towing. By integrating with the vehicle's air brake system to provide active pneumatic dampening and positive jaw locking, it significantly enhances safety, reduces component wear, and improves operational comfort across a spectrum of applications. Its technical design, encompassing robust material selection, precise engineering, and adherence to specific operational guidelines for off-road use, underscores its critical role in optimizing the performance and longevity of heavy-duty towing operations. The specific compatibility with PH50 and PH55 50-ton air-compensated pintle hooks further highlights its specialized design for high-capacity, mission-critical towing tasks.
