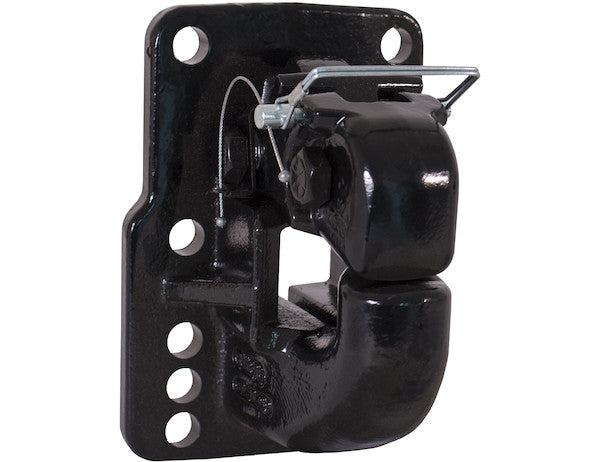

PH55AC - 50 Ton 10-Hole Air Compensated Pintle Hook With Air Chamber and Plunger

The 50 Ton Air Compensated Pintle Hook from Buyers Products cushions movement between the pintle hook and tow ring. This feature saves wear and tear on the parts, especially in sudden motion or braking situations. The pintle hook uses the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation. The pintle hook is ideal for heavy duty applications such as trailers, semitrailers, and double and triple trailer operations, both off-road and over-the-road. This product can also be used without the air chamber and plunger as a standard pintle hook. For off-road use, the load should be reduced by 25% and a swivel type trailer drawbar should be used.

Specifications

Advanced Engineering for Heavy-Duty Towing: The 50 Ton Air Compensated Pintle Hook

In the demanding world of heavy-duty transportation, the integrity and performance of towing mechanisms are paramount. The 50 Ton 10-Hole Air Compensated Pintle Hook with Air Chamber and Plunger represents a pinnacle of engineering designed to address the inherent challenges of high-capacity towing. This robust component transcends the capabilities of conventional pintle hooks by integrating a sophisticated air compensation system, providing unparalleled safety, longevity, and operational efficiency for fleets engaged in the most strenuous applications.

Understanding the Dynamics of Heavy Towing and the Need for Compensation

Traditional pintle hooks, while effective for many applications, are susceptible to dynamic stresses that arise from the interaction between the towing vehicle and the trailer. Longitudinal forces, often referred to as "chucking," occur during acceleration, deceleration, and traversing uneven terrain. These forces manifest as abrupt impacts and oscillations within the coupling, leading to several detrimental effects:

• Premature Wear: Repeated metal-on-metal impact causes accelerated wear on both the pintle horn and the drawbar eye, significantly reducing component lifespan and necessitating frequent replacements.
• Structural Fatigue: The continuous shock loads transmit stresses through the entire towing assembly, including the vehicle's chassis, trailer frame, and mounting hardware, potentially leading to material fatigue and structural failure over time.
• Noise and Vibration: The constant clanking and jarring create excessive noise and vibration, contributing to driver fatigue and potentially damaging sensitive cargo.
• Safety Risks: Severe dynamic movements can, in extreme circumstances, compromise the integrity of the coupling, increasing the risk of unintended uncoupling.

The 50 Ton Air Compensated Pintle Hook is engineered specifically to mitigate these challenges, offering a proactive solution that enhances every aspect of heavy-duty towing.

The Science Behind Air Compensation: How it Works

The core innovation of this pintle hook lies in its air compensation mechanism, which actively manages the forces between the towing vehicle and the trailer. This system leverages the vehicle's existing air brake system to create a dynamic cushioning effect. At its heart are the air chamber and plunger, which operate on fundamental pneumatic principles:

1. Air System Integration: The pintle hook's air chamber connects directly to the vehicle's compressed air supply. This allows the system to utilize the stable and readily available air pressure maintained by the vehicle's braking system.
2. Plunger Mechanism: Within the pintle hook assembly, a precision-engineered plunger is actuated by the air pressure from the chamber. When air is supplied, the plunger extends forward, applying continuous and controlled pressure against the drawbar eye of the trailer.
3. Constant Tension and Shock Absorption: By maintaining a consistent, pre-set pressure on the drawbar eye, the plunger effectively eliminates the free play or "slack" that is inherent in non-compensated pintle hooks. This constant tension achieves several critical outcomes:
   • Damping of Longitudinal Forces: Instead of absorbing sudden impacts, the air pressure system acts as a pneumatic spring, smoothly absorbing and dissipating longitudinal shock loads. This greatly reduces the abruptness of forces experienced during acceleration, deceleration, and road irregularities.
   • Minimized Wear: With the drawbar eye held securely against the pintle horn, the abrasive metal-on-metal movement is significantly reduced. This extends the lifespan of both the pintle hook and the drawbar eye, reducing maintenance costs and downtime.
   • Elimination of Chucking: The constant pressure prevents the trailer from "chucking" or oscillating violently against the pintle hook, resulting in a remarkably smoother and quieter towing experience.

This intelligent application of pneumatic technology transforms a typically rigid connection into a dynamically responsive coupling, optimized for the extreme demands of 50-ton loads.

Robust Construction and Material Science: Engineered for Extreme Durability

Achieving a 100,000-pound Maximum Gross Trailer Weight (M.G.T.W.) rating requires an uncompromising approach to material selection and structural design. The 50 Ton Air Compensated Pintle Hook is meticulously constructed to withstand the most severe operational stresses:

• Cast Steel Material: The primary structural components of this pintle hook are fabricated from high-grade cast steel. Cast steel is chosen for its superior combination of strength, ductility, and fatigue resistance. Unlike other metals, cast steel offers excellent shock absorption properties and the ability to be molded into complex geometries, optimizing load distribution and structural integrity. This ensures the hook can endure immense static and dynamic forces without deformation or brittle fracture.
• Powder-Coat Finish (Black): The entire assembly is treated with a durable black powder-coat finish. This industrial-grade coating provides exceptional resistance against corrosion, abrasion, and chipping, extending the aesthetic and functional lifespan of the hook, especially when exposed to harsh environmental conditions such as road salts, moisture, and UV radiation. The powder-coating process creates a thicker, more uniform layer compared to traditional liquid paints, offering enhanced protection against the elements.
• 10-Hole Mounting Pattern: The 10-hole mounting configuration is a critical design feature for a pintle hook of this capacity. This multi-point attachment system ensures that the immense towing forces are evenly distributed across a larger area of the mounting surface.
  • Horizontal Hole Spacing (5.00 in.): This standard spacing provides compatibility with a wide array of heavy-duty mounting plates and chassis configurations.
  • Vertical Hole Spacing (1.062/1.062/2.375/4.25 in.): The varied vertical spacing allows for precise height adjustments and adaptability to diverse vehicle frames, ensuring optimal coupling alignment.
  • Mounting Hole Diameter (0.812 in.): Designed to accommodate robust Grade 8 fasteners, this diameter ensures a secure, high-shear-strength connection to the towing vehicle, preventing loosening and maintaining structural integrity under extreme loads.
  This comprehensive mounting design is essential for dissipating the substantial stresses generated by a 100,000 lb M.G.T.W., minimizing localized stress concentrations that could lead to fatigue failure.

Unrivaled Performance Metrics and Compatibility

The specifications of this pintle hook underscore its formidable capabilities and wide-ranging compatibility:

• Maximum Gross Trailer Weight (M.G.T.W.): 100,000 lbs (50 Tons): This exceptional M.G.T.W. rating positions the pintle hook for the heaviest transport tasks, including multi-trailer configurations, oversized load hauling, and specialized industrial transport. It signifies the robust engineering and material integrity to handle the entire weight of the loaded trailer system.
• Maximum Vertical Load (M.V.L.): 20,000 lbs: The M.V.L. specification refers to the maximum downward force that the pintle hook can safely support. A 20,000 lb M.V.L. is crucial for maintaining proper load distribution, especially for trailers with heavy tongue weights or when navigating steep grades. This capacity ensures stability, prevents undue stress on the towing vehicle's rear axle, and contributes significantly to overall vehicle control and safety.
• Drawbar Eye Inner Diameter (2.38-3.00 in.): This range indicates the versatility of the pintle hook, allowing it to interface seamlessly with standard heavy-duty drawbar eyes commonly found on a broad spectrum of commercial and industrial trailers. This flexibility simplifies fleet management and ensures compatibility across various trailer types.
• Pintle Hook Type: Air Compensated: Clearly designates the advanced functionality of the unit, distinguishing it from conventional, rigid pintle hooks.

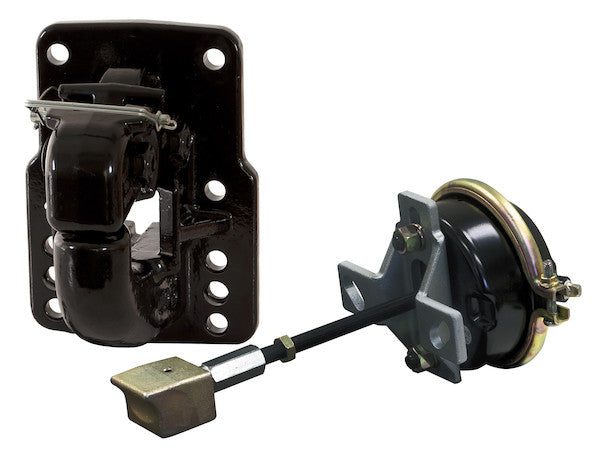

• Includes: Pintle Hook, Plunger, Brake Chamber & Bracket: The comprehensive inclusion of these components ensures that the unit is ready for integration into the vehicle's air system, providing a complete solution for air-compensated operation without requiring additional accessory purchases.

Versatile Applications: On-Road and Off-Road Excellence

The 50 Ton Air Compensated Pintle Hook is engineered for versatility across a spectrum of heavy-duty applications:

• Over-the-Road (OTR) Applications:
  • Long-Haul Freight: For tractor-trailers, semi-trailers, and especially multi-trailer configurations (doubles and triples), the air compensation system significantly reduces dynamic loads, leading to smoother rides, improved fuel efficiency by reducing drag from jerking, and prolonged tire and suspension life for both power unit and trailer.
  • Heavy Equipment Transport: Hauling construction machinery, agricultural implements, and specialized industrial loads benefits from the enhanced stability and wear reduction, ensuring safer transport of valuable assets.
  • Driver Comfort: The reduction in shock and vibration directly translates to less driver fatigue, promoting safety and compliance with hours-of-service regulations.
• Off-Road Applications:
  • Construction and Mining: In environments characterized by rugged terrain, steep inclines, and heavy, dynamic loads, the air-compensated system's ability to absorb severe shocks is invaluable. It protects both the towing vehicle and the trailer from extreme stress, minimizing equipment damage and downtime.
  • Agricultural and Forestry: For large-scale farming and logging operations, where heavy implements are towed across uneven fields and forest tracks, the system provides critical stability and reduces wear in challenging conditions.
  • Important Off-Road Considerations:
    • Load Reduction (25%): Due to the exceptionally harsh and unpredictable nature of off-road environments, which subject towing components to far greater dynamic forces and torque stresses than on-road operations, a 25% reduction in the stated M.G.T.W. is recommended. This prudent measure ensures an adequate safety margin against unforeseen impacts and excessive strain.
    • Swivel Type Trailer Drawbar: For off-road use, the utilization of a swivel-type trailer drawbar is paramount. A swivel drawbar allows for independent articulation between the towing vehicle and the trailer around multiple axes. This prevents binding, torsional stresses, and potential damage to the pintle hook or vehicle frame when traversing highly uneven terrain or sharp turns, where the towing vehicle and trailer may be at significantly different angles.
• Dual Functionality (Standard Pintle Hook Mode): A testament to its thoughtful design, this product retains the capability to operate as a conventional, non-compensated pintle hook. In situations where the vehicle's air system may be non-operational, or for specific, less demanding applications where air compensation is not required, the unit can function effectively without the air chamber and plunger engaged. This provides critical operational flexibility and redundancy.

Installation, Maintenance, and Safety Protocols

Proper installation and routine maintenance are crucial for maximizing the performance and longevity of the 50 Ton Air Compensated Pintle Hook:

• Installation: Integration requires connection to the vehicle's compressed air system. This typically involves T-tapping into an existing air line with appropriate pressure regulation and filtration to ensure a clean, consistent air supply to the brake chamber. The 10-hole pattern necessitates a robust mounting plate capable of distributing 100,000 lbs M.G.T.W. across the vehicle's frame, using high-tensile Grade 8 bolts torqued to manufacturer specifications.
• Maintenance: Regular inspection is vital. This includes checking the condition of the pintle horn and drawbar eye for wear, verifying the integrity of the air lines and chamber for leaks, and ensuring the plunger operates smoothly. Lubrication of moving parts, as recommended by the manufacturer, will further extend service life.
• Safety: Beyond routine maintenance, adherence to pre-trip inspection protocols, proper load securement, and safe coupling/uncoupling procedures are non-negotiable for operating with heavy-duty pintle hooks. The air compensation system enhances safety by reducing the risk of uncoupling, but it does not replace diligent operator practices.

Commitment to Performance and Durability

This 50 Ton 10-Hole Air Compensated Pintle Hook exemplifies a commitment to advanced engineering and robust performance. By integrating air compensation technology, it transcends the limitations of traditional towing mechanisms, delivering a solution that is safer, more durable, and more efficient for the most demanding heavy-duty applications. From mitigating destructive dynamic forces to extending component lifespan and enhancing operator comfort, this pintle hook represents a strategic investment for any fleet seeking to optimize its heavy hauling operations and ensure maximum uptime.
