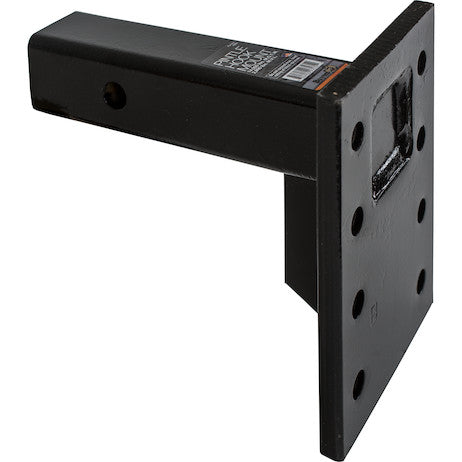

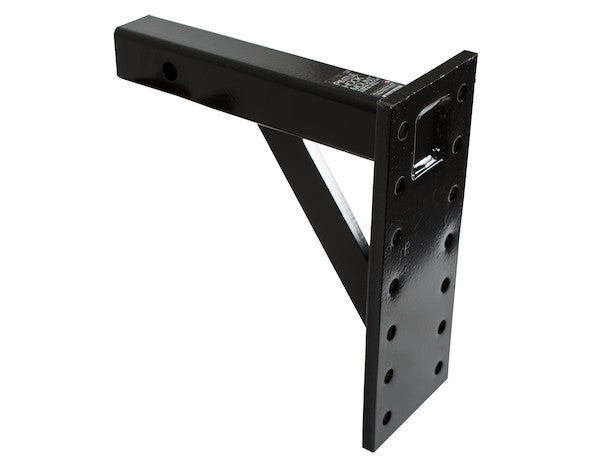

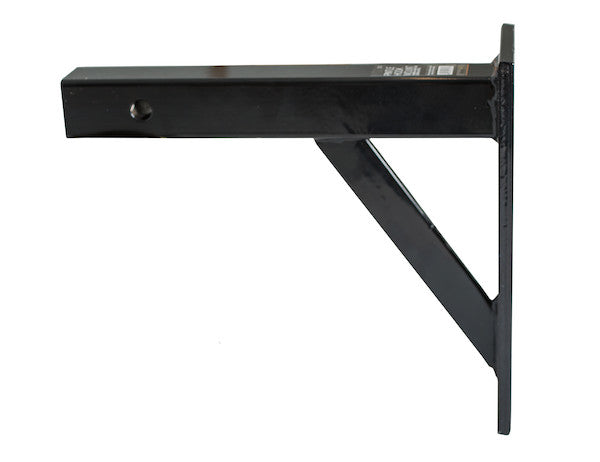

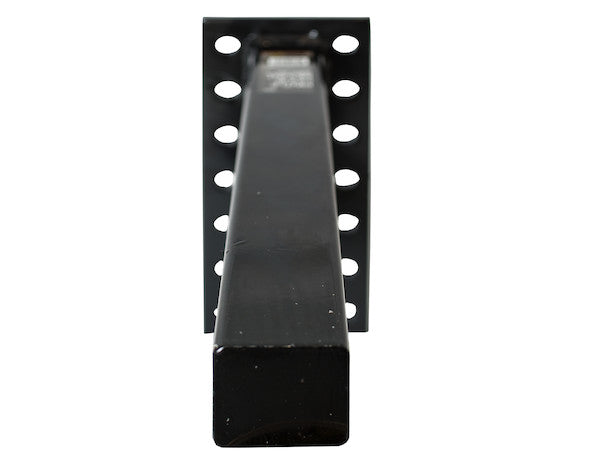

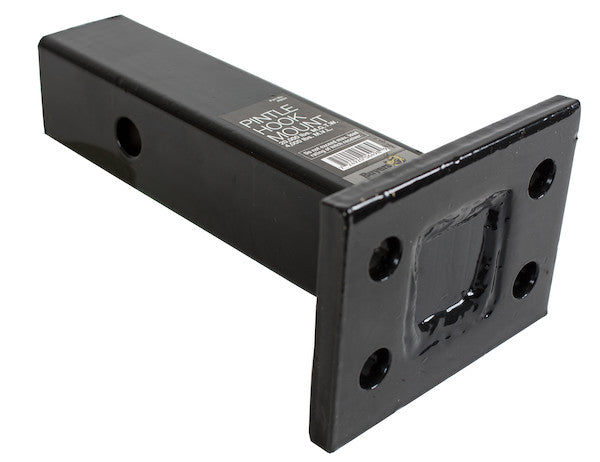

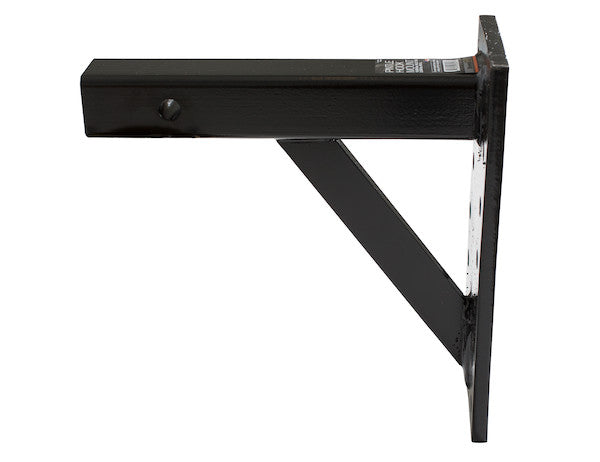

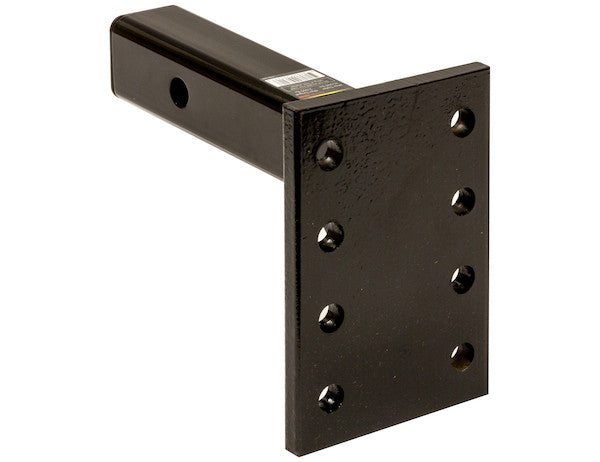

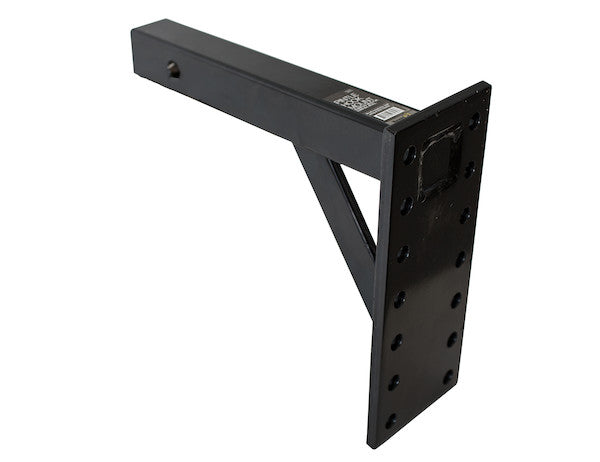

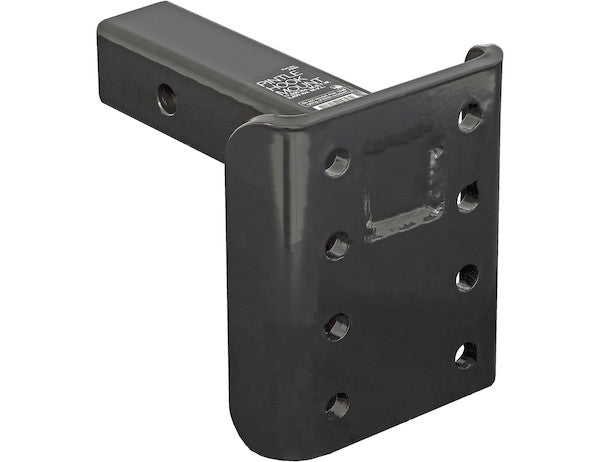

Buyers Products 2 Inch Pintle Hook Mounting Plate slides into a 2 in. receiver to provide a mounting plate for a variety of pintle hooks and combination hitches. You can mount a pintle hook at either a high or low position to accommodate trailer height. The strong, durable construction features continuous welds and a black powder-coated finish for corrosion resistance.
Specifications
| Color | Black |
|---|---|
| Finish | Powder-Coat |
| Height (in.) | 12.50 |
| Horizontal Hole Spacing | 3.375 |
| Length (in.) | 14.0 |
| M.G.T.W. (lbs) | 10,000 |
| M.V.L. (lbs) | 2,000 |
| Material | Carbon Steel |
| Mount Type | Pintle Mount |
| Mounting Hole Size (in.) | 0.531 |
| No. of Mounting Positions | 6 |
| Pairs of Holes | 7 |
| Receiver Size (in.) | 2.0 |
| Shank Type | Solid |
| Vertical Hole Spacing | 1.75 |
Advanced Technical Overview: The Buyers Products 2 Inch Pintle Hitch Mounting Plate
The Buyers Products 2 Inch Pintle Hitch Mounting Plate with a 6-position, 14.5-inch shank represents a meticulously engineered and robust solution for demanding towing applications. Designed to integrate seamlessly with conventional 2-inch receiver hitches, this component serves as a critical interface for attaching heavy-duty pintle hooks and versatile combination hitches. Its design ethos prioritizes unparalleled strength, dynamic adjustability, and enduring resistance to the harsh conditions inherent in heavy-duty commercial, industrial, and agricultural towing operations. This product is a testament to precision manufacturing and material science, crafted to ensure maximum safety, operational efficiency, and longevity under significant load.
Functional Design and Receiver Compatibility
At the core of this mounting plate's utility is its specific design for 2-inch receiver hitches, which are standard equipment on a wide range of light-duty trucks, medium-duty vehicles, and utility chassis. The precisely dimensioned 14.5-inch solid shank is a pivotal feature, engineered to provide optimal insertion depth into the receiver tube, ensuring a secure and stable connection that effectively transfers towing forces from the trailer to the tow vehicle's frame. This extended shank length offers several advantages, including sufficient clearance for various bumper designs and rear vehicle geometries, preventing potential interference during tight turns or when encountering uneven terrain. The solid construction of the shank, as opposed to hollow alternatives, inherently provides superior resistance to torsional stress and bending moments, which are critical considerations when handling the substantial dynamic loads associated with heavy trailers.
The primary role of this mounting plate is to provide a versatile platform for pintle hooks or combination hitches. Pintle hitches are specifically designed for trailers equipped with a lunette ring, offering an exceptionally strong and reliable connection often favored in demanding environments such as construction sites, military applications, and off-road scenarios where traditional ball hitches might experience excessive wear or disengagement under extreme articulation. Combination hitches, on the other hand, offer the added flexibility of accommodating both a lunette ring and a standard trailer ball, thereby expanding the towing capabilities of the vehicle without requiring a complete hitch change-out. The robust nature of the mounting plate ensures that whichever hitch mechanism is chosen, it is anchored to a foundation engineered for maximum security and durability.
Precision Adjustability for Optimal Towing Dynamics

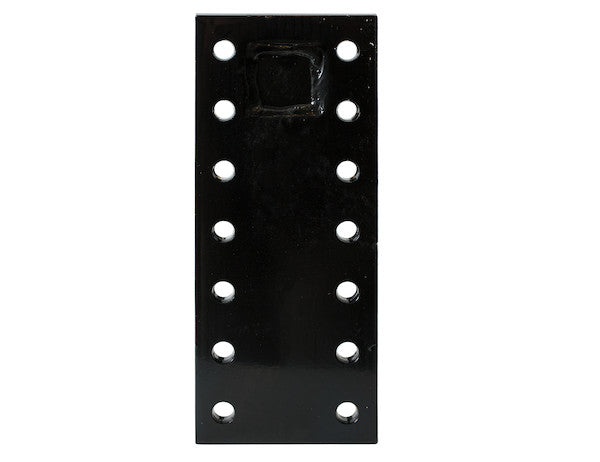

A standout technical feature of this mounting plate is its exceptional 6-position adjustability. This capability is facilitated by seven vertically aligned pairs of mounting holes, spaced at precise 1.75-inch intervals. This granular vertical adjustability is crucial for achieving a perfectly level towing setup, which is a fundamental requirement for safe and efficient towing. Mismatched trailer heights can induce adverse effects such as trailer sway, uneven tire wear on both the tow vehicle and trailer, increased strain on suspension components, and compromised braking performance. By allowing operators to fine-tune the pintle hook's height, the system accommodates variations in vehicle suspension sag under load, differing trailer coupler heights, and variations in tire sizes, ensuring that the trailer tracks smoothly and safely behind the tow vehicle.
The horizontal hole spacing, standardized at 3.375 inches, along with the 0.531-inch mounting hole size, ensures universal compatibility with the vast majority of pintle hooks and combination hitches available in the market. This adherence to industry standards simplifies the selection and integration of towing accessories, providing users with broad interchangeability. The precise drilling and robust construction of these mounting points guarantee a secure, tight fit for the Grade 8 bolts typically used to affix pintle hooks, preventing any undesirable movement or play during operation that could lead to accelerated wear or structural fatigue.
Material Science and Structural Integrity
The intrinsic strength and durability of the Buyers Products pintle hitch mounting plate are derived from its foundational material: high-grade carbon steel. Carbon steel is a preferred material for heavy-duty towing components due to its superior mechanical properties, notably its high tensile strength, yield strength, and excellent fatigue resistance. Tensile strength quantifies the material's ability to resist breaking under tension, while yield strength defines the point at which the material begins to deform permanently. In the context of towing, where components are subjected to continuous tensile, compressive, shear, and torsional forces, these properties are critical to prevent structural failure and maintain the integrity of the hitch connection.
Beyond material selection, the manufacturing process employs continuous welding throughout the critical load-bearing joints. This advanced welding technique creates an unbroken, uniform metallurgical bond across the entire length of the joint, eliminating potential weak points or stress concentrations that can arise from intermittent welding. Continuous welds significantly enhance the overall structural rigidity and load-bearing capacity of the mounting plate, ensuring that it can safely manage the extreme static and dynamic loads encountered during heavy hauling. This meticulous attention to welding quality is a direct contributor to the product's impressive Maximum Gross Trailer Weight (M.G.T.W.) and Maximum Vertical Load (M.V.L.) ratings, underscoring its engineering for uncompromising safety and reliability under the most strenuous conditions.
Rigorous Performance Specifications and Load Management

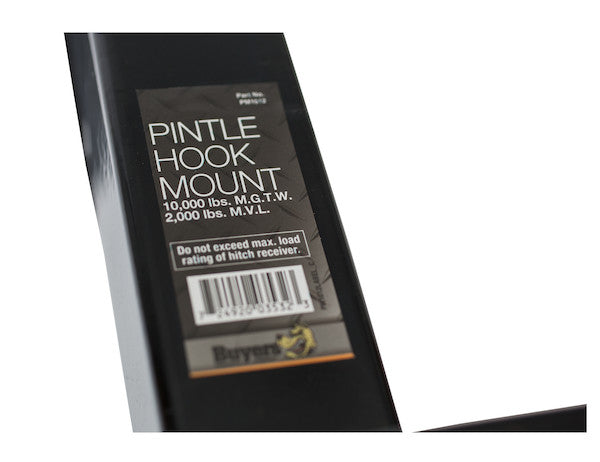

The performance specifications of the Buyers Products 2 Inch Pintle Hitch Mounting Plate are central to its capabilities and define its suitability for various towing tasks. With a Maximum Gross Trailer Weight (M.G.T.W.) rating of 10,000 lbs, this mounting plate is unequivocally designed for heavy-duty applications. This rating indicates the maximum permissible combined weight of the trailer and its cargo that the hitch component can safely handle. Applications demanding this level of capacity include hauling large utility trailers, construction equipment, industrial machinery, and various types of agricultural implements. Adhering strictly to this M.G.T.W. is paramount for safety, as exceeding it can compromise the structural integrity of the hitch, stress the tow vehicle's chassis and drivetrain, impair braking performance, and potentially lead to catastrophic failure or loss of control.
The Maximum Vertical Load (M.V.L.) rating of 2,000 lbs, often referred to as tongue weight, is equally critical for towing stability and safety. Tongue weight represents the downward force exerted by the trailer's tongue onto the hitch. For optimal towing dynamics, the M.V.L. should typically fall within 10% to 15% of the M.G.T.W. A 2,000 lbs M.V.L. for a 10,000 lbs M.G.T.W. trailer falls perfectly within this recommended range, indicating that the mounting plate is engineered to support appropriate tongue loads effectively. Insufficient tongue weight can cause severe trailer sway, making the combination unstable and difficult to control, especially at higher speeds or in windy conditions. Conversely, excessive tongue weight can overload the tow vehicle's rear axle, adversely affect steering response, and negatively impact headlamp aim and braking efficiency. The robust, solid shank design of the mounting plate is particularly adept at handling these significant vertical loads, providing superior resistance to the compressive and bending forces that influence overall towing stability.
Dimensional precision further enhances the product's performance profile. The plate's 12.50-inch height and 14.0-inch length are carefully proportioned to provide an ample, secure mounting surface for pintle hooks while maintaining a relatively compact footprint that minimizes protrusion and potential ground clearance issues. The 2.0-inch receiver size ensures a snug fit within the tow vehicle's receiver tube, minimizing dynamic movement and play during towing, which could otherwise translate into wear and tear on components. The consistent 0.531-inch mounting hole size, paired with 3.375-inch horizontal and 1.75-inch vertical spacing, guarantees broad compatibility with industry-standard pintle and combination hitches, facilitating straightforward installation and versatility.
Versatile Applications Across Industries
The Buyers Products 2 Inch Pintle Hitch Mounting Plate is an indispensable component for professionals across a wide array of heavy-duty sectors. Its robust construction and substantial load capacities make it an ideal choice for commercial applications such as those encountered by landscaping and tree service companies, construction contractors, municipal fleet operators, and utility providers. These organizations frequently rely on the strength and reliability of pintle hitches for transporting heavy equipment, large material trailers, chippers, trenchers, and other specialized machinery over diverse terrains, including unpaved job sites.
In the agricultural sector, the mounting plate proves equally invaluable for moving farm implements, livestock trailers, feed wagons, and other essential equipment across fields and rural roads. The ability to consistently achieve optimal trailer leveling through the 6-position adjustability is a critical benefit in these environments, where varying load distributions and uneven ground conditions are common. This flexibility not only enhances safety but also extends the operational life of trailer components, such as axles, springs, and tires, by ensuring balanced load distribution. For operations requiring diverse towing capabilities, the plate's compatibility with both pintle and combination hitches offers unparalleled operational efficiency, allowing for quick transitions between different types of trailers without extensive reconfigurations.
Engineering Philosophy and Design Integrity
The underlying engineering philosophy for the Buyers Products 2 Inch Pintle Hitch Mounting Plate is meticulously centered on three core tenets: uncompromised safety, enduring durability, and functional adaptability. Every design decision, from the strategic selection of high-strength carbon steel as the primary construction material to the implementation of continuous welding techniques, is aimed at exceeding the rigorous performance expectations of professional users. The choice of a solid shank over a hollow design is a prime example of this commitment, providing superior resistance to both torsional and bending stresses, which are significant factors in maintaining the structural integrity of the hitch system under dynamic towing forces.
The integration of six distinct mounting positions is not merely a feature but a deliberately engineered solution to address the real-world complexities of achieving perfect trailer alignment. This level of adjustability underscores a deep understanding of the diverse vehicle and trailer configurations encountered in heavy-duty towing scenarios. Precision in dimensional tolerances for mounting holes and spacing ensures seamless compatibility with existing industry-standard pintle and combination hooks, streamlining the procurement and installation processes. Furthermore, the application of a high-quality black powder-coated finish is a testament to ensuring long-term operational viability. This protective coating provides robust defense against environmental corrosives, thereby minimizing maintenance requirements and significantly extending the product's useful service life, even in the most challenging operational climates.
Installation, Maintenance, and Maximizing Longevity
The installation of the Buyers Products 2 Inch Pintle Hitch Mounting Plate is designed for efficiency and ease. It involves inserting the substantial 14.5-inch solid shank into a standard 2-inch receiver tube and securing it firmly with an appropriate hitch pin and clip (which are typically purchased separately). Following this, the desired pintle hook or combination hitch is bolted onto the plate, utilizing the provided mounting holes. The operator selects one of the six vertical positions to achieve the optimal trailer height, ensuring a level towing configuration. It is crucial to use Grade 8 bolts and nuts, torqued to the manufacturer's specified values, to ensure the secure and unyielding attachment of the pintle hook to the mounting plate.
To ensure prolonged service life and sustained high performance, regular inspection and proactive maintenance are highly recommended. Users should routinely examine the mounting plate for any indications of wear, deformation, hairline cracks, or damage, paying particular attention to the critical weld areas and mounting holes. While the black powder-coated finish offers excellent corrosion resistance, it should be periodically inspected for chips, scratches, or abrasions that could expose the underlying carbon steel to moisture and corrosive agents. Any damaged areas should be promptly touched up with a suitable rust-inhibiting paint or coating to prevent the onset of corrosion. Furthermore, regularly verifying the tightness of all mounting bolts will prevent loosening due to vibration and dynamic stresses, thereby preserving the structural integrity and safety of the entire hitch assembly. Adherence to these simple maintenance protocols will ensure the mounting plate continues to perform reliably for many years.
Conclusion: The Definitive Choice for Heavy-Duty Towing
In summary, the Buyers Products 2 Inch Pintle Hitch Mounting Plate stands as an expertly engineered, high-capacity, and remarkably versatile towing accessory. Its superior material science, meticulous construction, and intelligent design, featuring multi-position adjustability and robust load ratings, make it the definitive choice for professionals seeking uncompromising reliability and safety in demanding heavy-duty towing applications. This product embodies a commitment to performance, durability, and operational flexibility, positioning it as an indispensable component for serious haulers.
