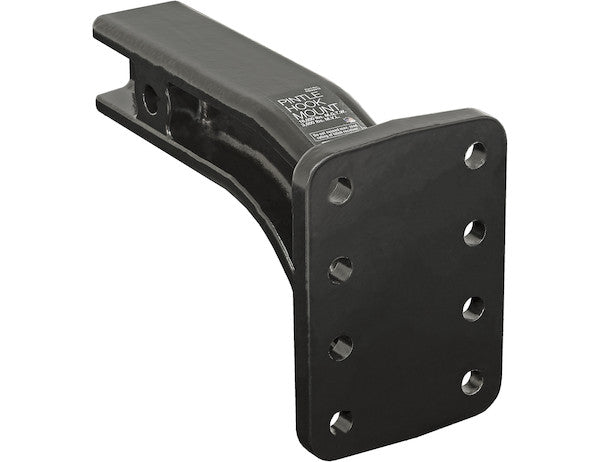

PM25812 - 3 Position Pintle Hook Mounting Plate for 2-1/2 Inch Receiver-20,000 M.G.T.W.

Buyers Products 2-1/2 Inch Pintle Hook Mounting Plate slides into a 2-1/2 in. receiver to provide a mounting plate for a variety of pintle hooks and combination hitches. You can mount a pintle hook at either a high or low position to accommodate trailer height. The strong, durable construction features continuous welds and a black powder-coated finish for corrosion resistance.

Specifications

Color	Black
Finish	Powder-Coat
Height (in.)	7.14
Horizontal Hole Spacing	3.375
Length (in.)	9.5
M.G.T.W. (lbs)	20,000
M.V.L. (lbs)	3,000
Material	Carbon Steel
Mount Type	Pintle Mount
Mounting Hole Size (in.)	0.562
No. of Mounting Positions	3
Pairs of Holes	4
Receiver Size (in.)	2.5
Shank Type	Tubular
Vertical Hole Spacing	1.75

Advanced Technical Overview: Buyers Products 3-Position Pintle Hook Mounting Plate for 2-1/2 Inch Receiver - 20,000 M.G.T.W.

The Buyers Products 3-Position Pintle Hook Mounting Plate represents a pinnacle of engineering and functional design for heavy-duty towing applications. Developed for professionals demanding exceptional strength, versatility, and durability, this mounting plate is meticulously crafted to integrate seamlessly with 2-1/2 inch receiver hitches, providing a robust and adaptable platform for a wide array of pintle hooks and combination hitches. With a formidable Maximum Gross Trailer Weight (M.G.T.W.) rating of 20,000 lbs and a Maximum Vertical Load (M.V.L.) capacity of 3,000 lbs, this component is engineered to withstand the most rigorous towing demands in commercial, industrial, and agricultural environments.

Engineering and Material Science: The Foundation of Strength

Superior Material Selection: Carbon Steel Construction

The core integrity of this pintle hook mounting plate is rooted in its choice of material: high-grade Carbon Steel. Carbon steel is renowned for its exceptional mechanical properties, which are critical for components subjected to substantial static and dynamic loads during towing operations. Specifically, the material's high tensile strength, yield strength, and inherent toughness ensure that the mounting plate can endure significant pulling forces and vertical pressures without permanent deformation or catastrophic failure. The carbon content in the steel enhances its hardness and strength, providing superior resistance to wear, impact, and fatigue – common stressors in heavy-duty towing. This metallurgical selection is a deliberate choice, prioritizing safety and longevity under conditions far exceeding typical recreational towing, guaranteeing a robust foundation for the stated M.G.T.W. and M.V.L. ratings. The inherent weldability of carbon steel also allows for the robust manufacturing techniques employed, contributing directly to the structural integrity discussed below.

Structural Integrity Through Advanced Manufacturing: Continuous Welds

A distinguishing feature contributing to the unparalleled durability of this mounting plate is its construction utilizing continuous welds. Unlike intermittent or spot welding, continuous welding creates a homogenous, uninterrupted joint that spans the entire length of contact between components. This method is paramount for several reasons in heavy-duty towing applications:

1. **Enhanced Load Distribution:** Continuous welds evenly distribute stress across the entire welded area, preventing stress concentrations that can lead to localized fatigue cracks and premature failure. This is particularly crucial when transmitting significant shear and tensile forces from the trailer through the pintle hook to the tow vehicle.
2. **Superior Fatigue Resistance:** Components subjected to repetitive loading and unloading cycles, as is typical in towing, are prone to fatigue. Continuous welds offer significantly higher fatigue resistance compared to other welding techniques, ensuring the structural integrity of the mounting plate over its extensive service life.
3. **Maximized Strength and Rigidity:** The uninterrupted bond created by continuous welds maximizes the torsional rigidity and overall strength of the assembly, providing a monolithic structure capable of resisting twisting and bending moments effectively.
4. **Corrosion Protection:** Continuous welds also contribute to an improved seal, reducing crevices where moisture and corrosive agents can accumulate, thereby enhancing the overall corrosion resistance of the component, especially when combined with the protective powder coating.

This meticulous welding process underscores Buyers Products' commitment to engineering components that not only meet but exceed demanding performance and safety standards.

Advanced Surface Protection: Black Powder-Coated Finish

To ensure prolonged operational life and maintain aesthetic appeal, the Buyers Products Pintle Hook Mounting Plate features a durable black powder-coated finish. This advanced coating technology offers substantial advantages over traditional liquid paint applications:

1. **Superior Corrosion Resistance:** The powder coating process creates a thick, uniform layer that provides an exceptional barrier against environmental aggressors such as moisture, road salts, chemicals, and UV radiation. This robust protection is critical for components exposed to harsh outdoor conditions, preventing rust and degradation that can compromise structural integrity over time.
2. **Enhanced Abrasion and Impact Resistance:** Powder coatings are inherently more resistant to chipping, scratching, and abrasion than conventional paints. This resilience is vital for towing components that frequently encounter impacts, scrapes, and general wear and tear during hitching, unhitching, and on-road operation.
3. **Chemical Resistance:** The cured polymer matrix of the powder coat offers excellent resistance to a wide range of chemicals, including oils, greases, fuels, and cleaning agents, ensuring the finish remains intact and protective even when exposed to automotive fluids.
4. **Environmental Benefits:** Powder coating is an environmentally friendly process, as it contains no Volatile Organic Compounds (VOCs) and produces minimal hazardous waste, aligning with modern ecological standards.
5. **Aesthetic Durability:** The smooth, consistent black finish not only provides long-lasting protection but also maintains a professional appearance, resisting fading and chalking even after extensive outdoor exposure.

The combination of robust carbon steel and a high-performance powder coat ensures that this mounting plate delivers both uncompromising strength and enduring protection against the elements.

Optimized Functionality and Versatility: Adapting to Diverse Towing Needs

The Strategic Advantage of 3-Position Adjustability

A hallmark feature of this mounting plate, as highlighted in its designation, is the provision of three distinct mounting positions. This crucial design element dramatically enhances the versatility and adaptability of the towing system, allowing operators to precisely adjust the height of the pintle hook to achieve optimal trailer leveling. The ability to mount a pintle hook at either a high, medium, or low position directly addresses the challenge of coupling tow vehicles of varying heights with trailers that also exhibit diverse tongue heights.
Proper trailer leveling is not merely a convenience; it is a critical factor for safe and efficient towing. An improperly leveled trailer can lead to:

• **Uneven Tire Wear:** On both the tow vehicle and the trailer, leading to premature tire replacement.
• **Compromised Braking Performance:** Incorrect weight distribution can reduce the effectiveness of trailer brakes and increase stopping distances.
• **Reduced Steering Control:** Excessive tongue weight or insufficient tongue weight can adversely affect the tow vehicle's steering and stability.
• **Trailer Sway:** A significant safety hazard, often exacerbated by improper leveling and weight distribution.
• **Ground Clearance Issues:** Especially for low-slung trailers or when traversing uneven terrain.

With three positions, users can fine-tune the coupling height to ensure the trailer tracks levelly behind the tow vehicle, promoting optimal weight distribution, maximizing stability, and enhancing overall safety. This adaptability makes the mounting plate an invaluable asset for fleets operating a variety of trailers or for tow vehicles that may have modified suspensions (e.g., lifted trucks).

Precision Fit: Designed for 2-1/2 Inch Receiver Systems

This mounting plate is specifically engineered for 2-1/2 inch receiver hitches. The 2-1/2 inch receiver class is generally associated with heavier-duty towing applications, offering greater strength and rigidity compared to the more common 2-inch receivers. The precise dimensions of the tubular shank (Length: 9.5 in.) ensure a secure, snug fit within the receiver tube, minimizing play and enhancing the stability of the entire towing assembly. This robust interface is critical for efficiently transmitting the considerable forces generated by a 20,000 M.G.T.W. load from the trailer through the pintle hook and mounting plate to the tow vehicle's chassis. The design ensures that the connection is solid and dependable, forming an integral part of a high-capacity towing system.

Universal Compatibility: Standardized Mounting Hole Pattern

The mounting plate features a standardized mounting hole pattern to ensure broad compatibility with a wide range of pintle hooks and combination hitches available in the market. With a Mounting Hole Size of 0.562 inches, Horizontal Hole Spacing of 3.375 inches, and Vertical Hole Spacing of 1.75 inches across 4 Pairs of Holes, this configuration adheres to common industry specifications (e.g., SAE J847 for pintle hooks, though this is a mounting plate, the hole pattern for mounting the pintle hook is critical). This universal pattern eliminates the need for custom fabrication or adapter plates, allowing operators to easily integrate their preferred heavy-duty towing accessories. The thoughtful design considers both vertical and horizontal hole spacing to accommodate various pintle hook footprints, offering maximum flexibility and interchangeability for fleet managers and individual operators alike.

Performance and Safety: Exceeding Heavy-Duty Demands

Exceptional Load Capacity: 20,000 lbs M.G.T.W.

The 20,000 lbs Maximum Gross Trailer Weight (M.G.T.W.) rating is a testament to the robust engineering and high-quality materials employed in this mounting plate. M.G.T.W. represents the maximum weight of the fully loaded trailer that the component is designed to safely handle. Achieving this high rating necessitates a comprehensive design approach, including:

• **Optimized Material Thickness:** The carbon steel plate and tubular shank are precisely dimensioned to provide the necessary cross-sectional area and moment of inertia to resist bending and shear stresses under maximum load.
• **Strategic Reinforcement:** The continuous welds and overall structural design are engineered to distribute these massive loads efficiently across the entire assembly, preventing localized stress points.
• **Rigorous Testing:** While not explicitly detailed in the specifications, components with such high ratings undergo extensive testing to validate their structural integrity and performance limits, often exceeding specified ratings during destructive testing to ensure a safety margin.

It is paramount for users to always ensure that the total weight of their trailer and its cargo does not exceed this 20,000 lbs M.G.T.W. rating, nor should it exceed the lowest M.G.T.W. rating of any other component in the towing system (e.g., the tow vehicle's hitch receiver, the pintle hook itself, or the trailer's coupler/tongue).

Managing Vertical Load: 3,000 lbs M.V.L.

The Maximum Vertical Load (M.V.L.) rating of 3,000 lbs, often referred to as tongue weight, indicates the maximum downward force that can be safely exerted by the trailer tongue onto the mounting plate and, subsequently, the tow vehicle's receiver. Proper tongue weight is crucial for stable towing dynamics:

• **Optimal Range:** Generally, tongue weight should be 10-15% of the M.G.T.W. A 3,000 lbs M.V.L. rating supports a significant portion of the 20,000 lbs M.G.T.W., aligning perfectly with the requirements of heavy trailers.
• **Preventing Sway:** Insufficient tongue weight can lead to dangerous trailer sway, while excessive tongue weight can overload the rear axle of the tow vehicle, impairing steering and braking. The substantial M.V.L. rating ensures that heavy, properly loaded trailers can maintain the necessary tongue weight for stability.
• **Component Stress:** The mounting plate's design and material selection are specifically engineered to endure this considerable downward force continuously, without bending or fatigue, safeguarding the integrity of the entire hitch system.

Adhering to the M.V.L. rating is as critical as adhering to the M.G.T.W. rating for ensuring a safe and controlled towing experience.

Precise Dimensions for Integration: Height and Length

With an overall Height of 7.14 inches and a Length of 9.5 inches, this mounting plate is dimensioned for optimal clearance and secure integration. The vertical height provides ample space for mounting standard pintle hooks and allows for the three distinct vertical adjustment positions. The overall length ensures sufficient engagement within the 2-1/2 inch receiver, providing a stable and leveraged connection point without protruding excessively or causing interference with other vehicle components. These dimensions are a result of careful design to balance strength, functionality, and practical application.

Applications Across Industries

The Buyers Products 3-Position Pintle Hook Mounting Plate is an indispensable component for a multitude of demanding applications across various sectors:

• **Construction:** Ideal for towing heavy equipment trailers, dump trailers, concrete mixers, and utility trailers to and from job sites, often over challenging terrain.
• **Agriculture:** Suited for hauling farm implements, livestock trailers, and large utility trailers, requiring robust and adaptable towing solutions for diverse farm operations.
• **Municipal and Utility Fleets:** Essential for public works vehicles, service trucks, and maintenance crews that regularly tow generators, chippers, scaffolding, and various specialized equipment.
• **Heavy Haul and Logistics:** Provides the necessary interface for specialized transport operations requiring pintle hitches for their strength and articulation advantages.
• **Forestry and Landscaping:** Perfect for towing logging trailers, brush chippers, and heavy-duty landscape equipment, where robust and reliable connections are paramount.

Its 3-position adjustability makes it particularly valuable for fleets that utilize a diverse range of trailers, ensuring optimal towing posture regardless of the specific combination of tow vehicle and trailer.

Installation and Maintenance

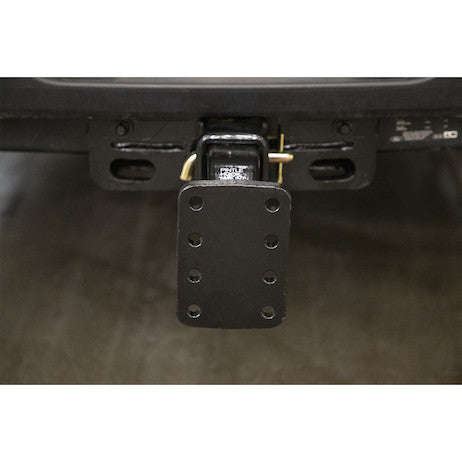

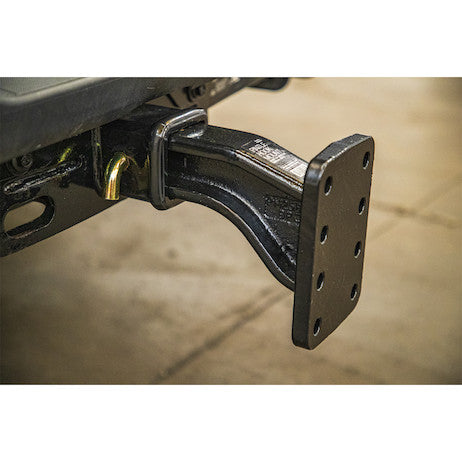

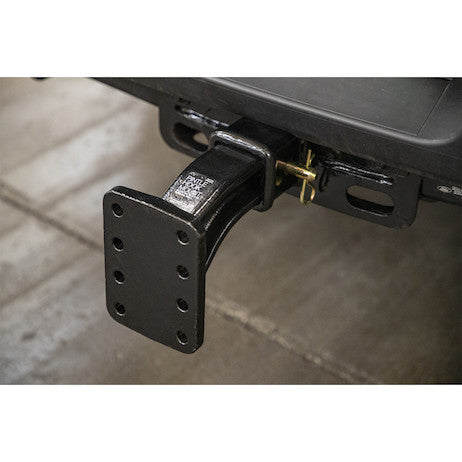

Installation of the Buyers Products Pintle Hook Mounting Plate is straightforward. The tubular shank slides directly into a standard 2-1/2 inch receiver hitch and is secured with a compatible hitch pin and clip (sold separately). Once installed, a pintle hook or combination hitch can be bolted onto the mounting plate using the standardized hole pattern and appropriate fasteners.
Regular inspection and maintenance are crucial for ensuring the continued safety and performance of the mounting plate. Operators should routinely check for:

• **Wear and Tear:** Examine the mounting holes, shank, and pintle hook mounting surface for any signs of elongation, cracking, or material thinning.
• **Corrosion:** Despite the powder coat, inspect for any deep scratches or areas where corrosion might be developing, especially in high-stress zones or around welds. Address any localized corrosion promptly to prevent spread.
• **Weld Integrity:** Visually inspect all welds for cracks, deformities, or signs of fatigue. Any compromise to a weld requires immediate attention.
• **Fastener Condition:** Ensure all bolts securing the pintle hook to the mounting plate are torqued to manufacturer specifications and are free from damage or loosening.

Proper maintenance extends the life of the product and ensures a safe towing environment for all heavy-duty operations.

Commitment to Quality and Reliability

Buyers Products is synonymous with robust, reliable, and high-performance truck and trailer equipment. This 3-Position Pintle Hook Mounting Plate is a testament to the brand's unwavering commitment to engineering excellence and manufacturing precision. By selecting premium carbon steel, employing advanced welding techniques, and applying a durable powder-coated finish, Buyers Products ensures that this component not only meets but exceeds the stringent demands of heavy-duty towing professionals. The meticulous attention to load ratings, dimensional accuracy, and functional adaptability positions this mounting plate as a superior choice for anyone requiring a dependable and versatile solution for their high-capacity towing needs.

Conclusion

The Buyers Products 3-Position Pintle Hook Mounting Plate for 2-1/2 Inch Receiver is a highly engineered, exceptionally robust, and critically versatile component for any heavy-duty towing application. Its foundation of high-grade carbon steel, fortified by continuous welds and a protective black powder-coat finish, ensures unparalleled durability and resistance to the harshest environmental and operational stresses. The intelligent 3-position design offers crucial adaptability for optimal trailer leveling, enhancing safety and efficiency across diverse vehicle and trailer configurations. With formidable M.G.T.W. and M.V.L. ratings of 20,000 lbs and 3,000 lbs respectively, and a standardized mounting pattern, this plate provides the ultimate blend of strength, flexibility, and compatibility. For professionals in construction, agriculture, municipal services, or any industry requiring serious towing capability, this Buyers Products pintle hook mounting plate represents an indispensable investment in performance, reliability, and peace of mind.
