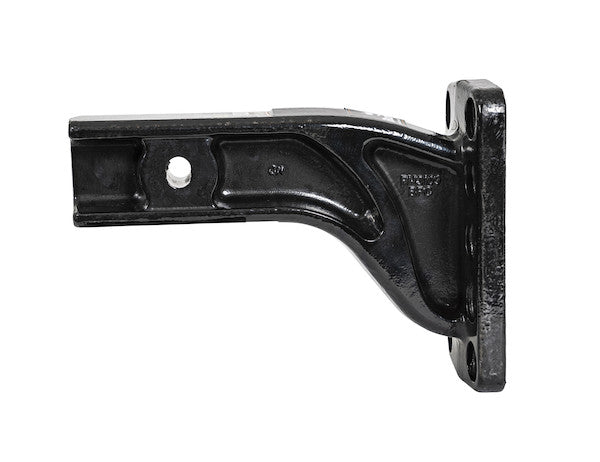

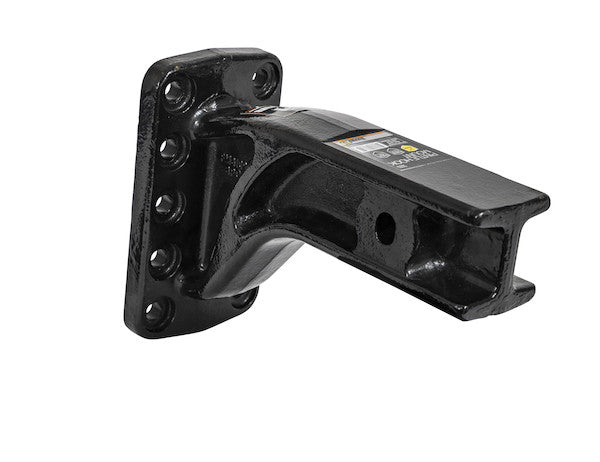

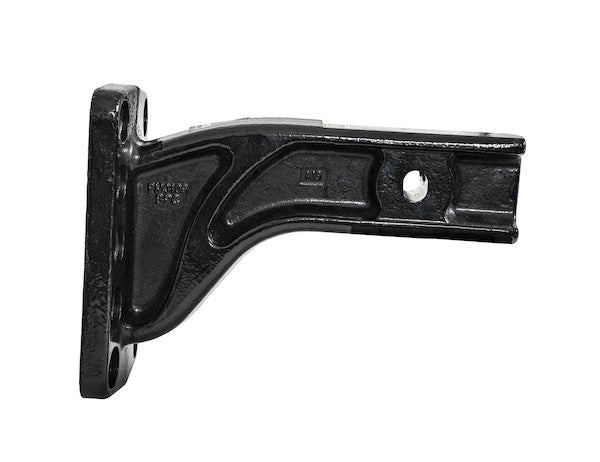

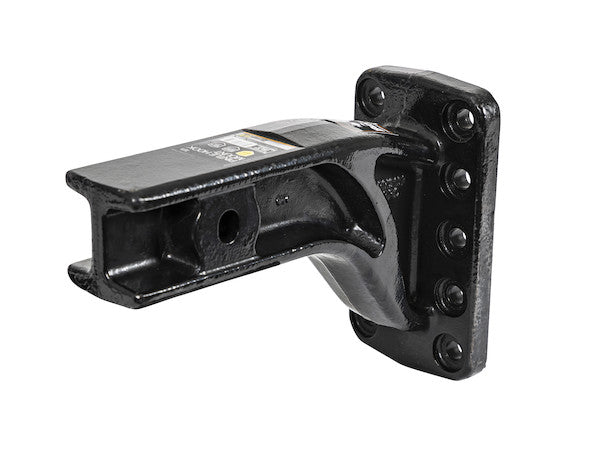

Buyers Products 3 Inch Pintle Hook Mounting Plate slides into a 3 in. receiver to provide a mounting plate for pintle hooks and combo hitches. With four different mounting positions, you can easily install your pintle at the right height for your trailer. A 30,000 pound capacity ensures you have the strength needed to get the job done. The mount is made of durable steel with a solid shank. A black powder-coated finish provides exceptional corrosion resistance.
Specifications
| Color | Black |
|---|---|
| Finish | Powder-Coat |
| Height (in.) | 9 |
| Horizontal Hole Spacing | 3.375 |
| Length (in.) | 12 |
| M.G.T.W. (lbs) | 30,000 |
| M.V.L. (lbs) | 6,000 |
| Material | Carbon Steel |
| Mount Type | Pintle Mount |
| Mounting Hole Size (in.) | .562 |
| No. of Mounting Positions | 4 |
| Pairs of Holes | 5 |
| Receiver Size (in.) | 3 |
| Shank Type | Solid |
| Vertical Hole Spacing | 1.75 |
Advanced Engineering & Performance of the 3-Inch Pintle Hitch Mounting Plate
This technical product description provides an in-depth analysis of the 3 Inch Pintle Hitch Mounting Plate with its 4-position adjustability and 10-inch solid shank, designed specifically for rigorous heavy-duty towing applications. Developed by Buyers Products, this component is engineered to deliver unparalleled strength, versatility, and durability, catering to the demanding requirements of commercial, industrial, and municipal operations.
At its core, the primary function of this mounting plate is to serve as a robust interface between a heavy-duty towing vehicle and various types of pintle hooks or combination hitches. Its design facilitates seamless integration into a standard 3-inch receiver tube, a common fixture on commercial trucks, specialized utility vehicles, and heavy equipment. The precision-engineered 3-inch receiver shank ensures a tight, secure fit, minimizing play and enhancing the overall stability of the towing connection. This adherence to industry-standard receiver dimensions guarantees broad compatibility with a wide array of tow vehicles currently in operation.
Material Science and Structural Integrity
The foundation of this pintle hitch mounting plate's superior performance lies in its material composition and structural design. Fabricated from high-grade Carbon Steel, the mount exhibits exceptional tensile strength, yield strength, and fatigue resistance. Carbon steel is specifically selected for its inherent mechanical properties, which include a high strength-to-weight ratio and excellent toughness, making it ideally suited for applications subject to high dynamic loads, torsional stresses, and recurrent shock impacts inherent in heavy towing. The specific grade of carbon steel utilized is optimized for welding characteristics, ensuring robust and reliable fabrication during the manufacturing process, further contributing to the overall structural integrity of the final product.
A critical design feature is the solid shank construction. Unlike hollow shank alternatives, a solid shank provides a significantly higher resistance to bending moments, shear forces, and compressive loads. This continuous, uninterrupted cross-section of material distributes stress more uniformly, drastically reducing the potential for stress concentration points that could lead to material fatigue or catastrophic failure under extreme conditions. The 10-inch length of the solid shank is strategically chosen to provide ample clearance between the vehicle’s bumper or chassis and the attached pintle hitch assembly, accommodating a broader range of vehicle designs and facilitating easier hitching and unhitching operations. This extended length also contributes to improved maneuverability when backing up or navigating tight turns with larger trailers, by creating a longer effective pivot point, which can be advantageous in various operational scenarios.
Optimized Load Capacity and Performance Metrics
This pintle hitch mounting plate boasts an impressive Maximum Gross Trailer Weight (M.G.T.W.) rating of 30,000 pounds (13,607 kg). This substantial capacity underscores its suitability for towing extremely heavy loads, including multi-axle trailers, construction equipment, large agricultural implements, and specialized transport units. The M.G.T.W. rating is not merely a theoretical limit but is derived from rigorous testing and engineering calculations, incorporating significant safety factors to ensure reliable performance under diverse real-world operating conditions. These conditions often include irregular terrain, sudden acceleration/deceleration, and varying road surfaces, all of which impose dynamic stresses far exceeding static load values.
Complementing the M.G.T.W. is a Maximum Vertical Load (M.V.L.) rating of 6,000 pounds (2,721 kg). The M.V.L., often referred to as tongue weight, represents the downward force exerted by the trailer coupler onto the hitch system. Maintaining an appropriate tongue weight is paramount for towing stability, vehicle handling, and tire wear. A 6,000-pound M.V.L. capacity ensures that even trailers with substantial front-end loads can be safely and effectively managed, preventing undesirable sway, braking imbalances, and excessive strain on the tow vehicle's suspension and frame. The robust design of the pintle mount, specifically the plate and shank, is engineered to withstand these significant vertical forces without deformation or compromise to its structural integrity over its operational lifespan.
Versatile 4-Position Height Adjustment
A defining feature of this pintle hitch mounting plate is its integrated 4-position height adjustment capability. This feature allows operators to precisely set the vertical position of the pintle hook, ensuring optimal trailer leveling across a wide variety of tow vehicle and trailer combinations. The ability to adjust height is critical for:
- Trailer Leveling: Maintaining a level trailer is essential for safe towing. An unlevel trailer can lead to uneven tire wear, reduced braking efficiency, increased aerodynamic drag, and dangerous trailer sway. The 4-position adjustment facilitates precise alignment, distributing the trailer's weight evenly across its axles and enhancing overall stability.
- Ground Clearance: Proper height adjustment helps maintain adequate ground clearance for the trailer, preventing damage from scraping on inclines, dips, or uneven terrain.
- Load Distribution: Correct height ensures the load is distributed properly, optimizing handling characteristics of both the tow vehicle and the trailer.
- Versatility: Different trailers and tow vehicles often have varying coupling heights. The multiple positions provide the flexibility to quickly adapt the hitch setup without requiring multiple mounting plates or complex adapters.

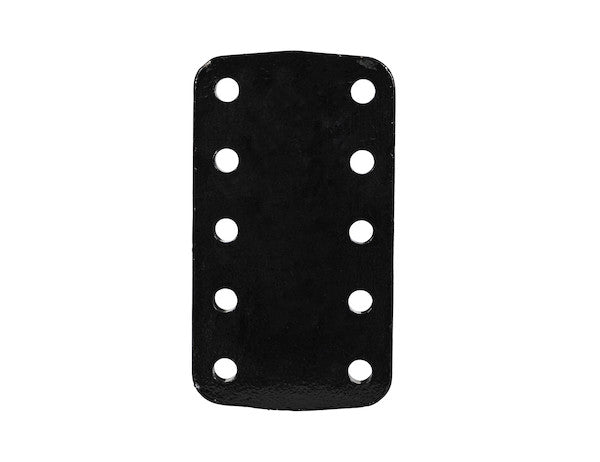

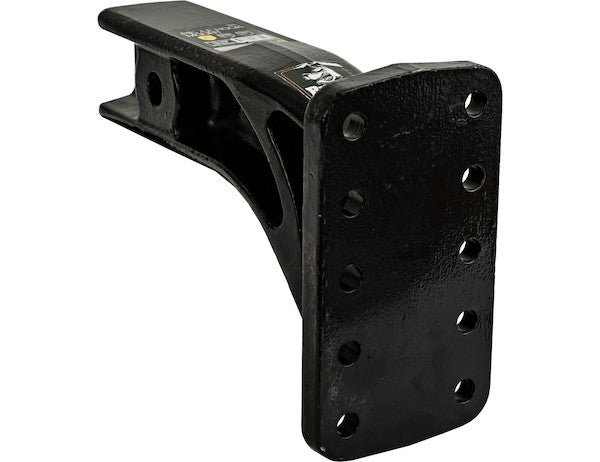

The mounting plate features a carefully designed pattern of five pairs of holes, with a precise vertical hole spacing of 1.75 inches and a horizontal hole spacing of 3.375 inches. Each mounting hole has a diameter of 0.562 inches, providing a secure fit for standard heavy-duty pintle hook and combo hitch fasteners. This standardized hole pattern ensures compatibility with a vast majority of pintle hooks and combination hitches available on the market, facilitating straightforward installation and interchangeability. The precision of these dimensions is crucial for ensuring a tight, rattle-free connection that maintains structural integrity under dynamic towing loads.
Advanced Corrosion Resistance and Durability
Operating in challenging outdoor environments, towing equipment is constantly exposed to elements such such as moisture, road salts, abrasive particles, and UV radiation, which can accelerate material degradation through corrosion. To counteract these effects, this pintle hitch mounting plate is finished with a durable black powder-coat. Powder coating is an advanced finishing process that offers superior protection compared to conventional liquid paints. The process involves electrostatically applying a dry powder pigment to the carbon steel surface, which is then cured under heat to form a hard, resilient, and aesthetically pleasing finish.
Key benefits of the powder-coat finish include:
- Exceptional Corrosion Resistance: The thick, continuous layer of powder coat acts as an effective barrier against rust and oxidation, significantly extending the service life of the product, especially in corrosive environments such as coastal regions or areas where road de-icing chemicals are frequently used.
- Abrasion and Impact Resistance: The cured powder coat creates a much harder surface than liquid paint, making it highly resistant to chipping, scratching, and abrasion from road debris and operational wear. This resilience maintains the protective barrier over a longer period.
- UV Stability: The finish exhibits excellent resistance to ultraviolet degradation, preventing fading and chalking even after prolonged exposure to sunlight, ensuring the product retains its professional appearance throughout its operational life.
- Environmental Durability: The powder coat is resistant to a wide range of chemicals, oils, and other common industrial contaminants, making it suitable for demanding work environments.
The sleek black color of the powder coat not only provides a professional appearance that complements most commercial vehicles but also subtly hides minor surface imperfections that might occur over time, contributing to a maintained aesthetic.
Dimensional Analysis and Ergonomics
The overall dimensions of the mounting plate are carefully engineered to balance strength, functionality, and operational footprint. With a height of 9 inches and a length of 12 inches (referring to the main mounting plate section), it provides ample surface area for secure pintle hook attachment while maintaining a compact profile that does not impede vehicle functionality or aesthetics. The 10-inch solid shank length ensures adequate standoff from the vehicle's receiver, facilitating easy access and maneuverability for hitching without interference from the vehicle's rear structures. The design prioritizes ease of installation and removal from the 3-inch receiver, requiring only a standard hitch pin (not included) for secure attachment, enabling quick changes or storage when not in use.
Applications and Industry Relevance
The 3 Inch Pintle Hitch Mounting Plate is an indispensable component for a multitude of heavy-duty towing applications across various industries:
- Construction: Ideal for towing large equipment trailers, dump trailers, and machinery movers on job sites.
- Agriculture: Suitable for transporting heavy farm implements, livestock trailers, and utility wagons.
- Municipal & Government: Utilized by public works departments for towing equipment, brush chippers, and emergency service trailers.
- Commercial Transport: Essential for logistics companies moving various types of heavy cargo.
- Mining: Provides reliable towing for support equipment in demanding mining environments.
- Military & Defense: Employed for towing tactical and logistical support trailers where extreme durability and reliability are paramount.
Its robust capacity and versatile adjustability make it a preferred choice for professionals who demand uncompromising performance and safety from their towing equipment. The ability to accommodate both pintle hooks and combination hitches further broadens its utility, allowing operators to switch between lunette ring trailers and traditional ball-type couplers as needed, all with one robust mounting system.
Safety, Compliance, and Longevity
The engineering design and material selection of this pintle hitch mounting plate strictly adhere to industry best practices and standards for heavy-duty towing equipment. The impressive M.G.T.W. and M.V.L. ratings are conservative measures, meaning the product is designed to safely handle loads significantly below its ultimate failure point, providing substantial safety margins. Regular inspection and proper maintenance, such as ensuring the hitch pin is securely in place and inspecting for any signs of wear or damage, will ensure the long-term reliability and safety of the system.
The low-maintenance nature of the powder-coated carbon steel contributes to a reduced total cost of ownership over the product's lifespan. Its resistance to environmental degradation means less time and resources are spent on repairs or replacements, allowing operators to focus on their primary tasks with confidence in their towing apparatus. The solid shank design also means there are no internal voids to trap moisture, further contributing to its longevity and corrosion resistance from within.
In conclusion, the Buyers Products 3 Inch Pintle Hitch Mounting Plate with its 4-position adjustability and 10-inch solid shank represents a pinnacle of heavy-duty towing accessory design. Its construction from robust carbon steel, meticulous powder-coat finish, substantial load capacities, and highly functional adjustability features combine to create a product that is not only exceptionally strong and durable but also incredibly versatile and safe. It is an investment in reliability and operational efficiency for any professional requiring steadfast performance in the most demanding towing scenarios.
