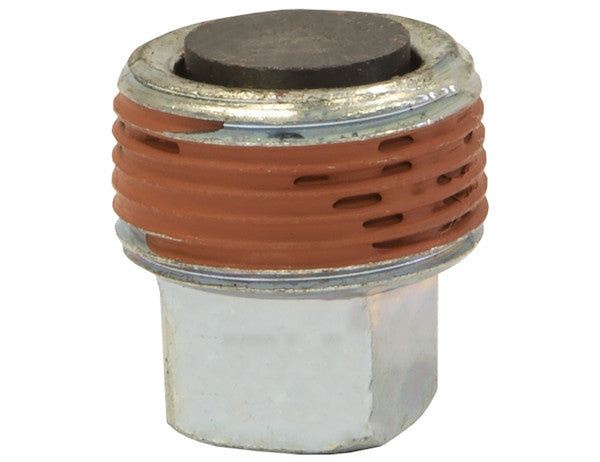

PPM08 - 1/2 Inch NPT Magnetic Drain Plug

Buyers Products Magnetic Drain Plug with Square Head is available in 1/2 and 3/4 in. diameters.It features a powerful magnet that aids in preventing metallic particle contamination.

Specifications

1/2 Inch NPT Magnetic Drain Plug: Advanced Contamination Control for Critical Fluid Systems

The 1/2 Inch NPT Magnetic Drain Plug from Buyers Products represents a critical component in the preventative maintenance strategy for a vast array of industrial, automotive, and heavy-duty mechanical systems. Engineered with precision and robust materials, this drain plug is specifically designed to address one of the most insidious threats to machinery longevity: metallic particulate contamination within lubricating and hydraulic fluids. This technical overview will delve into the specific attributes, operational principles, material science, and diverse applications that underscore the indispensable value of this magnetic drain plug.

The Significance of NPT Threading: Precision and Sealing Integrity

The designation "1/2 Inch NPT" is central to understanding the functional integrity and application scope of this drain plug. NPT stands for National Pipe Taper, a standardized thread type widely adopted across North America for pipe and fittings. The key characteristic of NPT threads is their taper, meaning the diameter of the thread decreases along its length. This design is crucial for achieving a mechanical seal without the need for additional gaskets or O-rings in many applications, particularly when combined with appropriate thread sealant compounds.

The 1/2 inch nominal pipe size indicates the thread’s approximate internal diameter of the pipe it is designed to fit, although the actual thread diameter is slightly larger. For a drain plug, this specification ensures compatibility with a multitude of fluid reservoirs, sumps, and casings designed to accept a standard NPT fitting. The tapered form facilitates a progressively tighter fit as the plug is threaded into the mating port, creating a robust, leak-resistant connection capable of withstanding significant pressures and vibrations inherent in operational environments. This intrinsic sealing capability is paramount in preventing fluid loss and maintaining system integrity, directly contributing to operational safety and efficiency.

The Power of Magnetic Filtration: Mitigating Metallic Contamination

At the core of the drain plug's advanced functionality is its powerful integrated magnet. This isn't merely a convenience; it's a sophisticated method of proactive fluid contamination control. In any mechanical system involving moving parts and lubrication, wear is an unavoidable phenomenon. This wear generates microscopic and macroscopic metallic particles (ferrous and some non-ferrous alloys) that can circulate within the fluid. These particles, often too fine for conventional fluid filters to capture effectively, act as abrasives, accelerating wear on bearings, gears, pumps, and other critical components. The presence of these particles creates a cascade effect: initial wear generates more particles, which in turn cause further wear, leading to premature component failure, increased friction, reduced efficiency, and catastrophic system breakdowns.

The high-strength magnet within the drain plug is strategically positioned to attract and hold these ferromagnetic particles, removing them from the circulating fluid path. As the fluid flows past the drain plug in the sump or reservoir, the magnetic field captures iron, steel, and other ferrous wear debris before it can be recirculated. This localized magnetic filtration significantly reduces the concentration of abrasive particles, thereby extending the life of the fluid itself, preserving the integrity of lubricated components, and delaying the onset of wear-related failures. The effectiveness of this magnetic filtration system provides a layer of protection that complements traditional spin-on or cartridge filters, especially for ultra-fine particulate matter that often bypasses conventional media.

Material Science: Carbon Steel with Zinc Plating for Uncompromised Durability

The choice of materials for the 1/2 Inch NPT Magnetic Drain Plug is critical to its long-term performance and reliability in demanding applications. The plug is constructed from high-grade carbon steel, a material renowned for its exceptional strength, hardness, and durability. Carbon steel offers a superior balance of mechanical properties, making it highly resistant to the significant torsional forces applied during installation and removal, as well as the dynamic stresses and vibrations experienced during equipment operation. Its inherent toughness ensures that the threads will not easily strip or deform under typical service conditions, maintaining the integrity of the critical NPT seal.

To further enhance its resilience, the carbon steel component undergoes a zinc plating process. Zinc plating serves as a sacrificial corrosion barrier. In environments where moisture, road salts, chemicals, or other corrosive agents are present, bare carbon steel would be susceptible to oxidation and rust. Zinc, being more electrochemically active than steel, corrodes preferentially, thereby protecting the underlying steel substrate. This significantly extends the service life of the drain plug, preventing degradation that could compromise its sealing ability or make future removal difficult. The zinc plating provides a clean, aesthetically pleasing finish that also contributes to the professional presentation and robust quality of the product, ensuring that the plug maintains its functional and structural integrity even in harsh operating conditions.

Engineered Design: The Square Head Advantage

The design of the drain plug features a square head, a seemingly minor detail that offers significant practical advantages for installation and maintenance. A square head provides multiple points of contact for standard wrenches (e.g., adjustable wrenches, open-end wrenches, or socket wrenches designed for square drives), ensuring a secure grip and minimizing the risk of slippage or rounding off the corners, especially when applying substantial torque. This positive engagement is crucial for achieving the necessary tightening torque to properly seat the NPT threads and create a leak-proof seal. In contrast, hex heads or other less robust designs can be more prone to damage or stripping, particularly in corrosive environments or when seized. The square head design facilitates easier and more reliable installation and removal, reducing the potential for costly delays or component damage during routine fluid changes or inspections.

Comprehensive Applications Across Diverse Industries

The versatility and robust design of the 1/2 Inch NPT Magnetic Drain Plug make it an essential component across a wide spectrum of industries and equipment types:

• Automotive and Heavy-Duty Transportation: Indispensable for oil pans, transmission sumps, differential housings, and transfer cases in passenger vehicles, commercial trucks, buses, and trailers. It prolongs the life of critical drivetrain components and provides early warning signs of excessive wear.
• Construction and Agricultural Equipment: Essential for hydraulic reservoirs, gearboxes, final drives, and engine sumps in excavators, bulldozers, tractors, combines, and other machinery operating in challenging, dirt-laden environments where abrasive wear is rampant.
• Industrial Machinery: Utilized in manufacturing plants for gearboxes, bearing housings, compressor sumps, hydraulic power units, and industrial pumps. It helps maintain the reliability of continuous operation processes and reduces unplanned downtime.
• Marine Applications: Critical for engine sumps, marine transmissions, and generator sets on boats and ships, where equipment often operates under continuous load and in corrosive saltwater environments.
• Power Generation: Found in generator sets, turbine lubrication systems, and auxiliary equipment where continuous operation and high reliability are paramount.
• Mining Equipment: Designed to withstand the extreme conditions of mining operations, protecting critical fluid systems in heavy earth-moving equipment, crushers, and conveyors.

In all these applications, the magnetic drain plug serves not just as a means to drain fluid, but as a silent guardian, continually working to extract harmful contaminants. This proactive approach significantly extends the lifespan of expensive machinery, reduces the frequency of component replacements, and minimizes operational downtime, translating directly into considerable cost savings and improved operational efficiency.

Installation, Maintenance, and Early Diagnostics

Proper installation of the 1/2 Inch NPT Magnetic Drain Plug is vital for its optimal performance. While NPT threads are designed to seal, the use of a suitable thread sealant, such as PTFE tape or pipe thread compound, is highly recommended to ensure a leak-proof connection, especially in high-pressure or critical applications. Care should be taken to apply the correct torque specification, typically provided by the equipment manufacturer, to prevent over-tightening which can damage threads, or under-tightening which can lead to leaks. The robust carbon steel construction and square head design are tolerant of appropriate torque application, ensuring a secure fit.

Regular inspection and cleaning of the magnetic drain plug are integral to its effectiveness. During routine fluid changes, the plug should be removed, and the accumulated metallic particles on the magnet should be carefully inspected and cleaned. The quantity and type of particles collected can serve as a valuable diagnostic indicator of the internal wear condition of the equipment. A sudden increase in particle accumulation or the presence of larger chips could signal an impending component failure, allowing for early intervention and preventative repairs before a major breakdown occurs. This capability transforms the drain plug from a simple fluid exit point into a powerful, passive diagnostic tool, contributing to predictive maintenance strategies.

Environmental and Economic Benefits

Beyond the immediate operational advantages, the use of magnetic drain plugs offers significant environmental and economic benefits. By reducing wear and extending the life of mechanical components, it lessens the demand for new parts manufacturing, thereby conserving raw materials and energy. Furthermore, by keeping lubricating and hydraulic fluids cleaner, the drain plug can potentially extend fluid service intervals, leading to reduced consumption of lubricants and a decrease in waste oil generation. These factors contribute to a more sustainable operational footprint.

Economically, the investment in a high-quality magnetic drain plug like the 1/2 Inch NPT model from Buyers Products is quickly recouped through reduced maintenance costs, fewer unplanned downtimes, and the extended service life of valuable capital equipment. The cost of replacing a drain plug is negligible compared to the expense of repairing or replacing a major component like an engine, transmission, or hydraulic pump that has failed prematurely due to abrasive contamination.

Conclusion: An Essential Component for Modern Machinery

The 1/2 Inch NPT Magnetic Drain Plug from Buyers Products is far more than a simple threaded fastener. It is a precisely engineered solution embodying robust material science, intelligent design, and advanced contamination control principles. With its NPT threading ensuring superior sealing, its powerful magnet actively mitigating metallic wear, and its carbon steel construction with zinc plating providing exceptional durability and corrosion resistance, this product stands as an essential safeguard for the longevity and reliability of critical fluid systems across a multitude of industries. Its role in preventative maintenance, early fault detection, and ultimately, in maximizing equipment uptime and minimizing operational costs, solidifies its position as an indispensable component in today's demanding mechanical environments.
