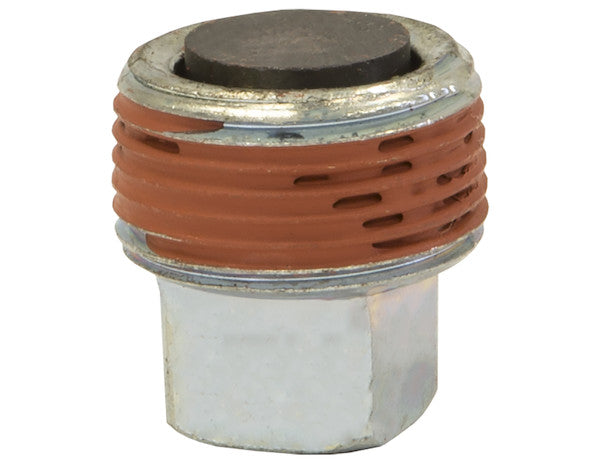

PPM12 - 3/4 Inch NPT Magnetic Drain Plug

Buyers Products Magnetic Drain Plug with Square Head is available in 1/2 and 3/4 in. diameters.It features a powerful magnet that aids in preventing metallic particle contamination.

Specifications

The 3/4 Inch NPT Magnetic Drain Plug represents a critical component in the preventative maintenance and operational longevity of a wide array of industrial, automotive, and heavy-duty mechanical systems. Engineered with precision and robust materials, this drain plug is specifically designed to mitigate the detrimental effects of ferrous metallic particulate contamination within fluid reservoirs. Its core function extends beyond mere fluid retention, transforming into an active filtration and diagnostic tool that significantly contributes to the overall health and efficiency of machinery. This comprehensive description delves into the technical specifications, functional advantages, material science, and broad applications of this indispensable component.

At the heart of the drain plug's efficacy is its integrated, high-strength magnet. Mechanical systems, particularly those involving rotating or reciprocating components, inevitably generate microscopic metallic debris through friction, wear, and fatigue. This particulate matter, often imperceptible to the naked eye, can circulate within the lubricating or hydraulic fluid, acting as an abrasive agent. Over time, these particles accelerate wear on bearings, gears, pumps, valves, and other precision components, leading to diminished performance, increased heat generation, reduced fluid lifespan, and ultimately, catastrophic system failure. The powerful magnet embedded within the drain plug is strategically positioned to attract and retain these ferrous particles as the fluid circulates or settles. By capturing this debris, the plug prevents its re-circulation, thereby significantly reducing abrasive wear and extending the operational life of the system's internal components. This proactive approach to contamination control is a cornerstone of effective predictive maintenance strategies.

The specification "3/4 Inch NPT" refers to the plug's threading standard and nominal size. NPT, or National Pipe Taper, is a widely recognized standard for tapered threads used in pipe and fitting connections, particularly in North America. The tapered design of NPT threads ensures an interference fit, meaning the threads progressively tighten as the plug is screwed into the corresponding female port. This mechanical interference, often augmented by thread sealant compounds like PTFE tape or liquid pipe dope, creates a robust, leak-proof seal capable of withstanding significant pressures and vibrations common in demanding applications. The 3/4-inch designation indicates the nominal pipe size, providing a standardized dimension for compatibility across various fluid systems. This specific size is commonly found in a diverse range of applications, including engine oil pans, transmission sumps, differential housings, hydraulic reservoirs, industrial gearboxes, and a multitude of other fluid-containing assemblies where a substantial drain port is required. The precise manufacturing of these NPT threads is paramount to ensuring optimal sealing integrity and preventing fluid leakage, which can compromise system performance and pose environmental or safety risks.

Material selection for such a critical component is dictated by the harsh operational environments it endures. The 3/4 Inch NPT Magnetic Drain Plug is constructed from high-quality carbon steel. Carbon steel is renowned for its exceptional strength, rigidity, and durability, making it an ideal choice for components subjected to mechanical stress, thermal cycling, and constant exposure to various fluids. Its inherent toughness allows it to withstand the torque applied during installation and removal, as well as the dynamic forces within the fluid system. Furthermore, carbon steel exhibits excellent machinability, facilitating the precise formation of the NPT threads and the square head design. While carbon steel offers superior mechanical properties, it is susceptible to corrosion when exposed to moisture, salts, and certain chemicals. This vulnerability necessitates a protective surface treatment, which brings us to the zinc plated finish.

The zinc plated finish is a vital feature that significantly enhances the longevity and reliability of the carbon steel drain plug. Zinc plating is an electroplating process where a thin layer of zinc is deposited onto the surface of the steel. This coating serves as a sacrificial anode, providing galvanic corrosion protection. In the presence of corrosive agents, the zinc preferentially corrodes before the underlying steel, thereby protecting the base metal from degradation. This protective layer is particularly effective in environments where the plug is exposed to moisture, road salts (in automotive applications), chemicals present in fluids, or general atmospheric oxidation. Beyond its primary role in corrosion resistance, zinc plating also offers a clean, professional aesthetic and improves the surface hardness, providing enhanced resistance to minor abrasions and wear during handling and installation. The combination of carbon steel's structural integrity and zinc plating's corrosion resistance ensures that the drain plug maintains its functional and aesthetic properties throughout its operational lifespan, even in challenging conditions.

The design of the drain plug, featuring a square head, offers distinct advantages in terms of utility and durability. Unlike hex heads or recessed drive types, a square head provides a substantial surface area for engagement with a standard square-drive wrench or socket. This design minimizes the risk of stripping or rounding the head, particularly when applying high torque during initial installation or when attempting to remove a plug that has been subjected to prolonged service and potential seizing. The robust geometry of the square head ensures a positive, non-slip grip, allowing for reliable tightening to specified torque values and secure removal without damage to the plug or the tool. This practical design choice underscores a commitment to ease of maintenance and long-term serviceability, reducing the potential for frustration and costly damage during routine fluid changes.

The integration of a powerful magnet is perhaps the most defining characteristic of this drain plug. While the current description simply states "powerful magnet," the technical implications are significant. The effectiveness of a magnetic drain plug is directly proportional to the strength and magnetic field depth of the magnet employed. Advanced magnetic materials, such as neodymium iron boron (NdFeB) or high-grade ferrite, are typically utilized to achieve the necessary magnetic force to capture even fine ferrous particles effectively. These magnets are securely embedded within the plug body, often using specialized retention methods to ensure they remain in place under vibration and temperature fluctuations. The magnetic field permeates the fluid, drawing circulating ferrous wear particles towards the plug, where they are held securely until the next scheduled fluid change. This mechanism transforms a passive drain point into an active guardian of system integrity.

The applications for the 3/4 Inch NPT Magnetic Drain Plug are incredibly diverse, spanning across numerous industries. In the **automotive and heavy-duty vehicle sector**, these plugs are indispensable for engines, manual and automatic transmissions, differentials, transfer cases, and hydraulic steering systems. They are paramount in commercial trucking, off-highway construction equipment, agricultural machinery, and specialized utility vehicles where component wear is significant due to continuous heavy loads and demanding operational cycles. Within **industrial machinery**, magnetic drain plugs are essential for gearboxes, hydraulic power units, compressors, pumps, and various manufacturing equipment. They are critical in reducing wear in high-speed, high-load applications found in mining, logging, and general manufacturing environments. In **marine applications**, they protect engine sumps, gear cases, and stern drives from premature wear caused by metallic debris. The universal principle of preventing metallic contamination makes this plug a valuable addition wherever oil, hydraulic fluid, or other lubricating fluids are used in mechanical systems.

Proper installation and maintenance of the magnetic drain plug are crucial for maximizing its benefits. During installation, it is imperative to apply the appropriate thread sealant, such as PTFE tape or a liquid thread sealant specifically designed for NPT connections, to ensure a hermetic seal. Adherence to the manufacturer's specified torque values is equally important to prevent overtightening, which can damage the threads of both the plug and the mating component, or undertightening, which can lead to leaks. During routine fluid changes, the magnetic drain plug should be carefully removed, and the collected metallic particles should be inspected. The quantity and type of debris can provide valuable diagnostic information about the internal condition of the machinery, indicating potential wear patterns or impending component failure long before external symptoms manifest. After inspection, the magnet should be thoroughly cleaned of all accumulated particles using a rag or shop towel before reinstallation. This simple maintenance step ensures the magnet retains its full particle-capturing capability for the subsequent operational cycle.

In summary, the 3/4 Inch NPT Magnetic Drain Plug is far more than a simple threaded fastener. It is a sophisticated, precision-engineered component that embodies proactive fluid contamination control and diagnostic capabilities. Its robust carbon steel construction, protective zinc plating, ergonomic square head design, and, most importantly, its powerful integrated magnet, all combine to deliver unparalleled protection against abrasive metallic wear. By consistently capturing ferrous particulate matter, this plug contributes directly to: **Extended Component Life**, safeguarding expensive internal components from premature failure; **Reduced Maintenance Costs**, by minimizing the need for major repairs and potentially extending fluid change intervals; **Enhanced System Reliability**, leading to fewer unexpected downtimes and greater operational predictability; and serving as an invaluable **Diagnostic Tool**, providing early indications of internal wear that allows for timely corrective action. Investing in high-quality magnetic drain plugs like the Buyers Products 3/4 Inch NPT version is a testament to an organization's commitment to optimizing machinery performance, minimizing operational risks, and achieving superior asset management in demanding operational environments.
