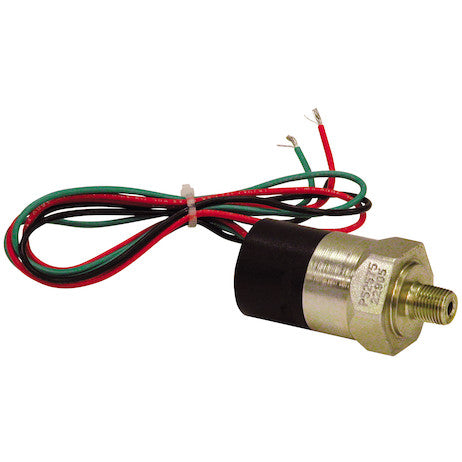

PS2501K - 1/4 Inch NPT Adjustable Pressure Switch Ranges From 250 To 1000 PSI

Adjustable Pressure Switches from Buyers Products can be custom set to a specific PSI. They trigger a signal when oil pressure is too low or high. The unit can be wired normally open or normally closed. Two models are available: - PS2575 is adjustable between 25-75 PSI and fits in any 1/8 in. NPT port. - PS2501K is adjustable between 250-1,000 PSI and fits a 1/4 in. NPT port (ideal for high pressure lines).

Specifications

Precision Pressure Control for Demanding Environments: The Buyers Products 1/4 Inch NPT Adjustable Pressure Switch (PS2501K)

In the realm of industrial automation, mobile hydraulics, and heavy-duty machinery, the accurate and reliable monitoring of fluid pressure is not merely a convenience but an absolute necessity for operational efficiency, equipment longevity, and, critically, safety. Pressure switches serve as the sentinels of these critical systems, providing instantaneous electrical signals when predefined pressure thresholds are met or exceeded. Among the robust offerings from Buyers Products, the PS2501K stands out as a high-performance, adjustable pressure switch specifically engineered for demanding applications requiring precise control within a pressure range of 250 to 1000 PSI, all while integrating seamlessly via a standard 1/4 Inch NPT connection.

Engineered for High-Pressure Precision: The 250 to 1000 PSI Adjustable Range

The core capability of the PS2501K lies in its impressive adjustable pressure range, spanning from 250 to 1000 PSI. This specific range positions it as an ideal solution for a vast array of high-pressure hydraulic and pneumatic systems that operate beyond the capabilities of lower-pressure switches. Systems found in heavy construction equipment, agricultural machinery, refuse vehicles, municipal trucks, and various industrial manufacturing processes frequently operate within or require monitoring at these elevated pressures. The adjustability aspect is paramount, allowing engineers and technicians to precisely tailor the switch's actuation point to the unique requirements of each application. This customization capability ensures optimal system performance, prevents premature component wear, and provides critical safety interlocks by signaling over-pressure or under-pressure conditions.

The ability to set a specific PSI within this broad range translates into significant operational advantages. For instance, in a hydraulic lift system, the switch can be set to activate a pump when pressure drops below a certain level, or to trigger a safety bypass if pressure exceeds a safe operating limit. In heavy machinery, it can monitor lubrication system pressure, preventing costly damage due to insufficient oil flow. This fine-tuning capacity minimizes energy waste, extends the lifespan of expensive hydraulic components, and enhances the overall reliability of complex fluid power circuits. Without precise adjustability, systems would either operate sub-optimally or require a multitude of fixed-setpoint switches, increasing complexity and inventory.

Seamless Integration: The 1/4 Inch NPT Thread Standard

The PS2501K features a 1/4 Inch NPT (National Pipe Taper) thread for connection. This thread standard is ubiquitous in industrial and mobile hydraulic applications, signifying its robust and widely compatible nature. NPT threads are designed to create a metal-to-metal seal through the interference fit of the tapered threads, which are further enhanced by the application of thread sealant or PTFE tape. This robust connection method ensures a secure, leak-free installation capable of withstanding the high pressures and vibrations inherent in the target applications.

The selection of 1/4 Inch NPT is strategic, balancing mechanical strength with compact size, allowing for installation in diverse spatial configurations without compromising integrity. Its widespread adoption means that integration into existing systems or new designs is straightforward, reducing installation time and eliminating the need for specialized adapters or tools. The reliability of an NPT connection at pressures up to 1000 PSI, and even significantly higher under proof pressure conditions, underscores the design's focus on long-term performance and minimal maintenance requirements.

Versatile Electrical Control: SPDT (N.O./N.C.) Configuration

A pivotal feature enhancing the versatility of the PS2501K is its Single-Pole Double-Throw (SPDT) electrical configuration, offering both Normally Open (N.O.) and Normally Closed (N.C.) functionality. This means the switch provides three terminals: a common terminal, a normally open terminal, and a normally closed terminal. Depending on how the switch is wired into the control circuit, it can either close a circuit (N.O. operation) or open a circuit (N.C. operation) upon reaching the set pressure point.

• Normally Open (N.O.): In this configuration, the electrical circuit through the switch remains open (no current flows) until the system pressure reaches the set point. Once actuated, the circuit closes, allowing current to flow. This is ideal for applications where an action needs to be initiated when pressure is achieved, such as starting a motor, activating a warning light, or triggering a sequential step in an automated process.
• Normally Closed (N.C.): Here, the electrical circuit through the switch remains closed (current flows) until the system pressure reaches the set point. Upon actuation, the circuit opens, interrupting current flow. This is crucial for safety interlocks, emergency stop circuits, or applications where a continuous signal indicates a "safe" or "normal" operating condition, and its interruption signals an alarm or shutdown. For example, a "low oil pressure" warning light could be wired N.C. to illuminate when pressure drops below the minimum safe level, breaking the circuit to the light.

The SPDT functionality provides unparalleled flexibility, allowing a single switch model to be adapted to a wide range of control strategies, including fail-safe designs. This dual capability simplifies inventory management for users and ensures that the switch can fulfill diverse signaling requirements, whether it's for alarm systems, pump control, valve actuation, or complex interlock sequences in critical industrial machinery.

Exceptional Durability and Safety: The 9000 PSI Proof Pressure Rating

A standout specification of the PS2501K is its impressive 9000 PSI proof pressure rating. Proof pressure is defined as the maximum pressure that can be applied to the sensing element of a pressure switch without causing permanent deformation or affecting its operational characteristics upon return to its normal operating range. This rating is significantly higher than the switch's maximum adjustable set point of 1000 PSI, providing an immense safety margin and indicating an extremely robust design.

The 9000 PSI proof pressure ensures that the switch can withstand severe pressure spikes, hydraulic shock, and transient overloads that are common in demanding high-pressure applications without succumbing to internal damage or experiencing calibration drift. This level of durability translates directly into enhanced system reliability and a significantly longer operational lifespan for the switch. Users can deploy the PS2501K with confidence, knowing it is engineered to endure harsh operational conditions and safeguard their valuable equipment from unexpected pressure events. It differentiates the PS2501K from less robust alternatives, significantly reducing the risk of catastrophic failure, unplanned downtime, and costly repairs associated with inferior components. This high proof pressure is a testament to the meticulous engineering and quality materials employed in its construction, offering peace of mind in critical applications where safety and uninterrupted operation are paramount.

Advanced Engineering and Robust Construction

The reliability and precision of the PS2501K are rooted in its advanced engineering and selection of high-grade materials. For high-pressure applications like those targeted by this switch, a piston-type sensing mechanism is typically employed due to its inherent robustness and resistance to media contamination, as opposed to more delicate diaphragm or bellows designs. In such a design, system pressure acts upon a precision-machined piston, which in turn compresses a calibrated spring. The switch's set point is adjusted by varying the pre-load on this spring, determining the exact pressure at which the piston moves sufficiently to actuate the electrical contacts.

Key construction elements include:

• Housing: Constructed from durable materials such as zinc-plated steel or brass, providing excellent corrosion resistance and mechanical protection against harsh environmental conditions, including vibrations, impacts, and exposure to various industrial fluids.
• Wetted Parts: All components that come into contact with the fluid medium are chosen for their compatibility with a wide range of hydraulic oils, lubricants, and other industrial fluids, preventing degradation and ensuring long-term performance.
• Seals: High-performance elastomers, such as Buna-N (nitrile rubber) or Viton (fluorocarbon rubber), are selected based on temperature range requirements and chemical compatibility, ensuring a reliable, leak-proof seal under fluctuating pressures and temperatures.
• Electrical Contacts: Often made from silver alloy, these contacts provide excellent conductivity and resistance to arcing, ensuring reliable switching over millions of cycles.
• Environmental Rating: While not explicitly stated, industrial-grade pressure switches like the PS2501K are typically designed to meet rigorous ingress protection (IP) standards (e.g., IP65 or IP67), providing resistance against dust ingress and water spray or immersion, making them suitable for outdoor and wash-down applications.

This meticulous attention to material selection and mechanical design guarantees not only the accuracy of the pressure switch but also its exceptional longevity and operational consistency in challenging industrial and mobile environments.

Diverse Applications Across Industries

The versatility and robust nature of the Buyers Products PS2501K make it indispensable across a multitude of industries and applications:

• Mobile Hydraulics: Essential for monitoring hydraulic pressures in snow plows, dump trucks, refuse vehicles, cranes, forklifts, agricultural tractors, and construction excavators. It can trigger alarms for low steering pressure, control auxiliary attachments, or monitor transmission fluid pressure.
• Heavy Machinery: Used in industrial presses, clamping systems, and specialized manufacturing equipment to ensure that hydraulic force is applied correctly, safeguarding against damage from under-pressure or over-pressure conditions.
• Fluid Power Systems: Integral to hydraulic power units (HPUs) where it monitors accumulator charging pressures, pump discharge pressures, or filter differential pressures.
• Lubrication Systems: Crucial for ensuring adequate oil pressure in large engines, gearboxes, and industrial machinery, preventing catastrophic failures due to insufficient lubrication.
• Process Control: While not a proportional sensor, it serves as a critical limit switch in various industrial processes, signaling specific pressure states for sequencing operations or activating safety shutdown protocols.
• Transportation: Can be found in air brake systems (monitoring pneumatic pressure) and hydraulic braking systems for heavy-duty vehicles, providing critical feedback for safety.

Each application benefits from the switch's high precision, adjustability, and the ability to integrate seamlessly into diverse control circuits.

Installation, Calibration, and Maintenance for Optimal Performance

Proper installation and calibration are paramount to realizing the full potential of the PS2501K.

Installation: The switch should be mounted in a location free from excessive vibration, heat, or physical damage. When threading the 1/4 Inch NPT connection, appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant) should be used, and the specified torque applied to ensure a leak-free, mechanically sound connection. Electrical wiring must adhere to local codes and the manufacturer's specifications, utilizing the correct gauge wire and terminals for the intended current and voltage. The SPDT configuration offers flexibility, but care must be taken to connect to the correct N.O. or N.C. terminal as required by the control logic.

Calibration: The adjustability of the PS2501K is a key benefit, but it requires careful calibration. This typically involves connecting a certified pressure gauge and a controlled pressure source to the system. The internal adjustment screw (often accessed by removing a cover) is then turned to set the desired actuation pressure. It is important to account for hysteresis – the difference between the pressure at which the switch actuates (set point) and the pressure at which it de-actuates (reset point). This inherent characteristic of mechanical switches should be understood and considered during system design.

Maintenance: While designed for longevity, periodic inspection is recommended. This includes checking electrical connections for corrosion or loosening, examining the switch housing for physical damage, and verifying its functionality by simulating pressure conditions if possible. Recalibration may be necessary as part of routine preventive maintenance, especially in critical applications or after extended periods of operation under harsh conditions.

Strategic Advantages and Return on Investment

Investing in the Buyers Products 1/4 Inch NPT Adjustable Pressure Switch (PS2501K) translates into tangible benefits and a strong return on investment for any operation:

• Enhanced Safety: By providing accurate pressure feedback and enabling critical safety interlocks, the switch protects both personnel and expensive equipment from the dangers of abnormal pressure conditions.
• Optimized Performance: Precise pressure control ensures that hydraulic and pneumatic systems operate within their design parameters, leading to improved efficiency, responsiveness, and output.
• Reduced Downtime and Maintenance: Early detection of pressure anomalies prevents costly component failures and allows for proactive maintenance, significantly reducing unexpected downtime and repair expenses.
• Increased Equipment Longevity: Operating systems within safe pressure limits reduces wear and tear on pumps, valves, cylinders, and other hydraulic components, extending the overall lifespan of machinery.
• Versatility: The adjustable range and SPDT configuration allow for broad application across diverse equipment, simplifying parts inventory and system design.
• Reliability: Built to Buyers Products' rigorous standards, the PS2501K offers consistent and dependable performance even in the most challenging industrial environments.

Conclusion

The Buyers Products 1/4 Inch NPT Adjustable Pressure Switch (PS2501K) is more than just a component; it is a critical instrument for achieving superior control, reliability, and safety in high-pressure hydraulic and pneumatic systems. Its adjustable range from 250 to 1000 PSI, coupled with the robust 1/4 Inch NPT connection, versatile SPDT electrical configuration, and an exceptional 9000 PSI proof pressure rating, positions it as an indispensable solution for demanding industrial and mobile applications. By providing precise, reliable pressure monitoring and control, the PS2501K enables optimized operational performance, protects valuable assets, and significantly contributes to the longevity and efficiency of modern machinery. For engineers and system designers seeking an uncompromised solution for high-pressure sensing, the PS2501K stands as a testament to advanced engineering and unwavering quality.
