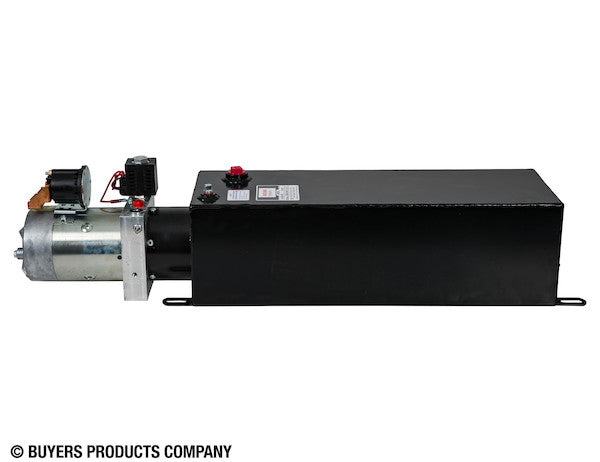

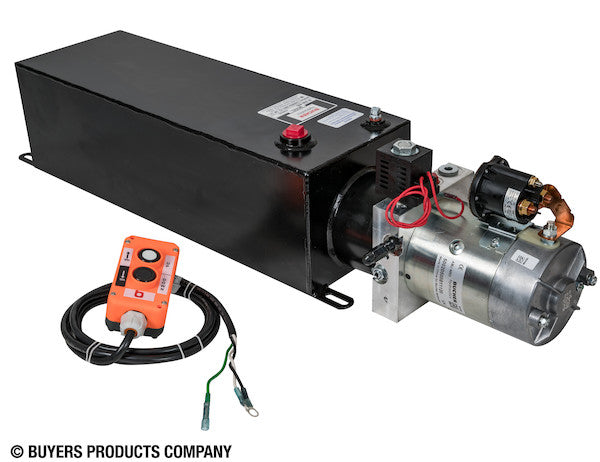

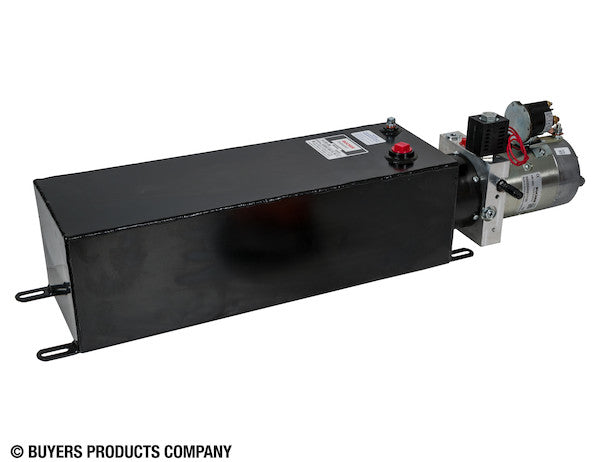

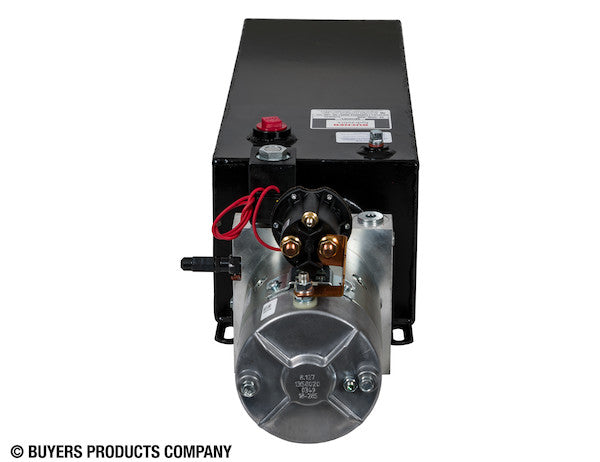

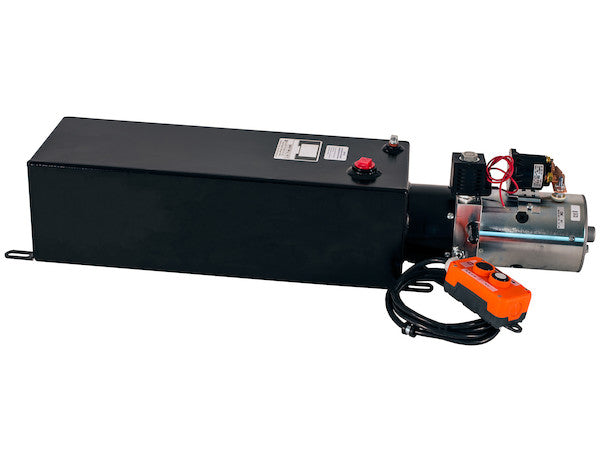

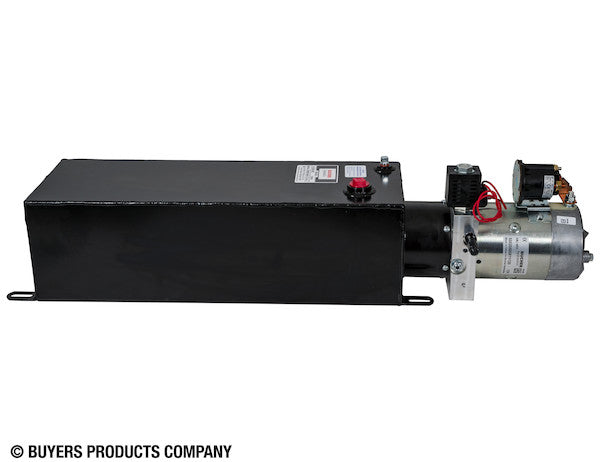

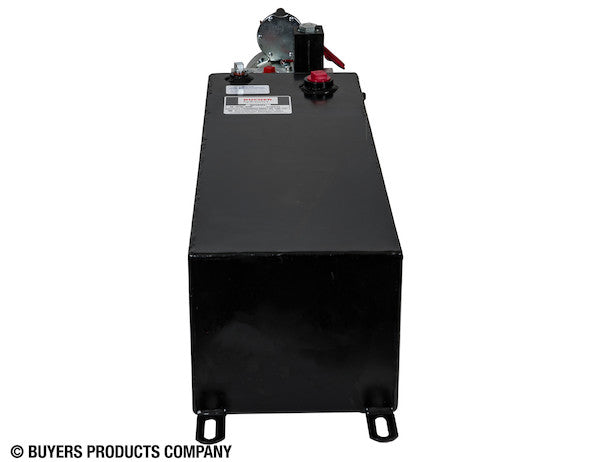

The 3-Way Valve DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. Its large 8 GPM, 3 function dump valve and power up/gravity down hydraulic application make it ideal for dump applications. You get quick-response functionality at your fingertips from one small package. The unit contains a built-in pump, 12V motor, steel reservoir, suction filter, and push-button control station. It also features an externally mounted release valve with flow control on down. The unit is built to withstand weather and tough work demands.
Specifications
| Control Cable Length | 72 |
|---|---|
| Controller Included? | Y |
| Height | 7.72 |
| Length | 32.94 |
| Manual or Push Button | Push Button |
| Motor Horsepower | 2 |
| Motor Power (kW) | 1.5 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 1 |
| Outlet Port Size | 3/8 NPT |
| Pressure Rating | 2500 |
| Reservoir Material | Carbon Steel |
| Reservoir Usable Volume | 3.00 |
| Reservoir Volume (Gal) | 3.00 |
| Spool Action | Power Up/Gravity Down |
| Valve Function | 3W |
| Width | 7.91 |
The 3-Way DC Power Unit with Electric Controls, featuring a Horizontal 3 Gallon Steel Reservoir, represents a robust and highly integrated hydraulic power solution meticulously engineered for demanding applications. This sophisticated power pack integrates essential hydraulic components into a singular, compact assembly, ensuring optimal performance and simplified installation for a variety of mobile and industrial systems. Designed with a focus on reliability, efficiency, and precise control, this unit is a cornerstone for operations requiring dependable hydraulic power.
At the core of this power unit's capability is its high-performance hydraulic pump, efficiently driven by a powerful 12V DC electric motor. The motor, rated at a substantial 2 horsepower (equivalent to 1.5 kW), provides ample rotational force to the pump, generating hydraulic fluid flow at a remarkable rate of 8 Gallons Per Minute (GPM). This flow rate is critical for achieving rapid actuator speeds, particularly in dump applications where swift raising and lowering of loads are paramount. The 12V DC power configuration ensures compatibility with standard vehicle electrical systems, making it an ideal choice for mobile hydraulic systems found in trucks, trailers, utility vehicles, and agricultural equipment. The motor's design emphasizes high torque density and efficiency, ensuring minimal power draw from the vehicle's battery while maximizing hydraulic output. Its robust construction is specifically engineered to endure the rigorous duty cycles inherent in hydraulic operations, providing sustained performance under varying load conditions.
Central to the unit's operational versatility is the integrated 3-Way valve, specifically designed for "Power Up/Gravity Down" hydraulic circuits. This single cartridge valve manages the directional flow of hydraulic fluid, enabling controlled extension of a single-acting cylinder and gravity-assisted retraction. In the "Power Up" mode, the electric motor activates the pump, which pressurizes fluid into the cylinder's port, causing it to extend. When the "Gravity Down" function is engaged, the pump motor deactivates, and the valve redirects fluid from the cylinder back to the reservoir, allowing the weight of the load or the actuator to retract the cylinder. A key feature enhancing the safety and precision of the gravity-down operation is the externally mounted release valve equipped with flow control. This adjustable flow control mechanism precisely regulates the rate at which fluid returns to the reservoir, thereby governing the descent speed of the load. This prevents uncontrolled drops, minimizing potential damage to equipment and enhancing operator safety, a critical consideration in applications such as dump beds, lift gates, and snow plows.
The hydraulic system is designed to operate at a robust pressure rating of 2500 PSI. This high-pressure capability ensures that the unit can generate significant lifting forces, accommodating substantial loads commonly encountered in heavy-duty applications. The precise engineering behind the pump and valve mechanisms ensures that this pressure is maintained efficiently and reliably, delivering consistent performance throughout the operational cycle. The 3/8 NPT (National Pipe Taper) outlet port size provides a standard and secure connection point for hydraulic lines, facilitating straightforward integration into existing or new hydraulic systems. NPT threads are widely recognized for their robust sealing properties under high-pressure conditions, ensuring leak-free connections.
Fluid storage and management are handled by a durable 3-gallon carbon steel reservoir. The choice of carbon steel as the reservoir material is deliberate, offering exceptional strength, impact resistance, and long-term durability, crucial for units exposed to harsh operating environments. The horizontal mounting position of the reservoir is engineered to optimize space utilization within constrained vehicle chassis or equipment compartments, while also facilitating effective heat dissipation from the hydraulic fluid. The reservoir's usable volume of 3.00 gallons ensures an adequate supply of hydraulic fluid for sustained operation, minimizing the risk of cavitation and overheating. To protect the pump and other sensitive hydraulic components from contaminants, a high-efficiency suction filter is integrated within the reservoir. This filter plays a vital role in removing particulate matter from the hydraulic fluid before it enters the pump, thereby extending the lifespan of the entire hydraulic system and ensuring optimal performance by preventing wear and tear caused by abrasive particles.
User interaction and control are managed through an intuitive push-button control station, included with the unit. This wired controller features a generous 72-inch cable, providing operators with considerable flexibility in positioning the control interface for ergonomic and safe operation. The push-button interface simplifies complex hydraulic actions into straightforward commands, reducing operator fatigue and increasing operational efficiency. The robust design of the controller ensures reliable performance even in challenging environmental conditions, resisting moisture, dust, and physical impact. The seamless integration of electric controls with the hydraulic valve mechanism ensures rapid response times, translating to immediate and precise control over the hydraulic actuator's movements, which is particularly beneficial in time-sensitive operations.
The overall construction of the 3-Way DC Power Unit is engineered to withstand severe weather conditions and the rigorous demands of heavy-duty work environments. Every component, from the steel reservoir to the motor housing and valve body, is selected and manufactured to meet stringent industrial standards for durability. This robust build quality ensures prolonged operational life, minimizes downtime, and reduces maintenance requirements, offering exceptional value and return on investment. The compact design, with dimensions of approximately 32.94 inches in length, 7.91 inches in width, and 7.72 inches in height, allows for flexible mounting options and makes it an excellent choice for applications where space is at a premium without compromising on hydraulic power or performance. Its all-in-one configuration reduces the complexity of system design and installation, as users receive a fully assembled and tested hydraulic power solution, ready for integration.
The versatile applications of this 3-Way DC Power Unit extend beyond typical dump truck bodies. It is equally suitable for a variety of single-acting cylinder applications, including:
- Dump Trailers: Providing the power to lift and lower trailer beds for efficient material handling.
- Snow Plows: Offering reliable power-up for blade lifting and gravity-down for lowering, ensuring quick and effective snow removal operations.
- Lift Gates: Enabling smooth and controlled operation of vehicle lift gates for loading and unloading cargo.
- Small Agricultural Equipment: Powering implements requiring single-acting hydraulic functions, such as some types of tillers, spreaders, or specialized attachments.
- Utility Vehicles and Service Trucks: Supporting various on-board hydraulic tools or mechanisms, such as small cranes or articulated arms.
- Industrial Applications: Operating scissor lifts, work platforms, or other mechanisms in stationary or mobile industrial settings where controlled lifting and gravity-assisted lowering are required.
The technical advantages of this integrated power unit are significant. Its "Power Up/Gravity Down" spool action offers inherent simplicity and efficiency for single-acting cylinders, reducing plumbing complexity and component count compared to double-acting systems. The use of a single cartridge valve for the primary hydraulic function, combined with the external release valve for flow control, demonstrates a sophisticated yet robust design approach, balancing functionality with reliability. The unit's adherence to the 12V DC standard ensures broad compatibility and ease of electrical integration across a vast range of mobile platforms, while the substantial 2 HP motor guarantees the hydraulic muscle required for demanding tasks. The attention to detail in component selection, such as the carbon steel reservoir and integrated suction filter, underscores a commitment to long-term operational integrity and reduced maintenance overhead.
In conclusion, the 3-Way DC Power Unit-Electric Controls with a Horizontal 3 Gallon Steel Reservoir is an exemplary hydraulic power solution. It skillfully combines a powerful 12V DC motor, an efficient 8 GPM pump, a precise 3-way dump valve with controlled descent capabilities, and a durable 3-gallon steel reservoir into a compact, robust package. Engineered for resilience against environmental challenges and demanding operational cycles, and controlled by a user-friendly push-button station, this unit delivers unparalleled performance, reliability, and safety for a wide array of single-acting hydraulic applications. Its integrated design simplifies installation, reduces overall system costs, and ensures quick-response functionality, making it an indispensable component for professionals seeking an efficient and dependable hydraulic power source.
