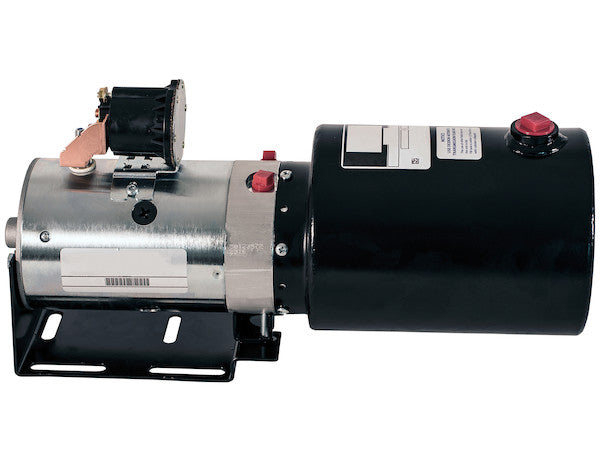

The DC Power Unit - No Valve from Buyers Products is a pump/motor/reservoir power pack for use with an external valve. The unit contains a built-in pump, 12V motor, steel reservoir and suction filter. It features a solenoid-actuated, externally adjustable release valve for control of lowering speed.
Specifications
| Controller Included? | No |
|---|---|
| Height | 6.00 |
| Length | 9.00 |
| Manual or Push Button | Manual |
| Motor Horsepower | 2 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 1 |
| Outlet Port Size | 3/8 NPT |
| Pressure Rating | 2500 |
| Reservoir Material | Carbon Steel |
| Reservoir Usable Volume | 1.00 |
| Reservoir Volume (Gal) | 1.00 |
| Valve Function | 4W |
| Width | 6.00 |
Advanced Technical Overview: No Valve DC Powered Unit – Modular Hydraulic Power Source
The "No Valve DC Powered Unit-Externally Adjustable Relief Horizontal 1.00 Gallon" represents a robust and versatile foundation for a diverse range of mobile and stationary hydraulic applications. Engineered for optimal performance and integration flexibility, this unit provides essential hydraulic power generation and fluid management, designed for seamless pairing with an external control valve system tailored to specific application requirements. Its inherent modularity positions it as an ideal choice for engineers and system integrators seeking a high-quality, compact, and customizable hydraulic power solution.
Core Design Philosophy: Modular Integration for Enhanced Versatility
A cornerstone of this power unit's design is its "No Valve" primary circuit configuration, intentionally omitting an integrated directional control valve. This design choice is not a limitation but a strategic advantage, promoting unparalleled flexibility in system design. By allowing for the selection and integration of external directional control valves, users can customize their hydraulic circuits to meet precise operational demands, including complex multi-function systems, precise flow control, or specialized valving architectures. This modular approach simplifies maintenance, streamlines troubleshooting, and adapts to evolving application needs. The unit's design intrinsically supports integration with external 4-way (4W) directional control valves, enabling bi-directional actuation for cylinders or motors, making it suitable for lift, lower, extend, and retract operations where precise control over fluid path is paramount.
High-Performance DC Motor and Pump Assembly
At the heart of this compact power unit lies a powerful 12V DC electric motor, rated at 2 horsepower (HP). This motor is specifically selected for its efficiency, reliability, and capability to deliver substantial torque, making it exceptionally well-suited for demanding hydraulic applications in environments where only direct current power is readily available, such as vehicle-mounted systems, battery-powered equipment, or remote installations. The 12V specification ensures compatibility with standard automotive and marine electrical systems, simplifying power supply integration. The 2 HP rating provides ample power for a wide array of medium-duty tasks. The motor is directly coupled to a high-efficiency hydraulic pump, typically a positive displacement gear pump, which is renowned for its robust construction, consistent flow delivery, and tolerance to contamination. This pump type ensures reliable performance across varying operating conditions, converting the motor's rotational energy into hydraulic pressure with minimal energy loss. Integrating these components into a single, compact assembly minimizes transmission losses and enhances power density.
Robust Fluid Reservoir and Filtration System
Fluid containment and management are critical for the longevity and efficiency of any hydraulic system. This unit features a 1.00-gallon usable volume carbon steel reservoir, designed for horizontal mounting. The choice of carbon steel provides exceptional durability, resistance to mechanical stress, and compatibility with hydraulic fluids, ensuring extended service life in harsh environments. The 1.00-gallon capacity is carefully optimized to provide sufficient hydraulic fluid volume for typical duty cycles, facilitating adequate heat dissipation and minimizing fluid aeration, which can degrade system performance and fluid life. The horizontal mounting configuration is advantageous for applications with restricted vertical space, offering flexibility in installation while maintaining stable fluid levels during operation. Integrated within the reservoir assembly is a critical suction filter. This component plays a vital role in protecting the hydraulic pump and downstream components from particulate contamination. By filtering fluid as it is drawn from the reservoir, the suction filter prevents abrasive particles, debris, and other contaminants from entering the hydraulic circuit, thereby significantly extending the operational life of the pump, valves, and actuators, and maintaining optimal system efficiency. Regular inspection and replacement of the suction filter are essential aspects of the unit's preventative maintenance schedule.
Advanced Pressure Control: Solenoid-Actuated, Externally Adjustable Relief Valve
A defining feature of this power unit is its sophisticated pressure management system, centered around a single, cartridge-style, solenoid-actuated, and externally adjustable relief valve. This valve serves as the primary safety mechanism for the hydraulic circuit, preventing over-pressurization by diverting excess fluid back to the reservoir when a pre-set pressure threshold is exceeded. The solenoid actuation allows for electrical control of the relief function, enabling remote activation or integration into automated control sequences. This capability provides enhanced operational flexibility and safety, allowing system pressure to be managed dynamically based on operational requirements. Furthermore, the external adjustability of this relief valve is a significant ergonomic and technical advantage. It permits precise setting of the maximum system pressure without requiring system disassembly, facilitating fine-tuning during commissioning or adjustment to accommodate varying load conditions and application demands. While its primary role is pressure limitation, its function in controlling "lowering speed" implies its role in regulating the rate of descent or retraction in gravity-assisted applications by managing pressure build-up during these phases. This indirect speed control, achieved by regulating maximum pressure, contributes to smoother, more predictable operation and enhanced safety. The cartridge valve design offers compactness, ease of service, and robust performance within the integrated manifold.
Performance Specifications and System Integration
The unit's technical specifications underscore its capability and design intent for demanding hydraulic tasks. With a robust pressure rating of 2500 PSI, this power unit is capable of generating significant force, making it suitable for applications requiring substantial lifting, clamping, or actuating power. The 3/8 NPT outlet port provides a standardized connection for hydraulic lines, ensuring wide compatibility with fittings and simplifying system integration. The compact dimensions – 6.00 inches in height, 9.00 inches in length, and 6.00 inches in width – highlight the unit's excellent power-to-size ratio, making it ideal for installations where space is a critical constraint. The horizontal mounting position further contributes to its adaptability in diverse spatial configurations, ensuring stable operation and optimal fluid dynamics within the reservoir.
The Advantage of a "No Controller Included" Design
The deliberate exclusion of an integrated controller provides system designers with maximum freedom to implement their preferred control architecture. This unit acts purely as a hydraulic power generator, allowing for the integration of custom control systems, ranging from simple manual switches or push-button interfaces to sophisticated Programmable Logic Controllers (PLCs) or advanced human-machine interface (HMI) systems. The "Manual or Push Button" specification primarily refers to the interaction points for the externally adjustable relief valve, not the primary system control, reinforcing the need for an external control system to drive the 12V motor and any external directional control valves. This flexibility ensures that the hydraulic power unit can be integrated into existing control networks or designed into new, highly specialized automation projects without redundant components or restrictive proprietary interfaces.
Applications and Versatility
The intrinsic characteristics of this No Valve DC Powered Unit – including its 12V power, 2 HP motor, 2500 PSI pressure rating, and modular design – make it suitable for a broad spectrum of applications across various industries. Common uses include, but are not limited to:
- Mobile Equipment: Ideal for dump trailers, lift gates on service vehicles, snow plows, utility vehicle attachments, and other vehicle-mounted hydraulic systems requiring compact and reliable power.
- Agricultural Machinery: Suitable for small farm equipment, implements, and specialized tools that benefit from portable hydraulic power.
- Material Handling: Can power small lift tables, ergonomic workstations, and light-duty conveyors where controlled lifting and lowering are essential.
- Marine Applications: Applicable for powering trim tabs, anchor winches, or other hydraulic functions on boats and marine vessels where 12V power is standard.
- Industrial Automation (Light Duty): For custom jig and fixture actuation, small presses, or clamping systems where a compact hydraulic footprint is required.
- Specialty Vehicles: Perfect for handicap accessibility lifts, small compactors, and custom utility vehicles.
The unit's ability to seamlessly integrate with external 4-way valves further expands its application scope, allowing for precise control over double-acting cylinders or reversible hydraulic motors, essential for most bi-directional actuation requirements.
Durability, Maintenance, and Longevity
Constructed with high-quality components, including a robust carbon steel reservoir and a durable 12V motor, this power unit is designed for long-term reliability in demanding operational environments. Proper maintenance is key to maximizing its lifespan and ensuring consistent performance. This includes:
- Hydraulic Fluid Management: Regular checking of hydraulic fluid levels and quality, with adherence to manufacturer-recommended specifications for fluid type and viscosity. Timely fluid changes prevent degradation and contamination.
- Filter Replacement: Periodic inspection and replacement of the suction filter are crucial to protect the pump and system components from particulate wear.
- Electrical System Integrity: Maintaining clean and secure electrical connections for the 12V motor and solenoid-actuated relief valve is essential for reliable operation.
- Pressure Relief Valve Calibration: Occasional verification and adjustment of the externally adjustable relief valve to ensure it maintains the correct pressure setting for optimal safety and performance.
Adherence to these maintenance protocols will ensure the unit operates at peak efficiency and provides reliable hydraulic power for years to come.
Conclusion
The "No Valve DC Powered Unit" is a premier choice for professionals requiring a flexible, powerful, and compact DC hydraulic power source. Its modular design, coupled with robust components like the 2 HP 12V motor, durable carbon steel reservoir, and precision-engineered solenoid-actuated relief valve, provides a high-performance foundation for a multitude of hydraulic systems. By offering the freedom to choose and integrate external control valves, this unit empowers engineers to create optimized, application-specific hydraulic solutions that are both efficient and easy to maintain. It represents thoughtful engineering, balancing power, compactness, and adaptability for modern hydraulic demands.
